Toe Adjustment - F-250 and F-350, 4x2

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Start the engine (6007) and center the steering wheel (3600).

Fig 1: Centering Steering Wheel
Courtesy of FORD MOTOR CO.
Turn the engine off, and hold the steering wheel in the straight-forward position by attaching a rigid link from the steering wheel to the brake pedal.
Check the toe settings; follow the manufacturer's instructions.
Loosen the nuts.
- Clean and lubricate the steering linkage and tie rod end threads.

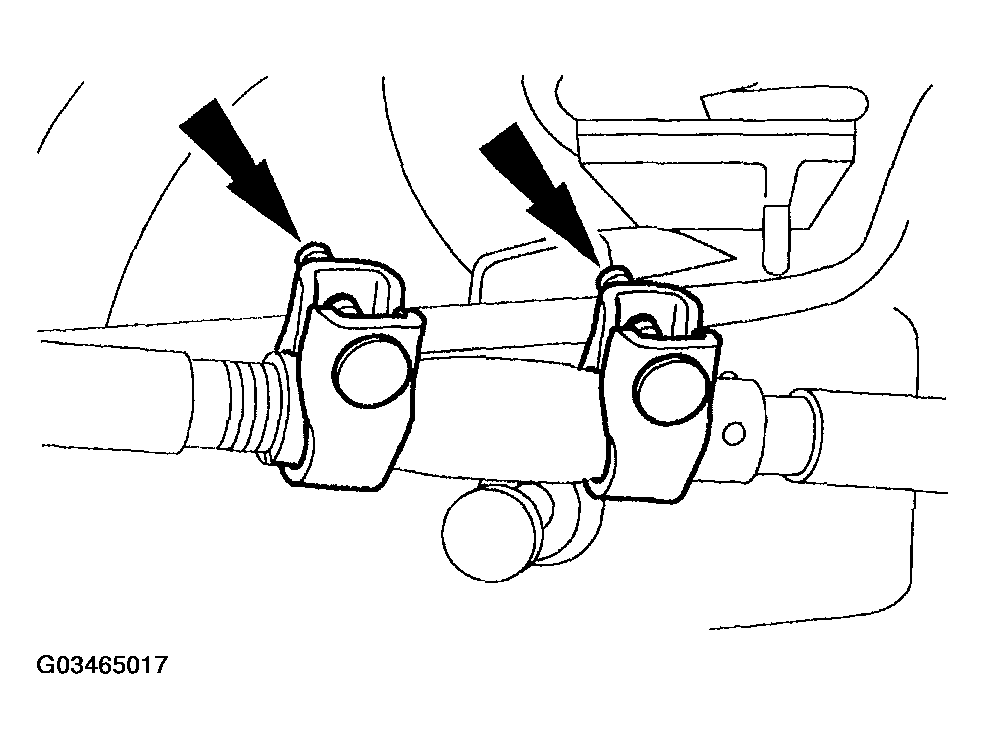

Fig 2: Loosening Nuts
Courtesy of FORD MOTOR CO.
Rotate the tie rod adjusting sleeves (3281) to obtain the correct toe setting.

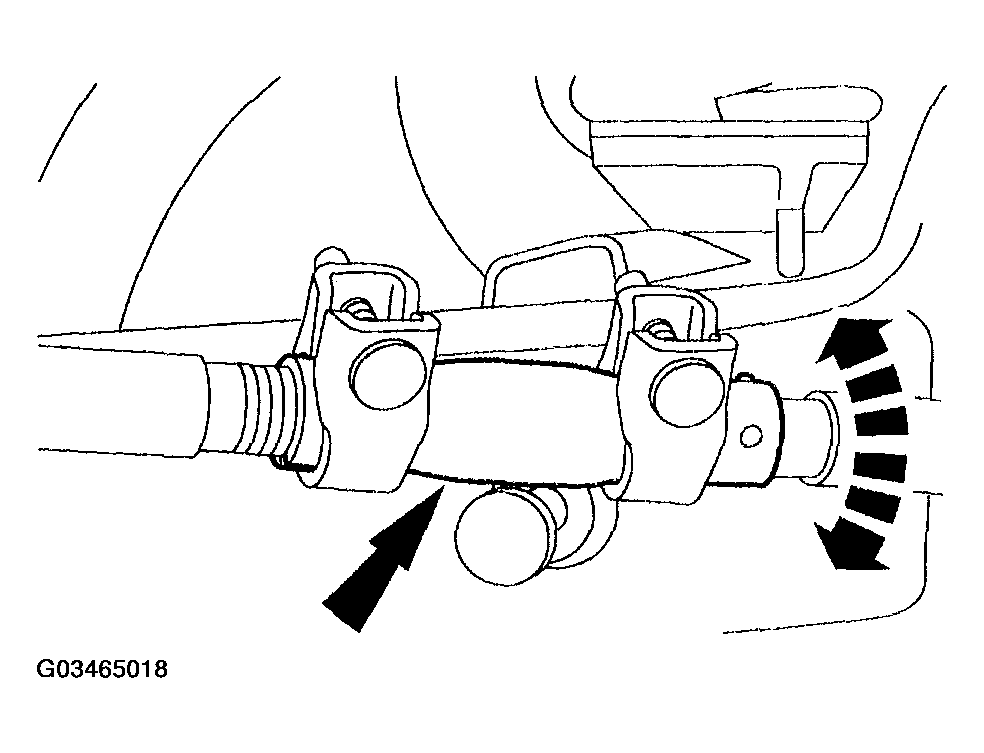

Fig 3: Rotating Tie Rod Adjusting Sleeves To Obtain Correct Toe Setting
Courtesy of FORD MOTOR CO.
Position the RH adjusting sleeve clamp opening downward within 45 degrees of vertical. Tighten the nuts.
Position the LH adjusting sleeve clamp opening upward within 45 degrees of vertical. Tighten the nuts.
Recheck the toe settings; follow the manufacturer's instructions.
