Camber and Caster Adjustment - F-250, F-350 4x4 and F-450, F-550

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Special Tool(s)

Fig 1: Identifying Special Tool Specification Chart
G03465000Courtesy of FORD MOTOR CO.
  1. Raise and support the vehicle.
  2. Remove the front wheel; Refer to WHEELS & TIRES .
  3. Check and note the amount of camber in the current camber adjuster sleeve.
  4. Select a new camber adjuster sleeve.
    • The camber change required to obtain the optimum settings must be added or subtracted from the amount of camber in the old or production camber adjuster sleeve.
    • Use this example as a guide. If the LH wheel camber must be reduced 1 degree and the existing camber adjuster sleeve has a +0.5 degree of camber, select the -0.5 degree camber adjuster sleeve.
  5. Remove the cotter pin and castellated nut. Discard the cotter pin.

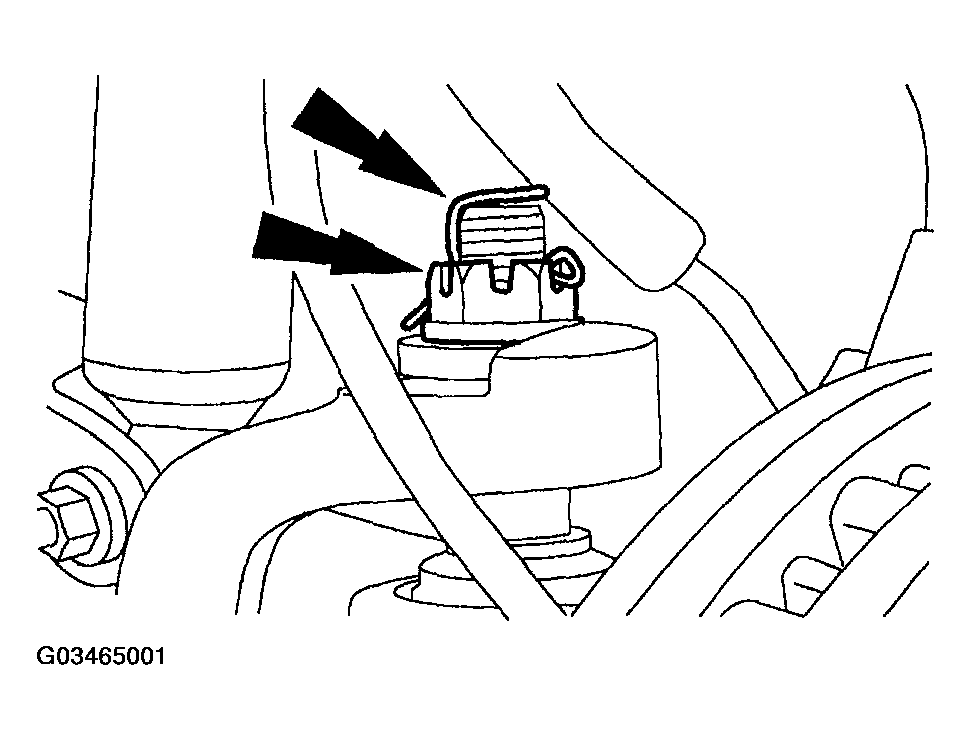

    Fig 2: Removing Cotter Pin And Castellated Nut
    G03465001Courtesy of FORD MOTOR CO.
  6. Install the nut.

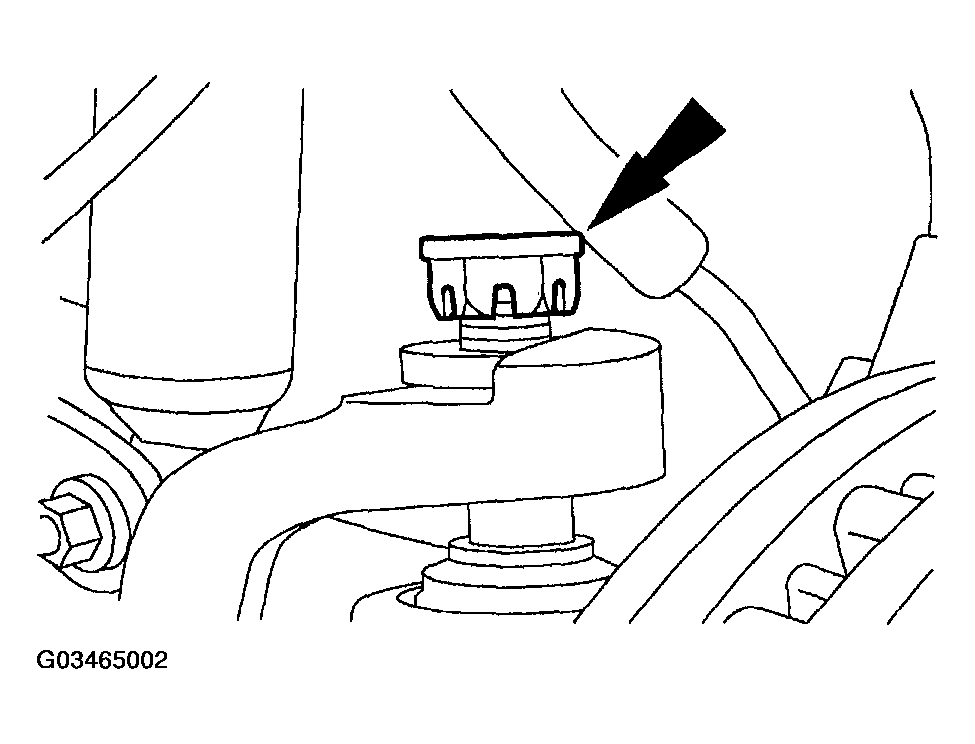

    Fig 3: Installing Nut
    G03465002Courtesy of FORD MOTOR CO.
  7. Loosen the nut to the end of the lower ball joint stud.

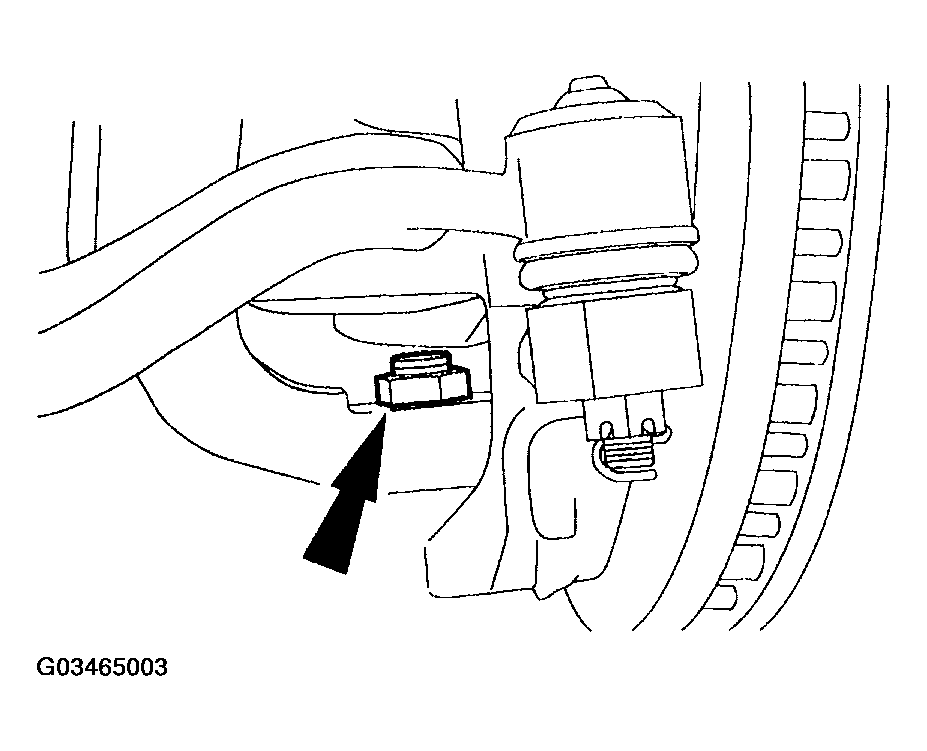

    Fig 4: Loosening Nut To End Of Lower Ball Joint Stud
    G03465003Courtesy of FORD MOTOR CO.
  8. CAUTION: Use care not to damage the brake and vacuum lines when striking the spindle.
  9. Separate the spindle from the axle.
  10. Remove the nut.
    Fig 5: Removing Nut
    G03465004Courtesy of FORD MOTOR CO.
  11. Remove the camber adjuster sleeve.
    • Use the Steering Arm Remover.

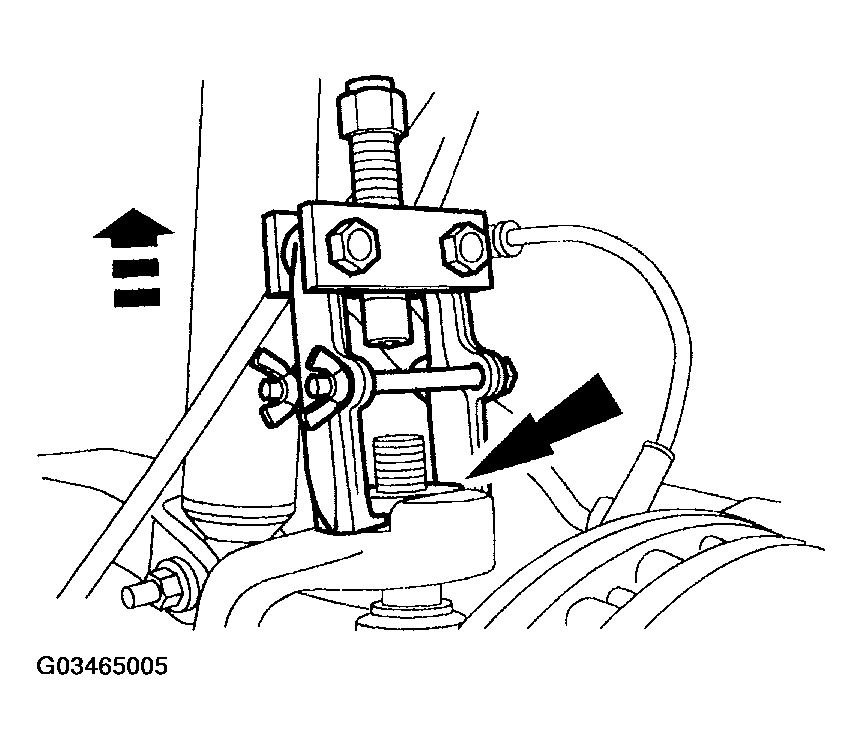

    Fig 6: Removing Camber Adjuster Sleeve
    G03465005Courtesy of FORD MOTOR CO.
  12. Install the new camber adjuster sleeve.

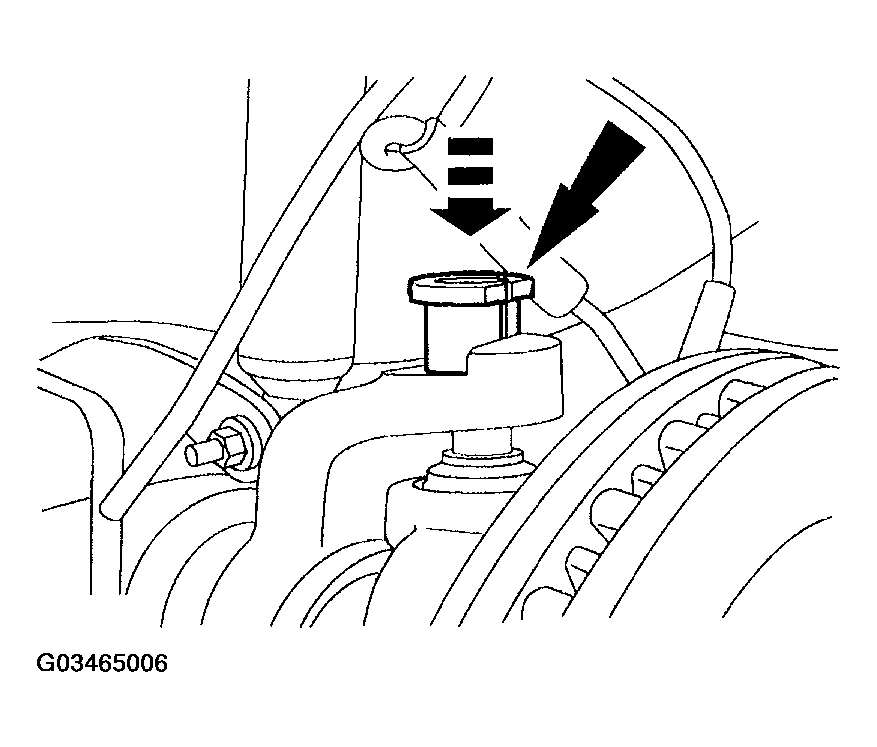

    Fig 7: Installing New Camber Adjuster Sleeve
    G03465006Courtesy of FORD MOTOR CO.
  13. Remove the nut.

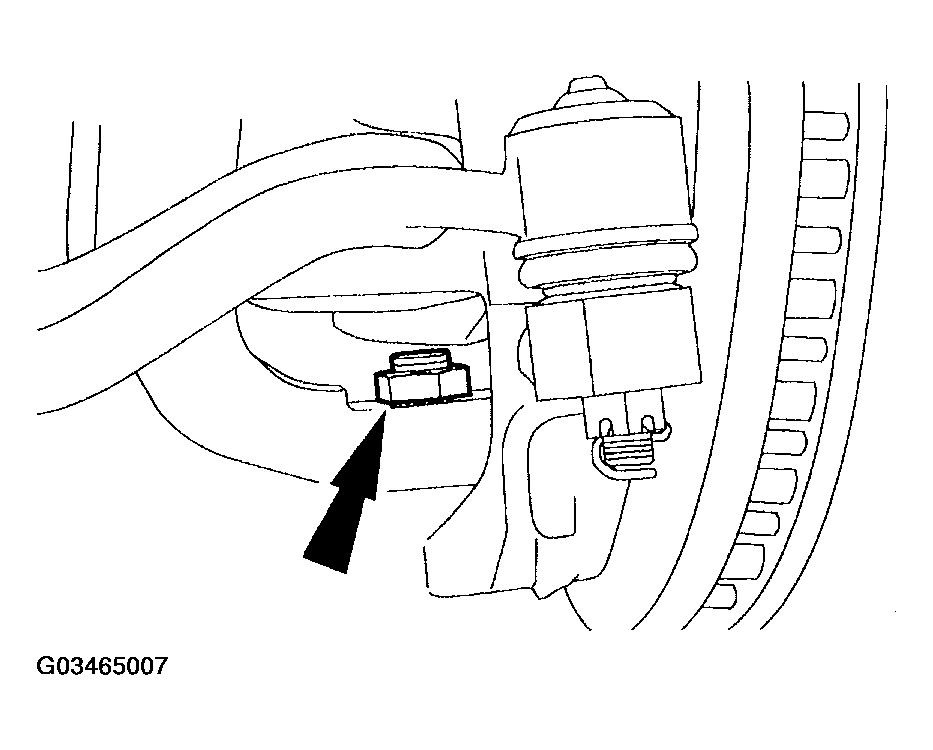

    Fig 8: Removing Nut
    G03465007Courtesy of FORD MOTOR CO.
  14. Install the nut and tighten to initial torque.
    • Apply Threadlock and Sealer E0AZ-19554-AA or equivalent meeting Ford specification WSK-M2G315-A5 (Type II).

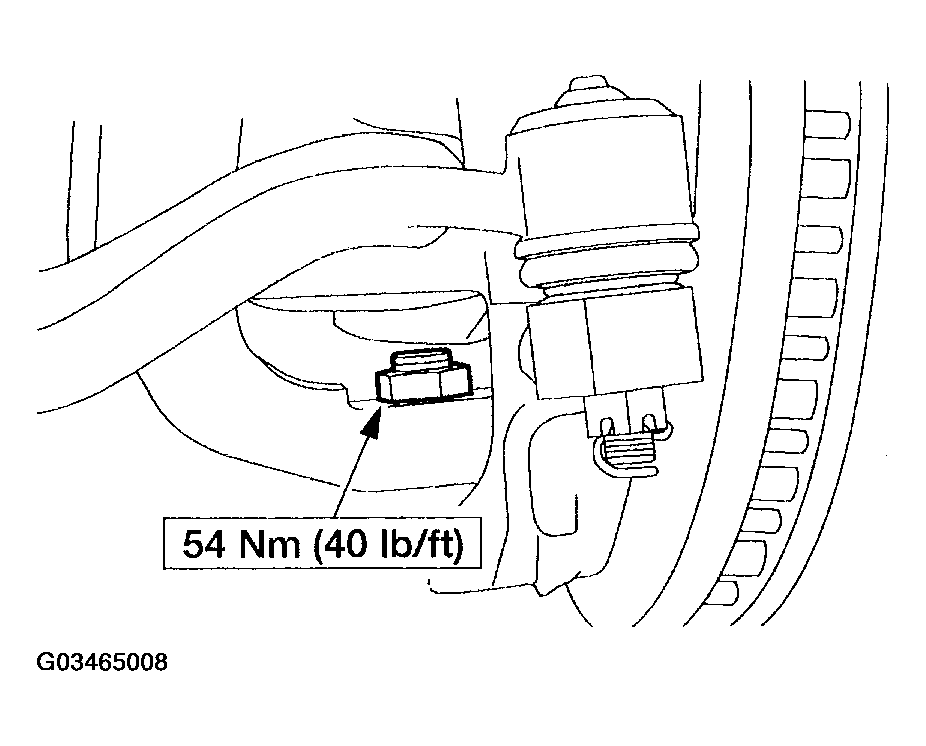

    Fig 9: Applying Threadlock And Sealer E0AZ-19554-AA
    G03465008Courtesy of FORD MOTOR CO.
  15. Install the castellated nut and a new cotter pin.

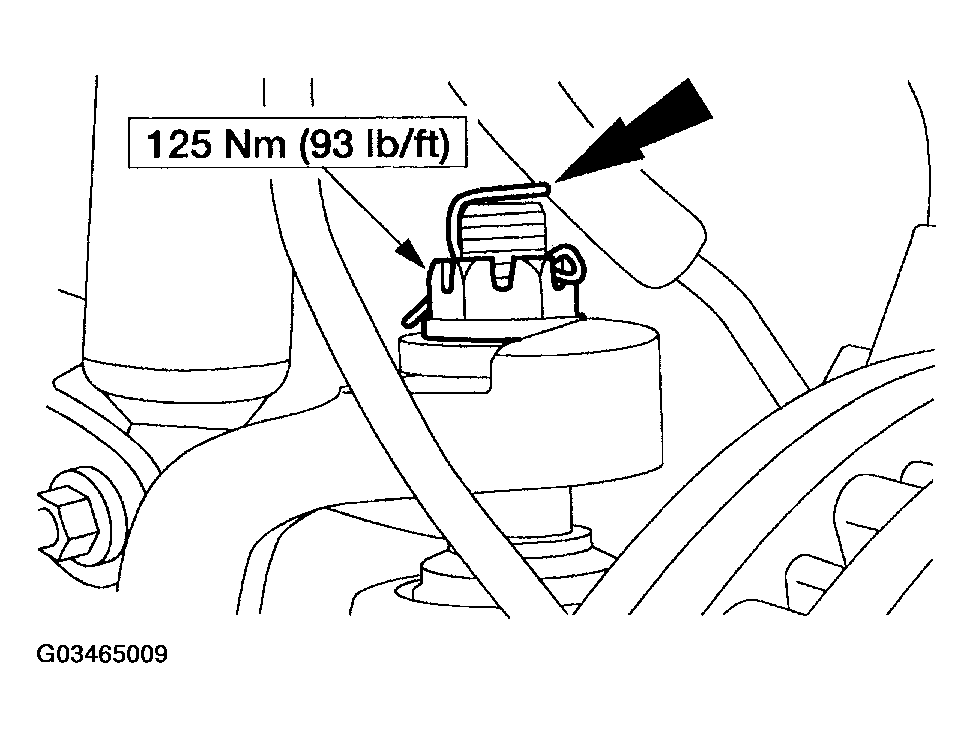

    Fig 10: Installing Castellated Nut And A New Cotter Pin
    G03465009Courtesy of FORD MOTOR CO.
  16. Tighten the nut to final torque.

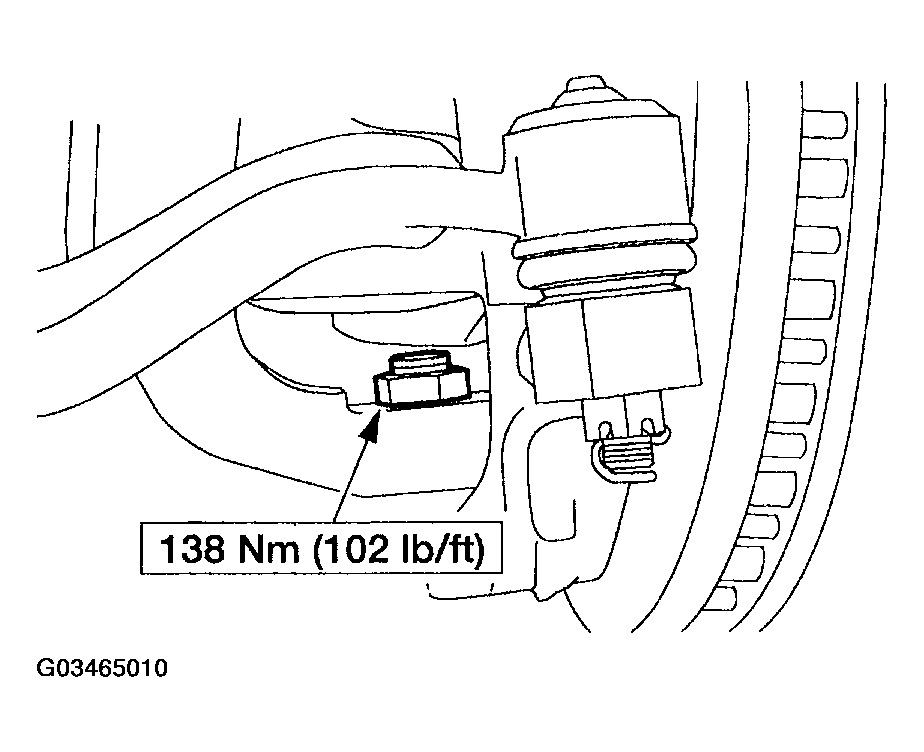

    Fig 11: Tightening Nut To Final Torque
    G03465010Courtesy of FORD MOTOR CO.
  17. Install the front wheel; Refer to WHEELS & TIRES .
  18. Raise and support the vehicle. .
  19. Recheck the camber measurement. Readjust as necessary.
