Pinpoint Test K: High Speed Shake Or Shimmy

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.

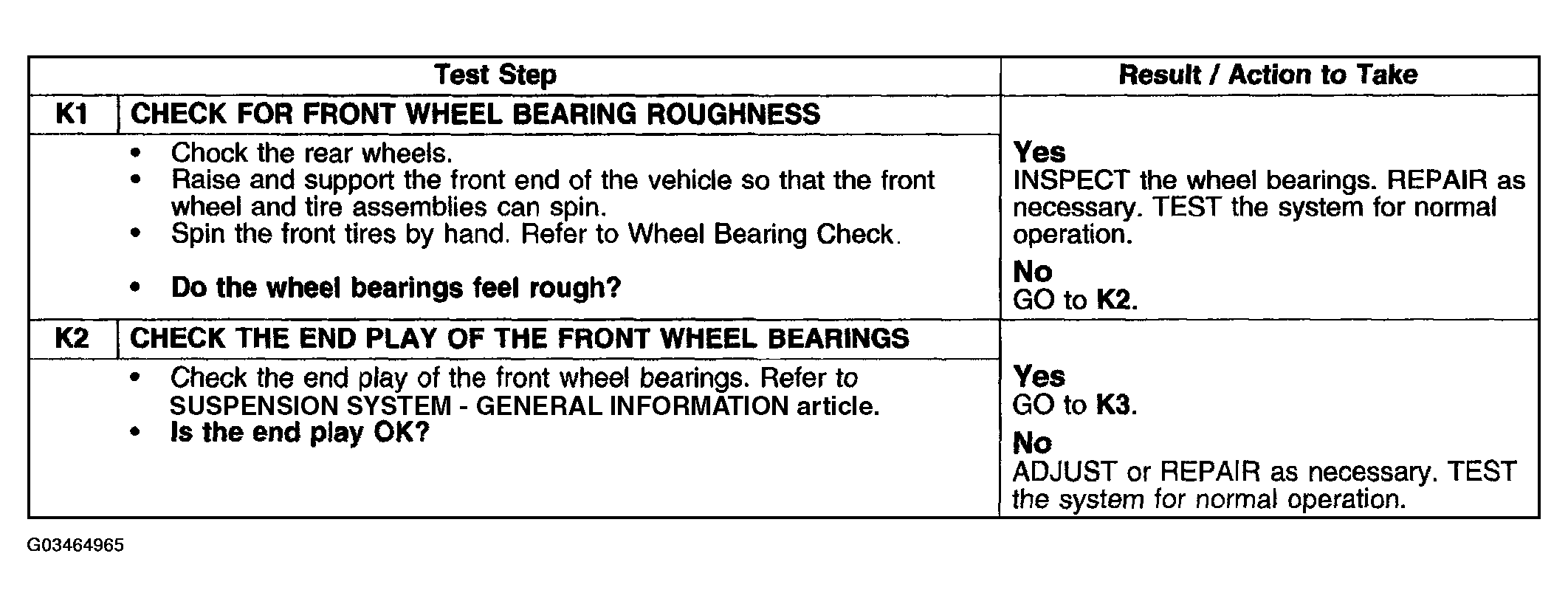

Fig 1: Pinpoint Test K: High Speed Shake Or Shimmy (K1 & K2)

Courtesy of FORD MOTOR CO.

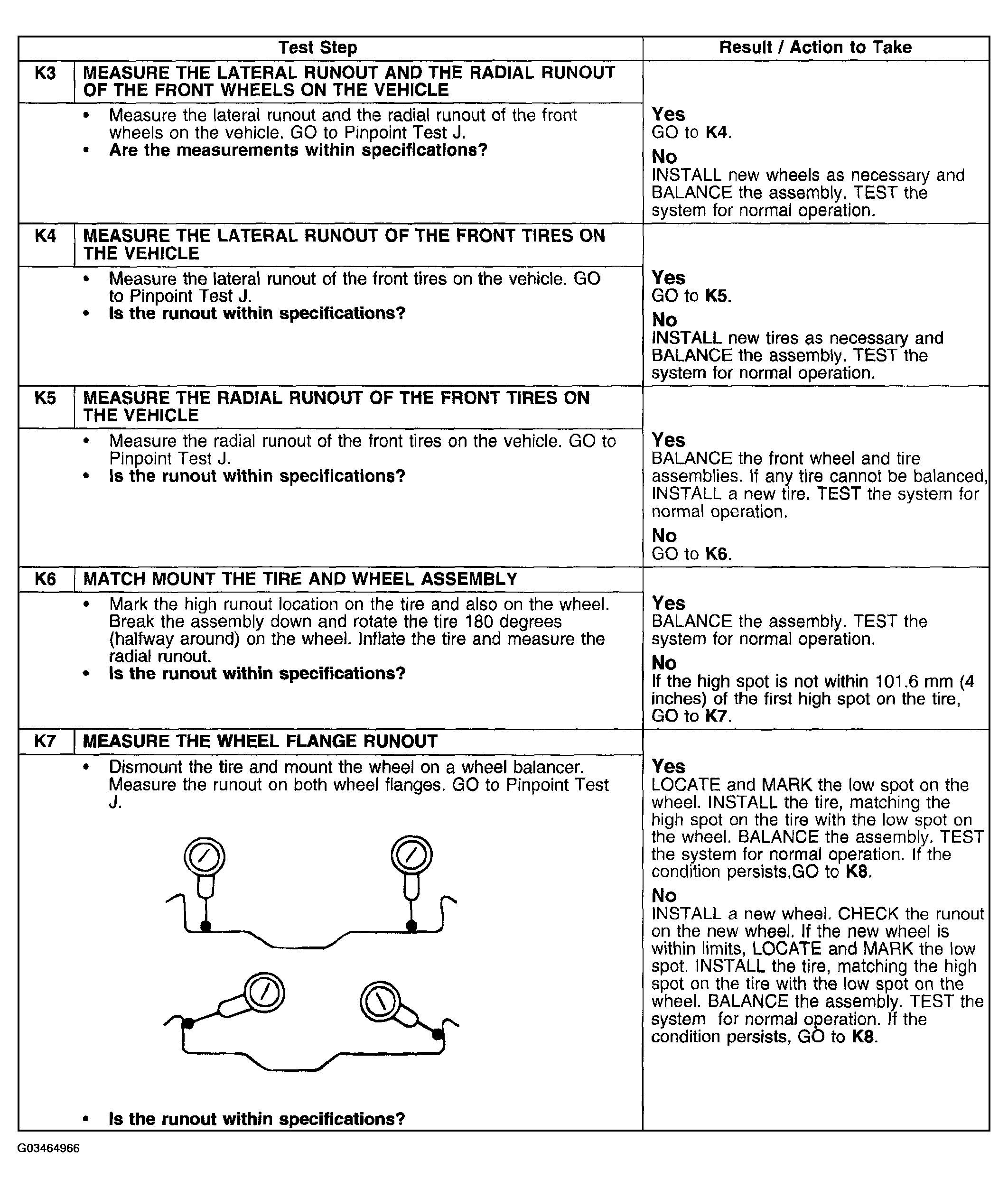

Fig 2: Pinpoint Test K: High Speed Shake Or Shimmy (K3-K7)

Courtesy of FORD MOTOR CO.

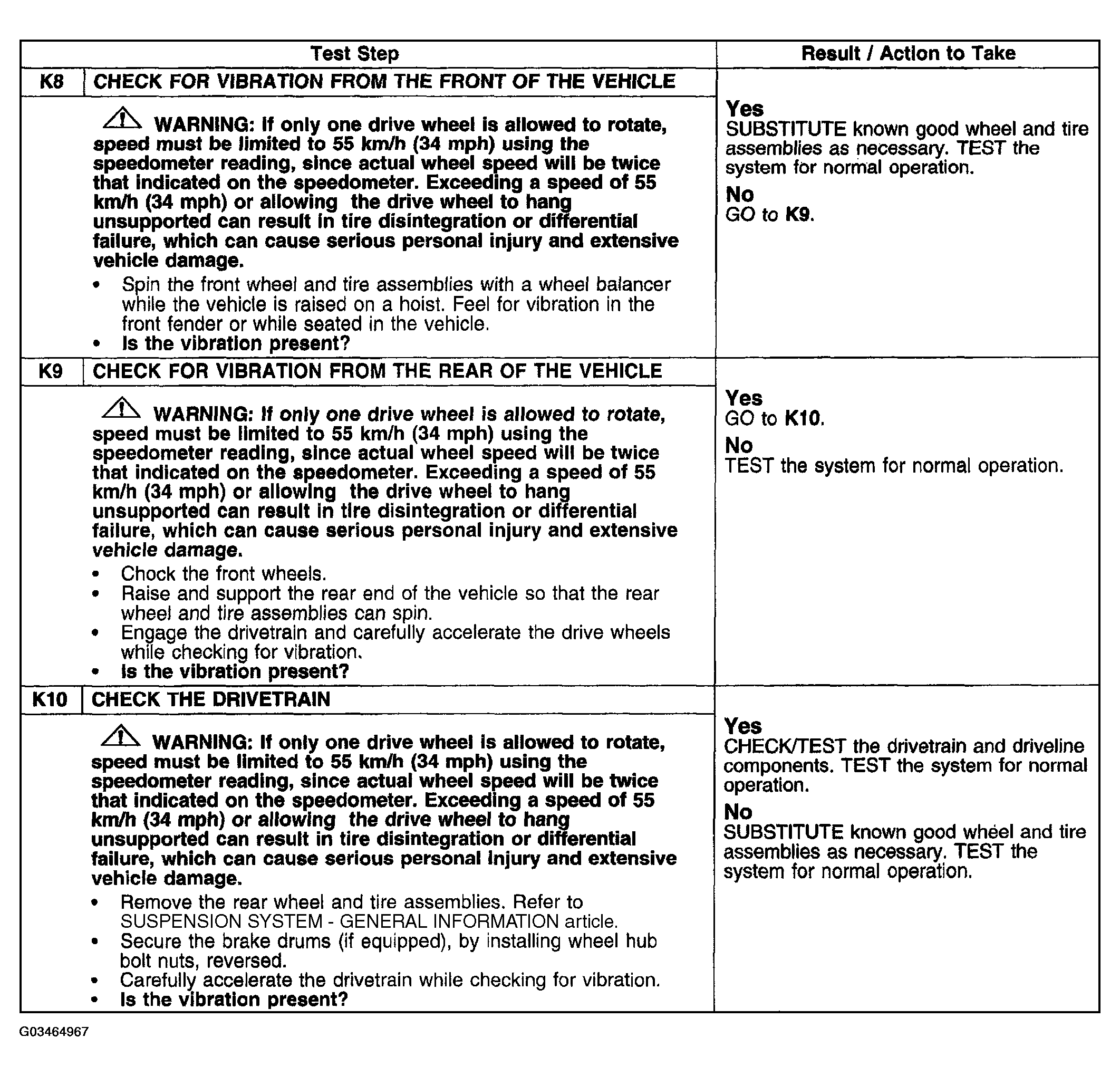

Fig 3: Pinpoint Test K: High Speed Shake Or Shimmy (K8-K10)

Courtesy of FORD MOTOR CO.
