Pinpoint Test J: Wheel And Tire

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.

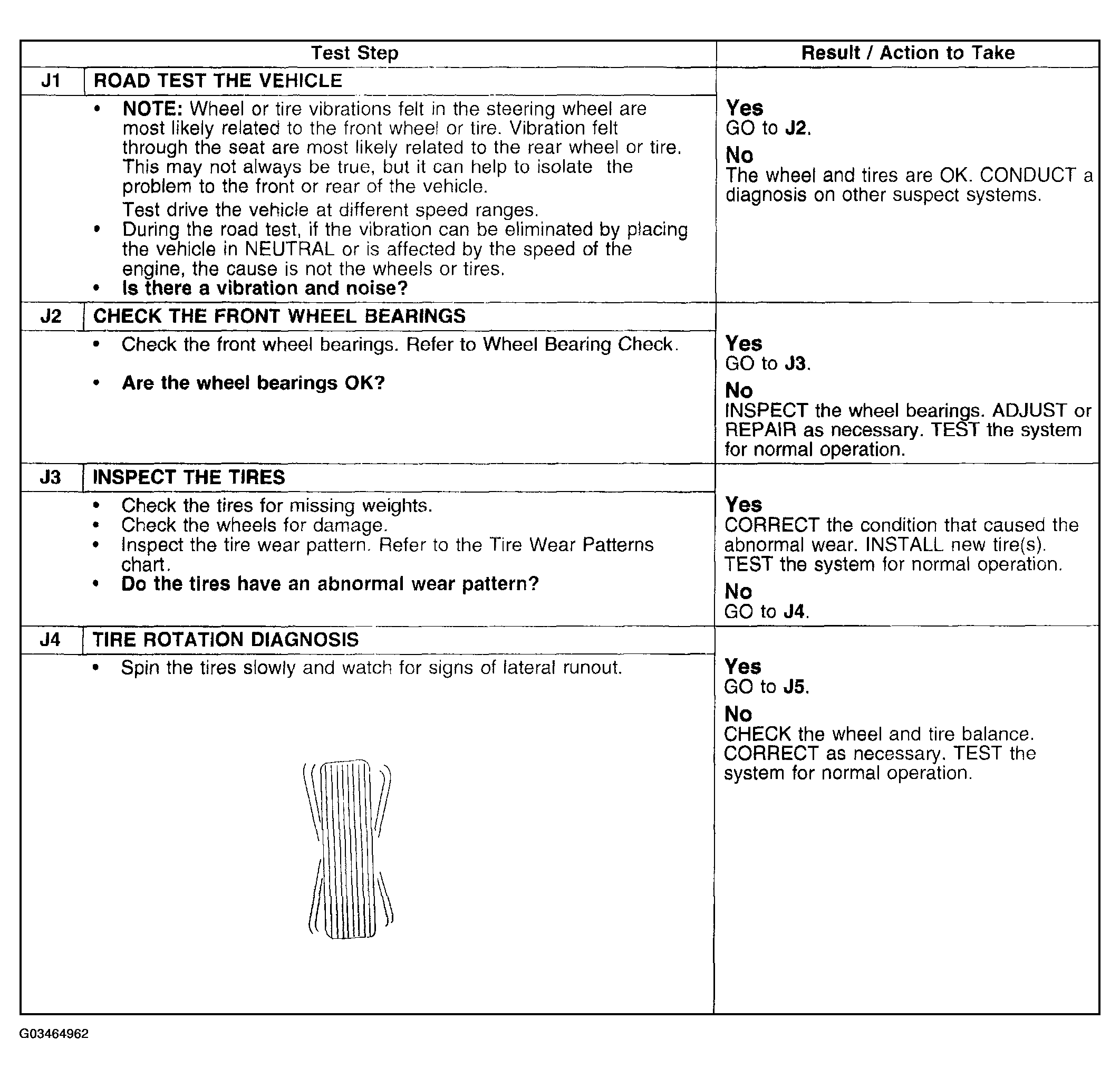

Fig 1: Pinpoint Test J: Wheel And Tire (J1-J4)
G03464962Courtesy of FORD MOTOR CO.

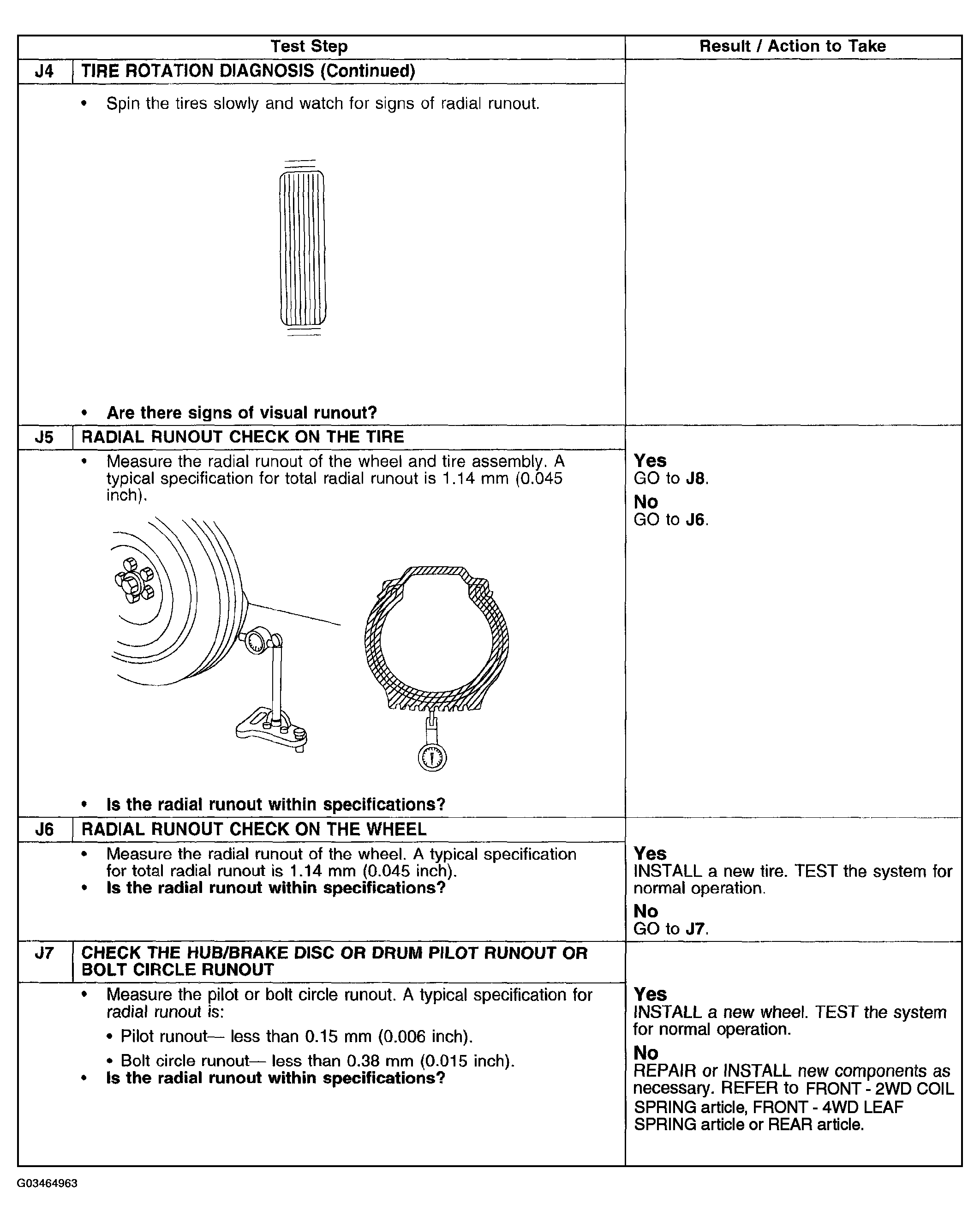

Fig 2: Pinpoint Test J: Wheel And Tire (J4-J7)
G03464963Courtesy of FORD MOTOR CO.

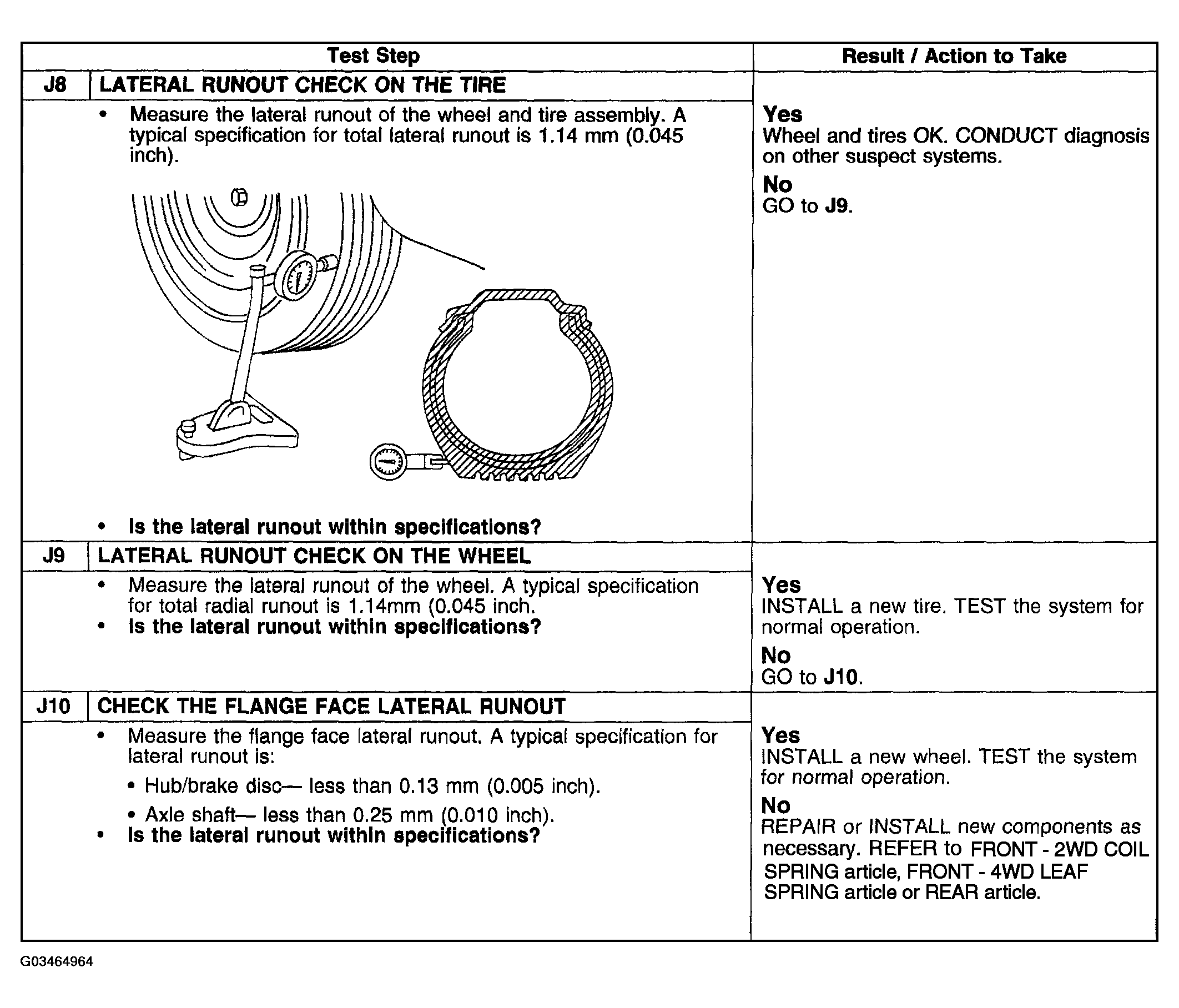

Fig 3: Pinpoint Test J: Wheel And Tire (J8-J10)
G03464964Courtesy of FORD MOTOR CO.
