Pinpoint Test G: Engine Ticking, Knocking Or Continuous Rattle

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.

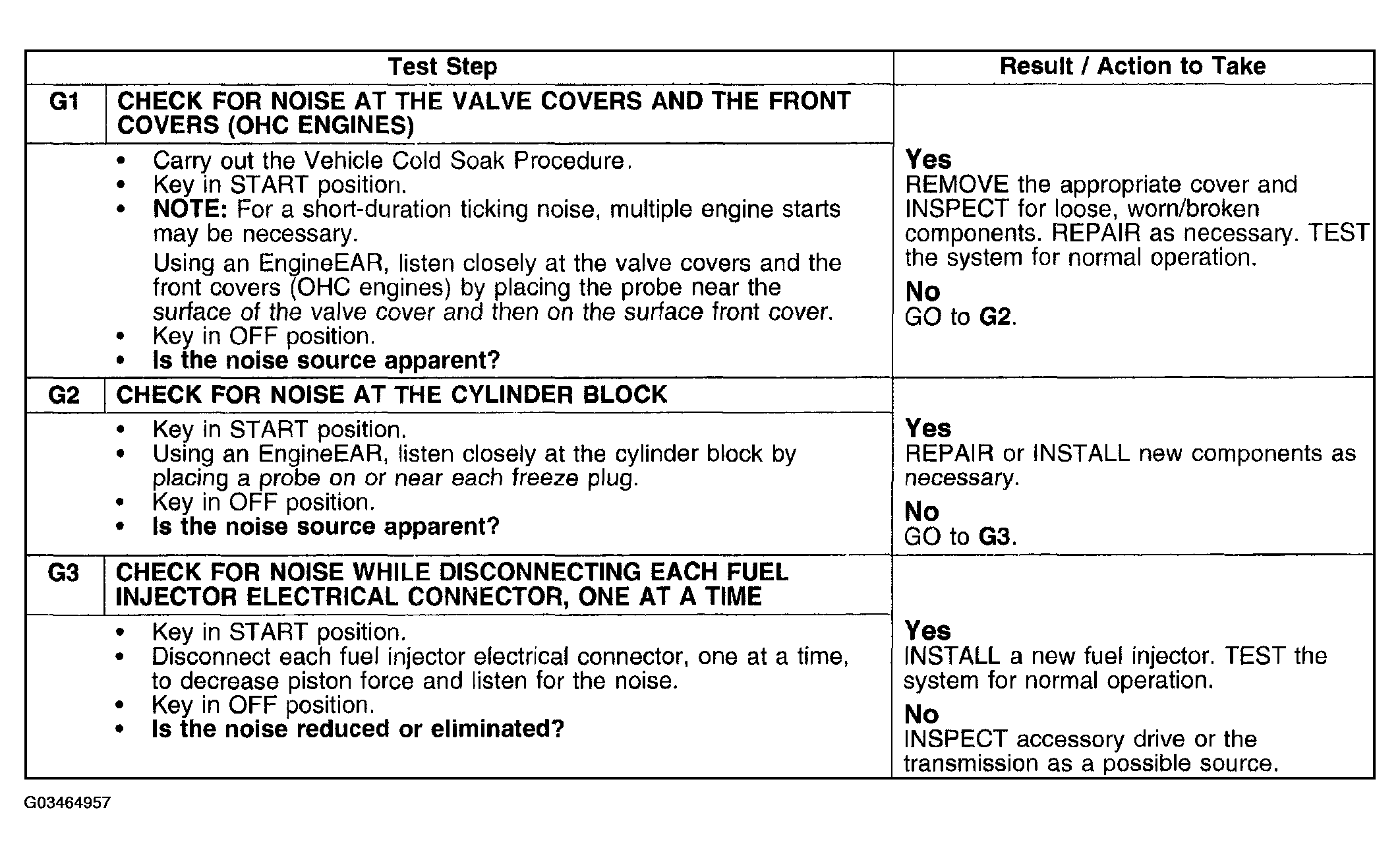

Fig 1: Pinpoint Test G: Engine Ticking, Knocking Or Continuous Rattle (G1-G3)
G03464957Courtesy of FORD MOTOR CO.
