Pinpoint Test N: DTC C1989: Park Brake Apply And Release Switch Contacts Energized Simultaneously

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

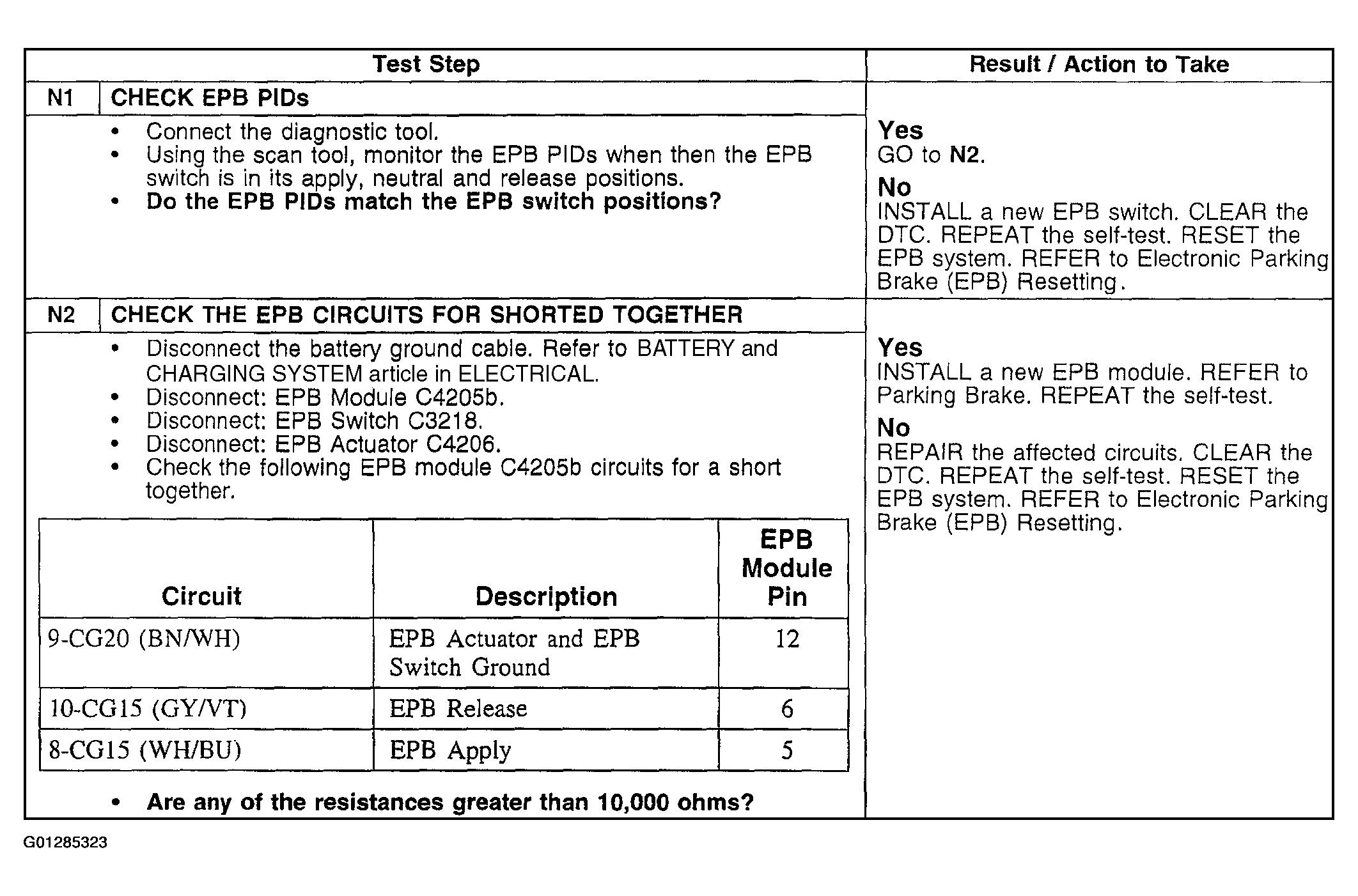

Fig 1: Pinpoint Test N: C1989: Park Brake Apply And Release Switch Contacts Energized Simultaneously
G01285323Courtesy of FORD MOTOR CO.
