Supplemental Restraint System (SRS) Deactivation And Reactivation: Deactivation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module, safety belt retractor pretensioner, or safety belt buckle pretensioner. This will reduce the risk of injury in the event of an accidental deployment.
WARNING: After deployment, the air bag surface can contain deposits of sodium hydroxide, a product of the gas generant combustion that is irritating to the skin. Wash your hands with soap and water afterwards.
WARNING: Never probe the connectors on the air bag module. Doing so can result in air bag deployment, which can result in personal injury.
WARNING: The safety belt buckle pretensioner and safety belt retractor pretensioner are pyrotechnic devices. Never probe a pretensioner electrical connector. Doing so could result in pretensioner or air bag deployment and could result in personal injury.
WARNING: Vehicle sensor orientation is critical for proper system operation. If a vehicle equipped with an air bag supplemental restraint system (SRS) is involved in a collision, inspect the sensor mounting bracket and wiring pigtail for deformation. Replace and properly position the sensor or any other damaged supplemental restraint system (SRS) components whether or not the air bag is deployed.
WARNING: The restraint system diagnostic tool is for restraint system service only. Remove from vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.
NOTE: If a seat equipped with a seat mounted side air bag and/or a safety belt pretensioner (if equipped) system is being serviced, the air bag system must be deactivated.
NOTE: Restraint system diagnostic tools MUST be installed under the seats in the seat side air bag (if equipped) and safety belt pretensioner (if equipped) to floor connectors.
NOTE: Diagnostics or repairs are not to be performed on a seat equipped with a seat side air bag with the seat in the vehicle. Prior to attempting to diagnose or repair a seat concern when equipped with a seat side air bag, the seat must be removed from the vehicle and the restraint system diagnostic tools must be installed in the seat side air bag electrical connectors. The restraint system diagnostic tools must be removed prior to operating the vehicle over the road.
NOTE: After diagnosing or repairing an SRS, the restraint system diagnostic tools must be removed before operating the vehicle over the road.
NOTE: After diagnosing or repairing a seat system, the restraint system diagnostic tools must be removed before operating the vehicle over the road.
NOTE: The SRS must be fully operational and free of faults before releasing the vehicle to the customer.

    All Vehicles

  1. Move and tilt the front seats to their highest and rearmost position.
    2. WARNING: To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any front or side air bag supplemental restraint system (SRS) components and before servicing, replacing, adjusting or striking components near the front or side air bag sensors, such as doors, instrument panel, console, door latches, strikers, seats and hood latches.
    Please refer to the AIR BAG RESTRAINT SYSTEMS article to determine location of the front air bag sensors.
    The side air bag sensors are located at or near the base of the B-pillar.
    To deplete the backup power supply energy, disconnect the battery ground cable and wait at least one minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped).
  2. Disconnect the battery ground cable (14301) and wait at least one minute. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  3. Remove the lower steering column opening cover with reinforcement.
    1. Remove the bolts.
    2. Pull out to release the retaining clips and remove the lower steering column opening cover with reinforcement.
    Fig 1: Removing Lower Steering Column Opening Cover With Reinforcement
    G01595282Courtesy of FORD MOTOR CO.
  4. Disconnect the four-pin clockspring electrical connector at the base of the steering column.

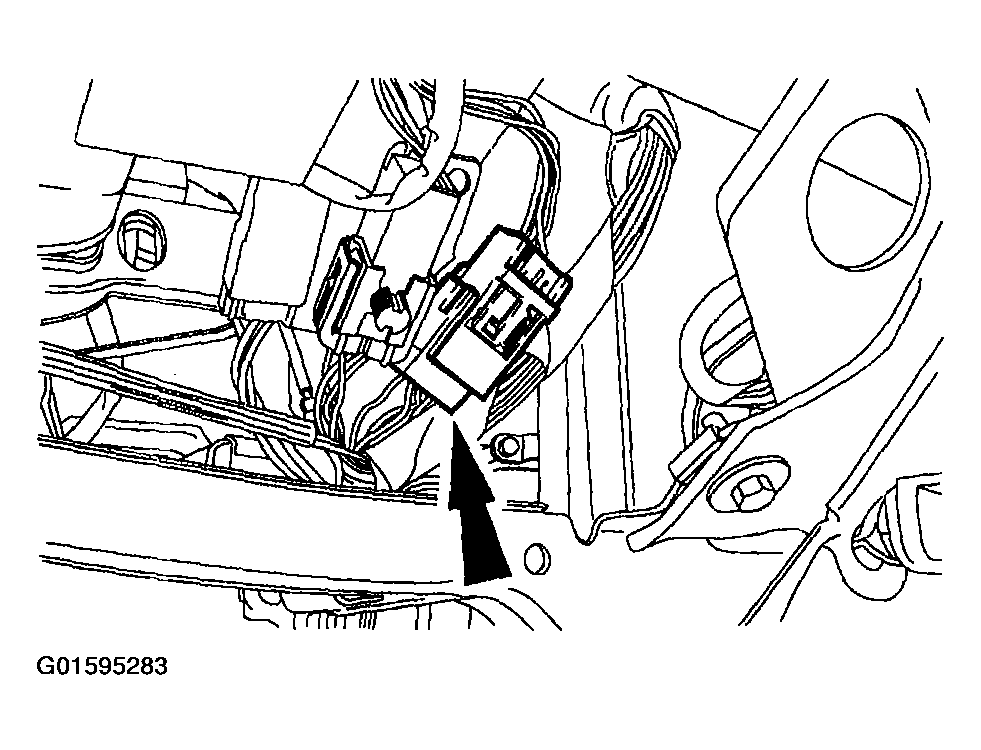

    Fig 2: Disconnecting Four-Pin Clockspring Electrical Connector At Base Of Steering Column
    G01595283Courtesy of FORD MOTOR CO.
  5. Attach the restraint system diagnostic tool to the vehicle harness side of the four-pin clockspring electrical connector.

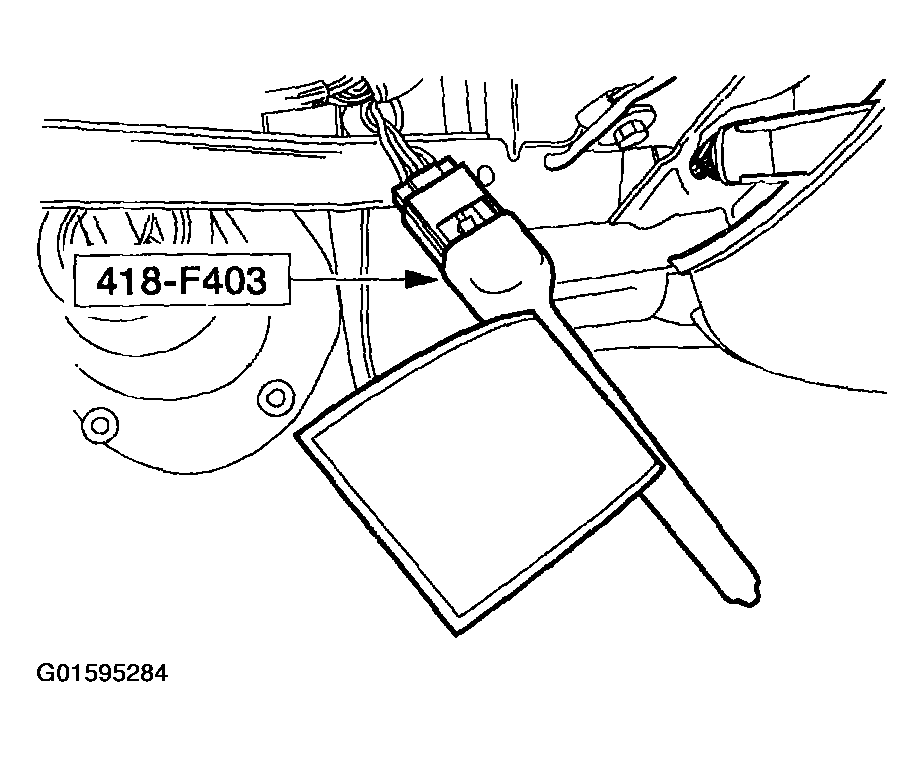

    Fig 3: Attaching Restraint System Diagnostic Tool
    G01595284Courtesy of FORD MOTOR CO.
  6. Open the glove box to its fullest extent by pushing in on the tabs and release the glove compartment.

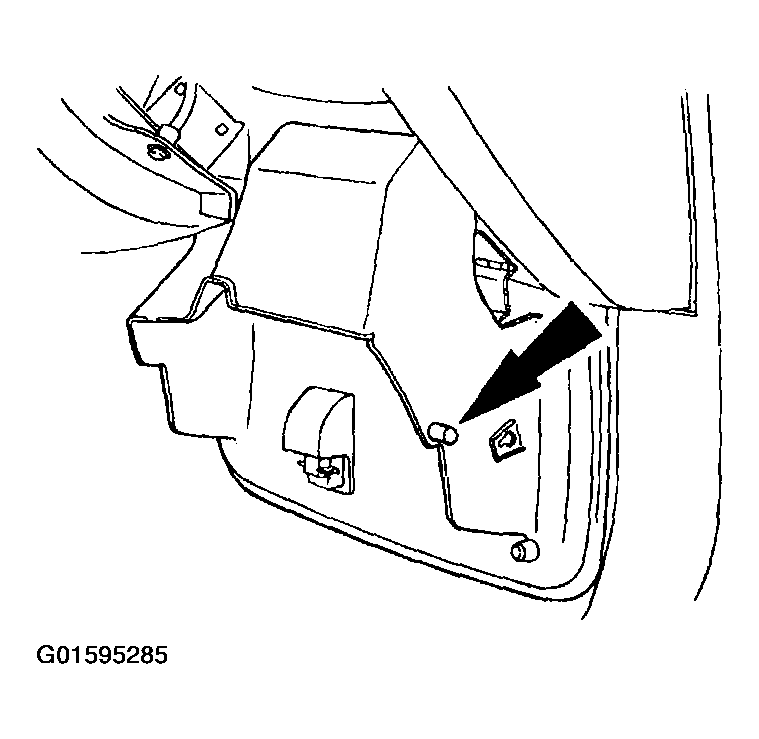

    Fig 4: Releasing Glove Compartment
    G01595285Courtesy of FORD MOTOR CO.
  7. Through the glove box opening, remove the passenger air bag module retaining bolts.
    Fig 5: Removing Passenger Air Bag Module Retaining Bolts
    G01595286Courtesy of FORD MOTOR CO.
  8. Separate the passenger air bag module and trim cover from the instrument panel (I/P).
    1. Pull the left hand corner of the trim cover away from the I/P.
    2. From left to right, slide across the seam between the trim cover and I/P, releasing the trim cover retaining clips.
    3. Pull the passenger air bag module and trim cover away from the I/P, but do not remove it.
    Fig 6: Separating Passenger Air Bag Module And Trim Cover From Instrument Panel
    G01595287Courtesy of FORD MOTOR CO.
  9. Remove the passenger air bag module and trim cover.
    1. Disconnect the passenger air bag module electrical connector.
    2. Remove the wire harness pin-type retainer from the passenger air bag module.
    3. Remove the passenger air bag module.

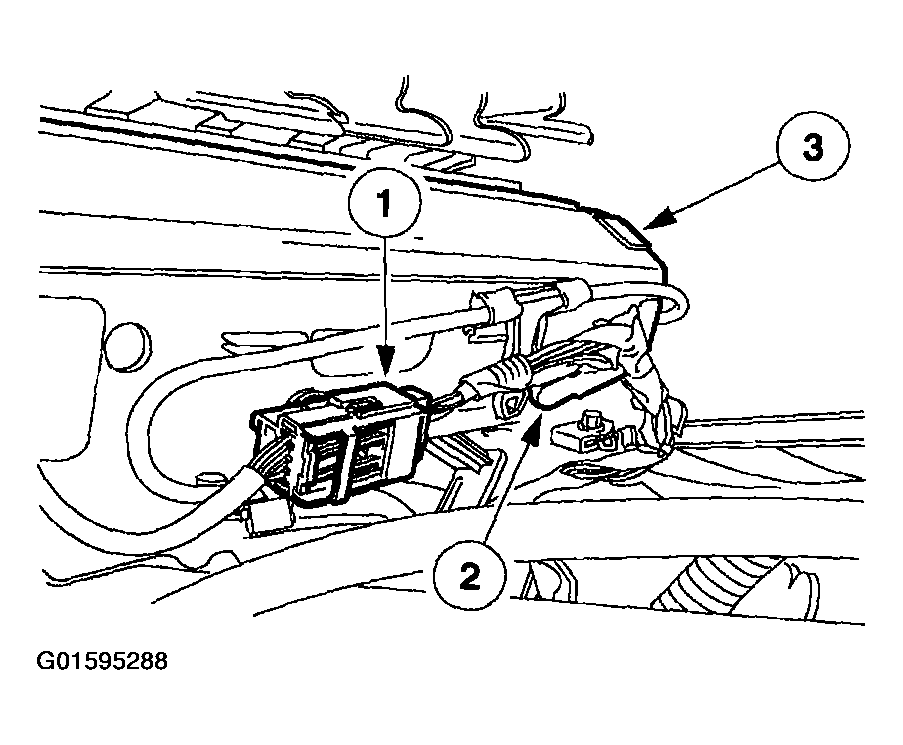

    Fig 7: Removing Passenger Air Bag Module And Trim Cover
    G01595288Courtesy of FORD MOTOR CO.
  10. Attach the restraint system diagnostic tool to the vehicle harness side of the passenger air bag module electrical connector.
    Fig 8: Attaching Restraint System Diagnostic Tool
    G01595289Courtesy of FORD MOTOR CO.

    11. Vehicles Without Side Air Bags

    CAUTION: Do not deactivate the side air bag module circuit by removing the side air bag bridge resistor from the side air bag floor electrical connector.
  11. If the side air bag bridge resistor is removed, an open circuit fault will be generated by the restraints control module (RCM).

    If a restraint system diagnostic tool is installed at the side air bag floor connector, a low resistance fault will be generated by the RCM.

    12. Vehicles With Side Air Bags

  12. Disconnect the passenger side air bag module electrical connector.

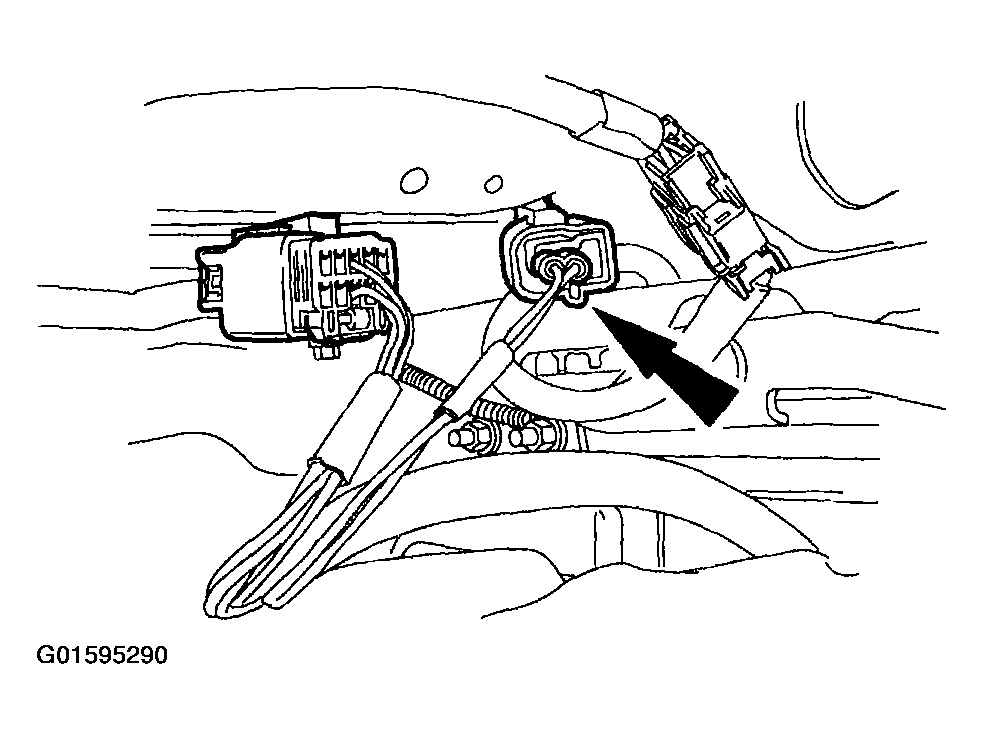

    Fig 9: Disconnecting Passenger Side Air Bag Module Electrical Connector
    G01595290Courtesy of FORD MOTOR CO.
  13. Attach the restraint system diagnostic tool to the vehicle harness side of the side air bag module electrical connector.
    Fig 10: Attaching Restraint System Diagnostic Tool
    G01595291Courtesy of FORD MOTOR CO.

    14. All Vehicles

  14. Release the hook and loop strip and pull the seat cushion trim cover away enough to expose the front passenger safety belt buckle pretensioner electrical connector.
    Fig 11: Exposing Front Passenger Safety Belt Buckle Pretensioner Electrical Connector
    G01595292Courtesy of FORD MOTOR CO.
  15. Disconnect the front passenger safety belt buckle pretensioner electrical connector.
    1. Slide and disengage the front passenger safety belt buckle pretensioner electrical connector locking clip.
    2. Push in on the two release tabs and disconnect the front passenger safety belt buckle pretensioner electrical connector.

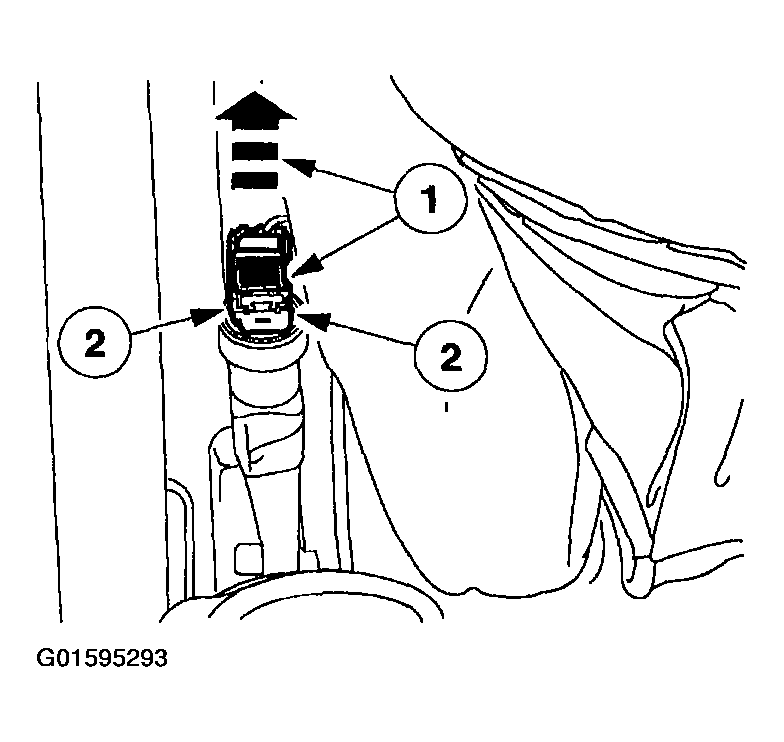

    Fig 12: Disconnecting Front Passenger Safety Belt Buckle Pretensioner Electrical Connector
    G01595293Courtesy of FORD MOTOR CO.
  16. Attach the restraint system diagnostic tool to the seat harness side of the front passenger safety belt buckle pretensioner electrical connector.

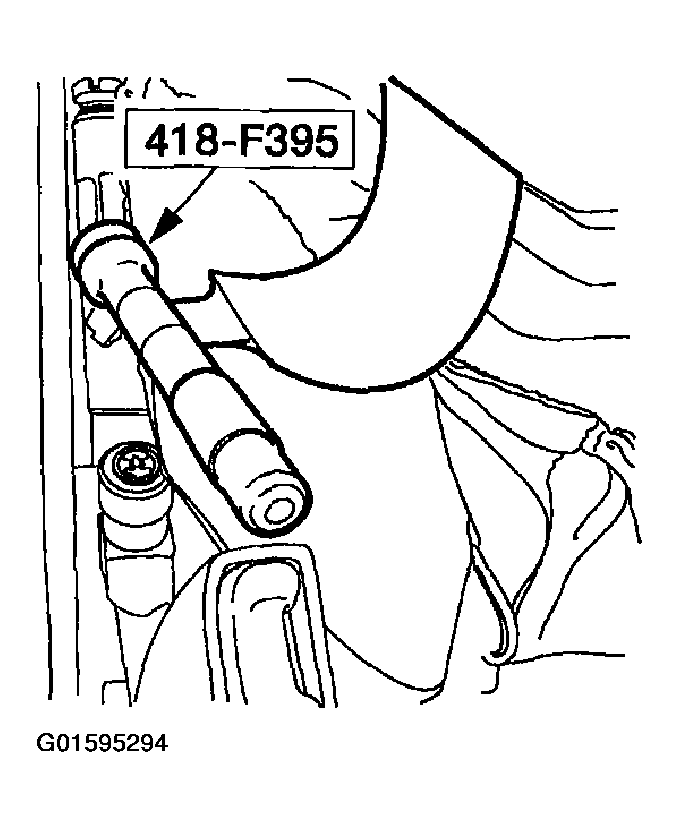

    Fig 13: Attaching Restraint System Diagnostic Tool
    G01595294Courtesy of FORD MOTOR CO.

    Vehicles With Side Air Bags

  17. Disconnect the driver side air bag module electrical connector.

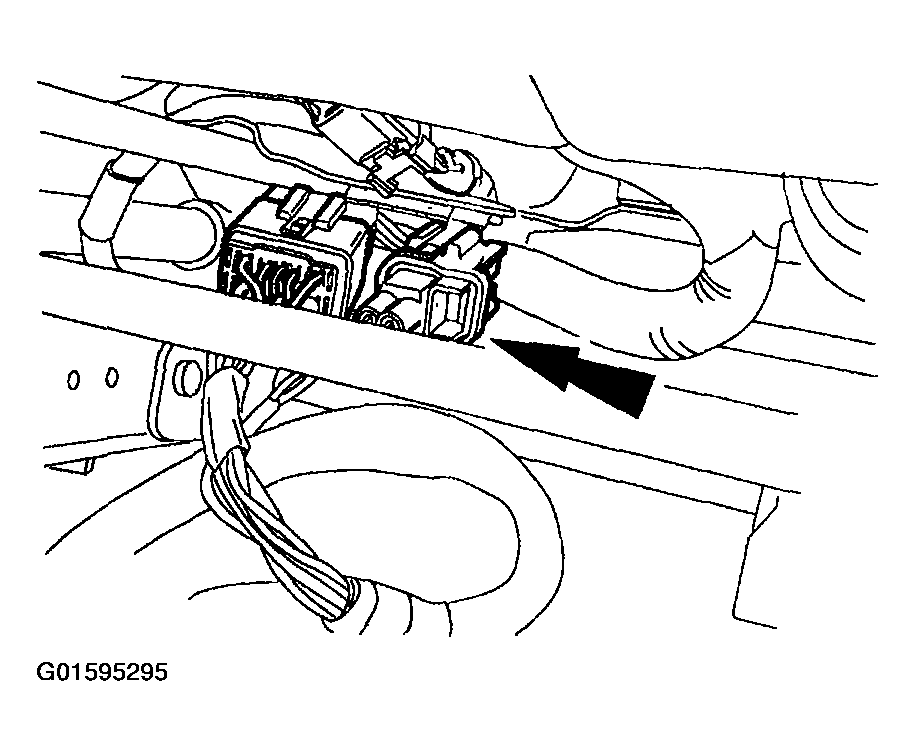

    Fig 14: Disconnecting Driver Side Air Bag Module Electrical Connector
    G01595295Courtesy of FORD MOTOR CO.
  18. Attach the restraint system diagnostic tool to the vehicle harness side of the side air bag module electrical connector.
    Fig 15: Attaching Restraint System Diagnostic Tool
    G01595296Courtesy of FORD MOTOR CO.

    All Vehicles

  19. Release the hook and loop strip and pull the seat cushion trim cover away enough to expose the front driver safety belt buckle pretensioner electrical connector.
    Fig 16: Exposing Front Driver Safety Belt Buckle Pretensioner Electrical Connector
    G01595297Courtesy of FORD MOTOR CO.
  20. Disconnect the front driver safety belt buckle pretensioner electrical connector.
    1. Slide and disengage the front driver safety belt buckle pretensioner electrical connector locking clip.
    2. Push in on the two release tabs and disconnect the front driver safety belt buckle pretensioner electrical connector.

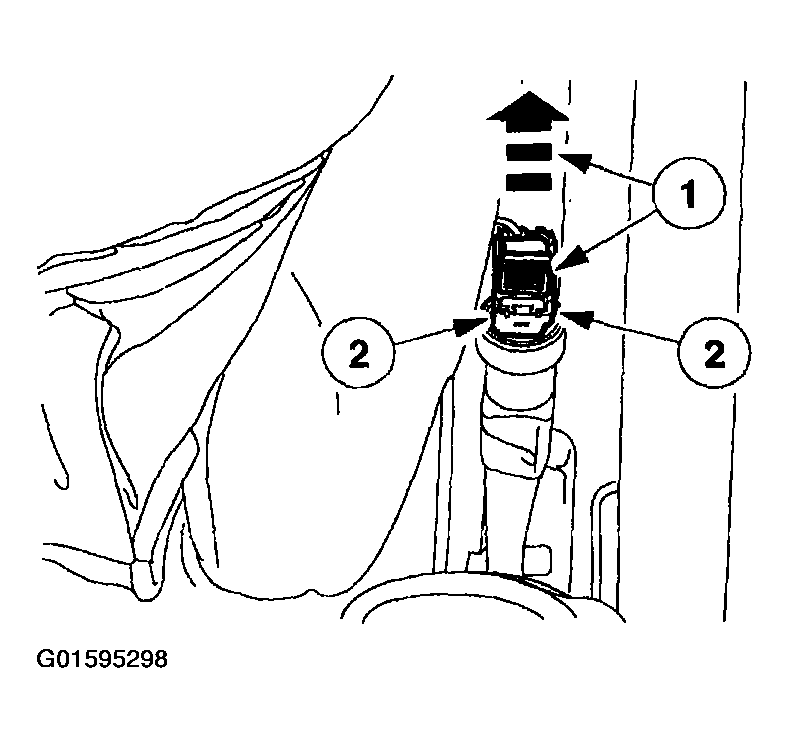

    Fig 17: Disconnecting Front Driver Safety Belt Buckle Pretensioner Electrical Connector
    G01595298Courtesy of FORD MOTOR CO.
  21. Attach the restraint system diagnostic tool to the seat harness side of the front driver safety belt buckle pretensioner electrical connector.

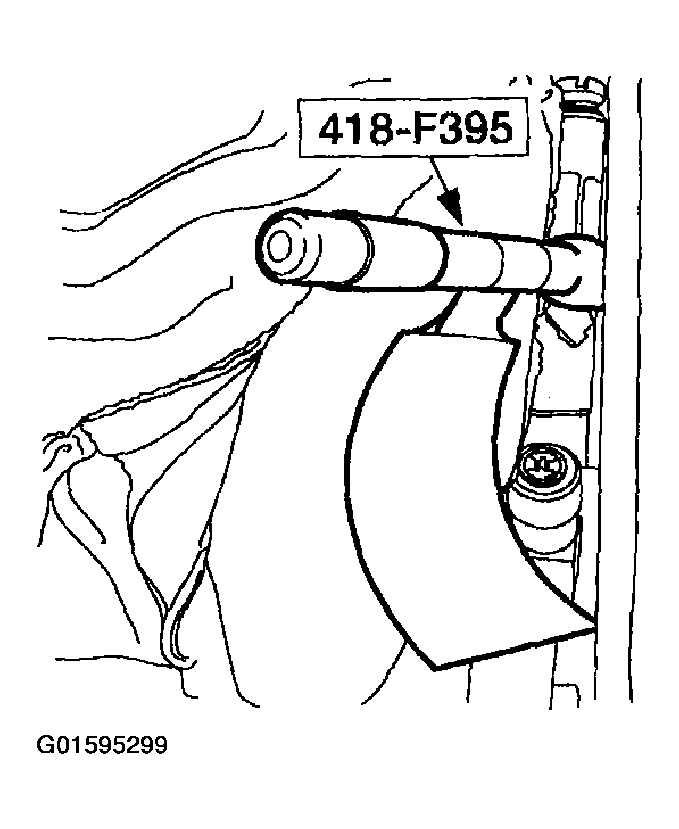

    Fig 18: Attaching Restraint System Diagnostic Tool
    G01595299Courtesy of FORD MOTOR CO.
  22. Reconnect the battery ground cable (14301).

    For additional information, refer to BATTERY, MOUNTING AND CABLES .

  23. Prove out the supplemental restraint system (SRS). For additional information, refer to AIR BAG RESTRAINT SYSTEMS in the Diagnosis and Testing portion of that section.
  24. Disconnect the battery ground cable (14301) and wait at least one minute. For additional information, refer to BATTERY, MOUNTING AND CABLES .
