Inspection and Verification

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Verify the customer's original concern by operating the active restraint system to duplicate the condition.
  2. Inspect to determine if any of the following mechanical or electrical concerns apply:

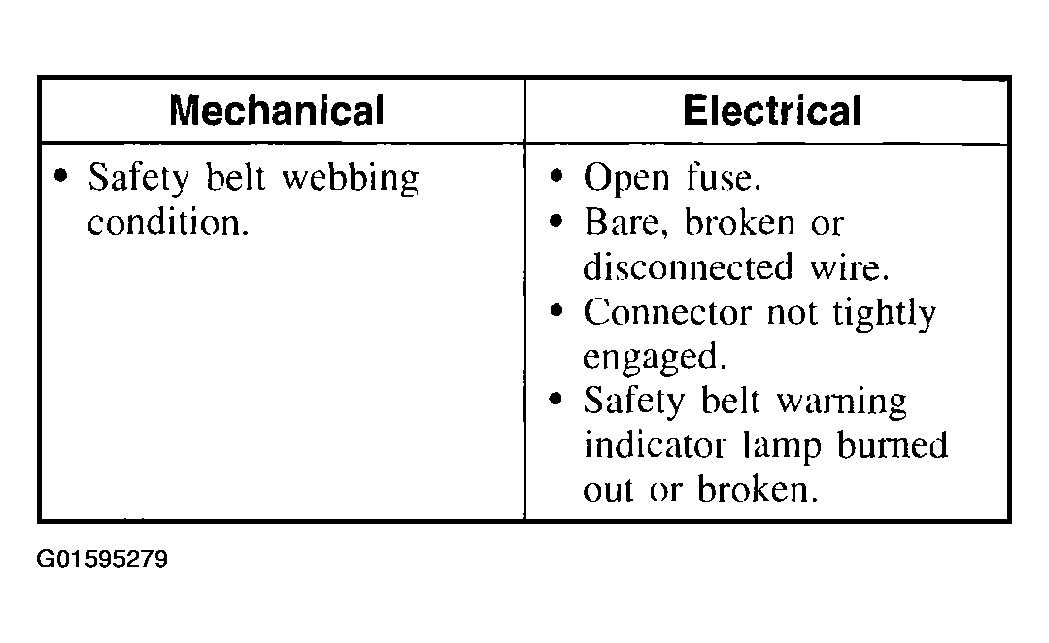

    Fig 1: Identifying Visual Inspection Chart
    G01595279Courtesy of FORD MOTOR CO.
  3. If the inspection reveals an obvious concern(s) that can be readily identified, repair the concern(s) as necessary.
  4. If the concern remains after the inspection, determine the symptom. GO to SYMPTOM CHART .
