Belt Minder

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

The Belt Minder feature is a supplemental warning to the safety belt warning function. This feature provides additional reminders to the driver that the driver's safety belt is unbuckled by intermittently sounding a chime and illuminating the safety belt warning lamp in the instrument cluster.

To activate or deactivate the Belt Minder feature, refer to WARNING DEVICES .

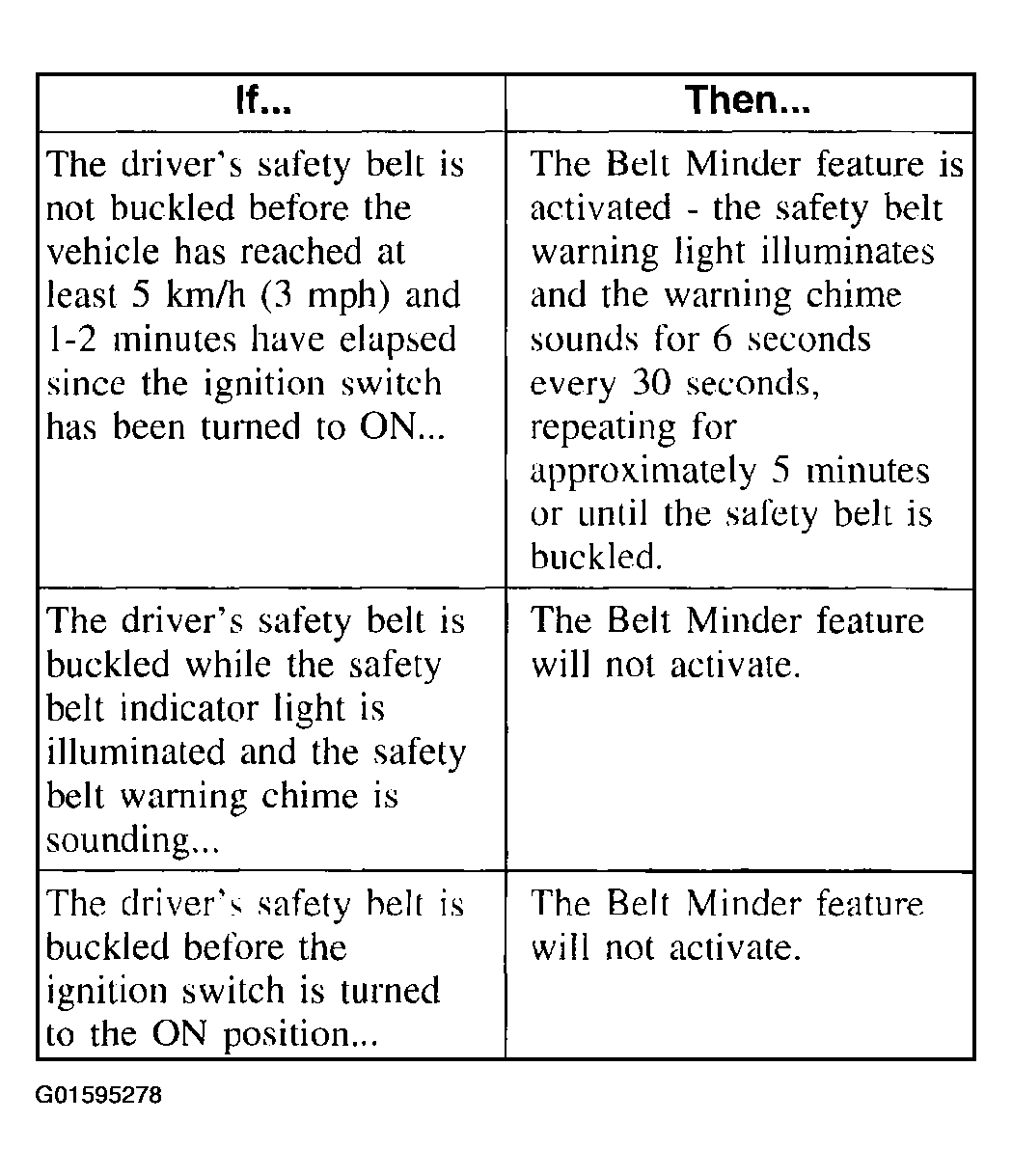

Fig 1: Identifying Belt Minder Feature Specifications
G01595278Courtesy of FORD MOTOR CO.
