Removal and Installation

All Vehicles

1. Raise and support the vehicle. .
2. Disconnect the drain tube.
   Fig 1: Disconnecting Drain Tube

   Courtesy of FORD MOTOR CO.
3. Remove the pin-type retainers.
   Fig 2: Removing Pin-Type Retainers

   Courtesy of FORD MOTOR CO.
4. Remove the four screws and position the LH and RH splash shields aside to access the rear bumper cover attachment bolts.
   Fig 3: Locating Rear Bumper Cover Attachment Bolts

   Courtesy of FORD MOTOR CO.

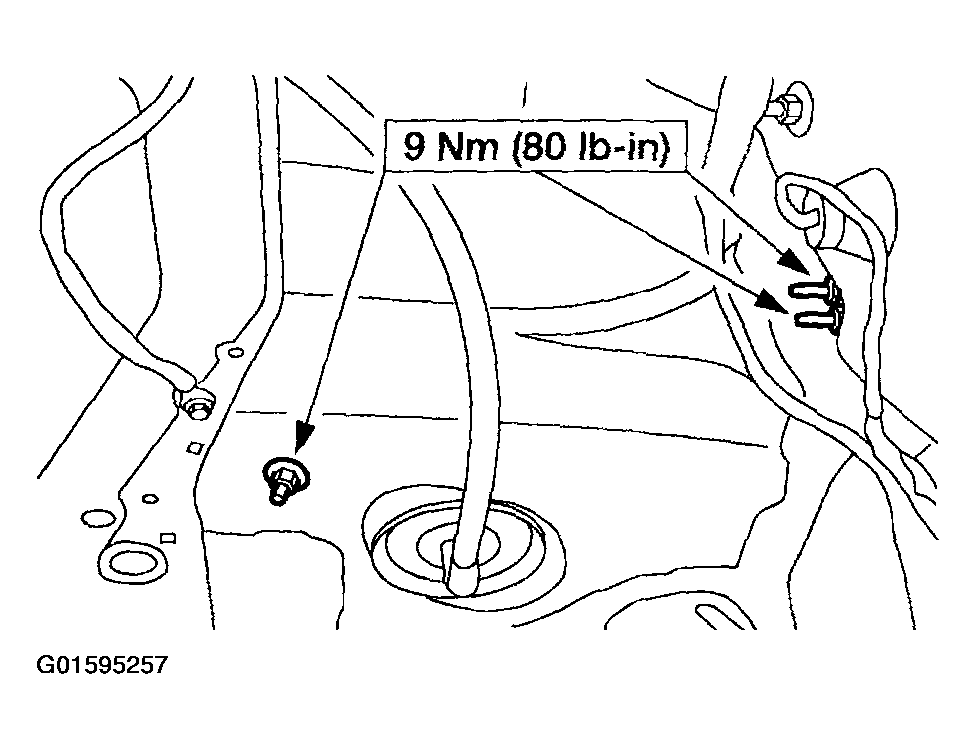

5. Remove the two rear bumper cover to body nuts.
   Fig 4: Removing Rear Bumper Cover To Body Nuts

   Courtesy of FORD MOTOR CO.
6. Lower the vehicle.
7. Open the luggage compartment lid.
8. Remove the pin-type retainers.
   Fig 5: Removing Pin-Type Retainers

   Courtesy of FORD MOTOR CO.

   Taurus

9. Remove the five pin-type retainers, two nuts, and the scuff plate.
   • Position the LH and RH luggage trim panel aside.
   Fig 6: Removing Pin-Type Retainers, Nuts, And Scuff Plate

   Courtesy of FORD MOTOR CO.

   Sable

10. 10. Remove the three pin-type retainers, two nuts, and the scuff plate.
    • Position the LH and RH luggage trim panels aside.

    All Vehicles

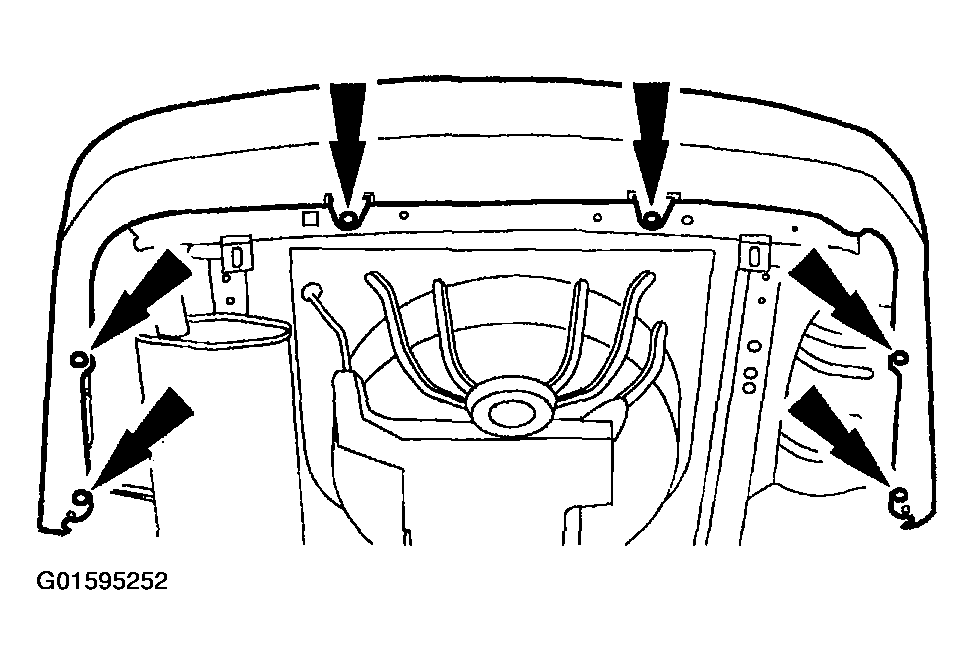

11. On Taurus, remove the six rear bumper cover nuts and on Sable remove the eight rear bumper cover nuts.
    Fig 7: Removing Rear Bumper Cover

    Courtesy of FORD MOTOR CO.
12. Remove the rear bumper cover.
13. To install, reverse the removal procedure.
