Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front bumper cover. For additional information, refer to FRONT BUMPER COVER .
Remove the rivets and the front bumper isolator.

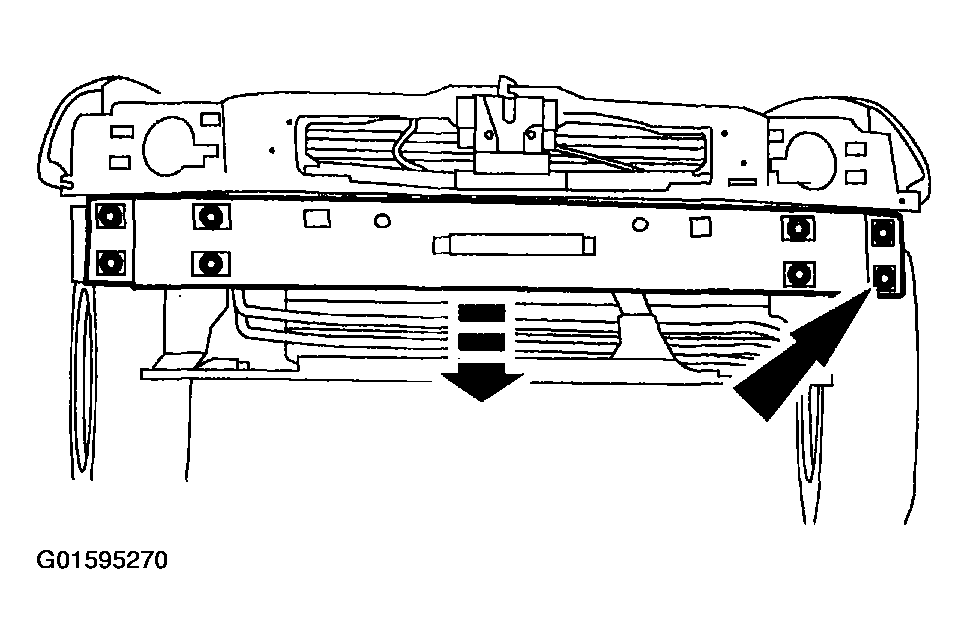

Fig 1: Removing Rivets And Front Bumper Isolator
Courtesy of FORD MOTOR CO.
If equipped, remove the rivets and position the block heater electrical adapter aside.

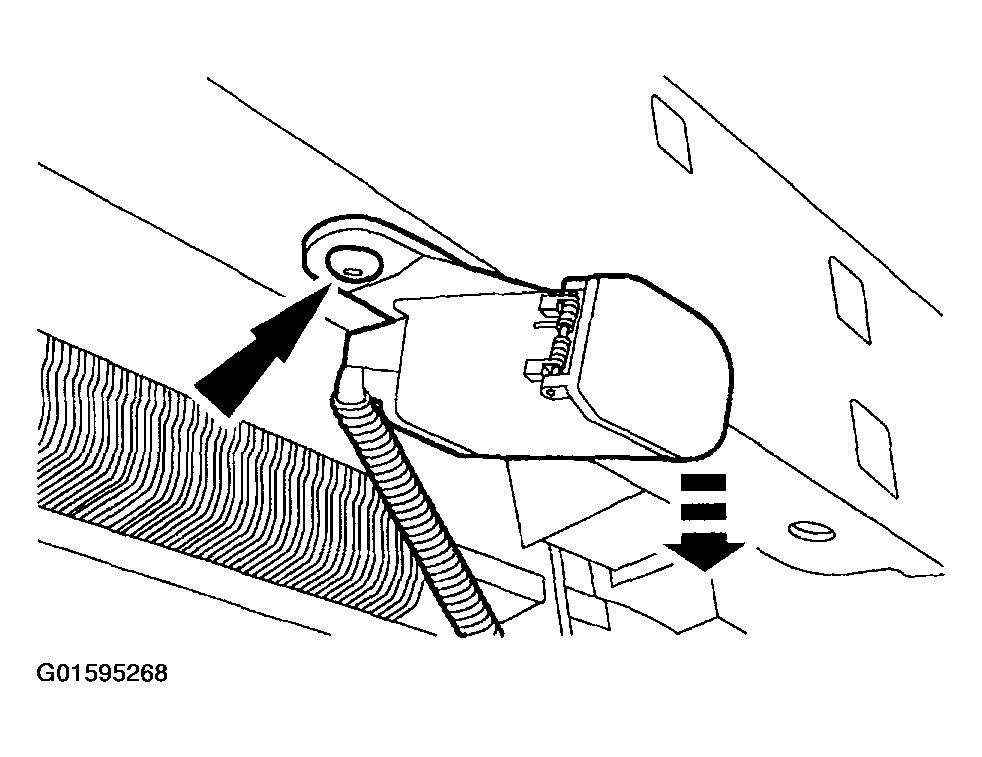

Fig 2: Removing Rivets From Block Heater Electrical Adapter
Courtesy of FORD MOTOR CO.
Remove the front bumper bolts.

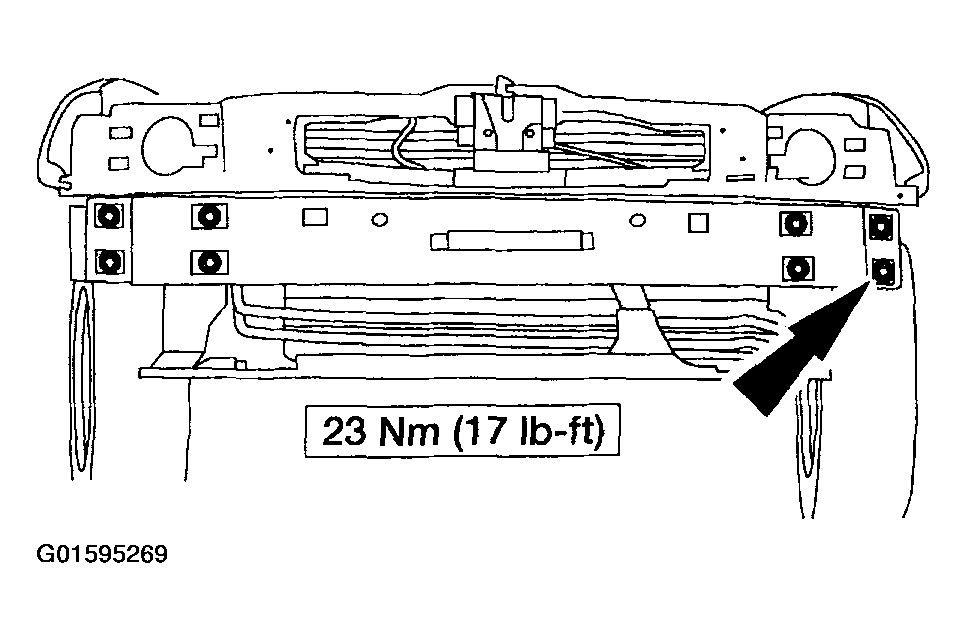

Fig 3: Removing Front Bumper Bolts
Courtesy of FORD MOTOR CO.
Drill out the eight spot welds and remove the front bumper.

Fig 4: Drilling Out Spot Welds And Removing Front Bumper
Courtesy of FORD MOTOR CO.
NOTE: Spot welds retaining the front bumper to the body rails are not required for installation. Install new front bumper bolts.

NOTE: When installing the front bumper isolator, the special tool must be used to install the new rivets.

To install, reverse the removal procedure.
