Removal and Installation

All Vehicles

1. Remove the headlamps. For additional information, refer to EXTERIOR LIGHTING .
2. Raise and support the vehicle.
NOTE: If equipped, remove the five pin-type retainers from the chin spoiler.

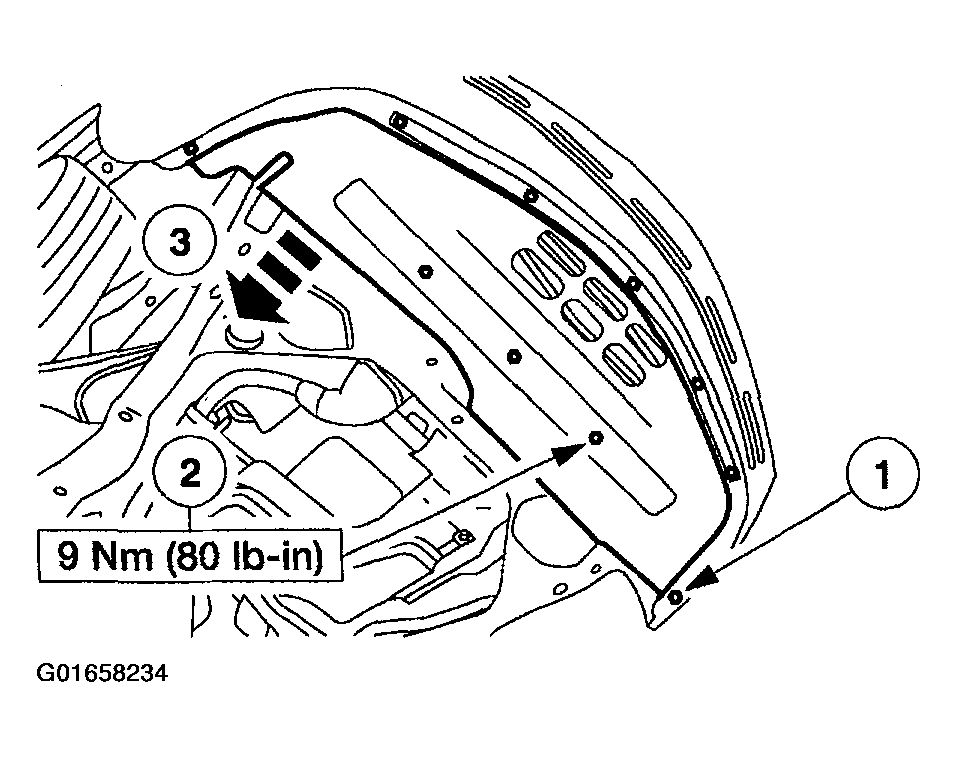

Fig 1: Removing Air Dam
Courtesy of FORD MOTOR CO.
3. Remove the air dam.
   1. Remove the seven screws.
   2. Remove the three bolts.
   3. Remove the air dam.
4. Remove the LH and RH front fender splash shields.
   1. Remove the eight screws.
   2. Remove the two pin-type retainers.
   3. Remove the front splash shields.

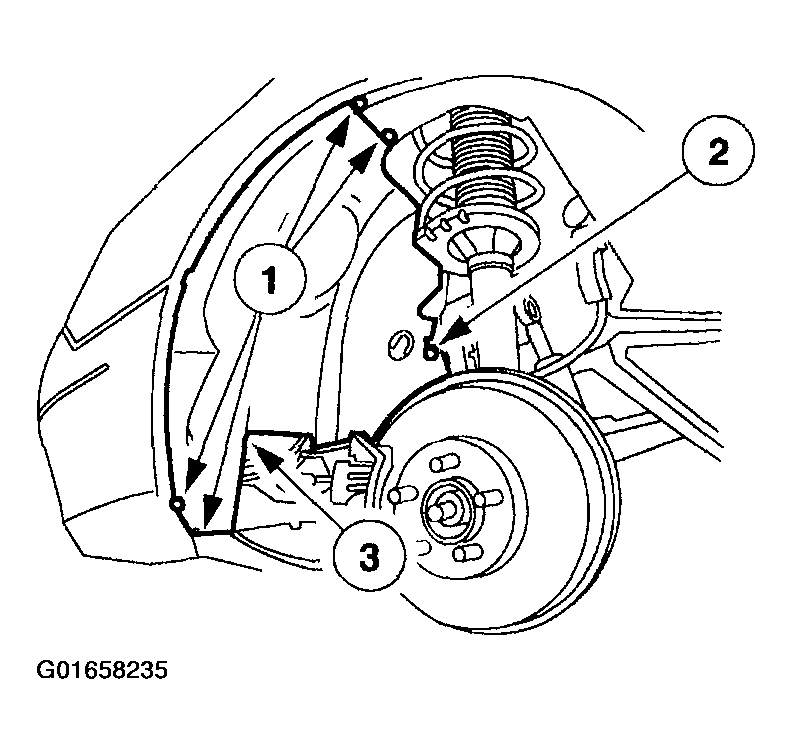

   Fig 2: Removing Front Splash Shields

   Courtesy of FORD MOTOR CO.
5. Remove the front bumper cover bolts.

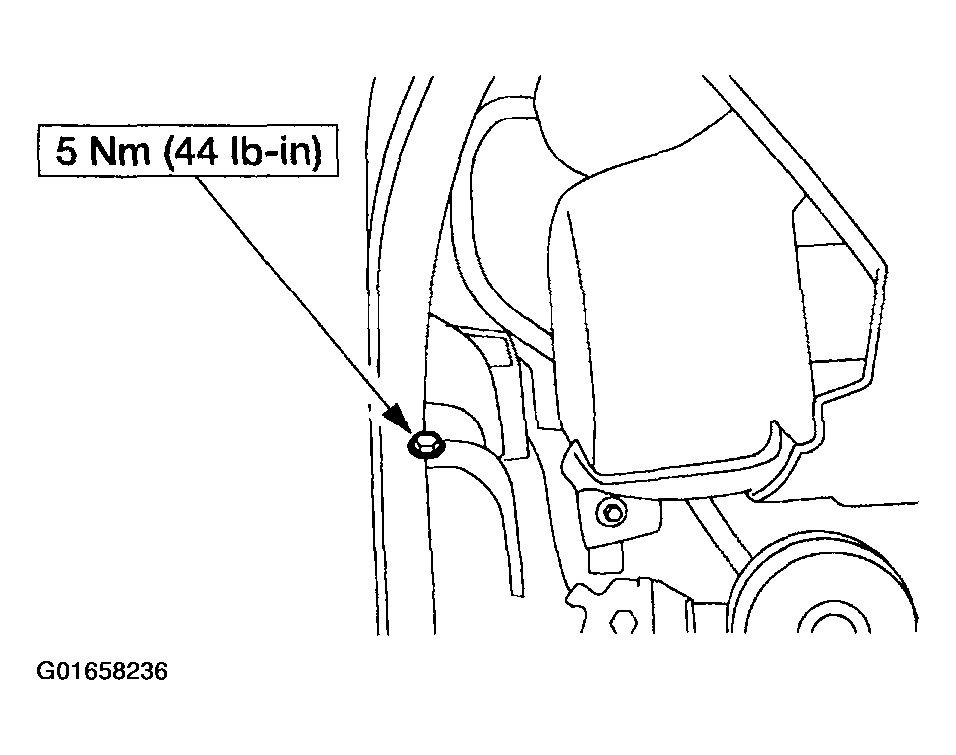

   Fig 3: Removing Front Bumper Cover Bolts

   Courtesy of FORD MOTOR CO.

   Taurus

6. Remove the pin-type retainers and the radiator grille.

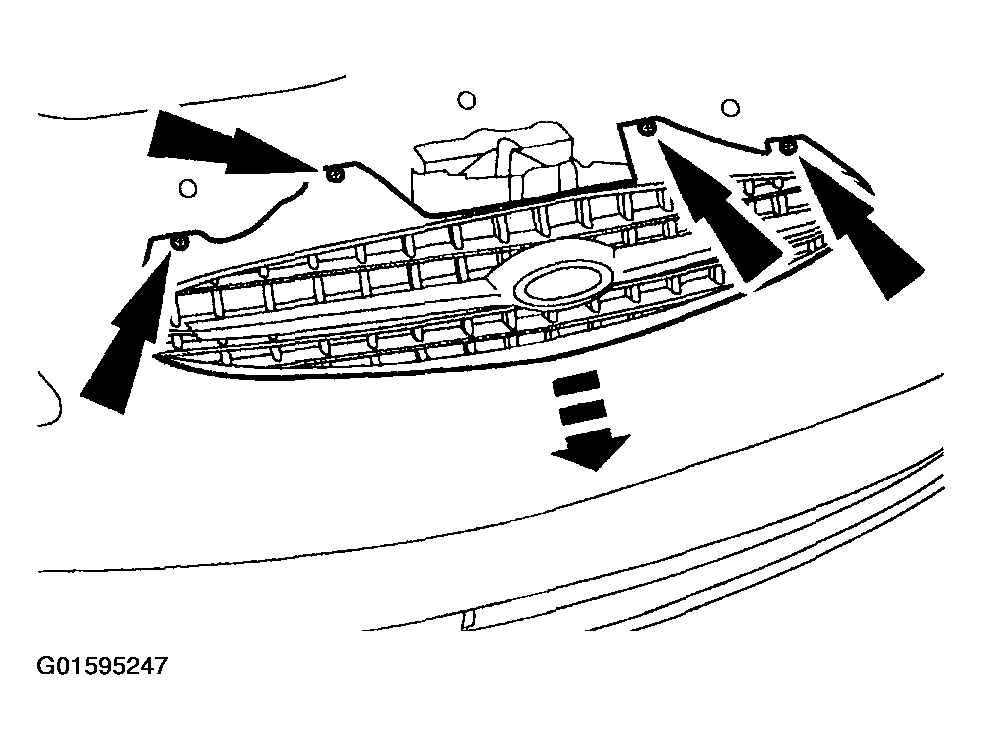

   Fig 4: Removing Pin-Type Retainers And Radiator Grille

   Courtesy of FORD MOTOR CO.
7. Remove the pin-type retainers.
   Fig 5: Removing Pin-Type Retainers

   Courtesy of FORD MOTOR CO.

   Sable

8. Unclip the bumper cover from the radiator grille opening support.
9. If equipped, disconnect the fog lamp electrical connectors.

   All Vehicles

10. Remove the four front bumper cover bolts.
    Fig 6: Removing Front Bumper Cover Bolts

    Courtesy of FORD MOTOR CO.
NOTE: The bumper cover clip must be pushed outboard to unclip it from the fender.
Fig 7: Removing Front Bumper Cover
Courtesy of FORD MOTOR CO.
11. Unclip and remove the front bumper cover.
12. To install, reverse the removal procedure.
