Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear bumper. For additional information, refer to REAR BUMPER .
  2. Remove the rear bumper bracket.
    1. Remove the bolts.
    2. Remove the rear bumper bracket.

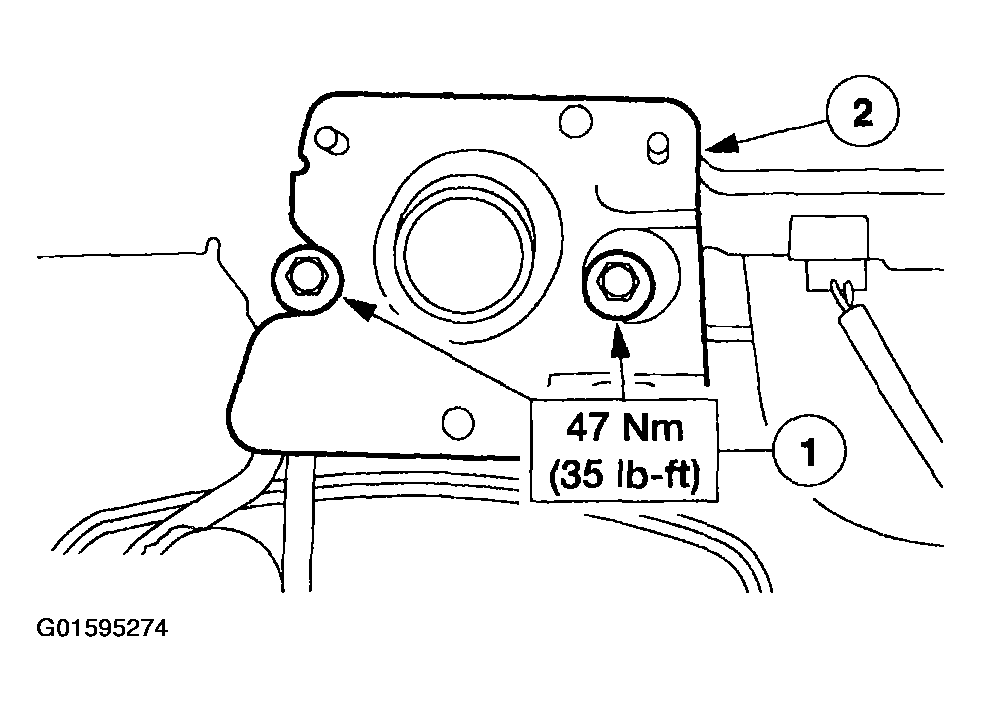

    Fig 1: Removing Rear Bumper Bracket
    G01595274Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
