Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Remove the wiper pivot arm nut cover.

Fig 1: Removing Wiper Pivot Arm Nut Cover
Courtesy of FORD MOTOR CO.
Make sure that the wiper pivot arms are in the park position.
Remove the nut and the wiper pivot arm.

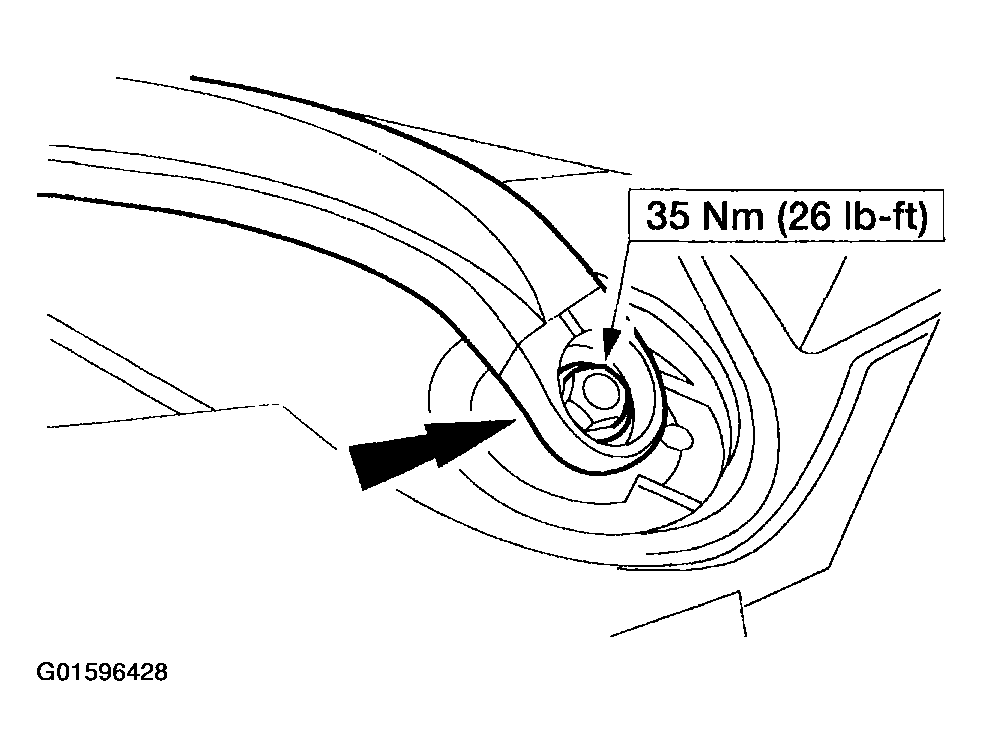

Fig 2: Removing Nut And Wiper Pivot Arm
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Adjust the wiper pivot arms. Refer to WINDSHIELD WIPER BLADE AND PIVOT ARM ADJUSTMENT .
