Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Park the wiper pivot arms in the highest position on the glass.
Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Remove the wiper pivot arm nut covers.

Fig 1: Removing Wiper Pivot Arm Nut Covers
Courtesy of FORD MOTOR CO.
Remove the nuts and the wiper pivot arms.

Fig 2: Removing Nuts And Wiper Pivot Arms
Courtesy of FORD MOTOR CO.
Remove the cowl top vent panels. For additional information, refer to FRONT END BODY PANELS .
Remove the four bolts, wiper mounting arm and wiper pivot shaft assembly.
- Disconnect the electrical connector.

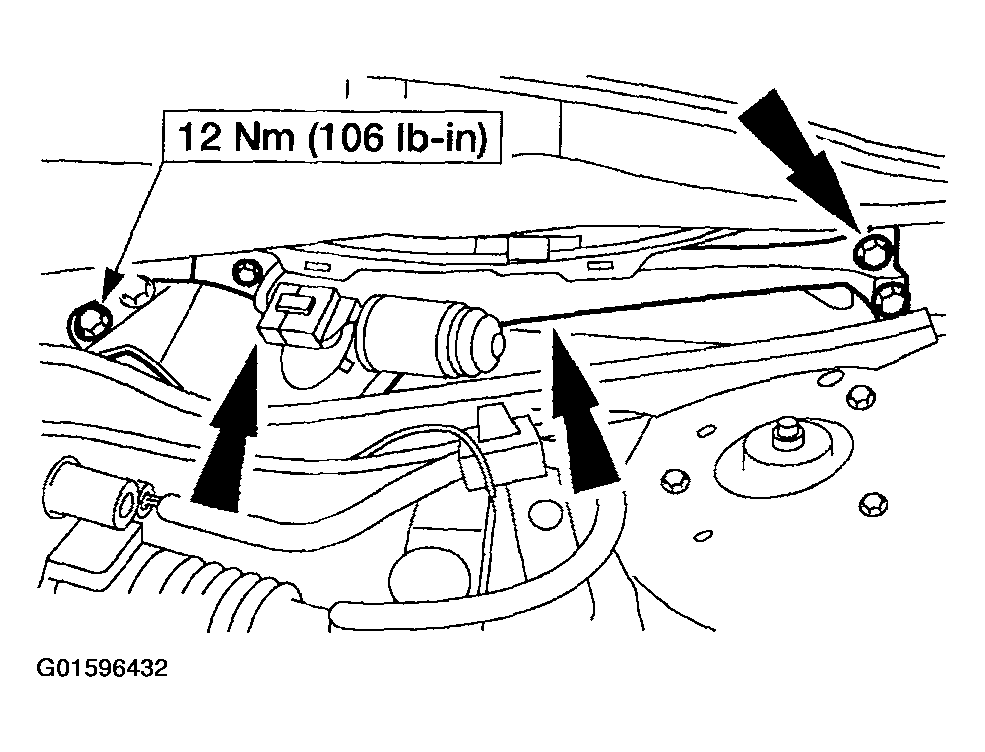

Fig 3: Removing Bolts, Wiper Mounting Arm And Wiper Pivot Shaft Assembly
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Adjust the wiper pivot arms. Refer to WINDSHIELD WIPER BLADE AND PIVOT ARM ADJUSTMENT .
