Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Remove the wiper mounting arm and pivot shaft assembly. For additional information, refer to WIPER MOUNTING ARM AND PIVOT SHAFT .
Remove the bolt and the windshield wiper motor operating arm from the motor.

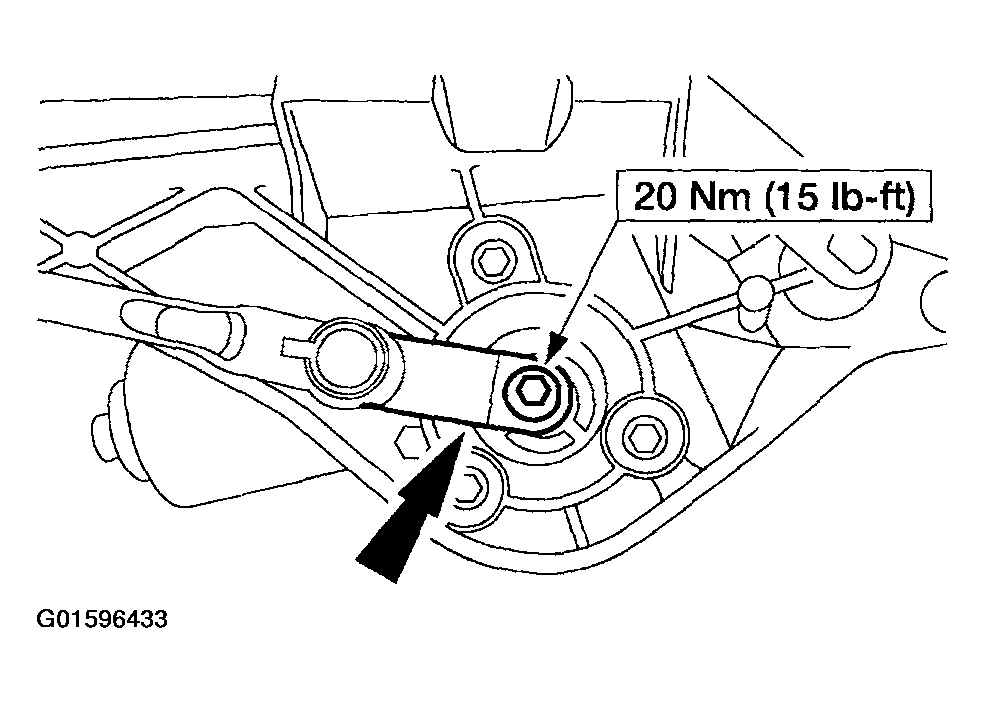

Fig 1: Removing Bolt And Windshield Wiper Motor Operating Arm From Motor
Courtesy of FORD MOTOR CO.
Remove the three bolts and remove the windshield wiper motor.

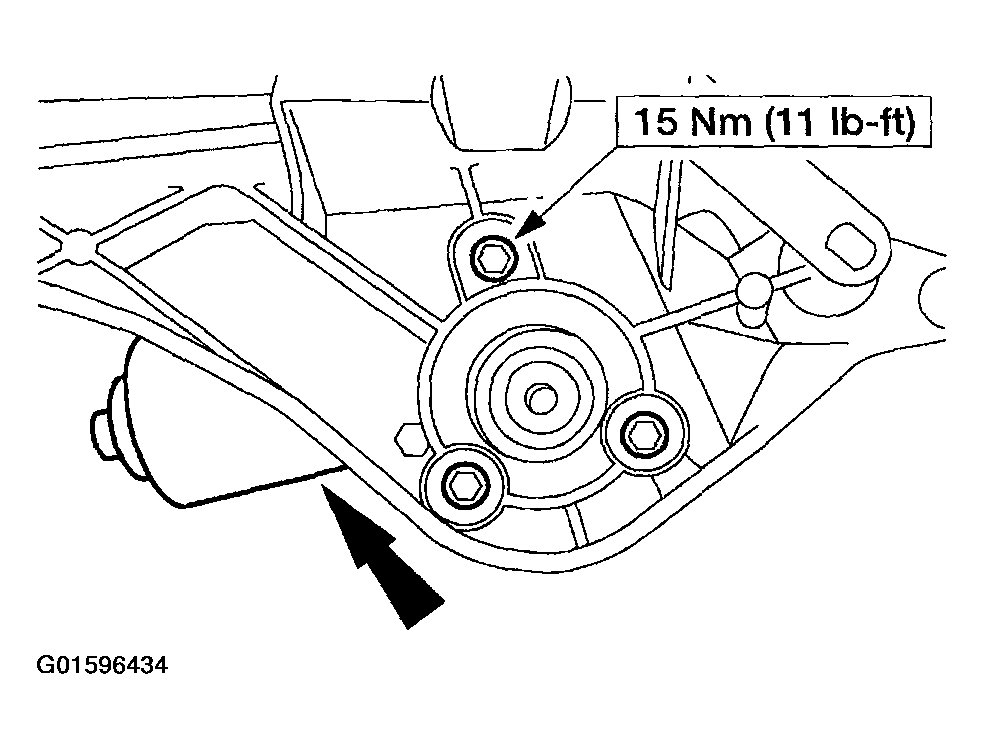

Fig 2: Removing Bolts And Windshield Wiper Motor
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
