Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Remove the RH front wheel. For additional information, refer to WHEELS & TIRES .
Remove the four screws, the pin-type retainer and remove the RH front inner fender well.

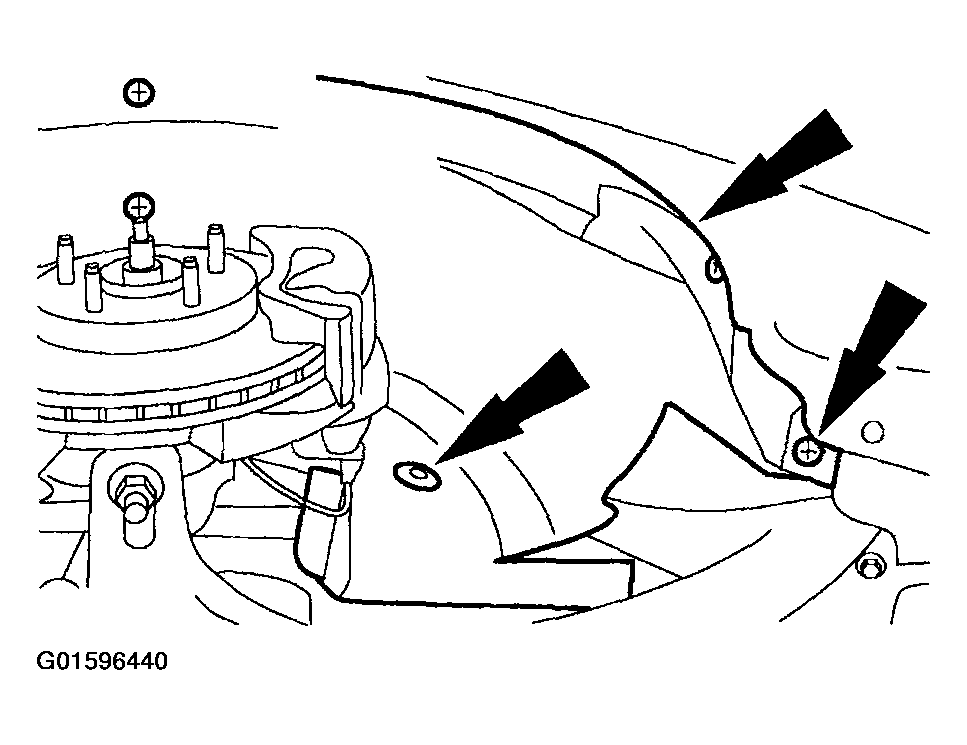

Fig 1: Removing RH Front Inner Fender Well
Courtesy of FORD MOTOR CO.

WARNING: Windshield washer solution contains methanol which is poisonous. Observe all cautions and warnings indicated on label of washer solution container.

NOTE: The windshield washer reservoir will drain when the washer hose is disconnected.

Fig 2: Disconnecting Washer Hose And Electrical Connector From Washer Pump

Courtesy of FORD MOTOR CO.

Disconnect the washer hose and the electrical connector from the washer pump.
Remove the washer pump assembly by prying the pump out of the reservoir cavity with a small flat blade screwdriver.

Fig 3: Removing Washer Pump Assembly
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
