Pinpoint Test H: The Rear Wiper Pump Is Inoperative

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

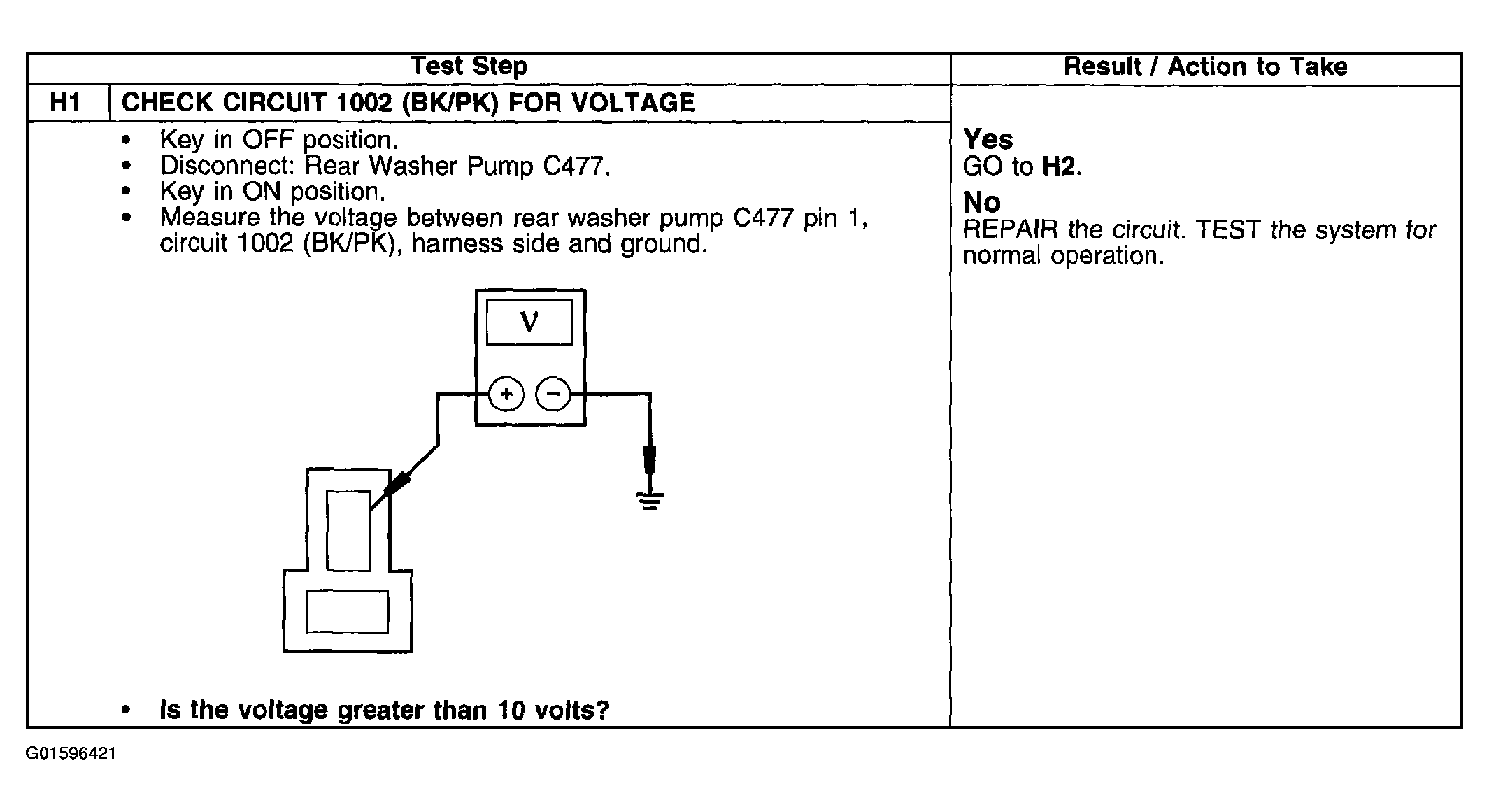

Fig 1: Pinpoint Test H: Rear Wiper Pump Inoperative (Steps H1)
G01596421Courtesy of FORD MOTOR CO.

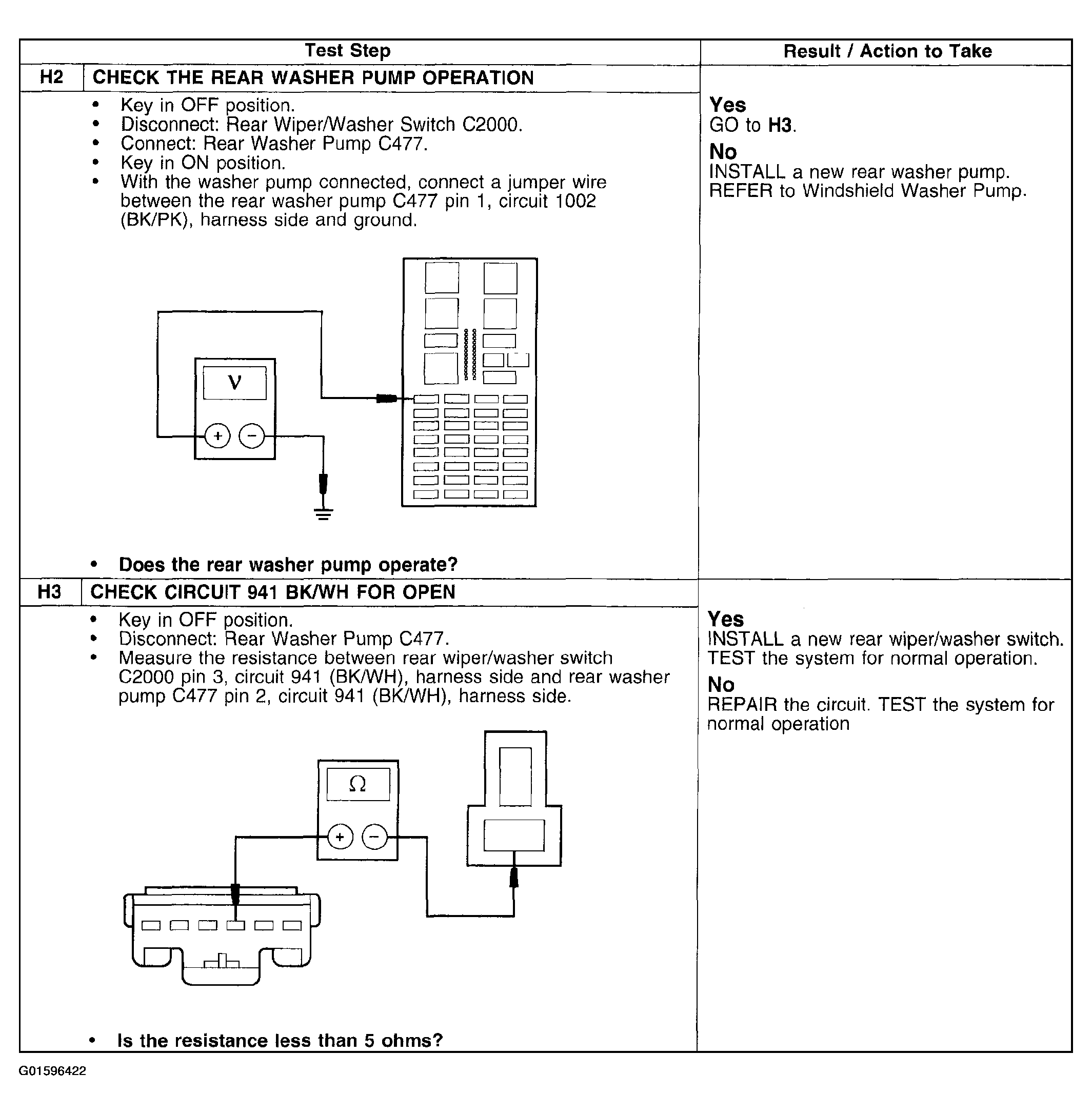

Fig 2: Pinpoint Test H: Rear Wiper Pump Inoperative (Steps H2-H3)
G01596422Courtesy of FORD MOTOR CO.
