Pinpoint Test G: The Rear Wiper Stays On Continuously

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

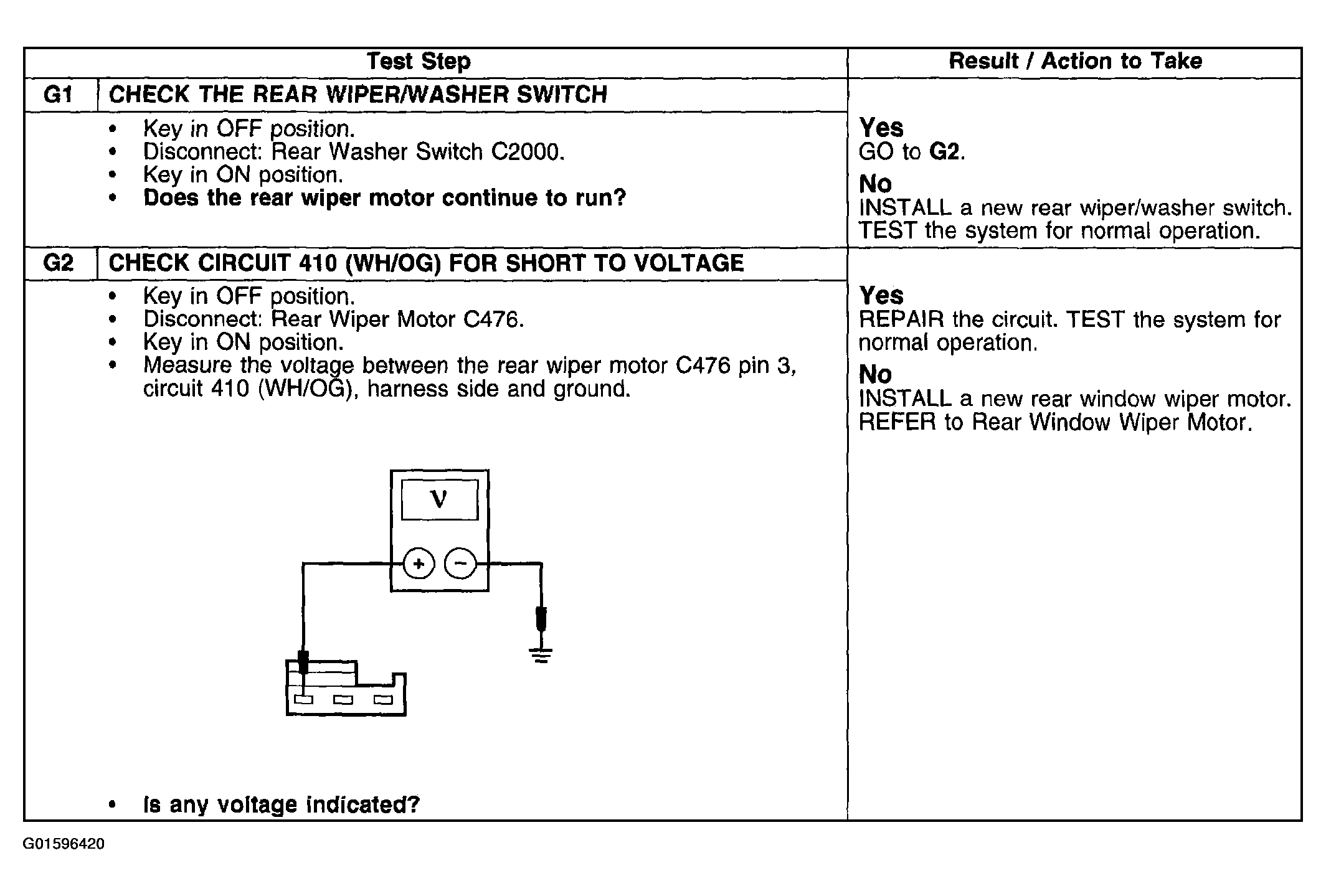

Fig 1: Pinpoint Test G: Rear Wiper Stays On Continuously (Steps G1-G2)
G01596420Courtesy of FORD MOTOR CO.
