Pinpoint Test D: The Windshield Wipers Pump Is Inoperative

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

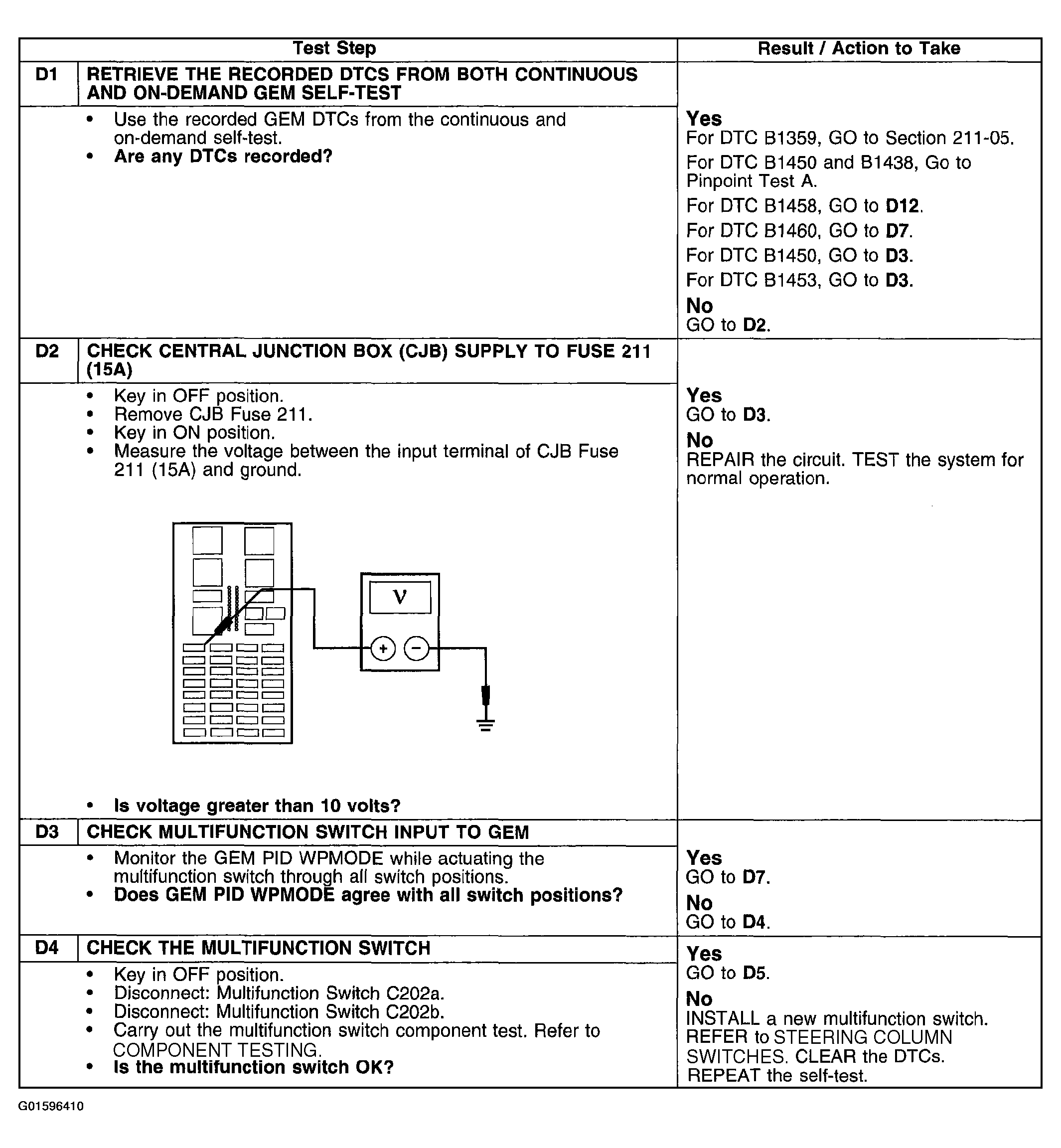

Fig 1: Pinpoint Test D: Windshield Wipers Pump Inoperative (Steps D1-D4)

Courtesy of FORD MOTOR CO.

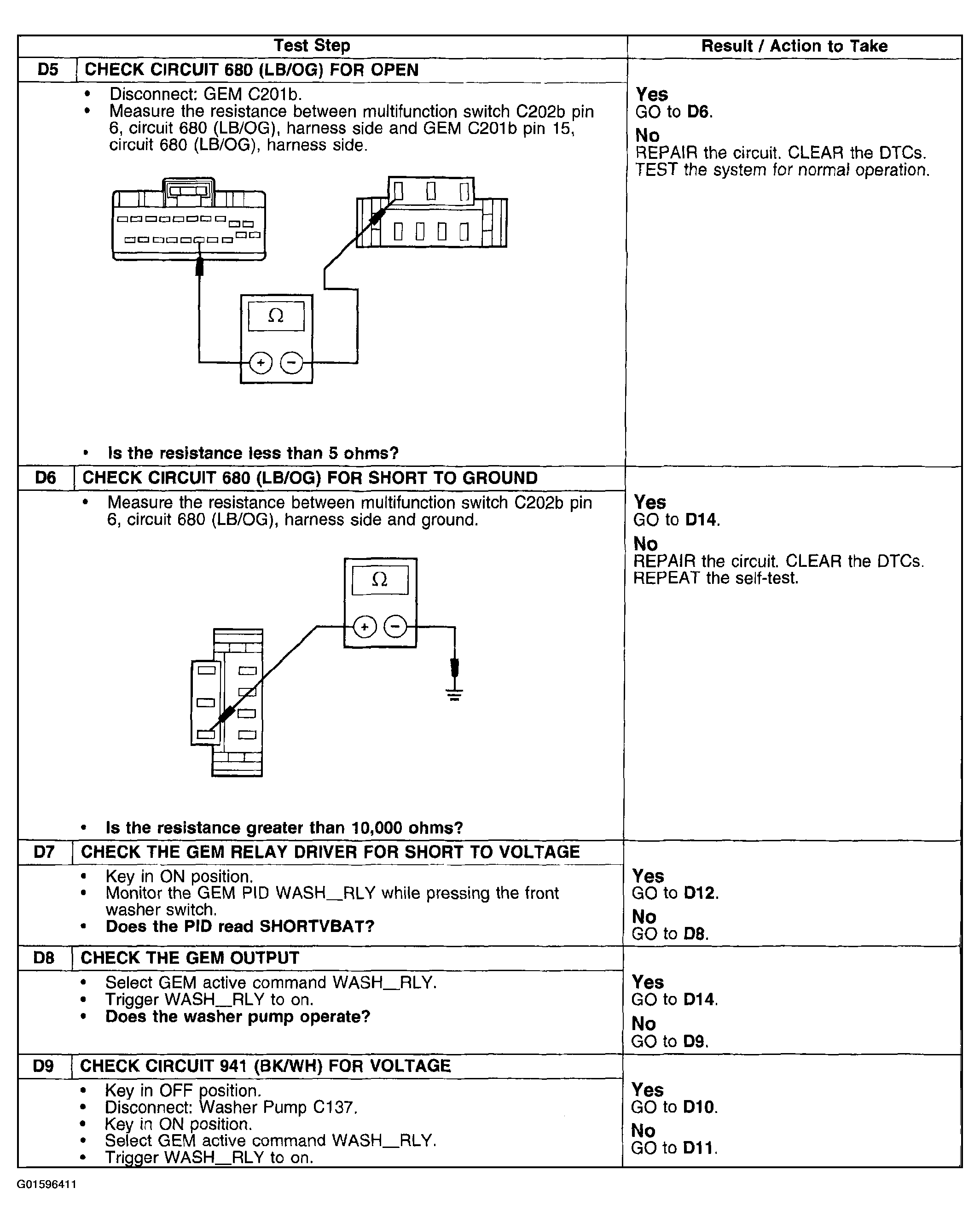

Fig 2: Pinpoint Test D: Windshield Wipers Pump Inoperative (Steps D5-D9)

Courtesy of FORD MOTOR CO.

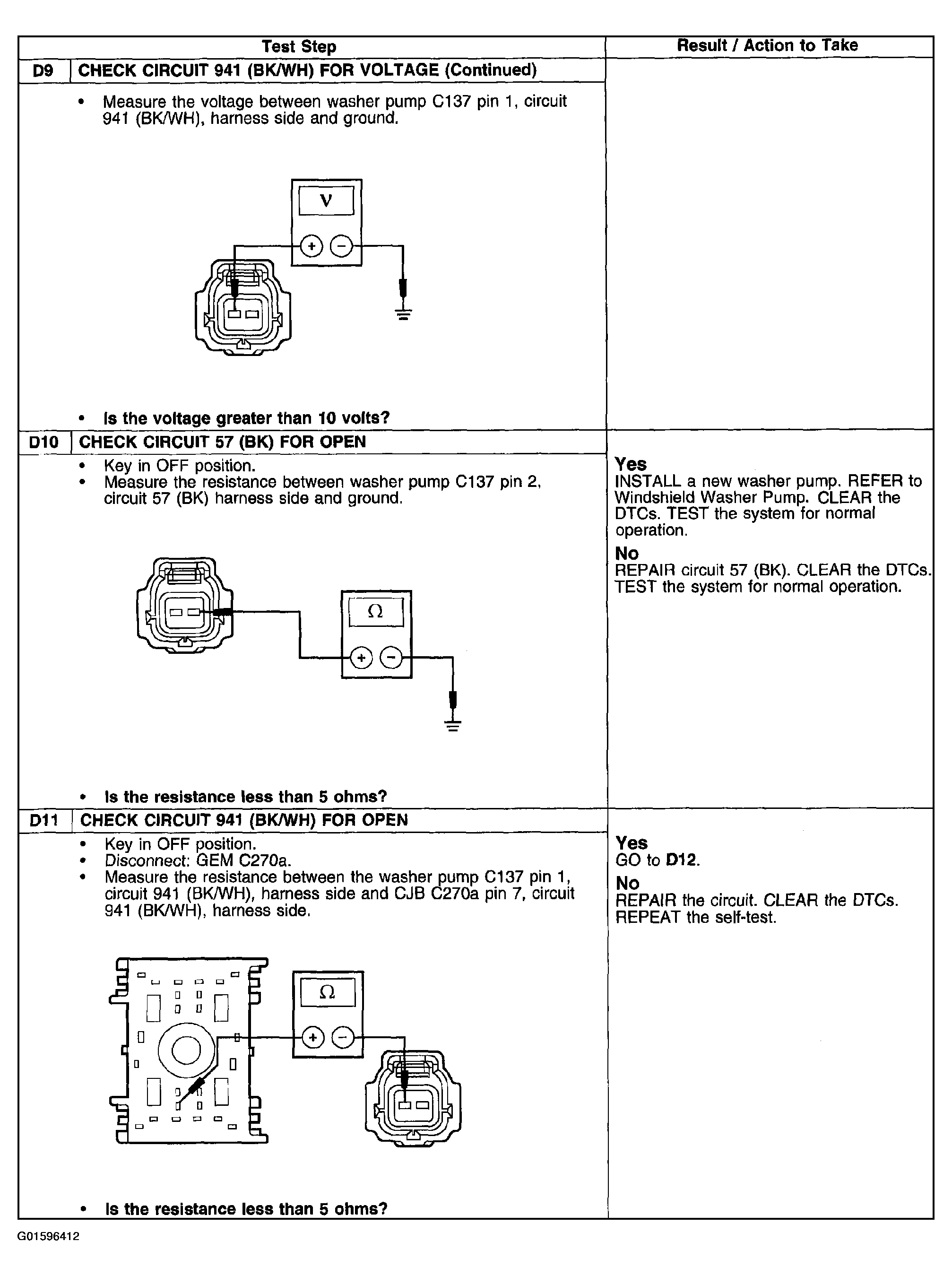

Fig 3: Pinpoint Test D: Windshield Wipers Pump Inoperative (Steps D9 Continued-D11)

Courtesy of FORD MOTOR CO.

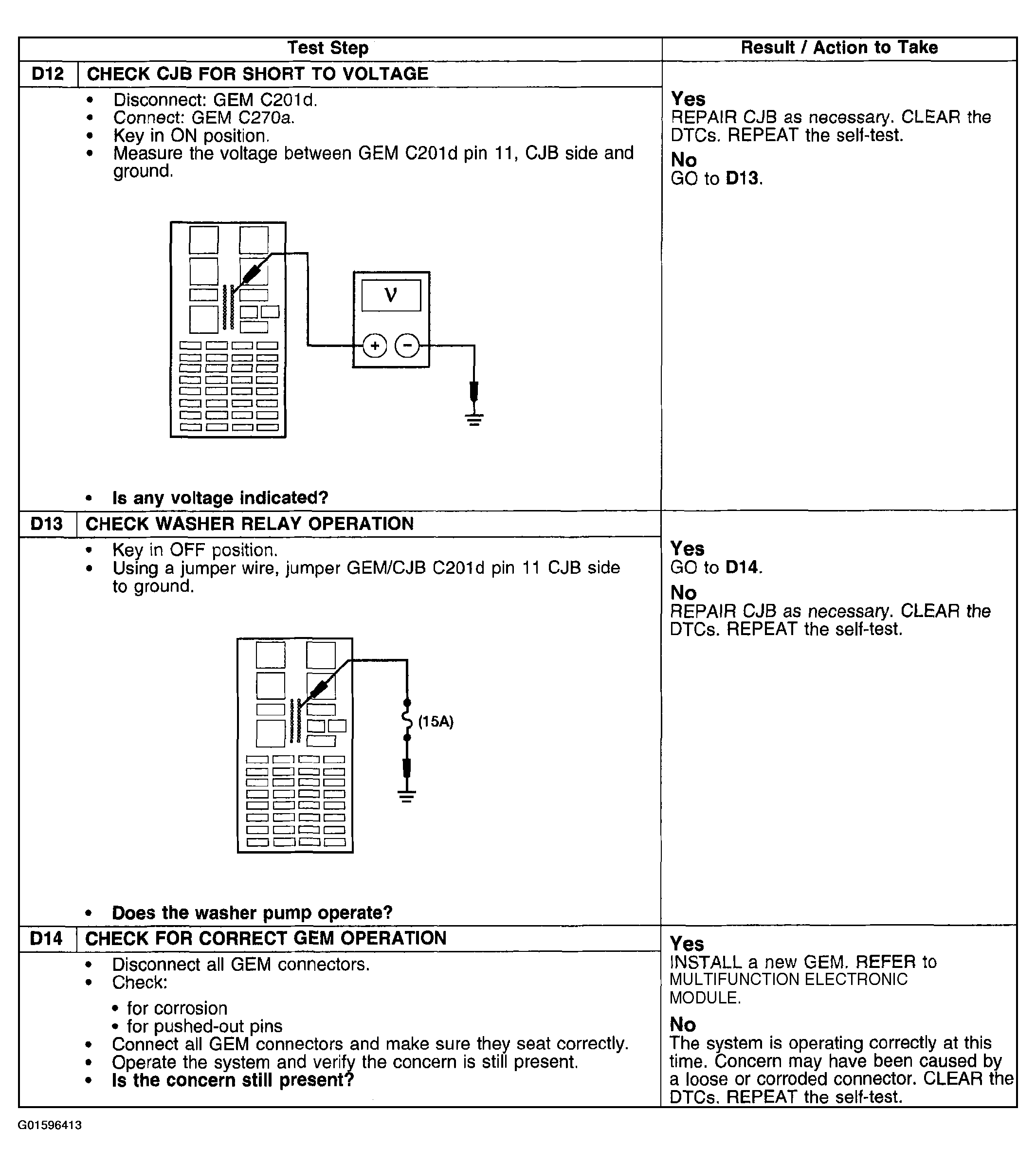

Fig 4: Pinpoint Test D: Windshield Wipers Pump Inoperative (Steps D12-D14)

Courtesy of FORD MOTOR CO.
