Pinpoint Test B: The Windshield Wipers Stay On Continuously
WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

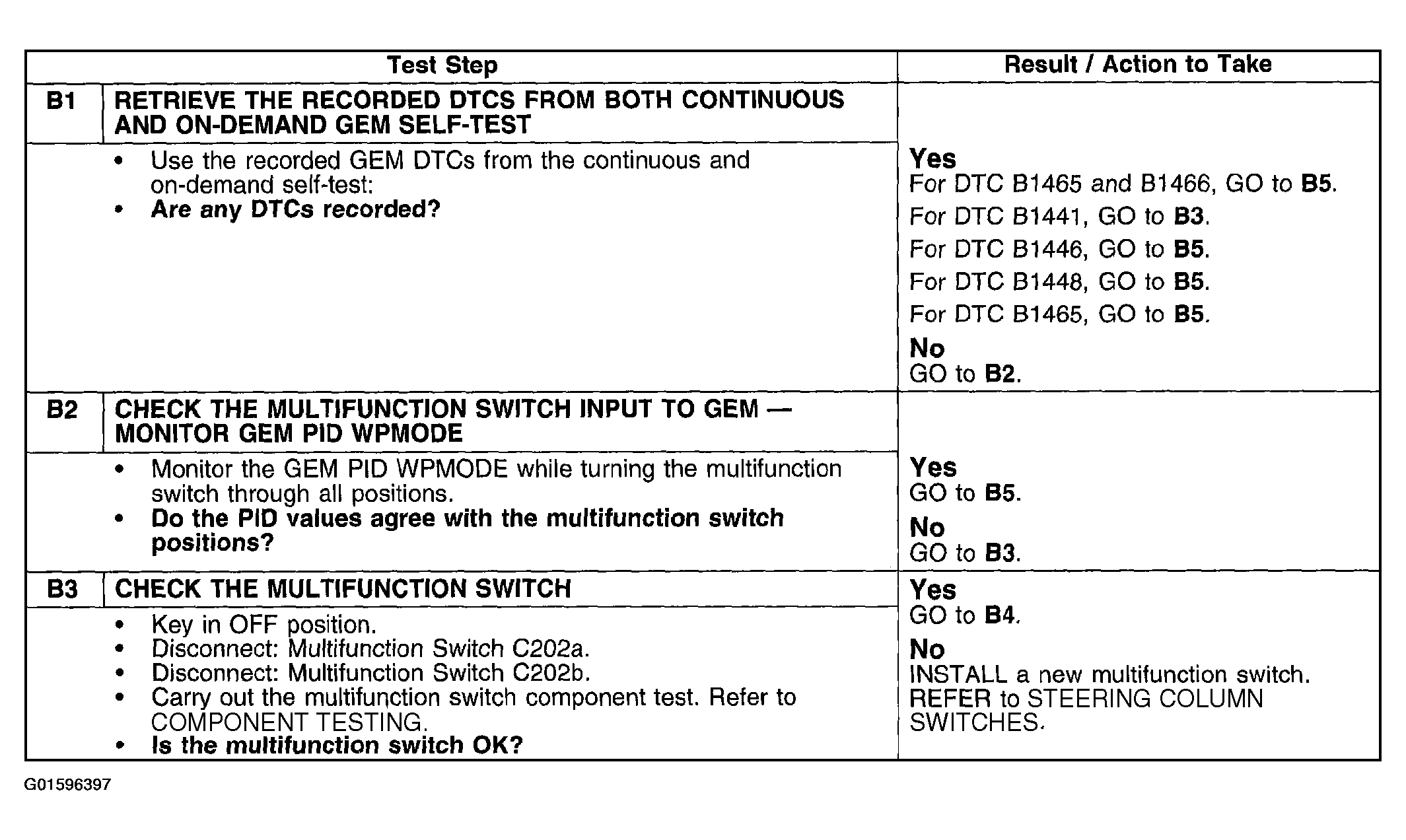

Fig 1: Pinpoint Test B: Windshield Wipers Stay On Continuously (Steps B1-B3)
Courtesy of FORD MOTOR CO.

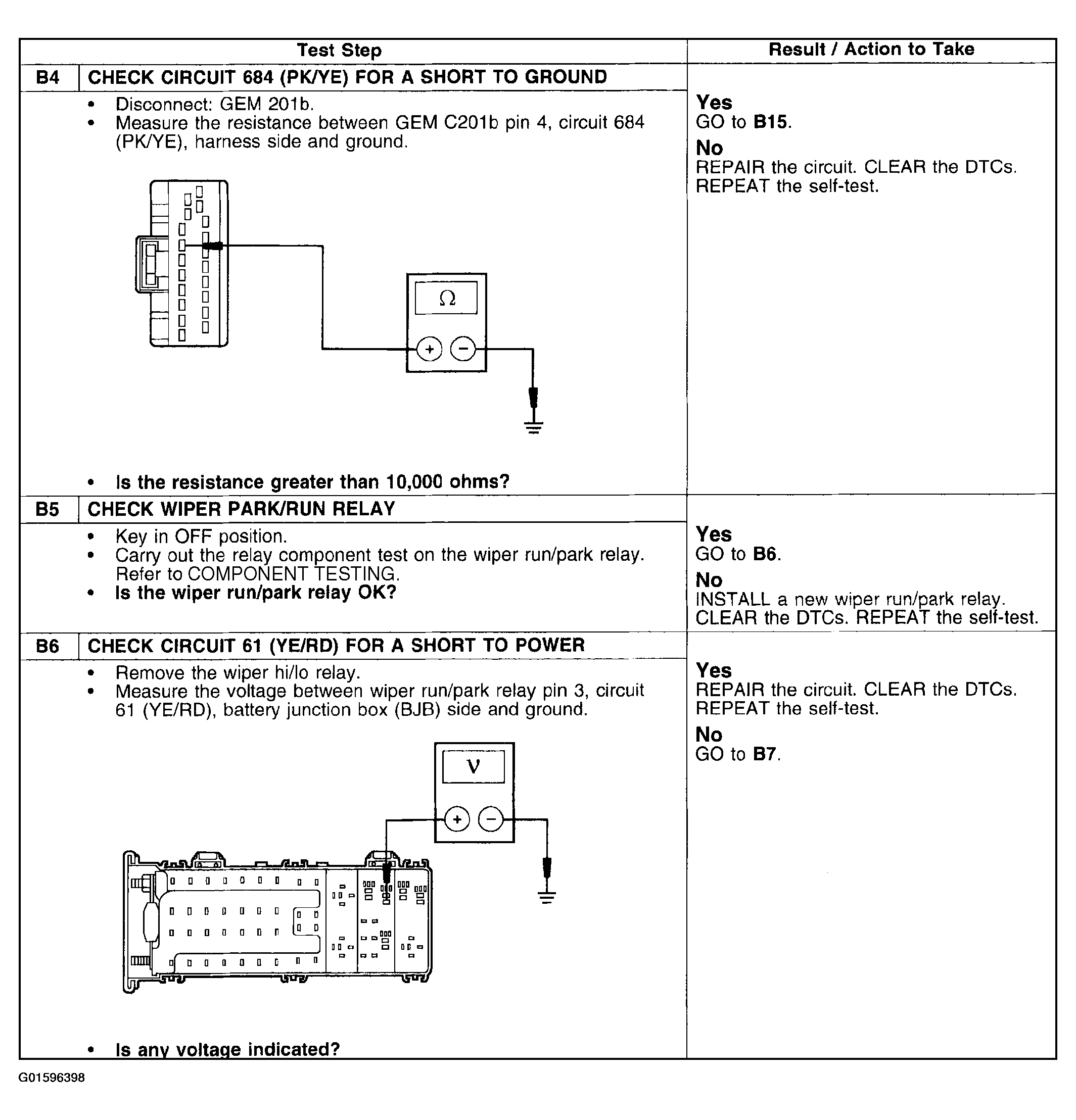

Fig 2: Pinpoint Test B: Windshield Wipers Stay On Continuously (Steps B4-B6)
Courtesy of FORD MOTOR CO.

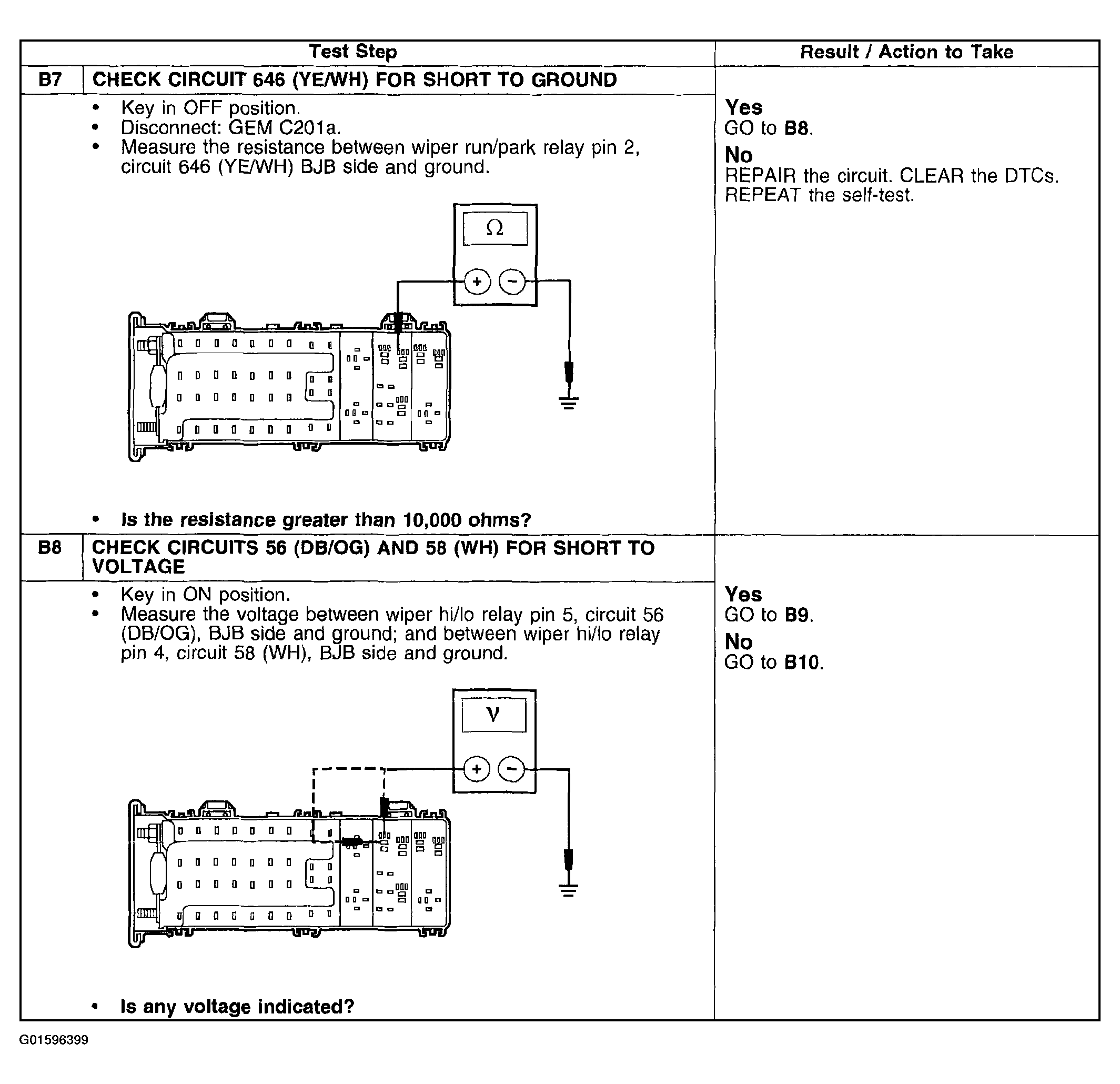

Fig 3: Pinpoint Test B: Windshield Wipers Stay On Continuously (Steps B7-B8)
Courtesy of FORD MOTOR CO.

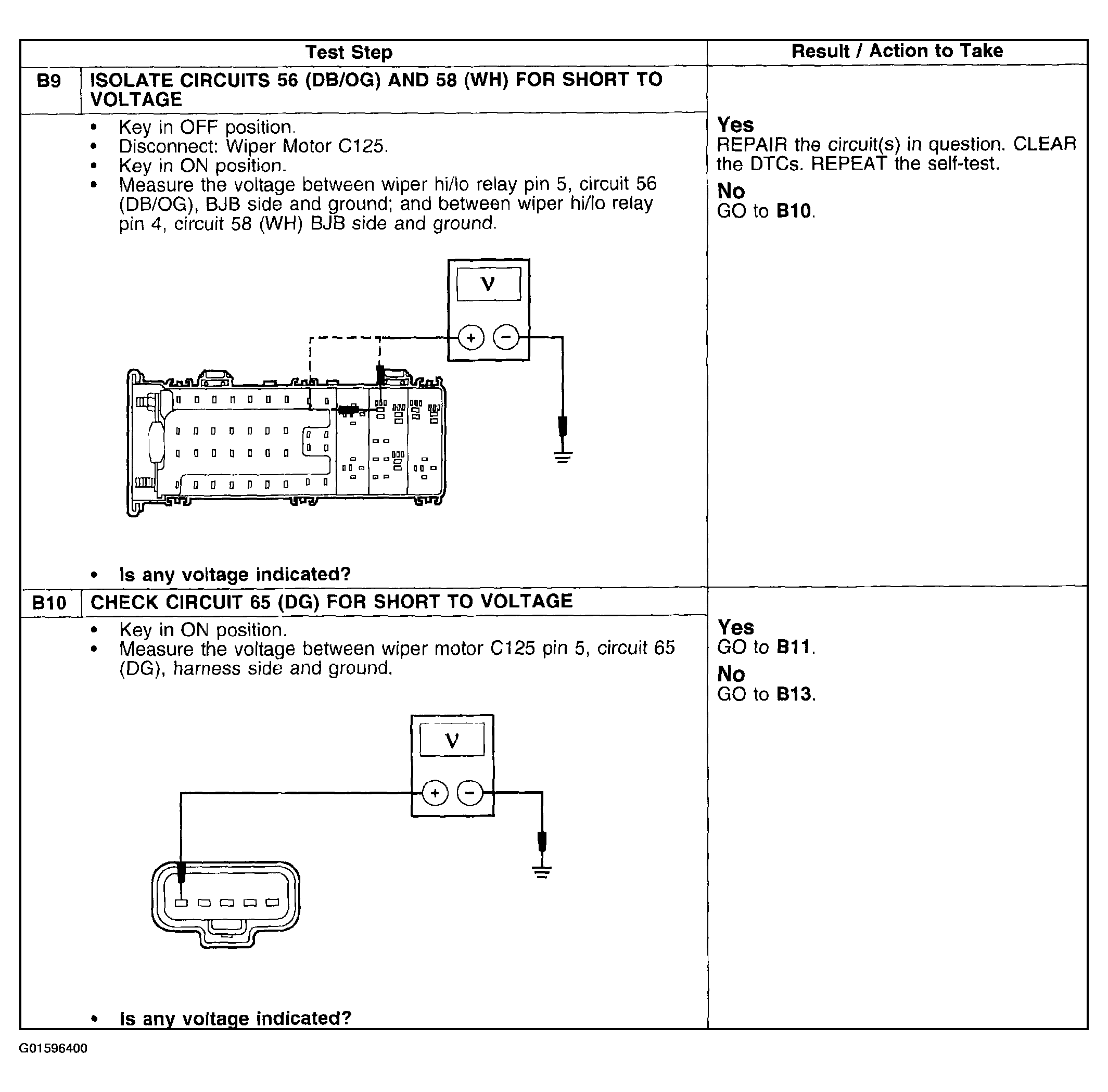

Fig 4: Pinpoint Test B: Windshield Wipers Stay On Continuously (Steps B9-B10)
Courtesy of FORD MOTOR CO.

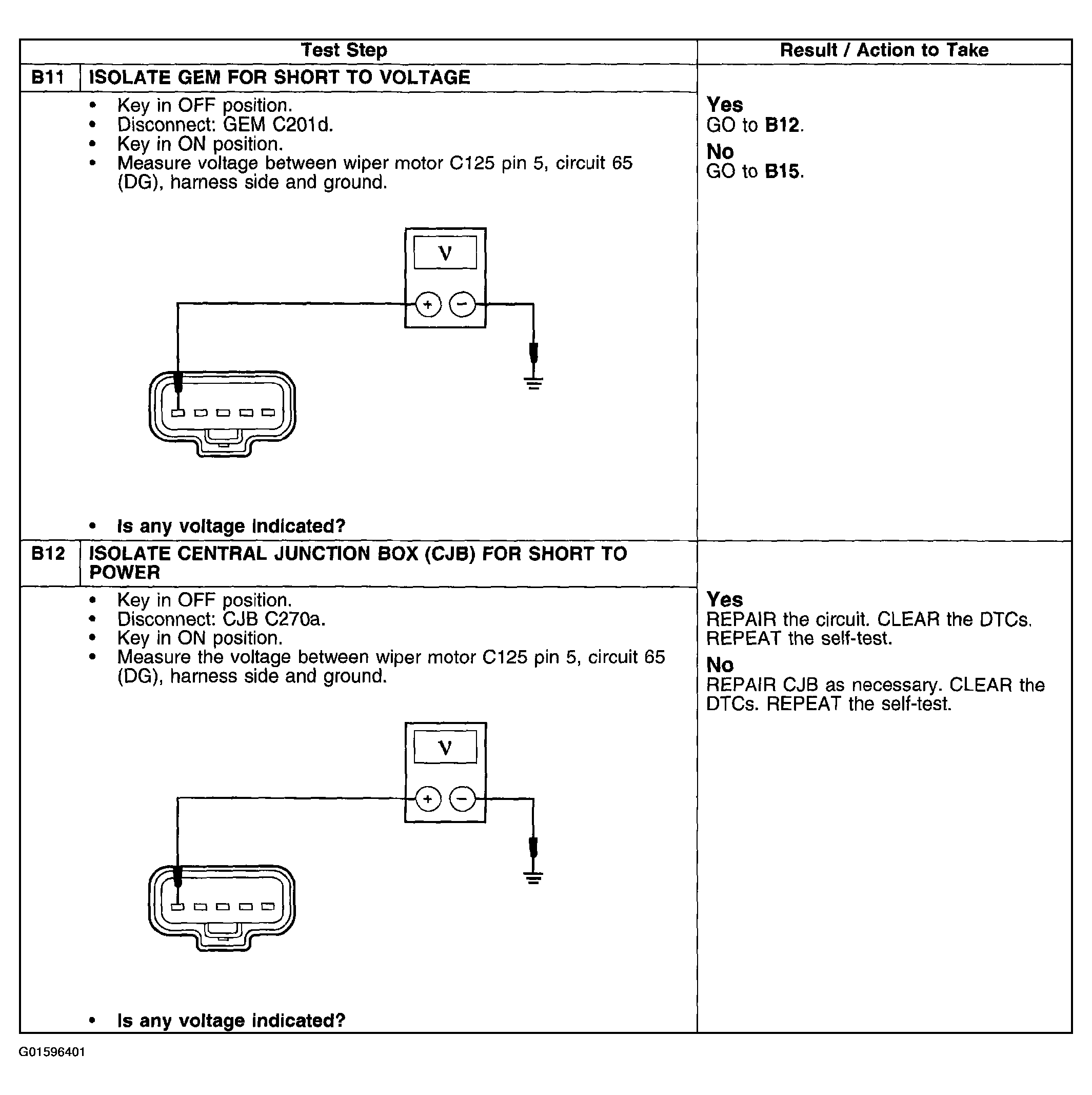

Fig 5: Pinpoint Test B: Windshield Wipers Stay On Continuously (Steps B11-B12)
Courtesy of FORD MOTOR CO.

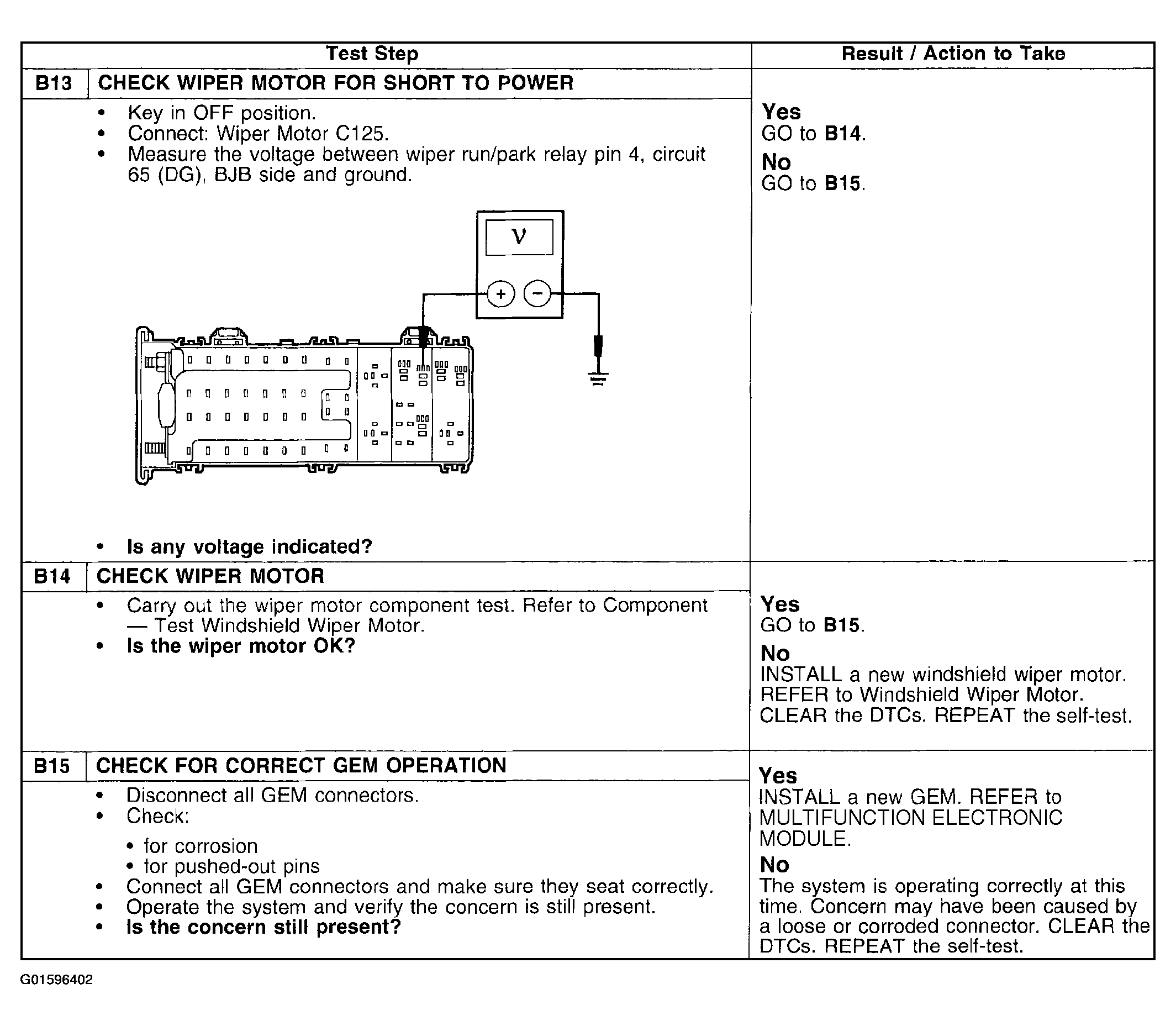

Fig 6: Pinpoint Test B: Windshield Wipers Stay On Continuously (Steps B13-B15)
