Pinpoint Test A: The Windshield Wipers Are Inoperative

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

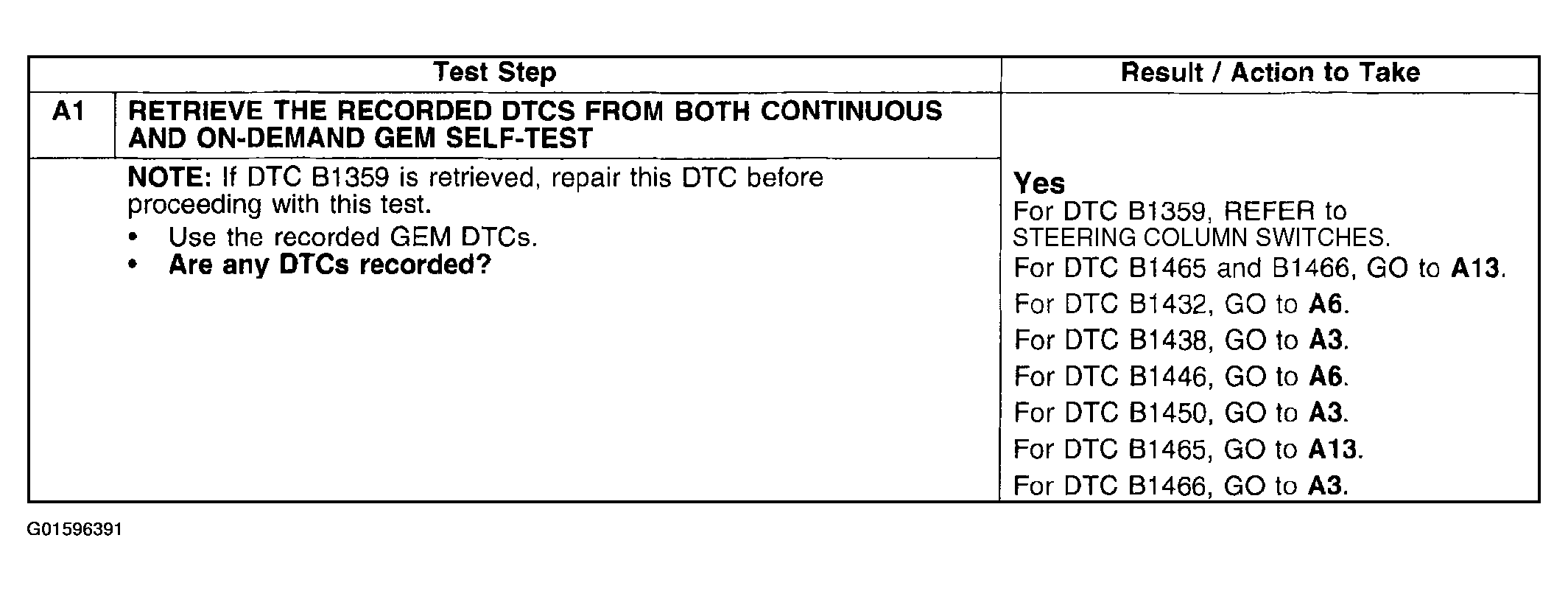

Fig 1: Pinpoint Test A: Windshield Wipers Inoperative (Steps A1)

Courtesy of FORD MOTOR CO.

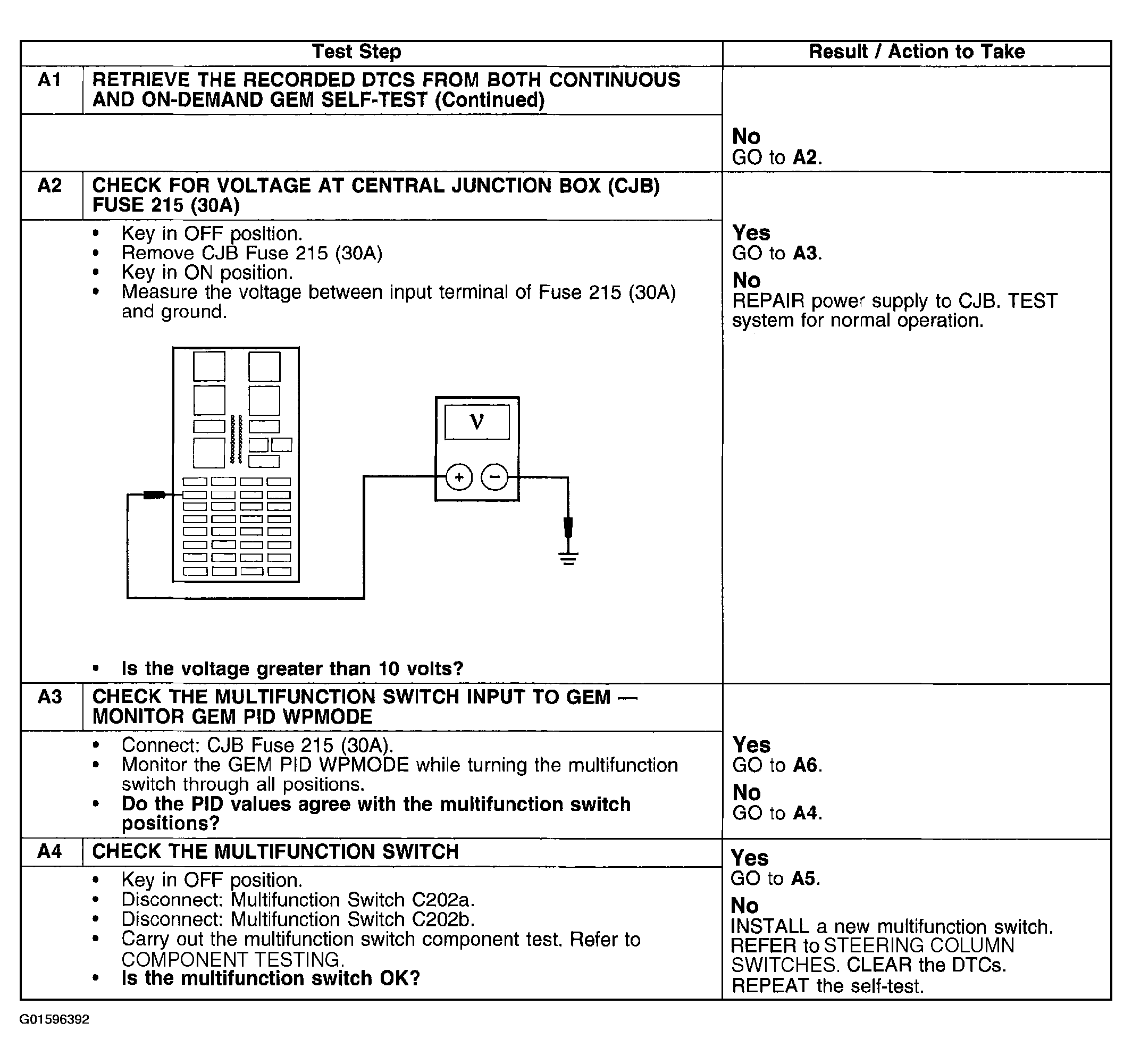

Fig 2: Pinpoint Test A: Windshield Wipers Inoperative (Steps A1 Continued-A4)

Courtesy of FORD MOTOR CO.

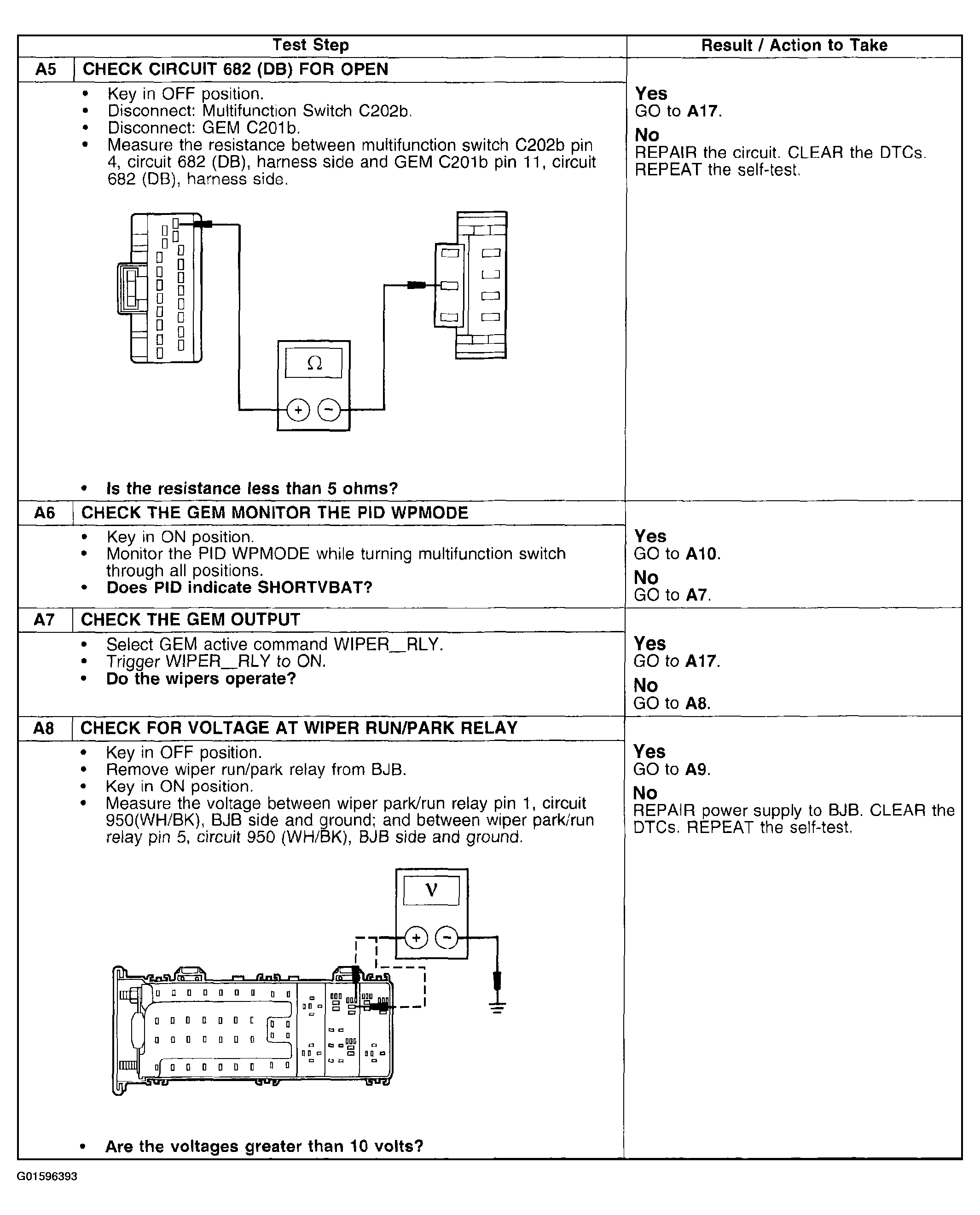

Fig 3: Pinpoint Test A: Windshield Wipers Inoperative (Steps A5-A8)

Courtesy of FORD MOTOR CO.

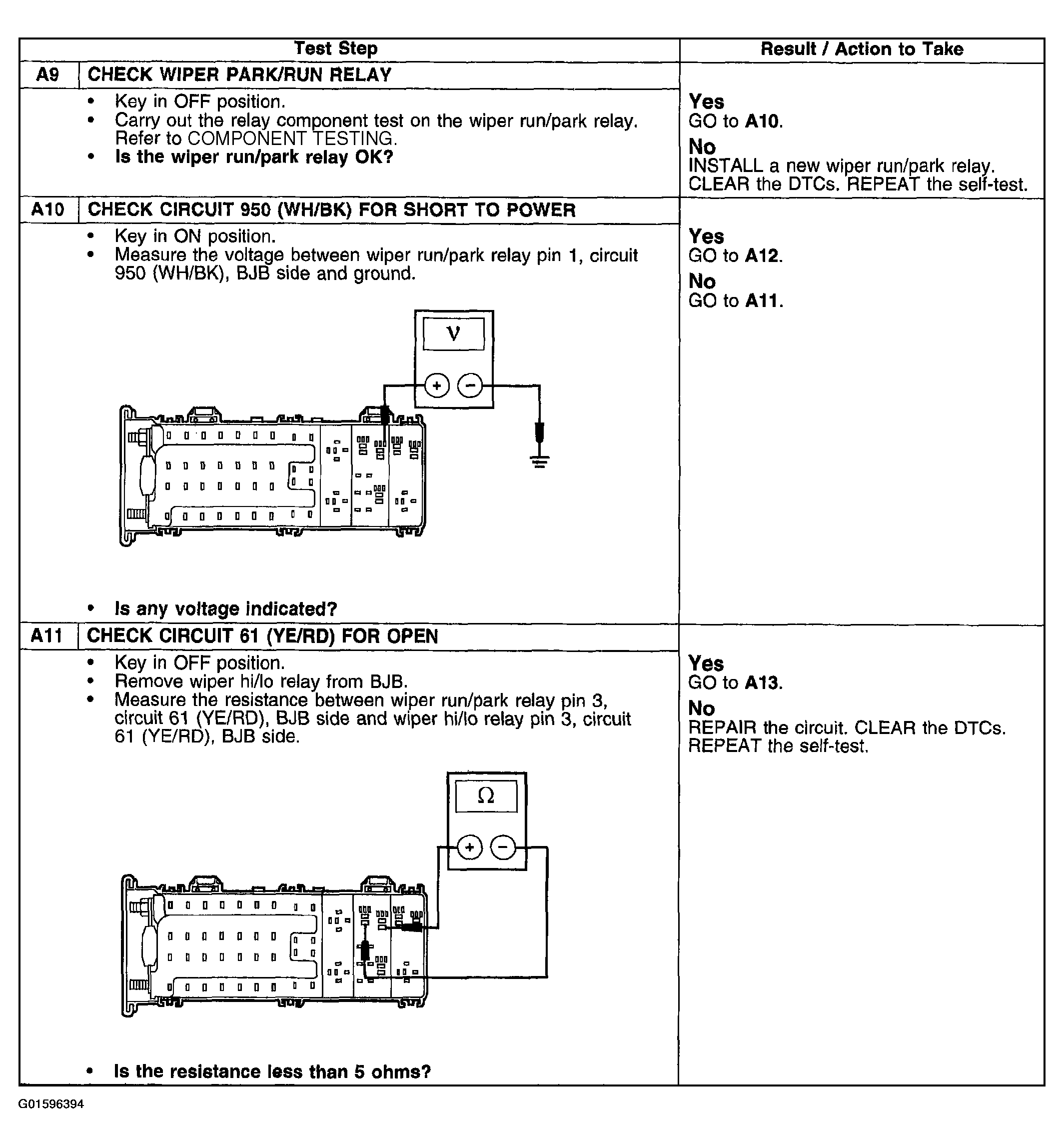

Fig 4: Pinpoint Test A: Windshield Wipers Inoperative (Steps A9-A11)

Courtesy of FORD MOTOR CO.

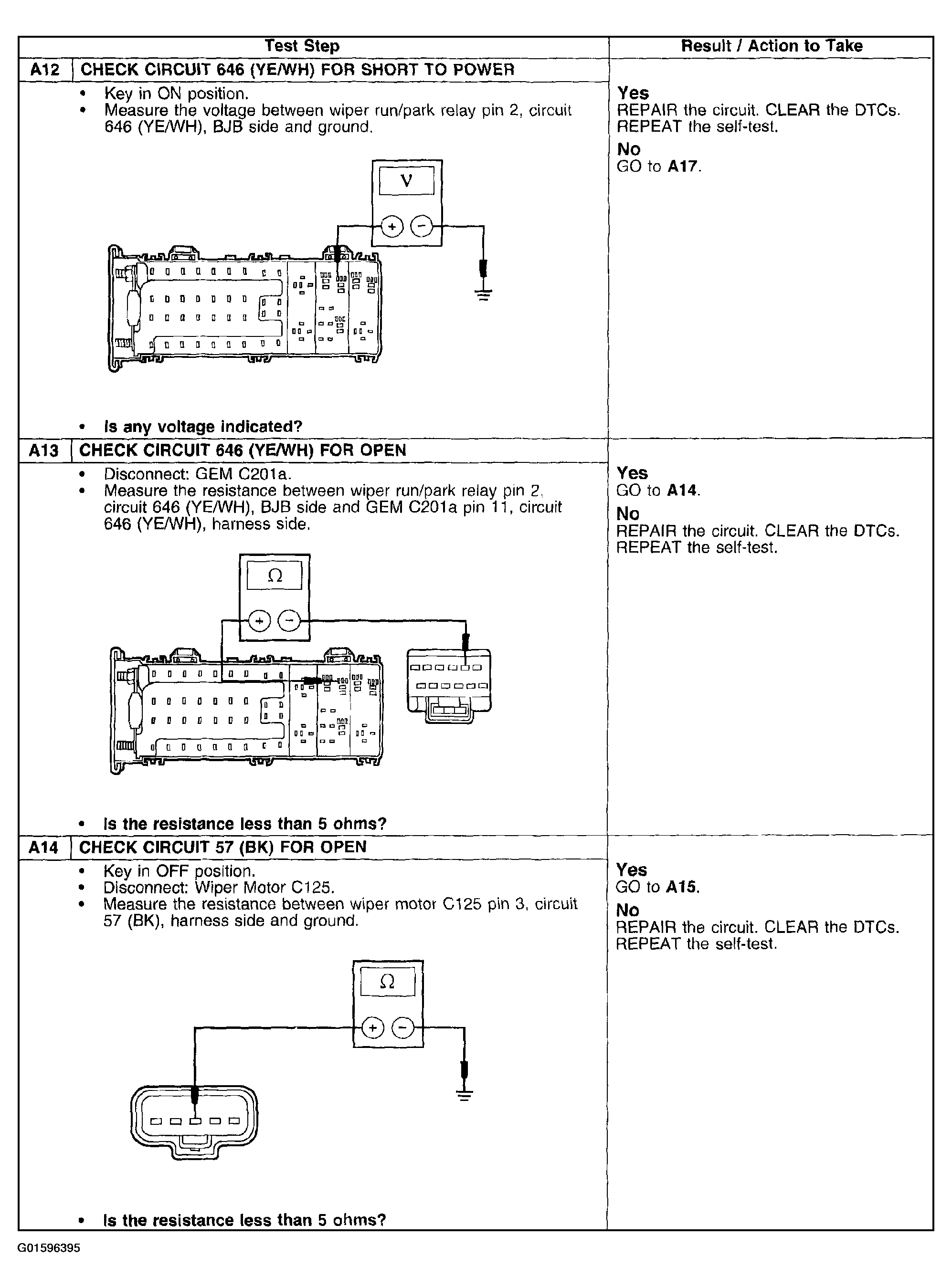

Fig 5: Pinpoint Test A: Windshield Wipers Inoperative (Steps A12-A14)

Courtesy of FORD MOTOR CO.

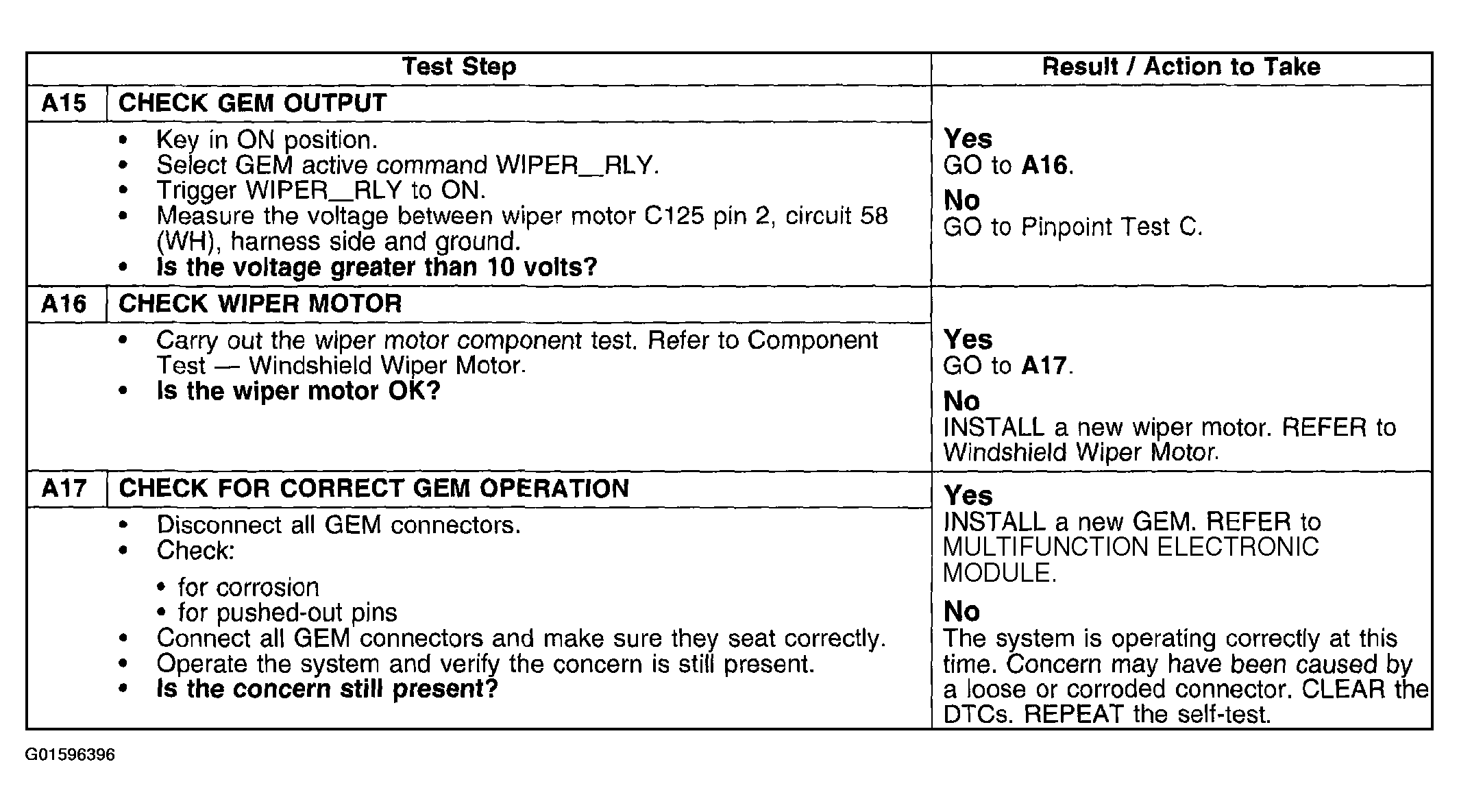

Fig 6: Pinpoint Test A: Windshield Wipers Inoperative (Steps A15-A17)

Courtesy of FORD MOTOR CO.
