Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable (14301) and wait at least one minute. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the ignition switch lock cylinder.
    1. Insert the ignition key and turn to the RUN position.
    2. While pressing in the ignition switch lock cylinder release pin, pull the lock cylinder out of the steering column.

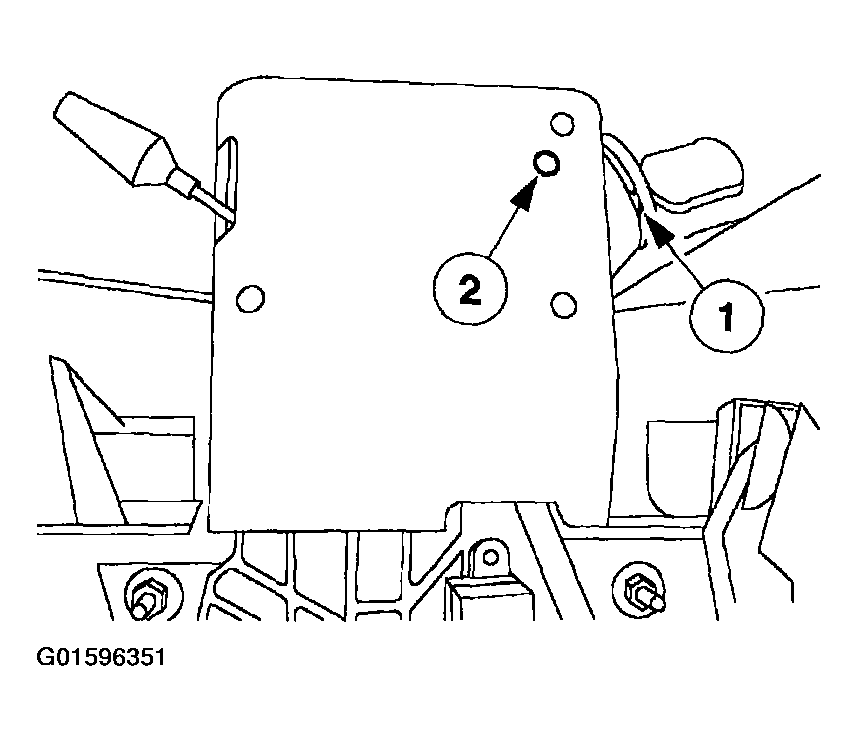

    Fig 1: Removing Ignition Switch Lock Cylinder
    G01596351Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
    • Verify the ignition switch lock cylinder operation.

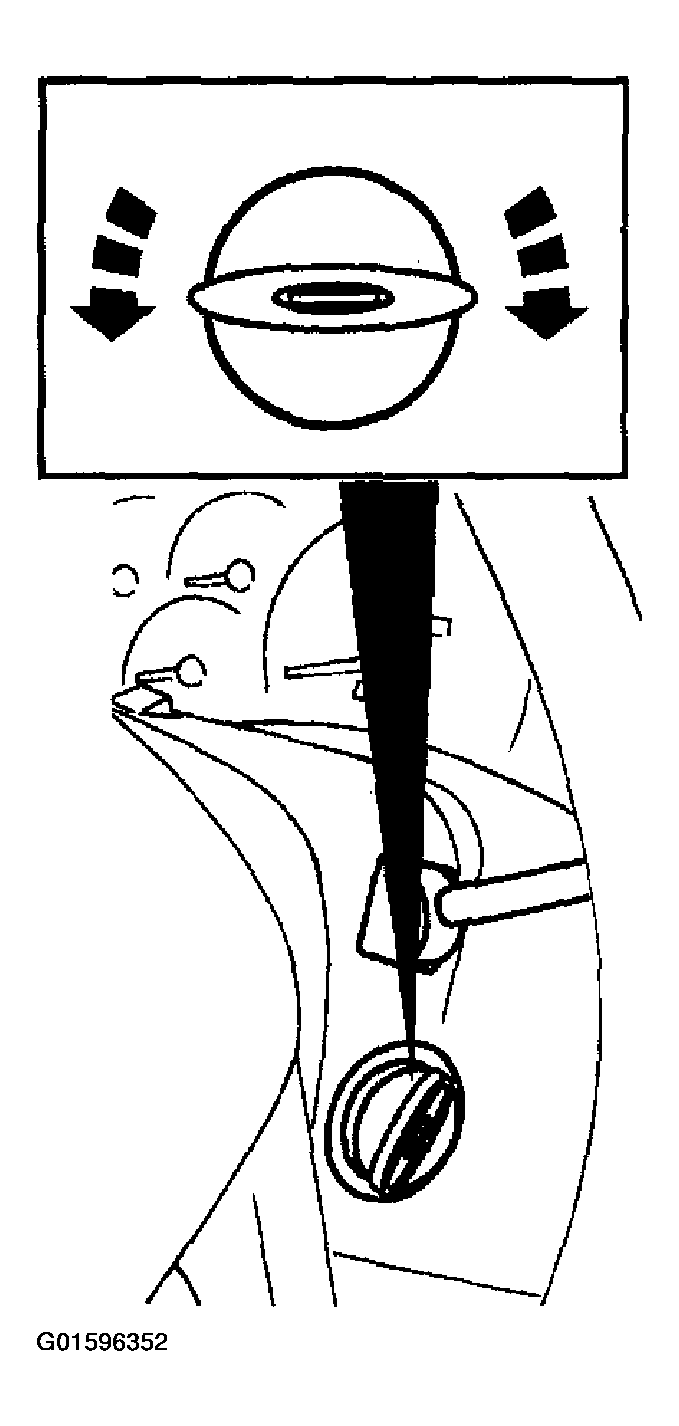

    Fig 2: Checking Ignition Switch Lock Cylinder Operation
    G01596352Courtesy of FORD MOTOR CO.
