Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front door trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
Position the watershield aside.

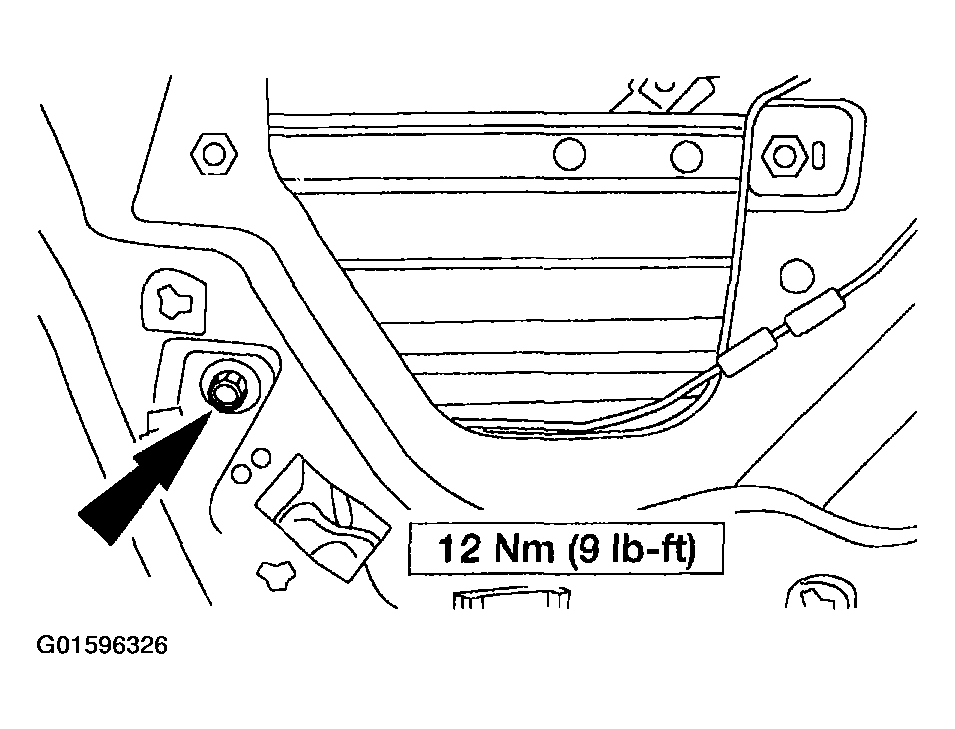

Remove the window glass run channel bolt.

Fig 1: Removing Window Glass Run Channel Bolt
Courtesy of FORD MOTOR CO.

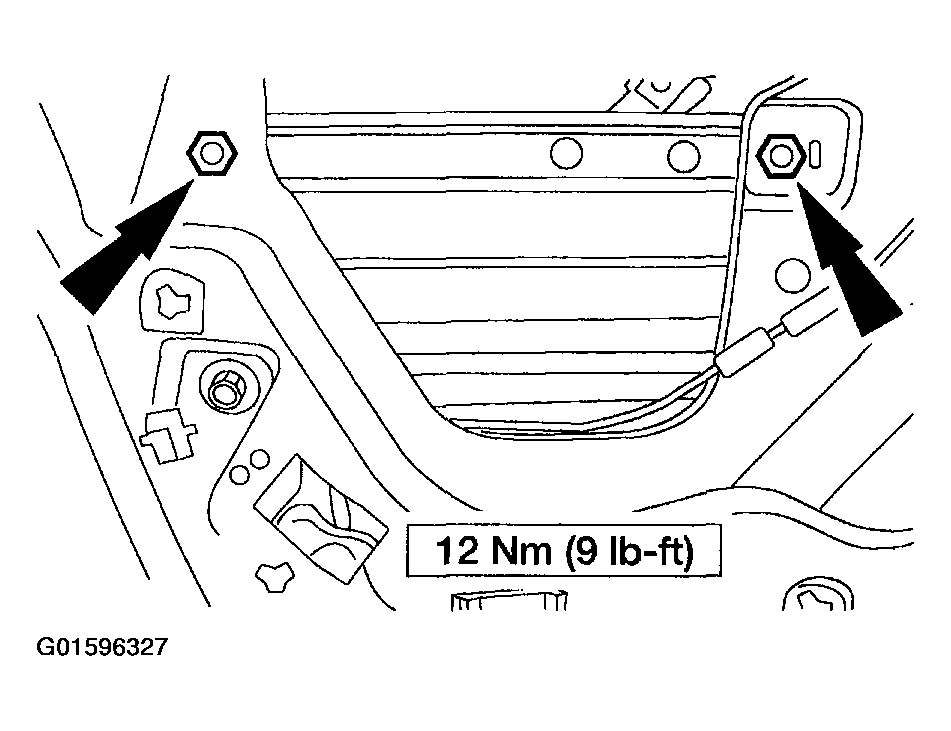

Remove the bolts and position the center window glass support aside.

Fig 2: Removing Bolts And Positioning Center Window Glass Support Aside
Courtesy of FORD MOTOR CO.

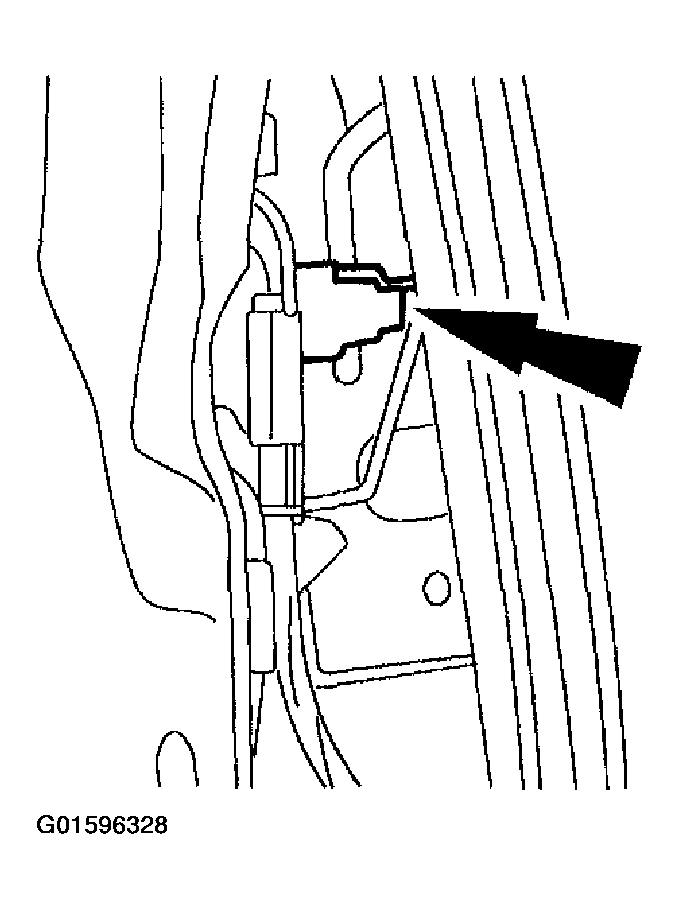

Disconnect the exterior door handle actuating rod.
- Open the locking clip.
Fig 3: Disconnecting Exterior Door Handle Actuating Rod
Courtesy of FORD MOTOR CO.
Remove the lock rod from the lock cylinder.

Fig 4: Removing Lock Rod From Lock Cylinder
Courtesy of FORD MOTOR CO.

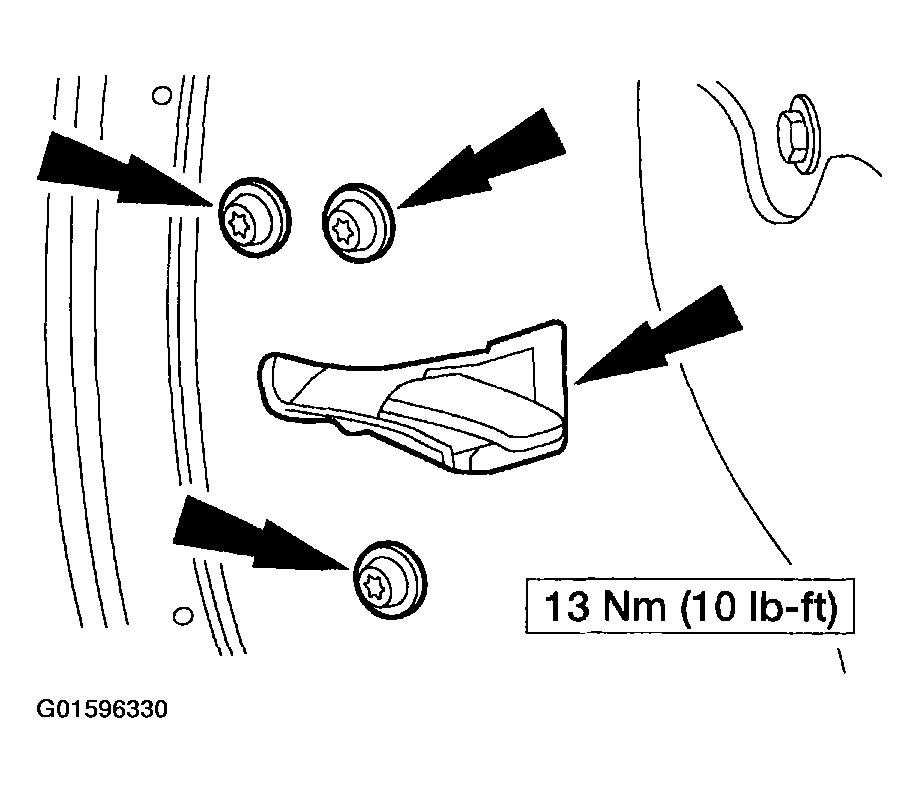

Remove the bolts, and position the rear door latch aside.

Fig 5: Removing Bolts, And Positioning Rear Door Latch Aside
Courtesy of FORD MOTOR CO.

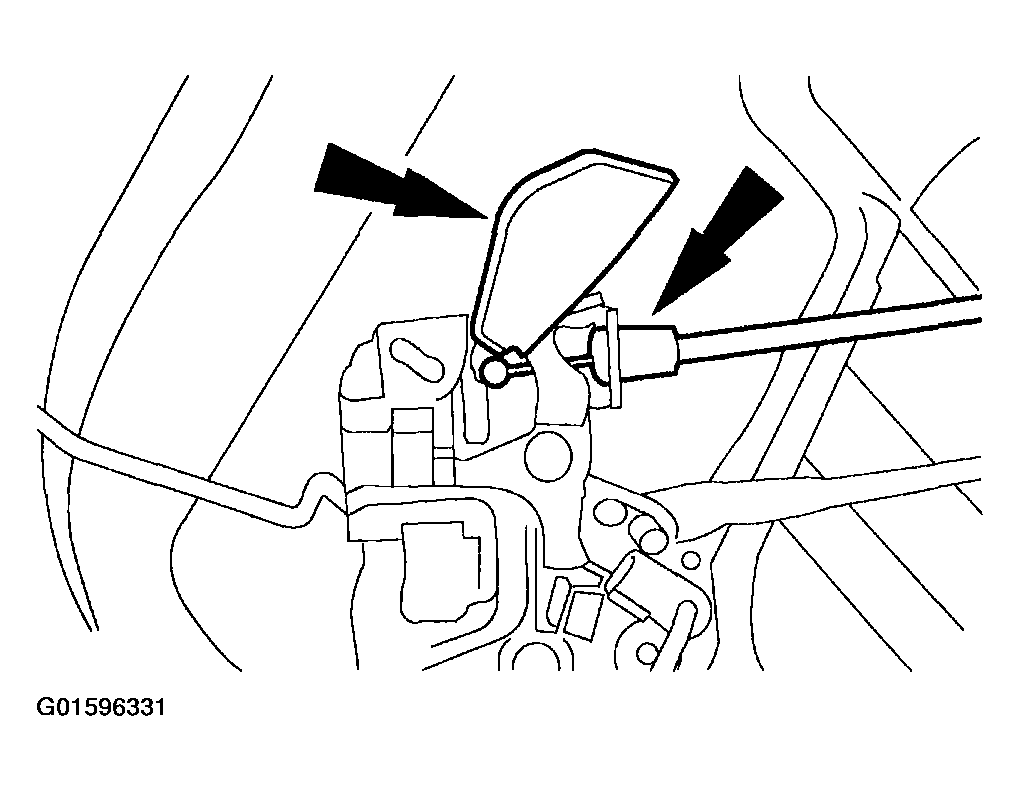

Remove the cover and disconnect the rear door latch actuator cable.
- Disconnect the electrical connector(s).
Fig 6: Removing Cover And Disconnecting Rear Door Latch Actuator Cable
Courtesy of FORD MOTOR CO.
Transfer all the components as necessary.
To install, reverse the removal procedure.
- The special tool must be used to install the new rivet.
