Pinpoint Test H: The Panic Feature Is Inoperative Using The Keyless Entry Remote Transmitter

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Pinpoint Test H: Panic Feature Inoperative Using Keyless Entry Remote Transmitter (Steps H1-H2)
G01596323Courtesy of FORD MOTOR CO.

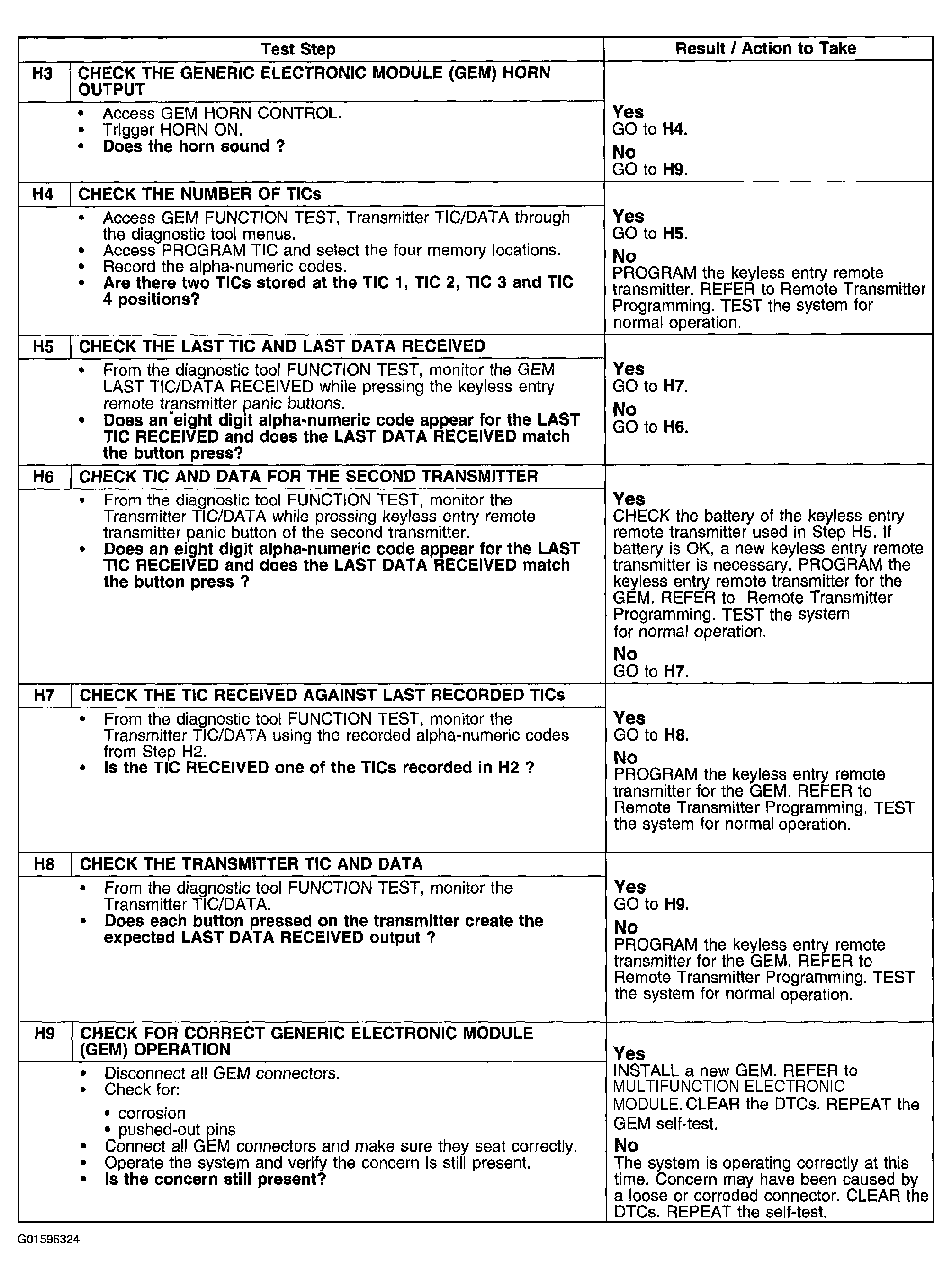

Fig 2: Pinpoint Test H: Panic Feature Inoperative Using Keyless Entry Remote Transmitter (Steps H3-H9)
G01596324Courtesy of FORD MOTOR CO.
