Pinpoint Test G: The Doors Do Not Lock Or Unlock Using The Keyless Entry Keypad

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

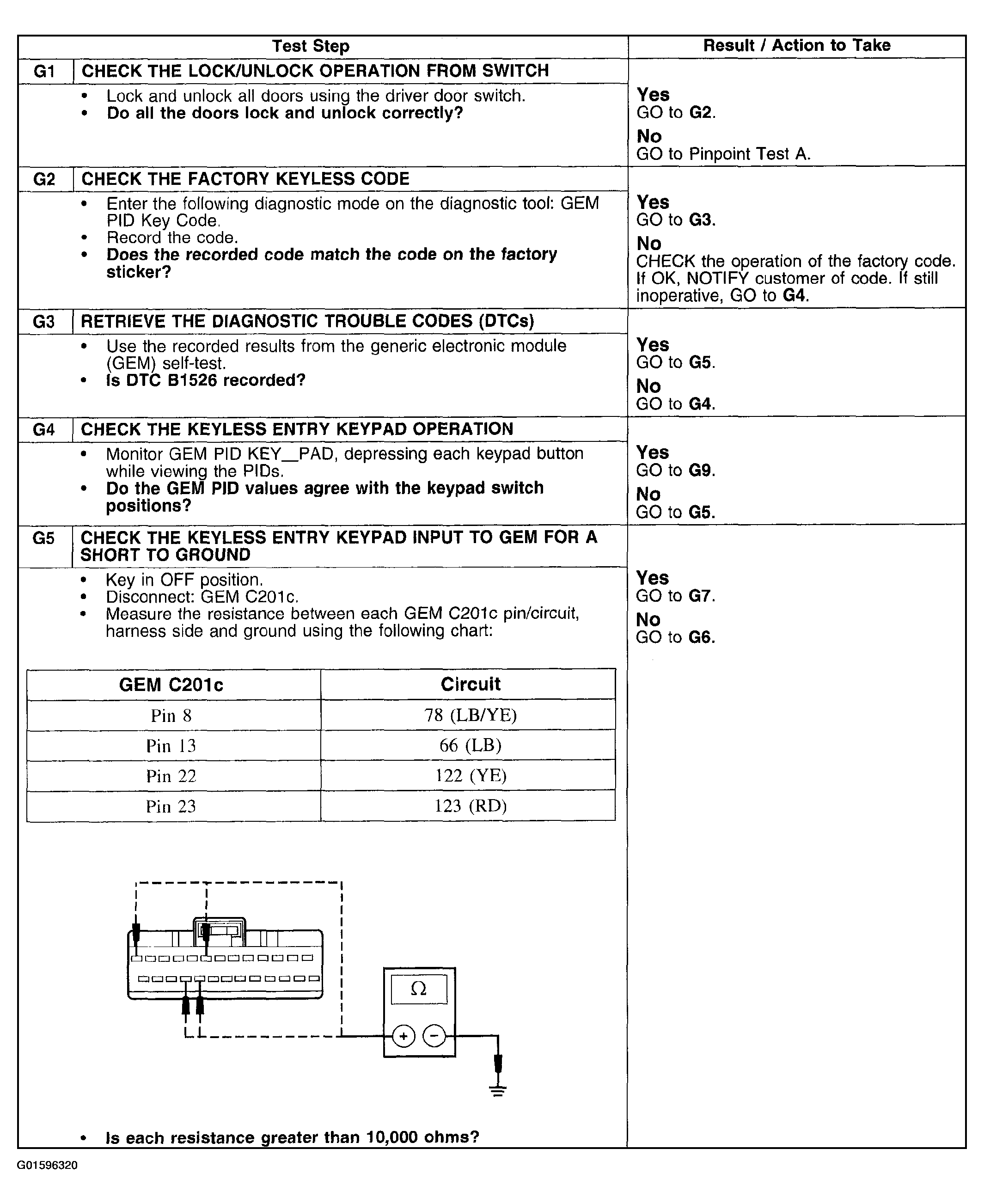

Fig 1: Pinpoint Test G: Doors Do Not Lock Or Unlock Using Keyless Entry Keypad (Steps G1-G5)

Courtesy of FORD MOTOR CO.

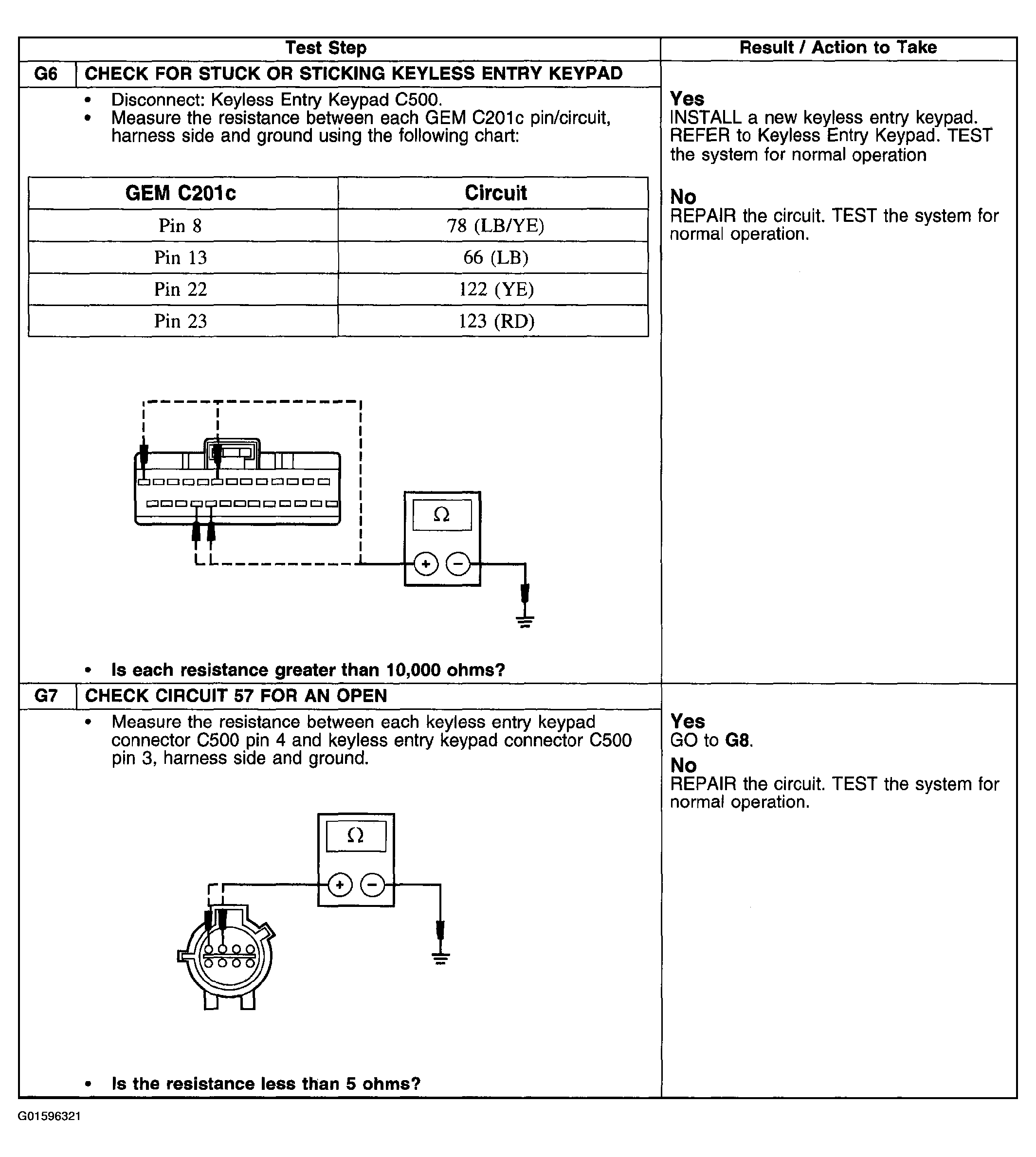

Fig 2: Pinpoint Test G: Doors Do Not Lock Or Unlock Using Keyless Entry Keypad (Steps G6-G7)

Courtesy of FORD MOTOR CO.

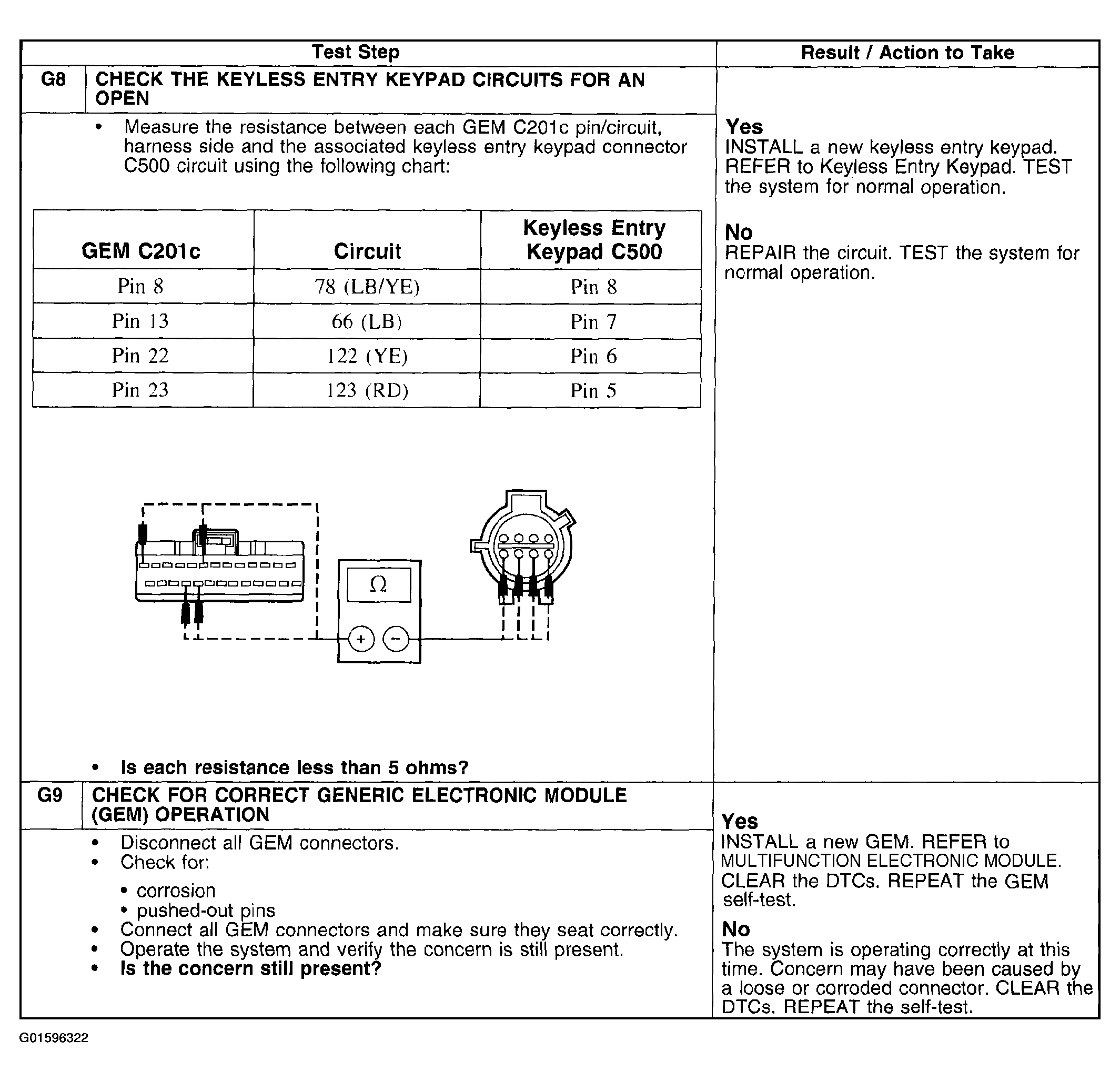

Fig 3: Pinpoint Test G: Doors Do Not Lock Or Unlock Using Keyless Entry Keypad (Steps G8-G9)

Courtesy of FORD MOTOR CO.
