Pinpoint Test F: The Luggage Compartment Lid Is Inoperative Using The Keyless Entry Remote Transmitter

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

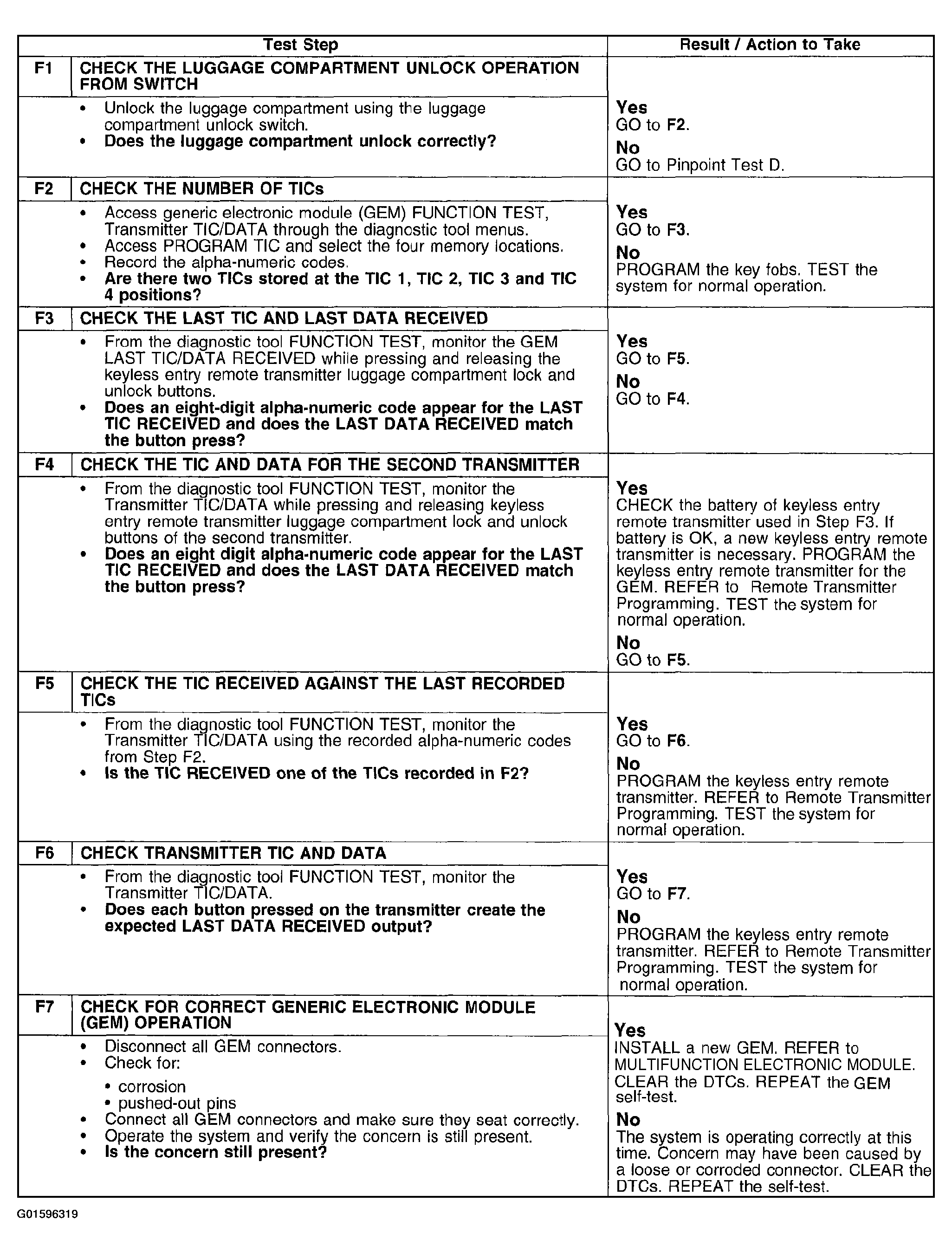

Fig 1: Pinpoint Test F: Luggage Compartment LID Inoperative Using Keyless Entry Remote Transmitter (Steps F1-F7)
G01596319Courtesy of FORD MOTOR CO.
