Pinpoint Test E: The Doors Do Not Lock Or Unlock Using The Keyless Entry Remote Transmitter

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

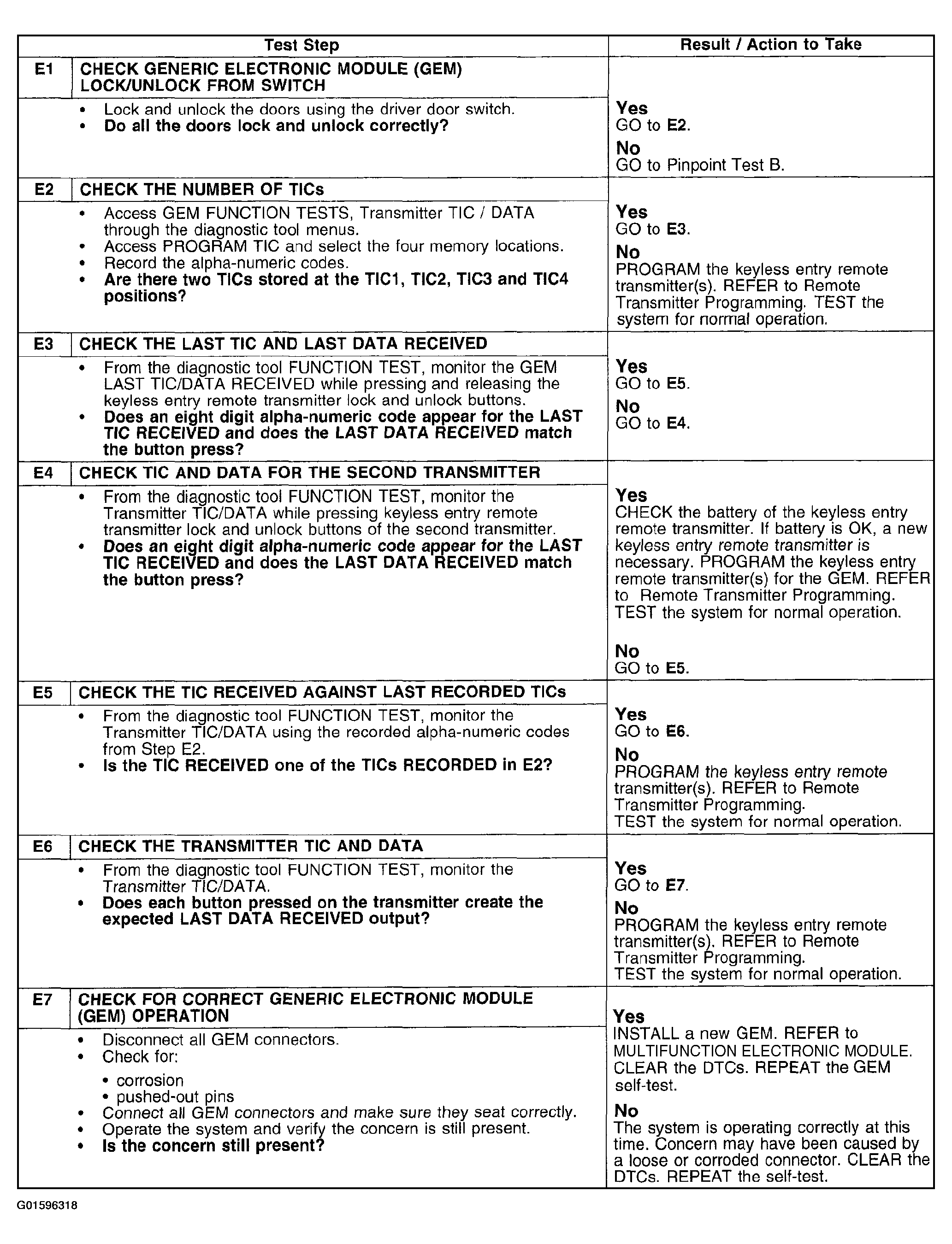

Fig 1: Pinpoint Test E: Doors Do Not Lock Or Unlock Using Keyless Entry Remote Transmitter (Steps E1-E7)
G01596318Courtesy of FORD MOTOR CO.
