Pinpoint Test D: The Luggage Compartment Lid Is Inoperative - From Release Switch (If Equipped With Remote Keyless Entry)

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

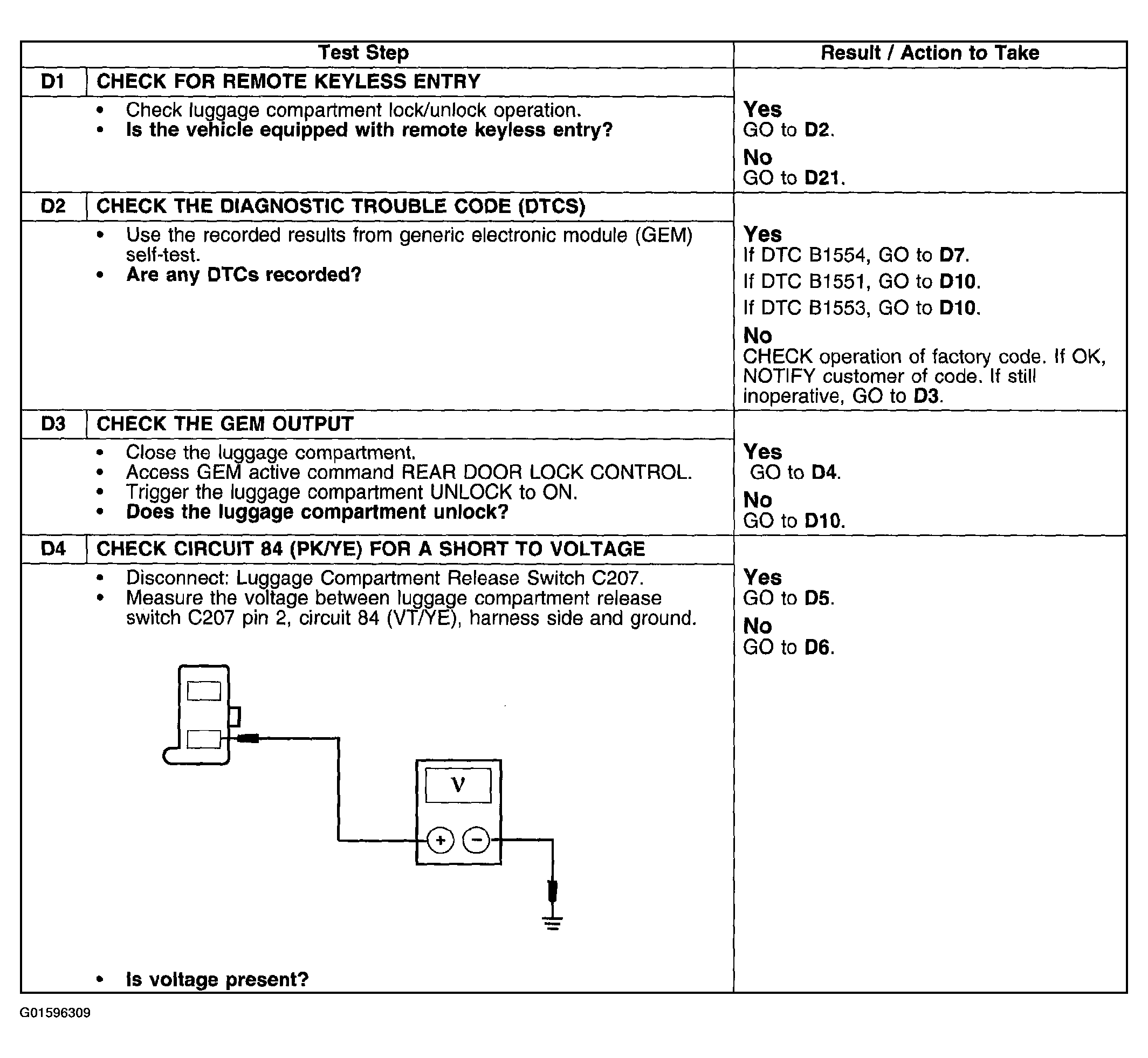

Fig 1: Pinpoint Test D: Luggage Compartment LID Inoperative - From Release Switch (If Equipped With Remote Keyless Entry) (Steps D1-D4)

Courtesy of FORD MOTOR CO.

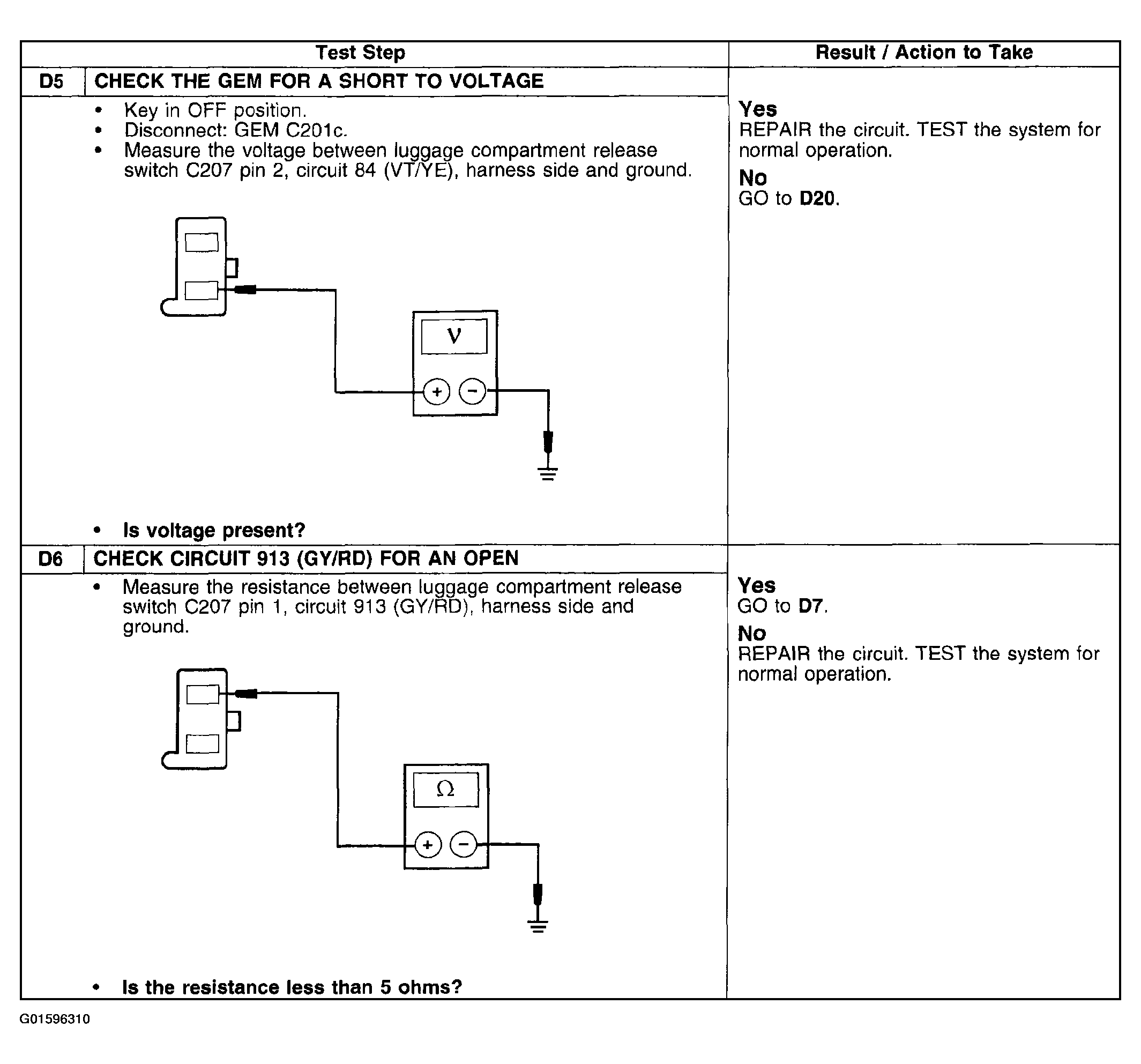

Fig 2: Pinpoint Test D: Luggage Compartment LID Inoperative - From Release Switch (If Equipped With Remote Keyless Entry) (Steps D5-D6)

Courtesy of FORD MOTOR CO.

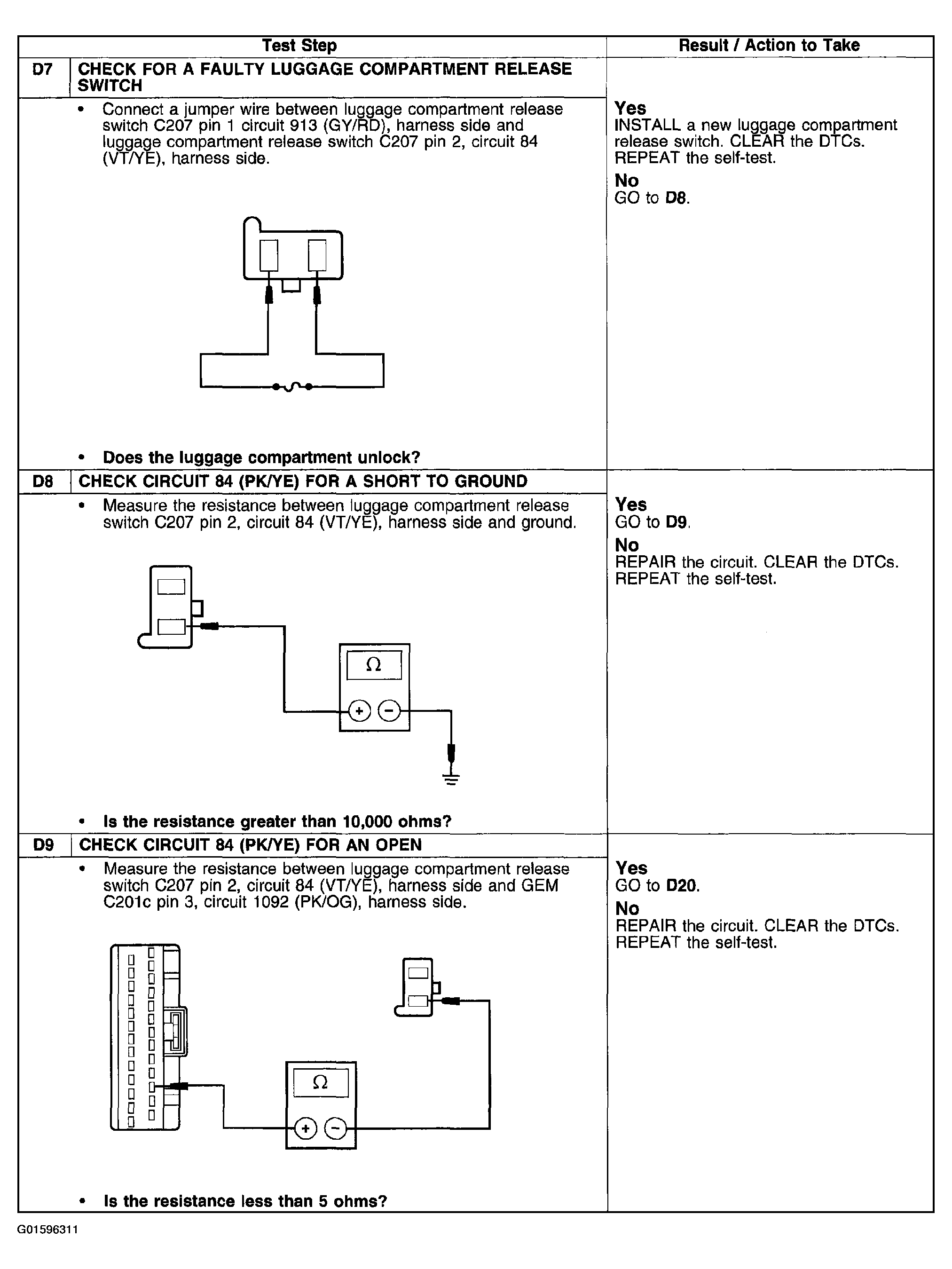

Fig 3: Pinpoint Test D: Luggage Compartment LID Inoperative - From Release Switch (If Equipped With Remote Keyless Entry) (Steps D7-D9)

Courtesy of FORD MOTOR CO.

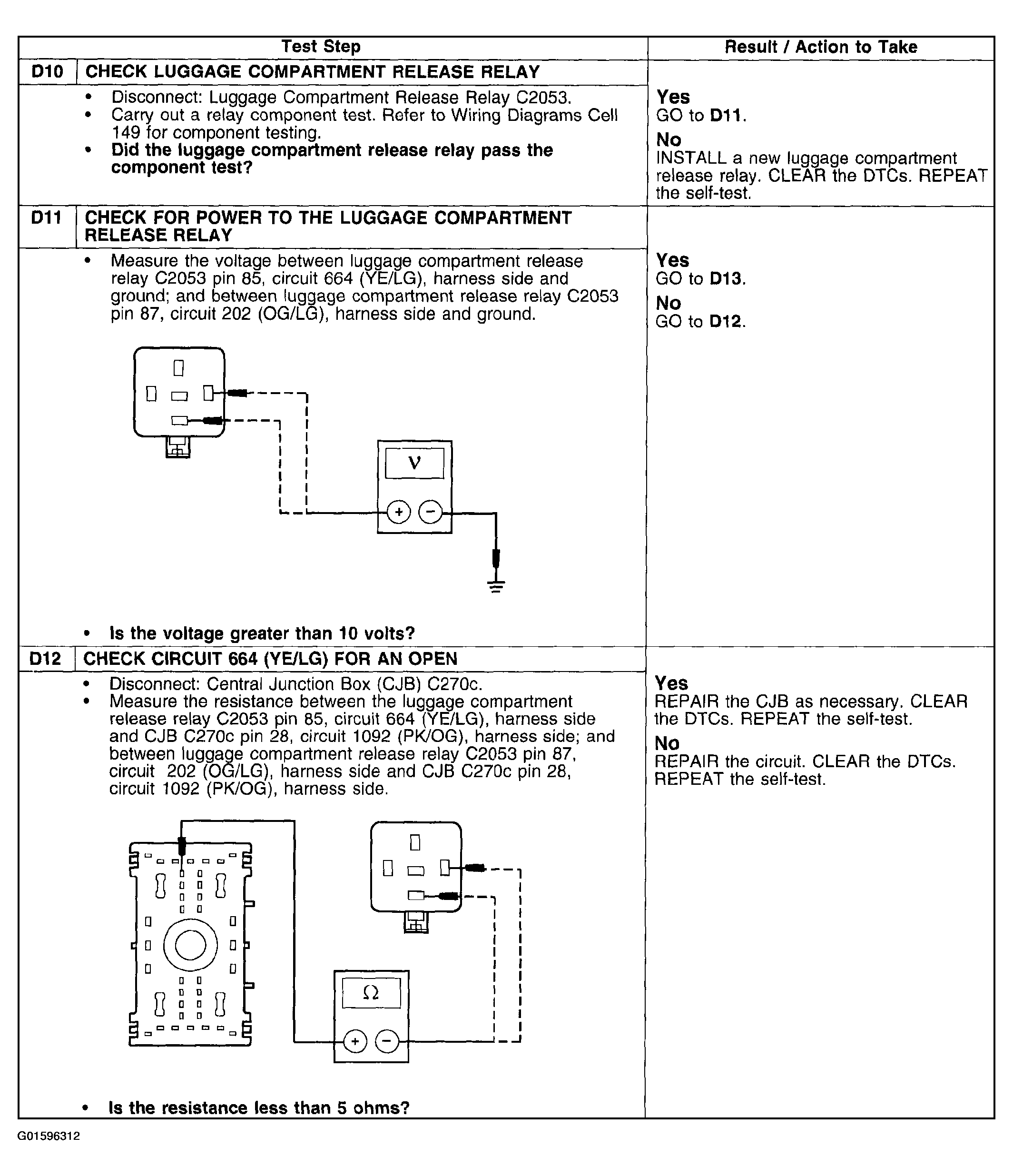

Fig 4: Pinpoint Test D: Luggage Compartment LID Inoperative - From Release Switch (If Equipped With Remote Keyless Entry) (Steps D10-D12)

Courtesy of FORD MOTOR CO.

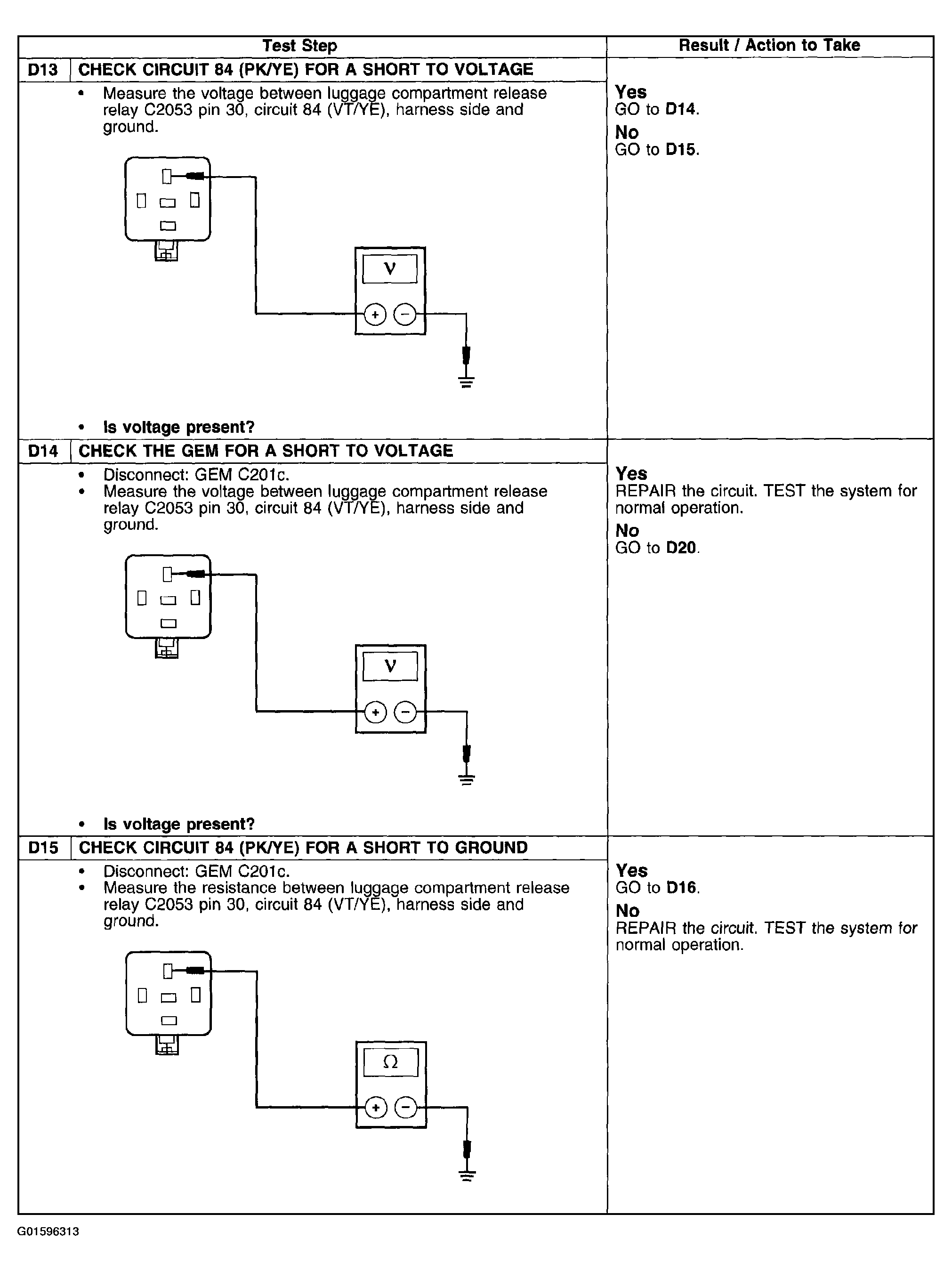

Fig 5: Pinpoint Test D: Luggage Compartment LID Inoperative - From Release Switch (If Equipped With Remote Keyless Entry) (Steps D13-D15)

Courtesy of FORD MOTOR CO.

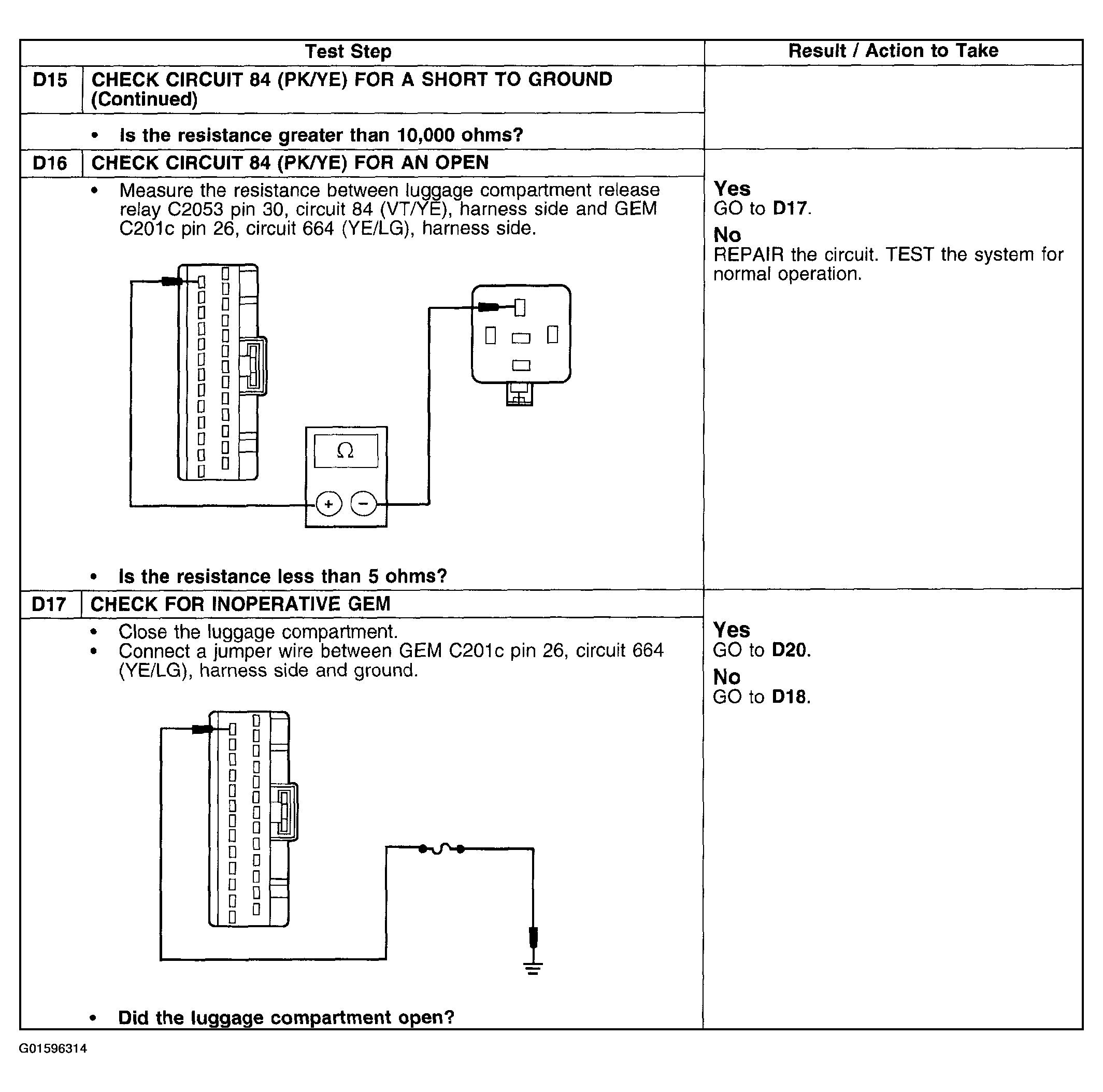

Fig 6: Pinpoint Test D: Luggage Compartment LID Inoperative - From Release Switch (If Equipped With Remote Keyless Entry) (Steps D15 Continued-D17)

Courtesy of FORD MOTOR CO.

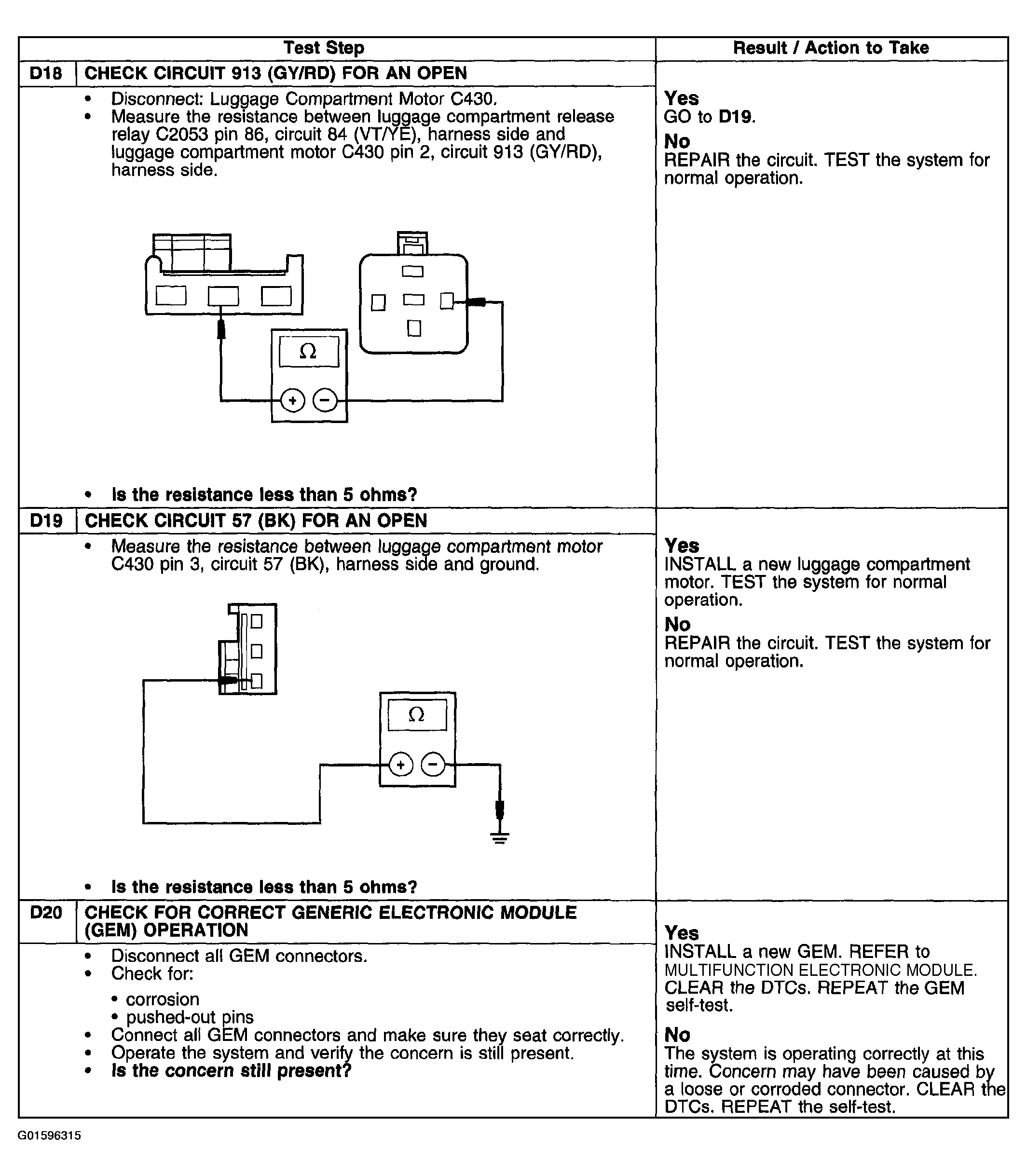

Fig 7: Pinpoint Test D: Luggage Compartment LID Inoperative - From Release Switch (If Equipped With Remote Keyless Entry) (Steps D18-D20)

Courtesy of FORD MOTOR CO.

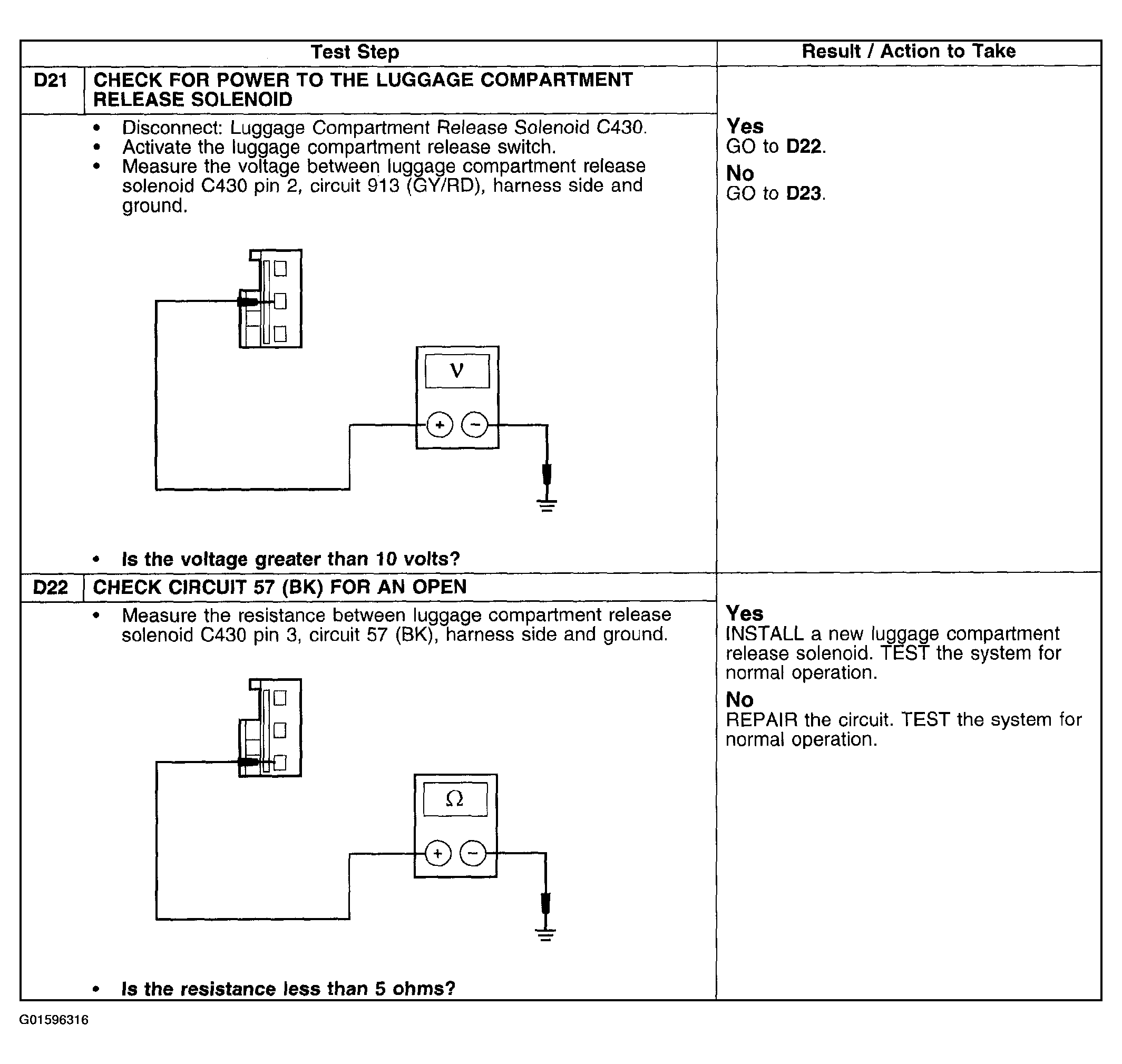

Fig 8: Pinpoint Test D: Luggage Compartment LID Inoperative - From Release Switch (If Equipped With Remote Keyless Entry) (Steps D21-D22)

Courtesy of FORD MOTOR CO.

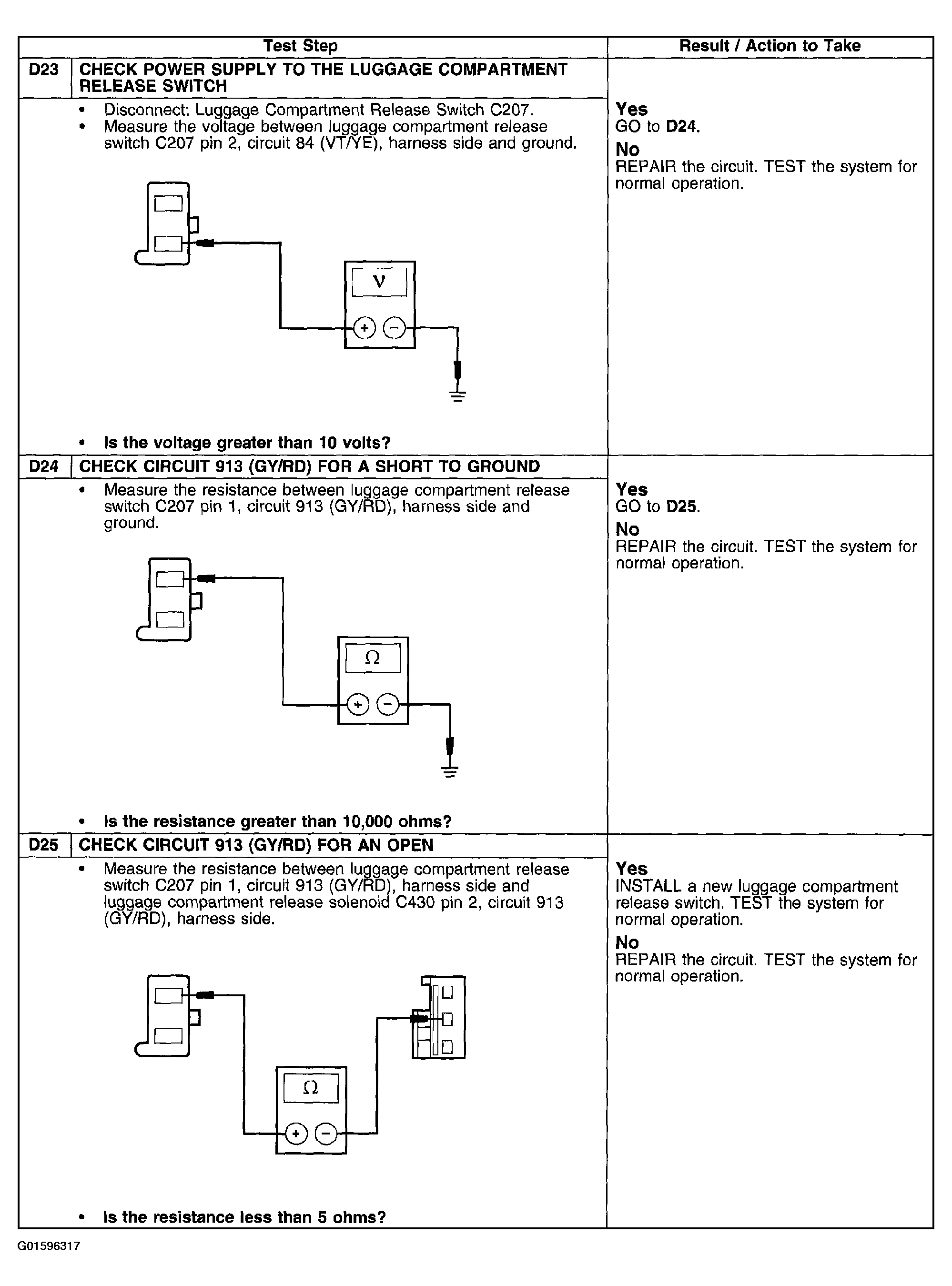

Fig 9: Pinpoint Test D: Luggage Compartment LID Inoperative - From Release Switch (If Equipped With Remote Keyless Entry) (Steps D23-D25)

Courtesy of FORD MOTOR CO.
