Pinpoint Test C: A Single Door Lock Is Inoperative - Driver
WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

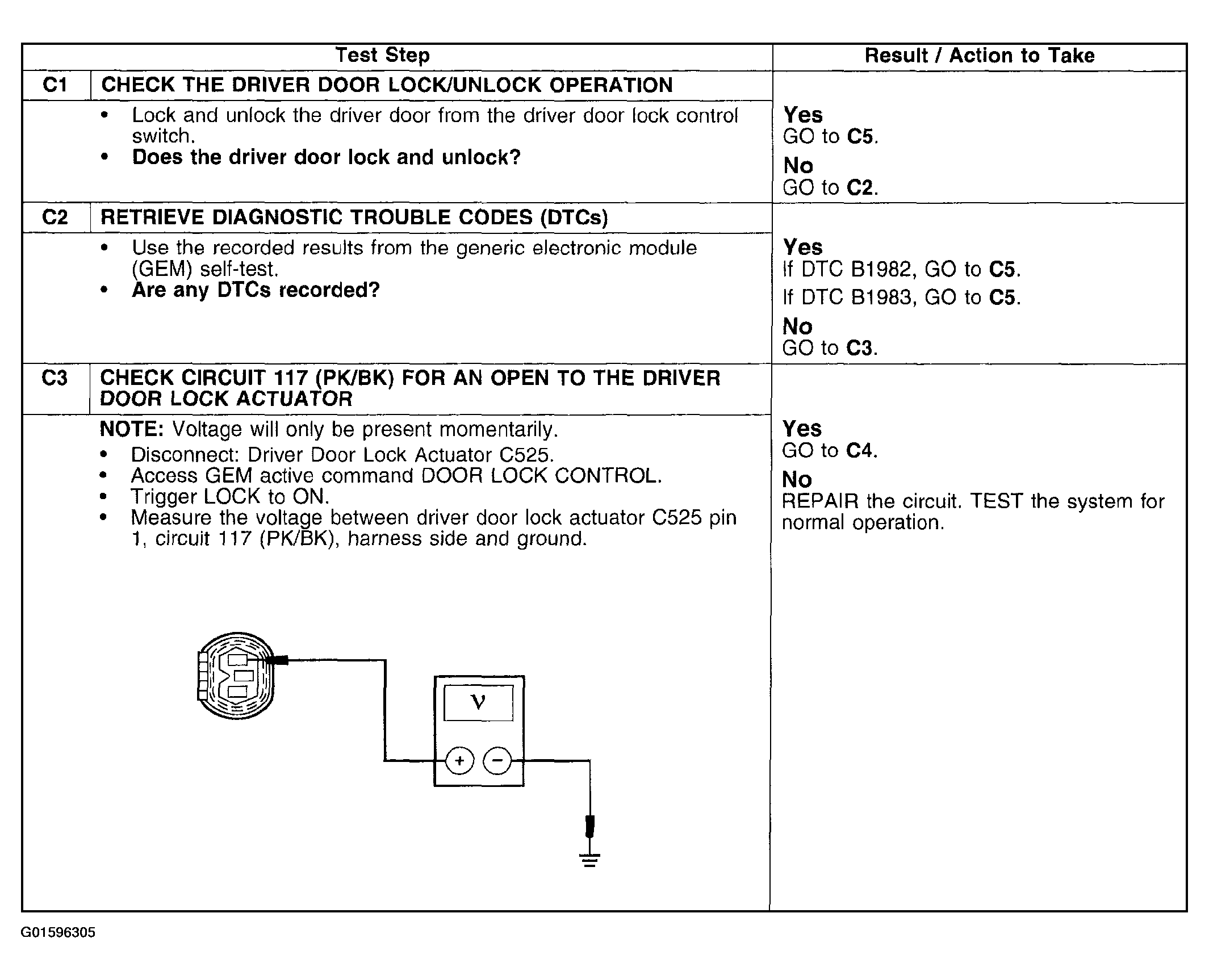

Fig 1: Pinpoint Test C: Single Door Lock Inoperative - Driver (Steps C1-C3)
Courtesy of FORD MOTOR CO.

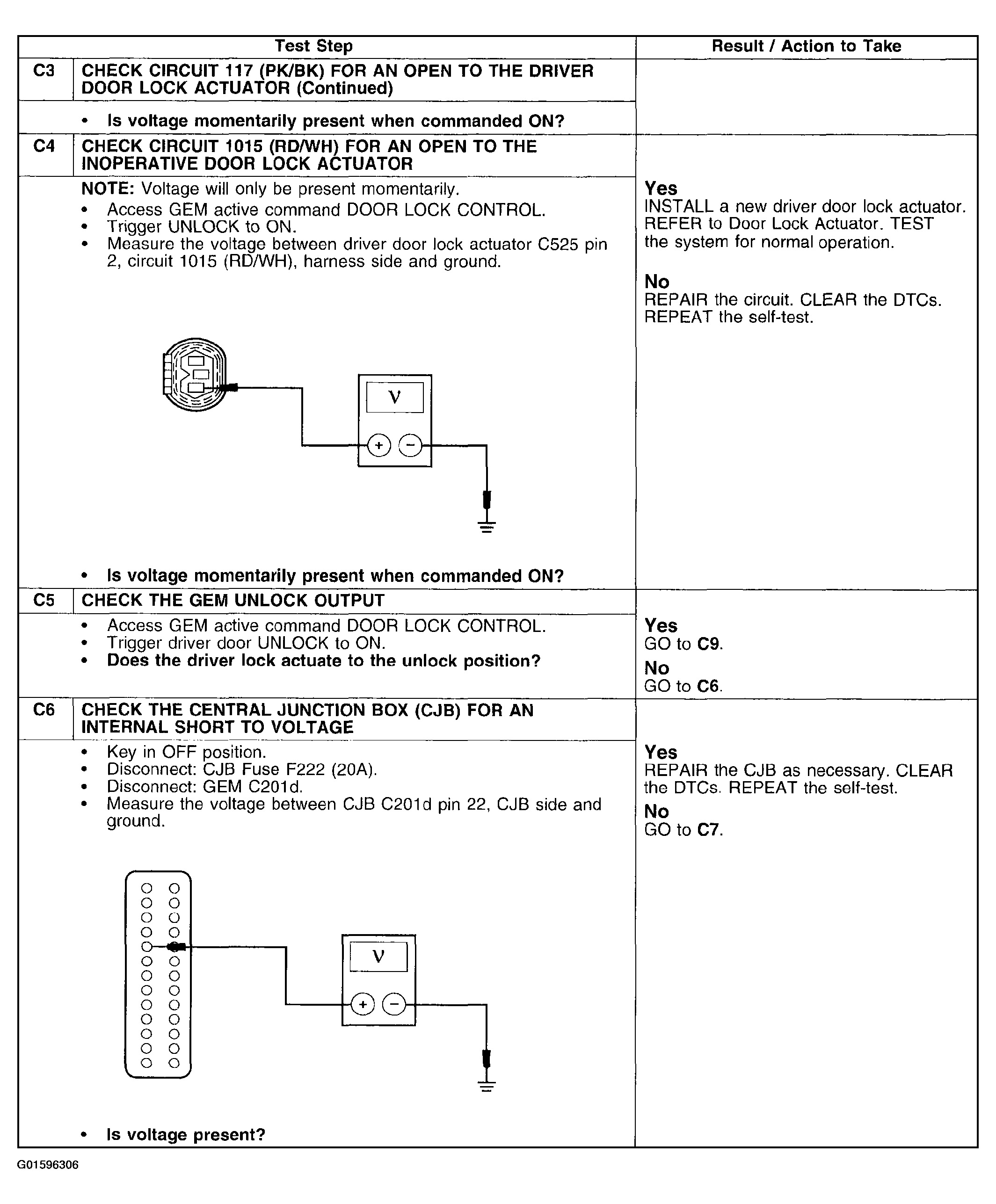

Fig 2: Pinpoint Test C: Single Door Lock Inoperative - Driver (Steps C3 Continued-C6)
Courtesy of FORD MOTOR CO.

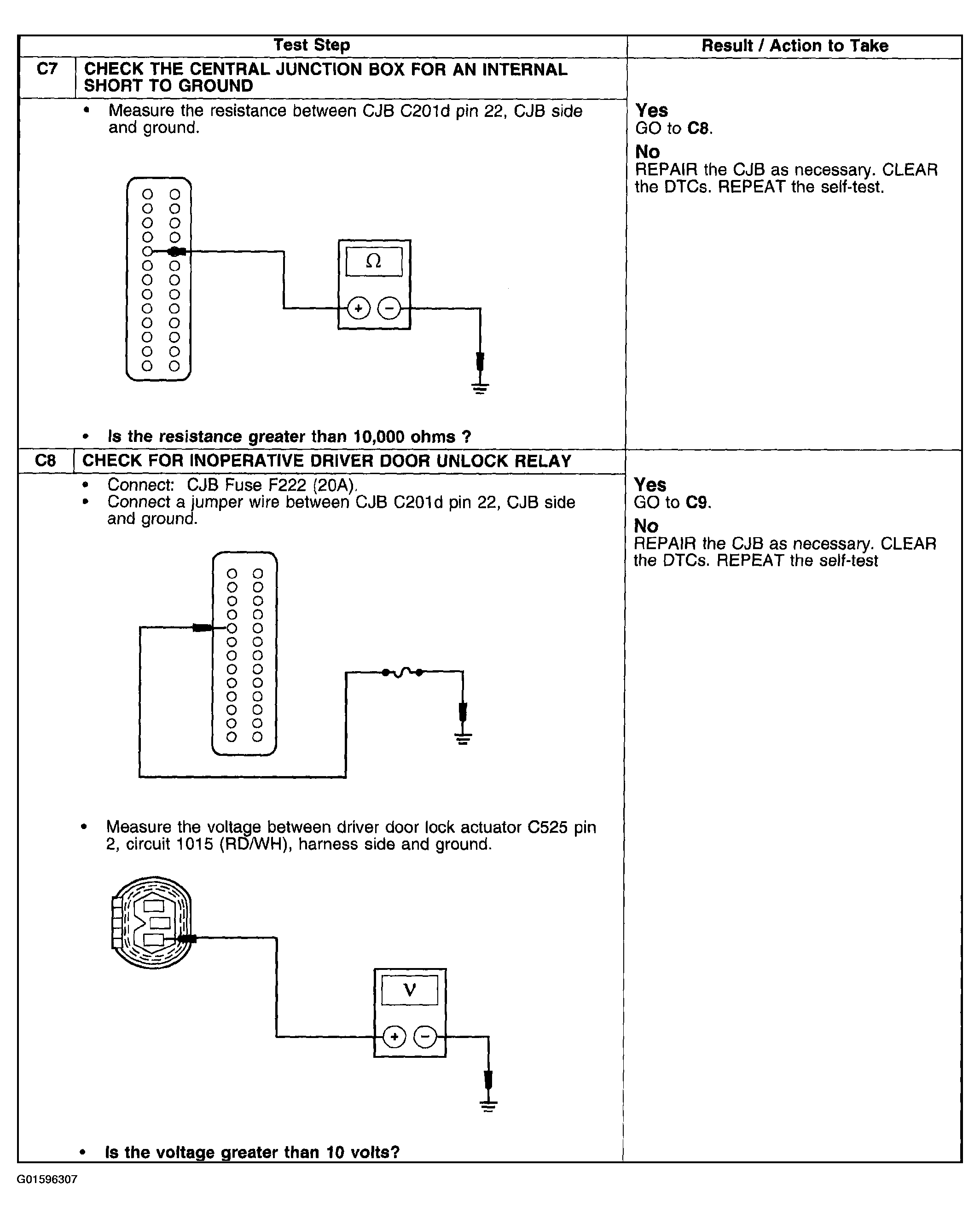

Fig 3: Pinpoint Test C: Single Door Lock Inoperative - Driver (Steps C7-C8)
Courtesy of FORD MOTOR CO.

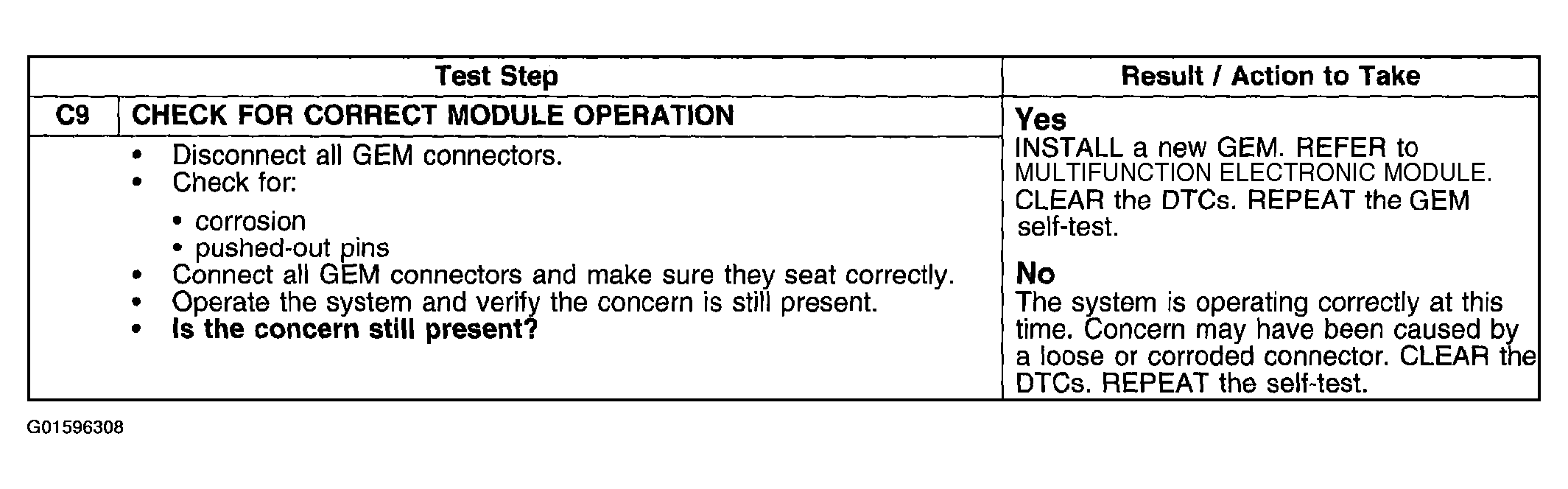

Fig 4: Pinpoint Test C: Single Door Lock Inoperative - Driver (Steps C9)
