Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Apply the parking brake.
  3. If equipped with floor selector lever, position the selector lever in 1.
  4. Remove the integrated control panel (ICP). For additional information, refer to AUDIO .
  5. Remove the instrument panel lower steering column cover.
    1. Remove the bolts.
    2. Remove the instrument panel lower steering column cover.
    Fig 1: Removing Instrument Panel Lower Steering Column Cover
    G01596278Courtesy of FORD MOTOR CO.
  6. Remove the ashtray.
    7. NOTE: When installing the instrument panel center finish panel, be sure the alignment tabs are positioned correctly.

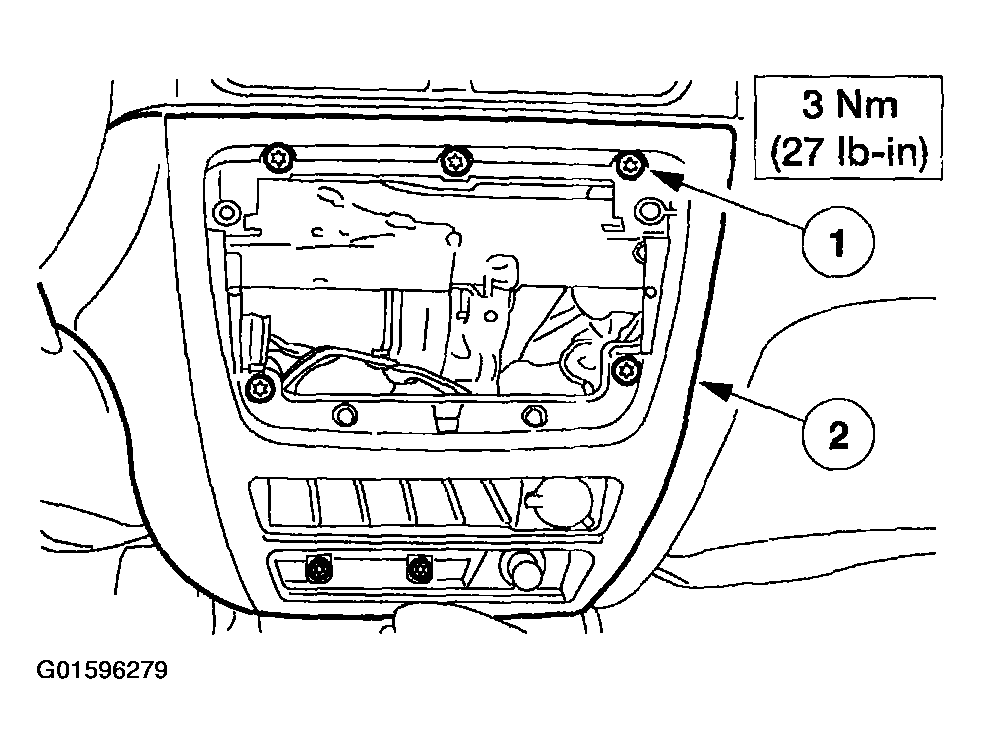

    Fig 2: Removing Instrument Panel Center Finish Panel
    G01596279Courtesy of FORD MOTOR CO.
  7. Remove the instrument panel center finish panel.
    1. Remove the screws.
    2. Remove the instrument panel center finish panel.
    • Disconnect the electrical connector by reaching through the ICP opening.
  8. To install, reverse the removal procedure.
