Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

If equipped, remove the compact disc (CD) changer. For additional information, refer to AUDIO .
If equipped, remove the floor console storage bin.

Fig 1: Removing Floor Console Storage Bin
Courtesy of FORD MOTOR CO.

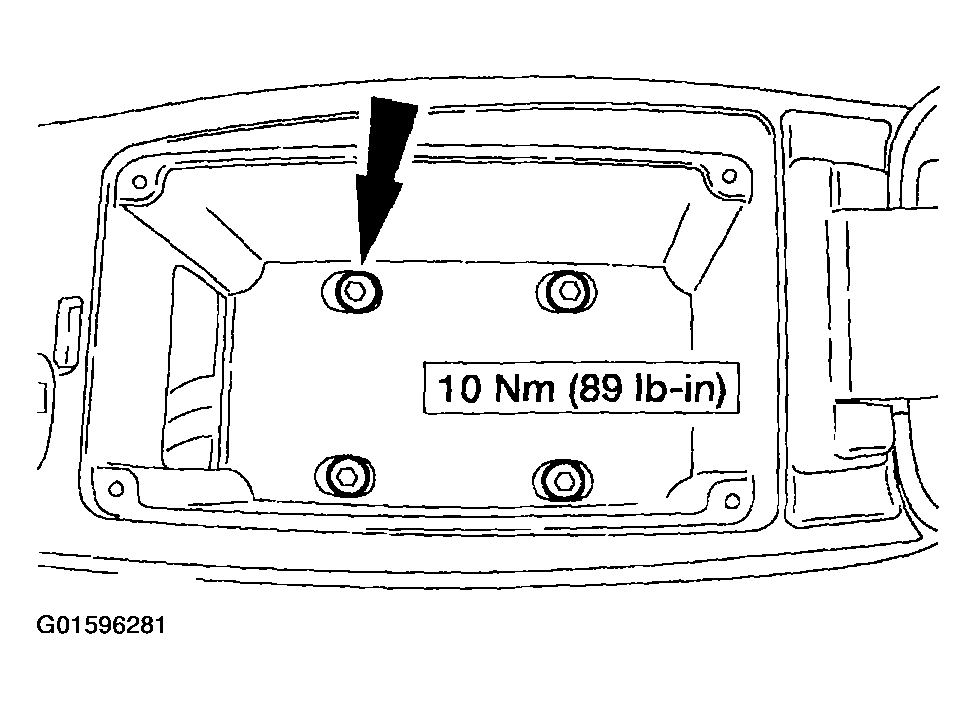

Remove the floor console bolts.

Fig 2: Removing Floor Console Bolts
Courtesy of FORD MOTOR CO.
Remove the floor console finish panel.

Fig 3: Removing Floor Console Finish Panel
Courtesy of FORD MOTOR CO.
Remove the two side floor console bolts.

Fig 4: Removing Side Floor Console Bolts
Courtesy of FORD MOTOR CO.
Remove the floor console.
To install, reverse the removal procedure.
