Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Driver door shown, all others similar.
  1. Remove the door trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  2. Remove the window control switch.
    1. Disconnect the window control switch electrical connectors.
    2. Release the six window control switch bezel tabs.

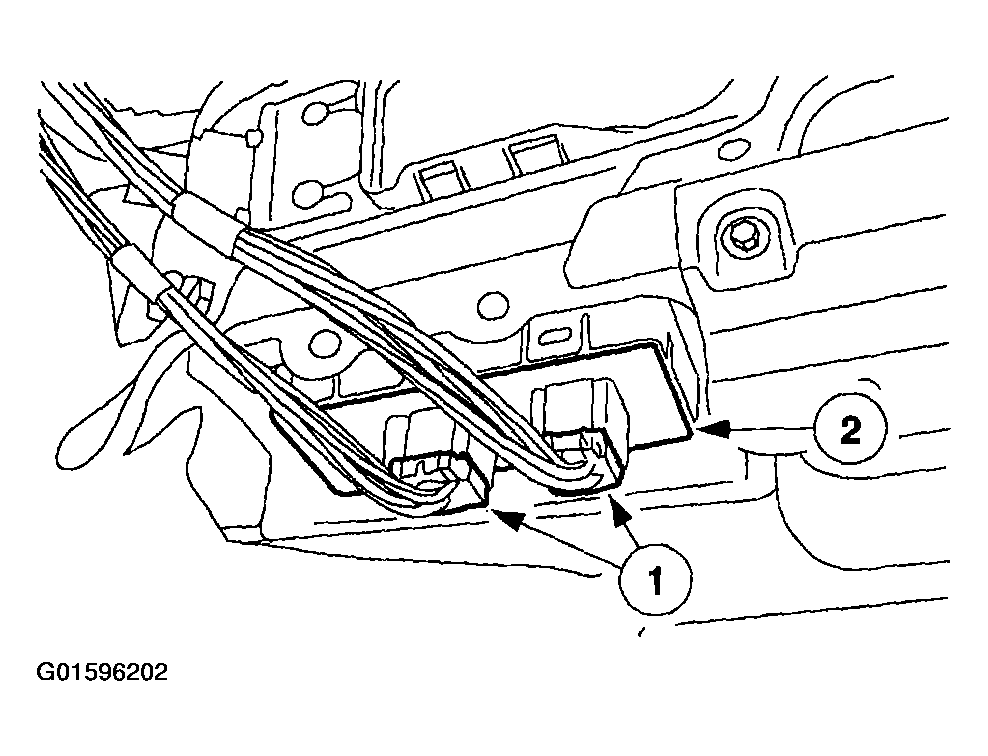

    Fig 1: Disconnecting Window Control Switch Electrical Connectors
    G01596202Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
