Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear quarter trim panel.

Fig 1: Removing Rear Quarter Trim Panel
Courtesy of FORD MOTOR CO.
Remove the rear quarter window glass nuts.

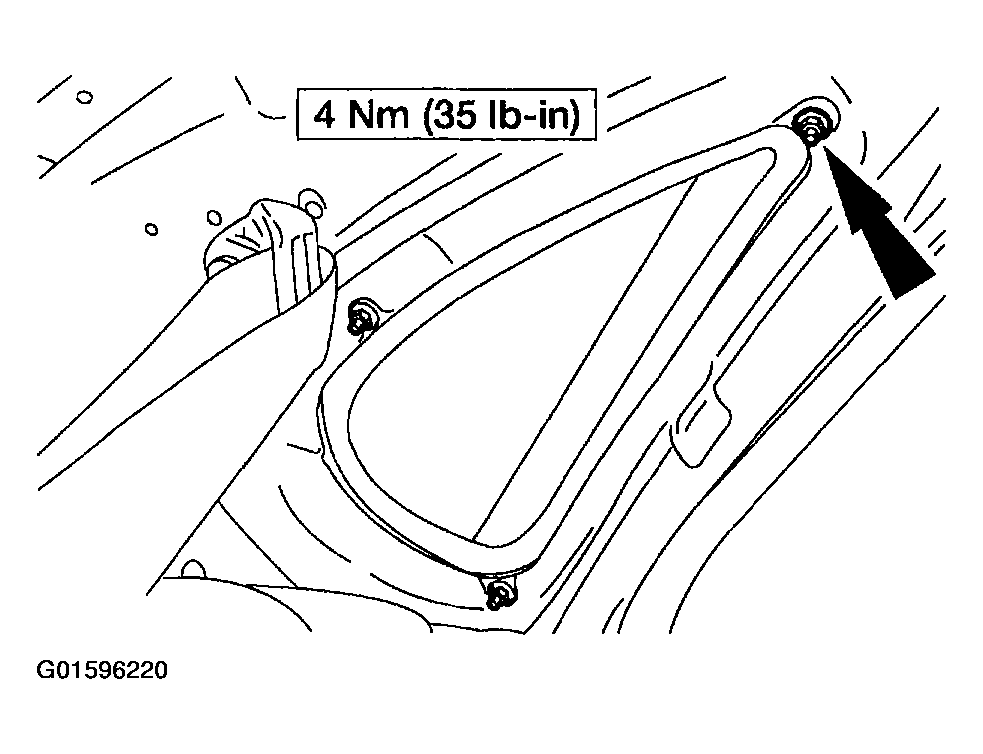

Fig 2: Removing Rear Quarter Window Glass Nuts
Courtesy of FORD MOTOR CO.
Remove the rear quarter window glass.

NOTE: Reseal the rear quarter window glass with new foam core butyl.

To install, reverse the removal procedure.
