Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Due to the fragile make-up of the rear door glass top run, removal is recommended only if the top run is damaged. Necessary removal may damage the light-gauge steel carrier insert within the rubber seal of the rear door glass top run.
  1. Remove the rear door window glass. For additional information, refer to REAR DOOR WINDOW GLASS .
  2. Remove the rear door window glass top run bolt.

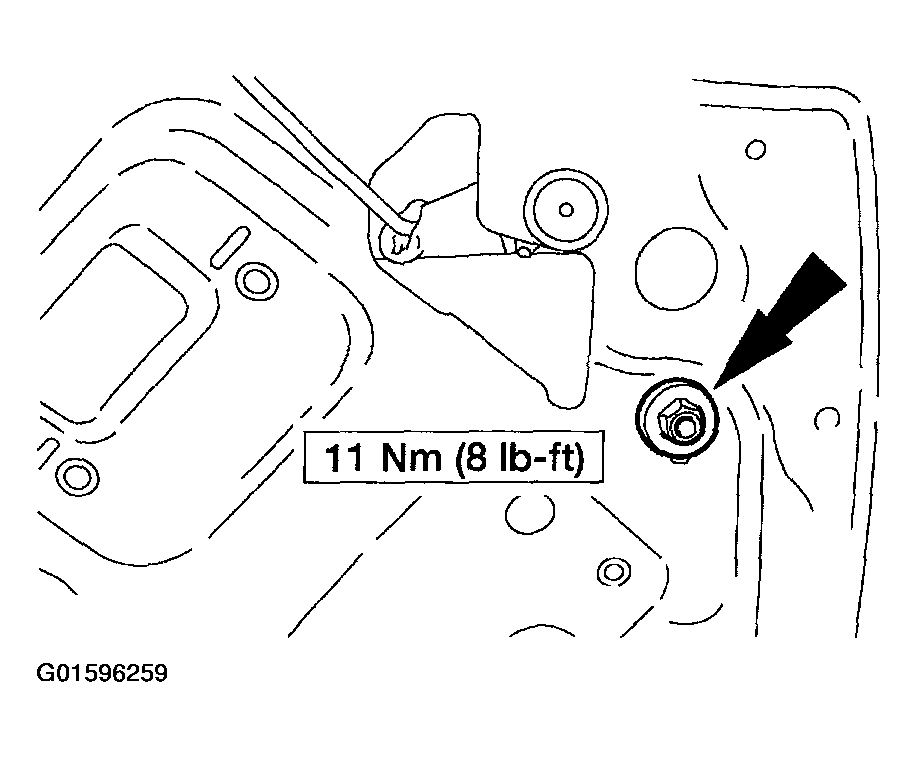

    Fig 1: Removing Rear Door Window Glass Top Run Bolt
    G01596259Courtesy of FORD MOTOR CO.
    3. NOTE: When installing be sure to correctly align locator pins.

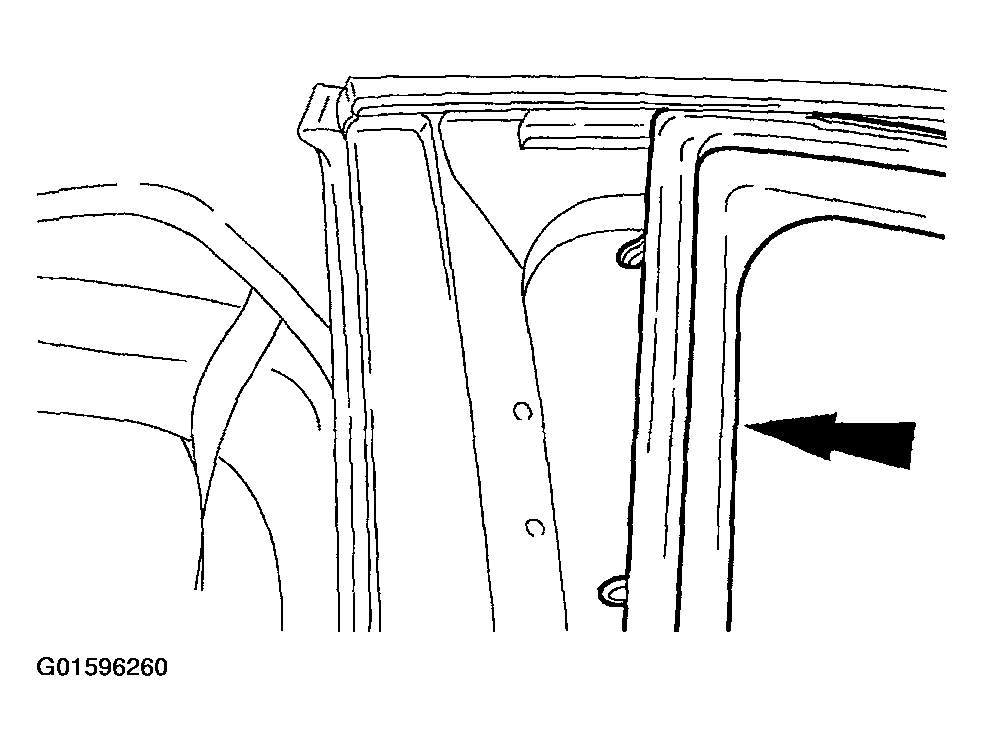

    Fig 2: Removing Rear Door Glass Top Run
    G01596260Courtesy of FORD MOTOR CO.
  3. Remove the rear door glass top run.
  4. To install, reverse the removal procedure.
