Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Due to the fragile make-up of the front door glass top run, removal is recommended only if the top run is damaged. Unnecessary removal may damage the light-gauge steel carrier insert within the rubber seal of the front door glass top run.

Remove the front door window glass. For additional information, refer to FRONT DOOR WINDOW GLASS .
Remove the exterior rear view mirror. For additional information, refer to REAR VIEW MIRRORS .

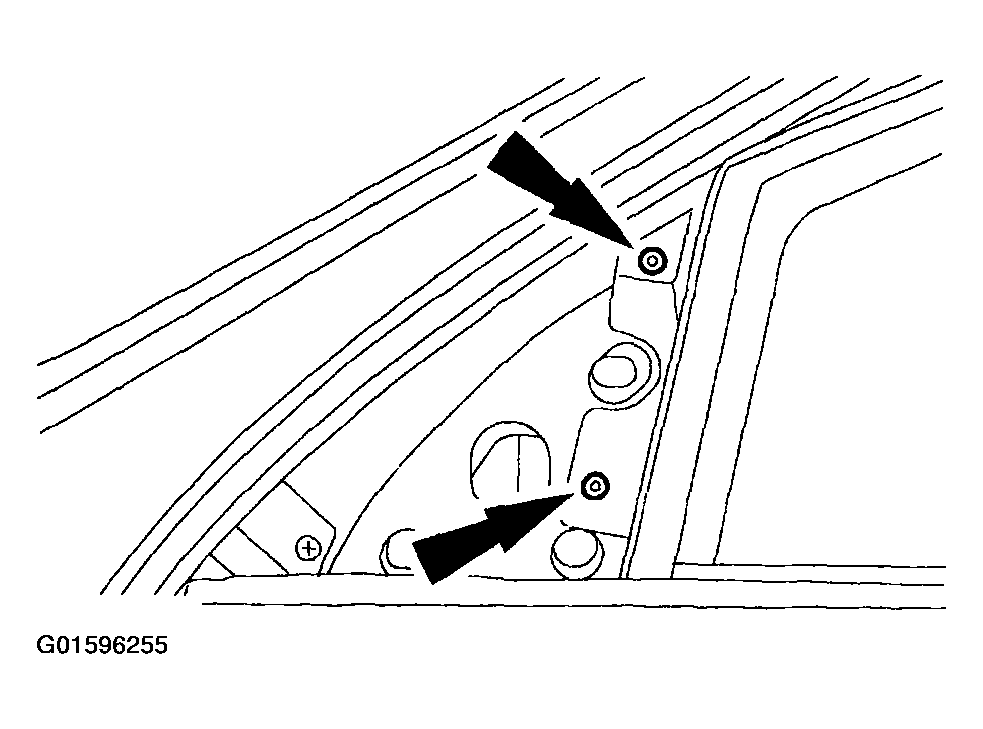

Remove the front door window glass top run rivets.

Fig 1: Removing Front Door Window Glass Top Run Rivets
Courtesy of FORD MOTOR CO.
Remove the front door window glass top run bolts.

Fig 2: Removing Front Door Window Glass Top Run Bolts
Courtesy of FORD MOTOR CO.

CAUTION: Handle the front door glass top run by the center section only. The A- and B-pillar corners must not be damaged.

NOTE: Nylon pins are used to retain the front door window glass top run to the B-pillar.

Fig 3: Removing Front Door Window Glass Top Run

Courtesy of FORD MOTOR CO.

Remove the front door window glass top run.

NOTE: Use the special tool to install the rivets.

To install, reverse the removal procedure.
