Pinpoint Test G: A Single Power Window Is Inoperative - Passenger Front, Left Rear Or Right Rear

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

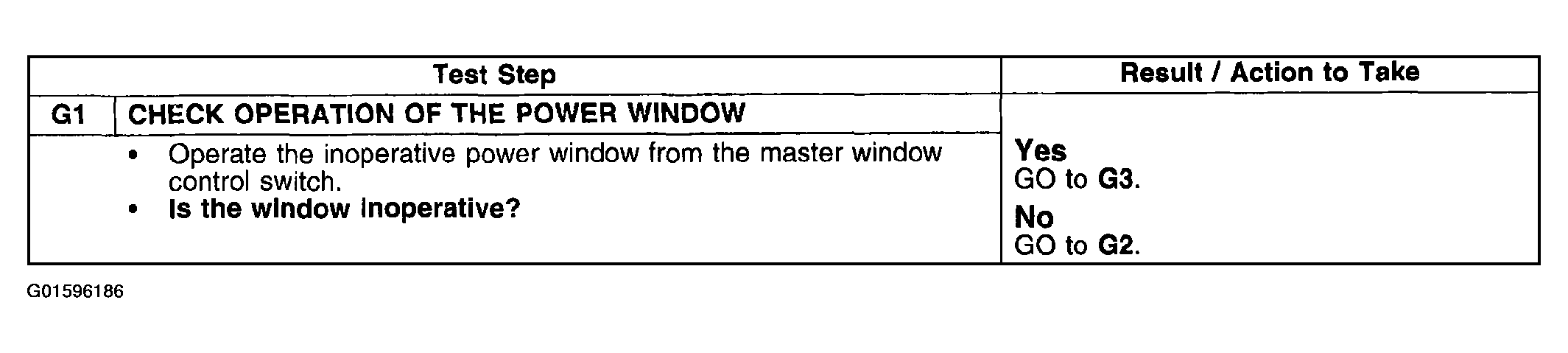

Fig 1: Pinpoint Test G: Single Power Window Inoperative - Passenger Front, Left Rear Or Right Rear (Steps G1)

Courtesy of FORD MOTOR CO.

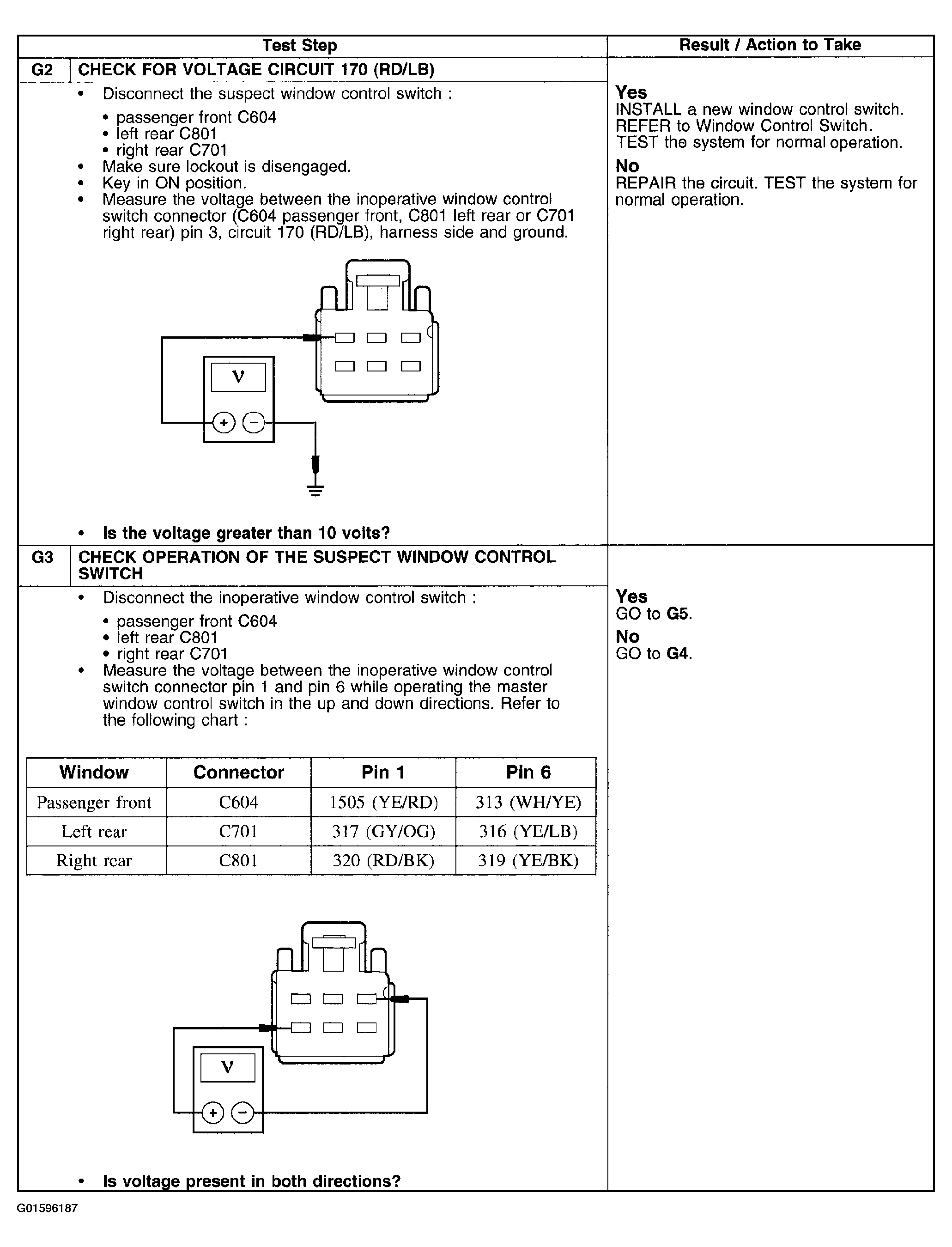

Fig 2: Pinpoint Test G: Single Power Window Inoperative - Passenger Front, Left Rear Or Right Rear (Steps G2-G3)

Courtesy of FORD MOTOR CO.

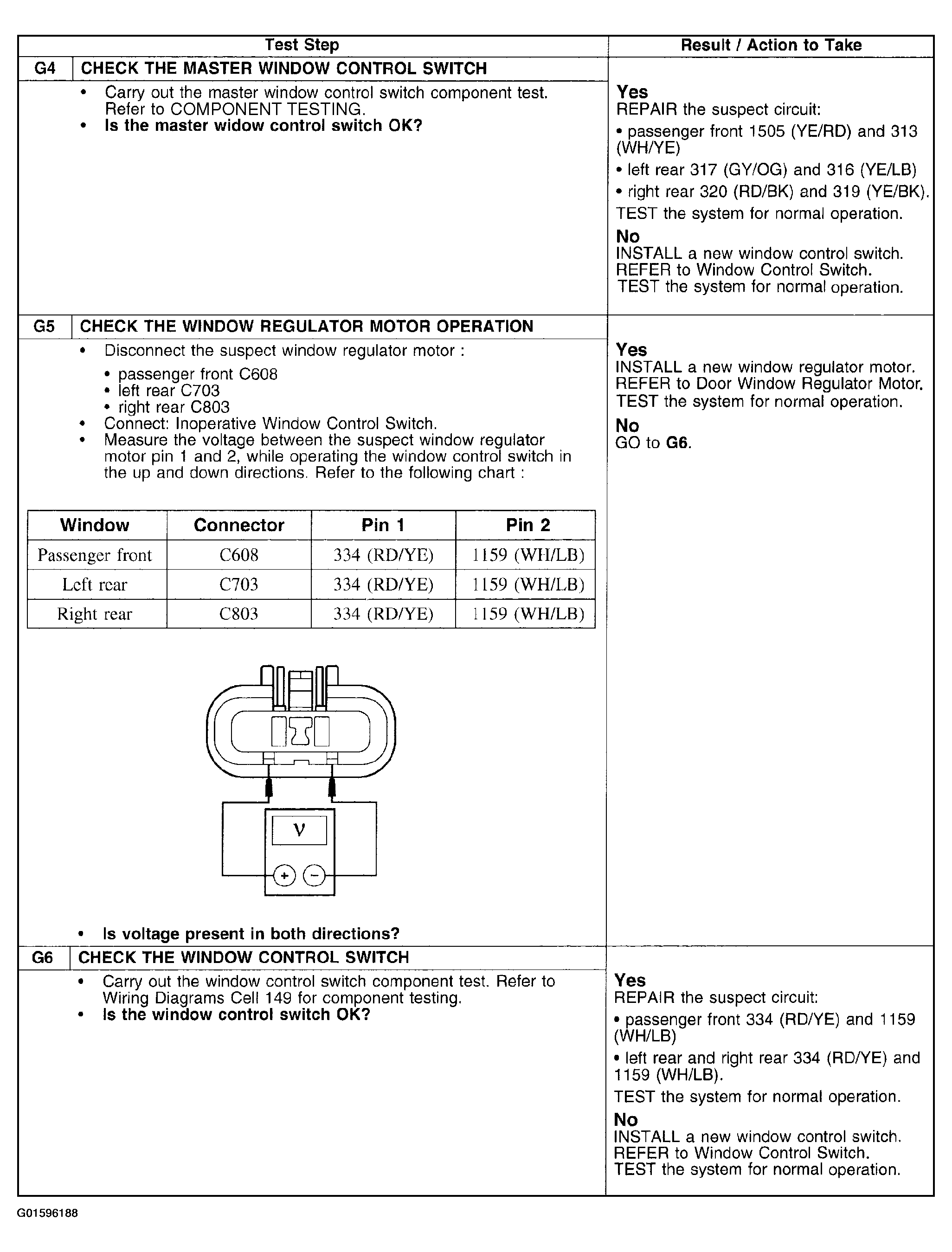

Fig 3: Pinpoint Test G: Single Power Window Inoperative - Passenger Front, Left Rear Or Right Rear (Steps G4-G6)

Courtesy of FORD MOTOR CO.
