Pinpoint Test F: The Delay Accessory Is Inoperative

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If DTCs B1314 or B1315 are present, repair these codes first.

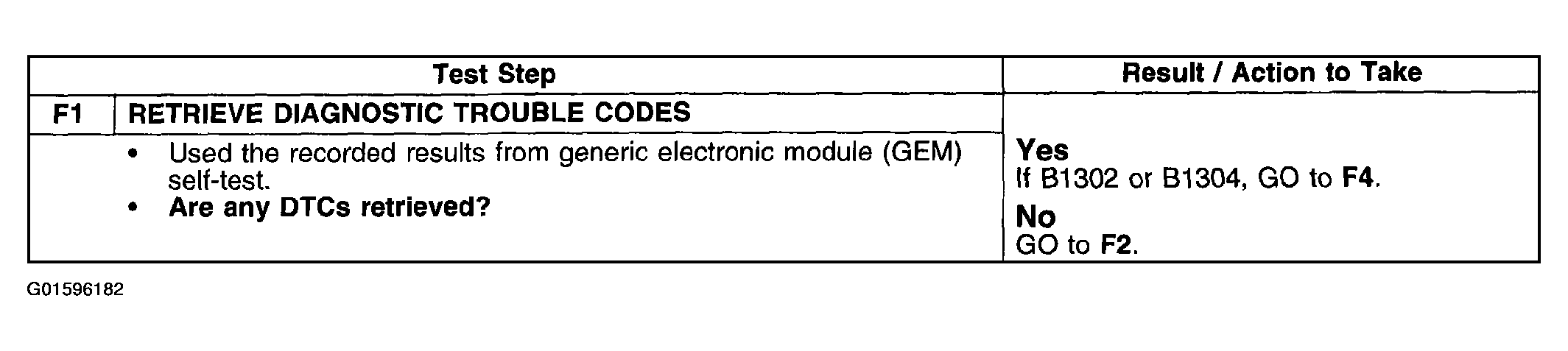

Fig 1: Pinpoint Test F: Delay Accessory Inoperative (Steps F1)

Courtesy of FORD MOTOR CO.

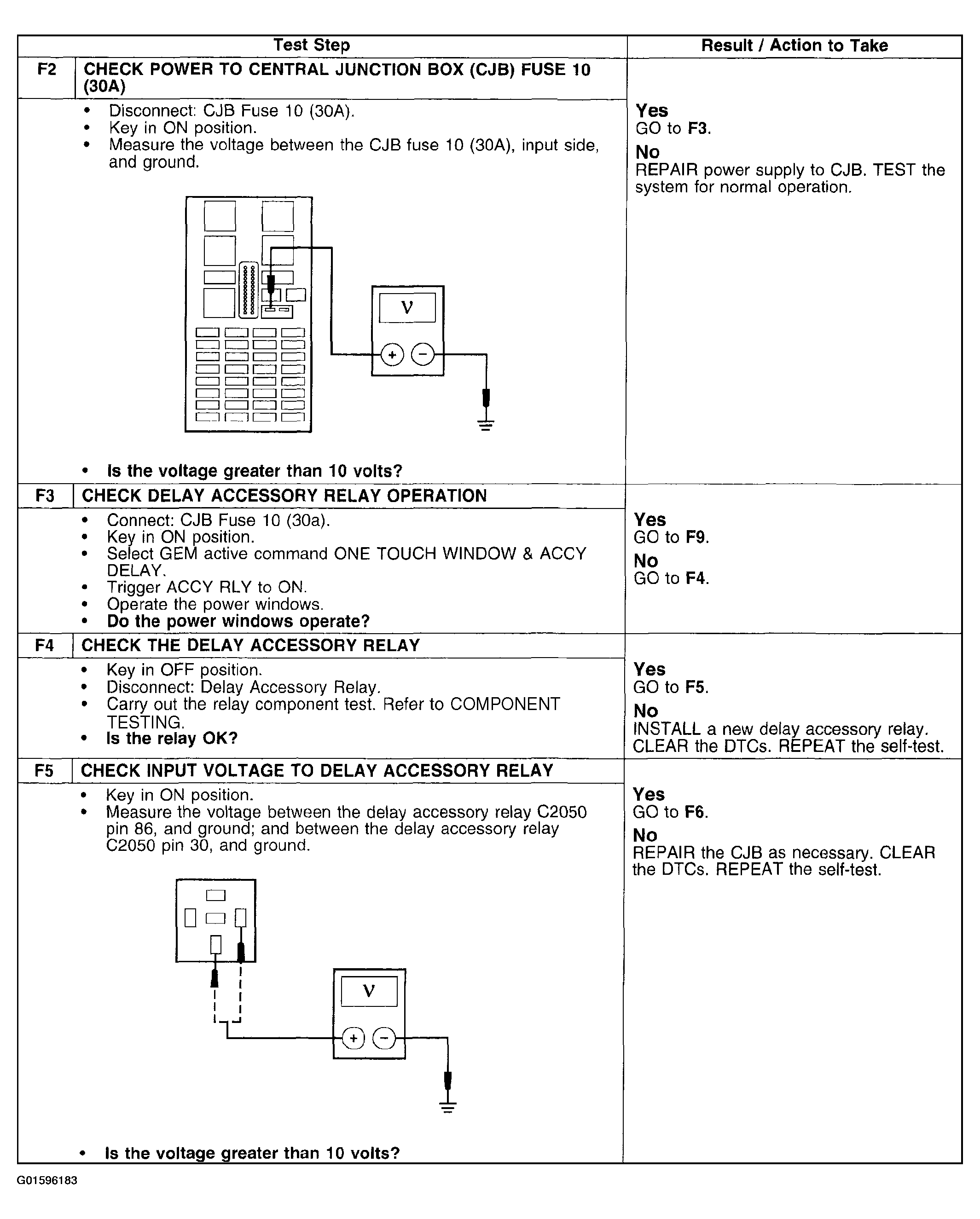

Fig 2: Pinpoint Test F: Delay Accessory Inoperative (Steps F2-F5)

Courtesy of FORD MOTOR CO.

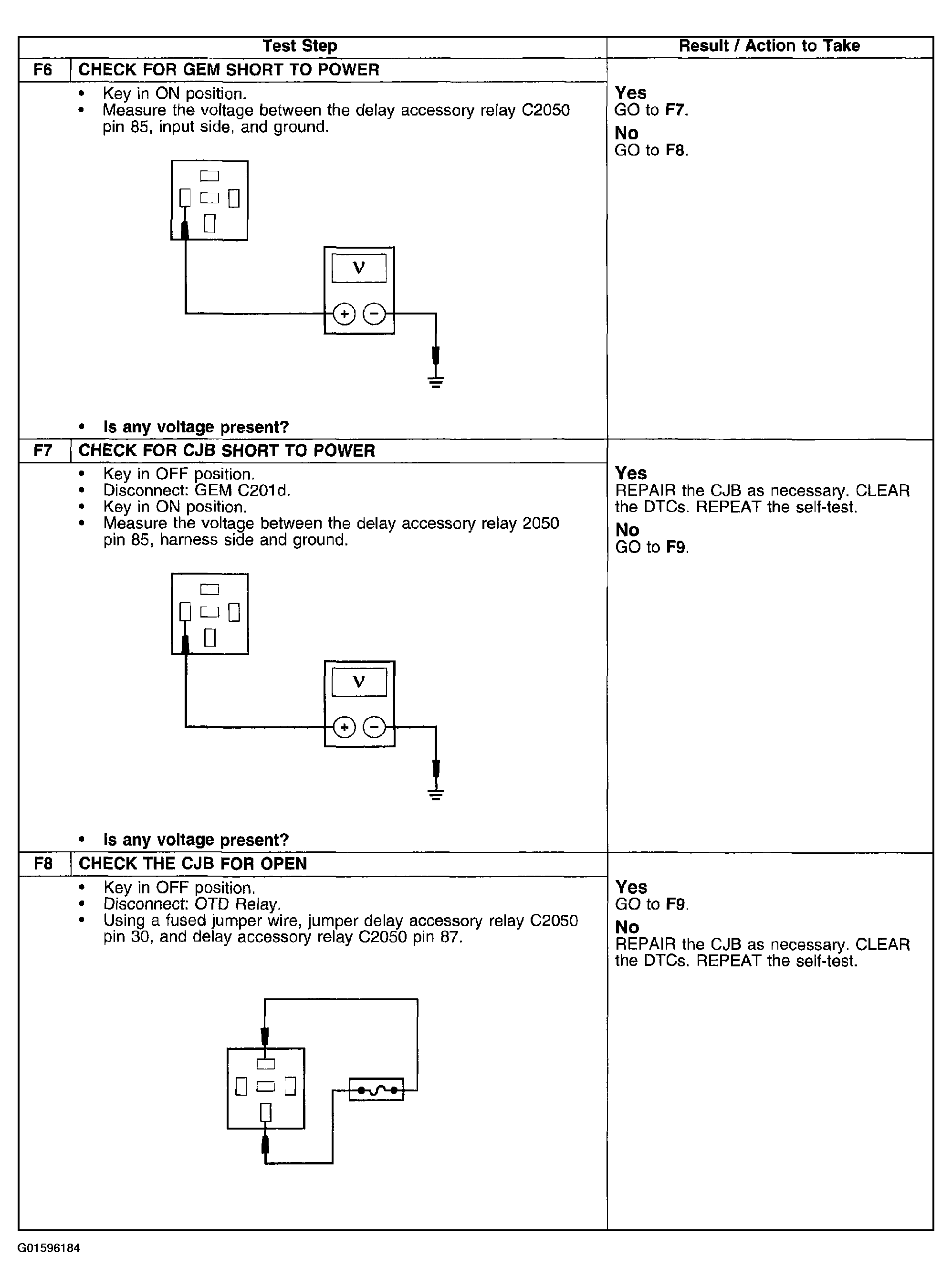

Fig 3: Pinpoint Test F: Delay Accessory Inoperative (Steps F6-F8)

Courtesy of FORD MOTOR CO.

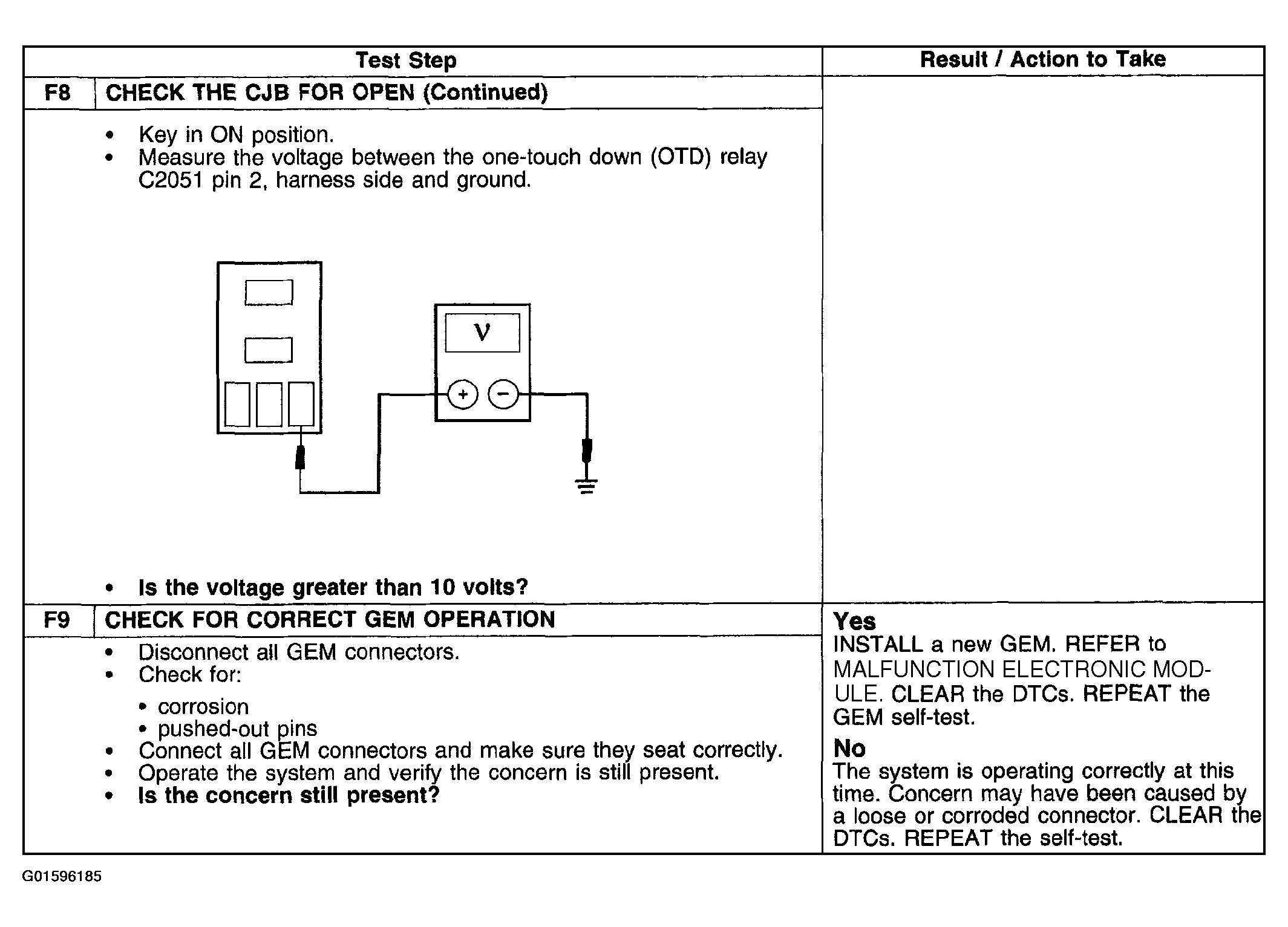

Fig 4: Pinpoint Test F: Delay Accessory Inoperative (Steps F8 Continued-F9)

Courtesy of FORD MOTOR CO.
