Pinpoint Test E: The Delay Accessory Does Not Turn Off
WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

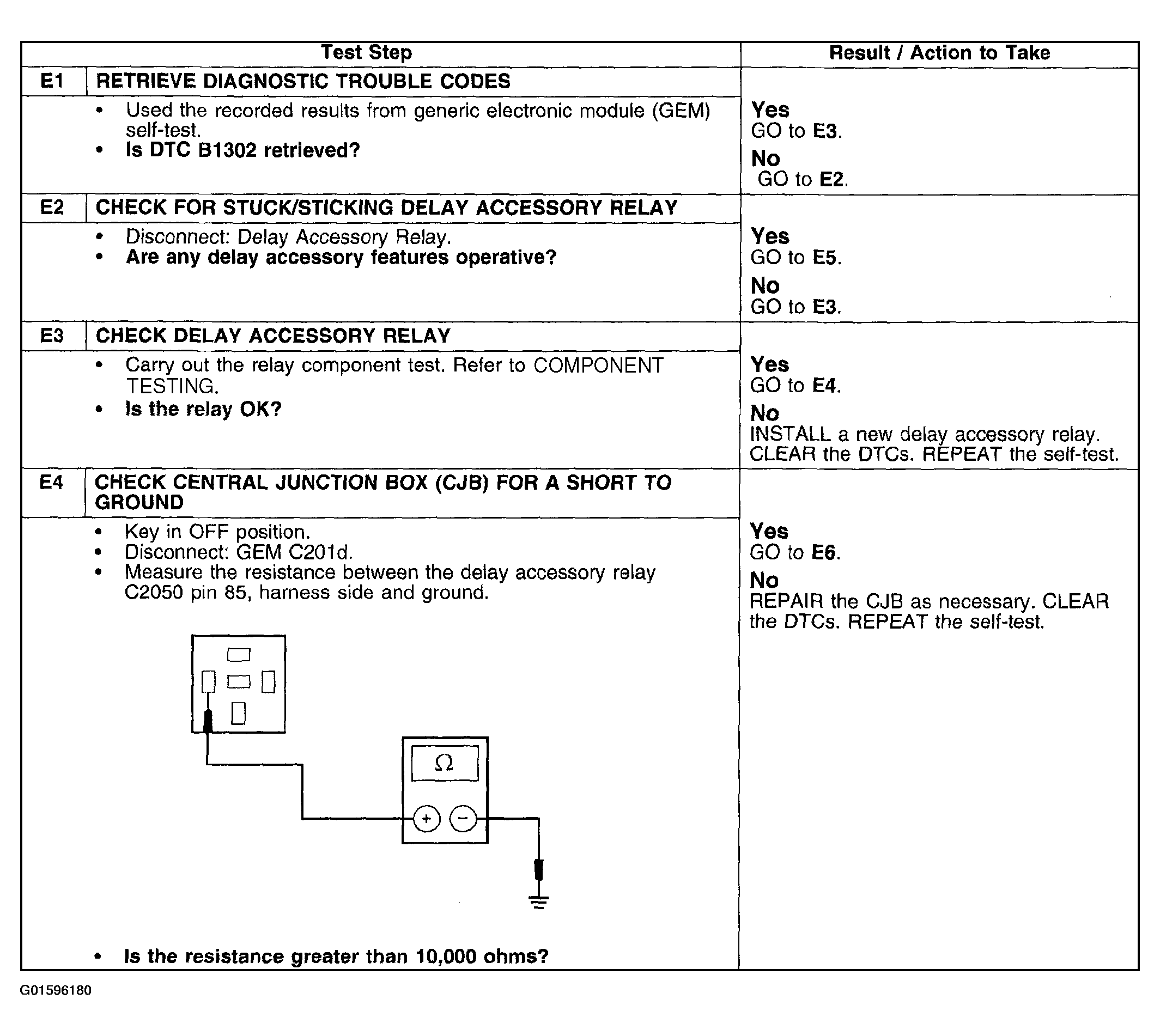

Fig 1: Pinpoint Test E: Delay Accessory Does Not Turn Off (Steps E1-E4)
Courtesy of FORD MOTOR CO.

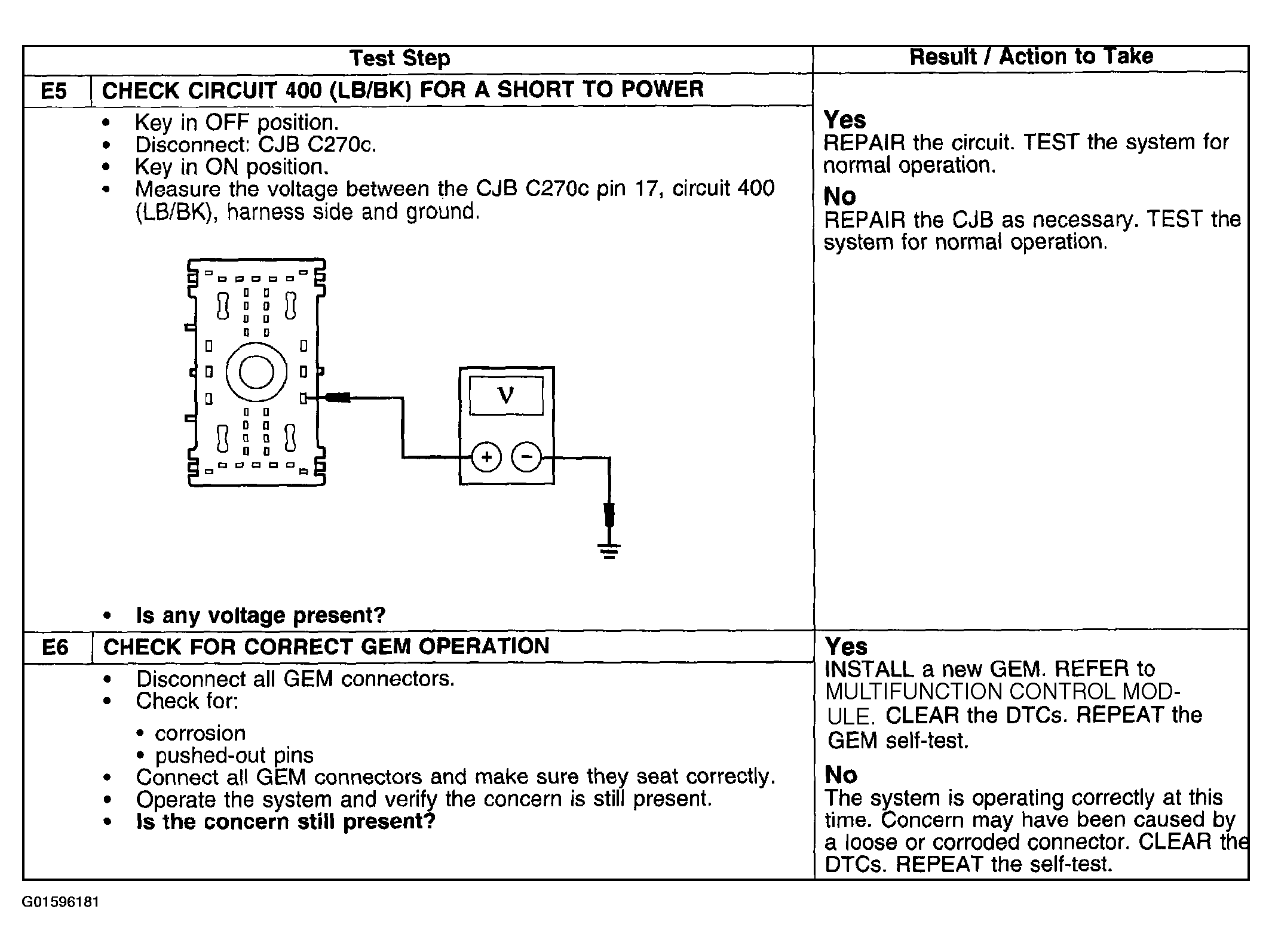

Fig 2: Pinpoint Test E: Delay Accessory Does Not Turn Off (Steps E5-E6)
