Pinpoint Test D: The Defrost System Will Not Shut Off Automatically
WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

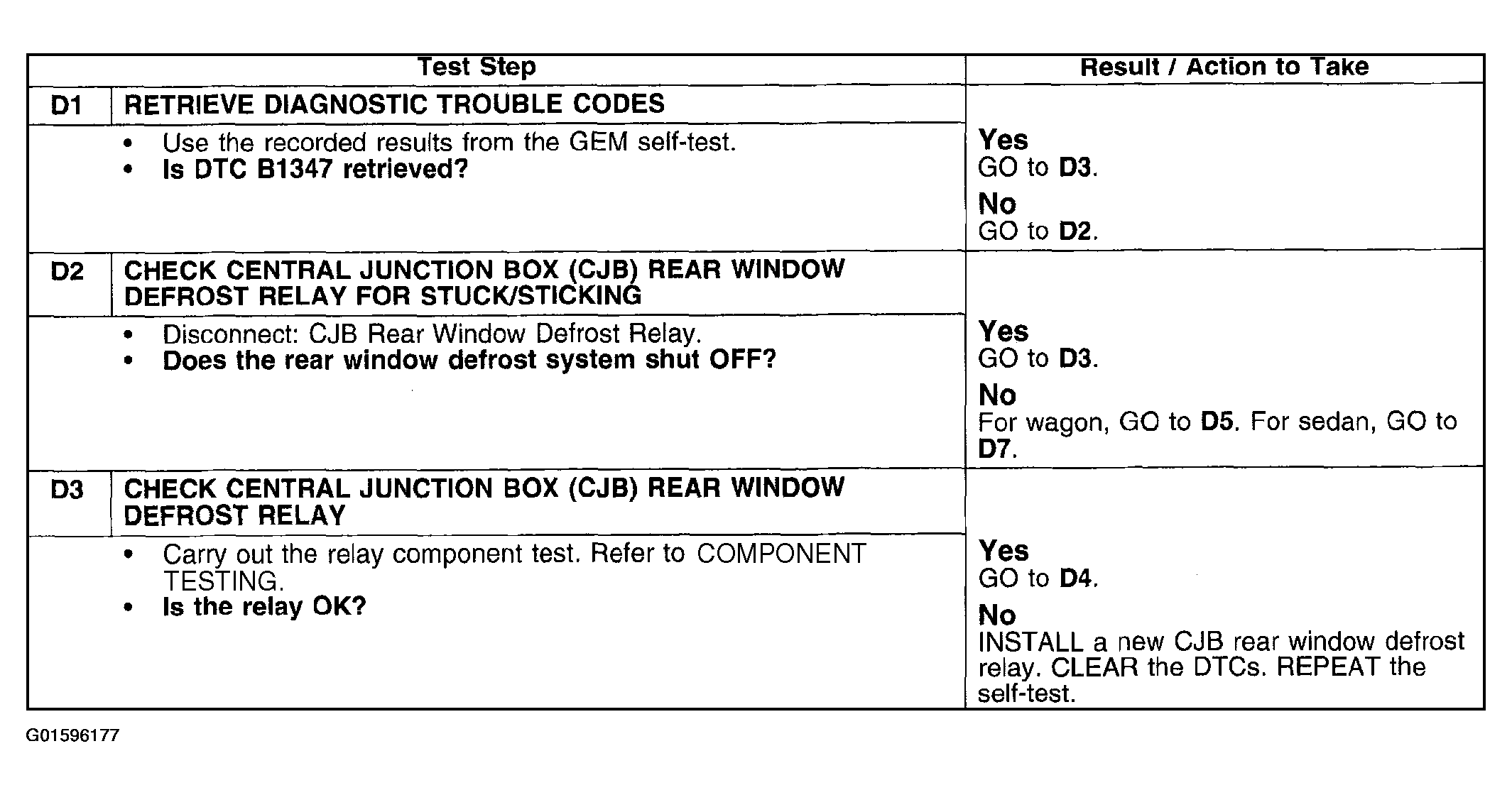

Fig 1: Pinpoint Test D: The Defrost System Will Not Shut Off Automatically (Steps D1-D3)
Courtesy of FORD MOTOR CO.

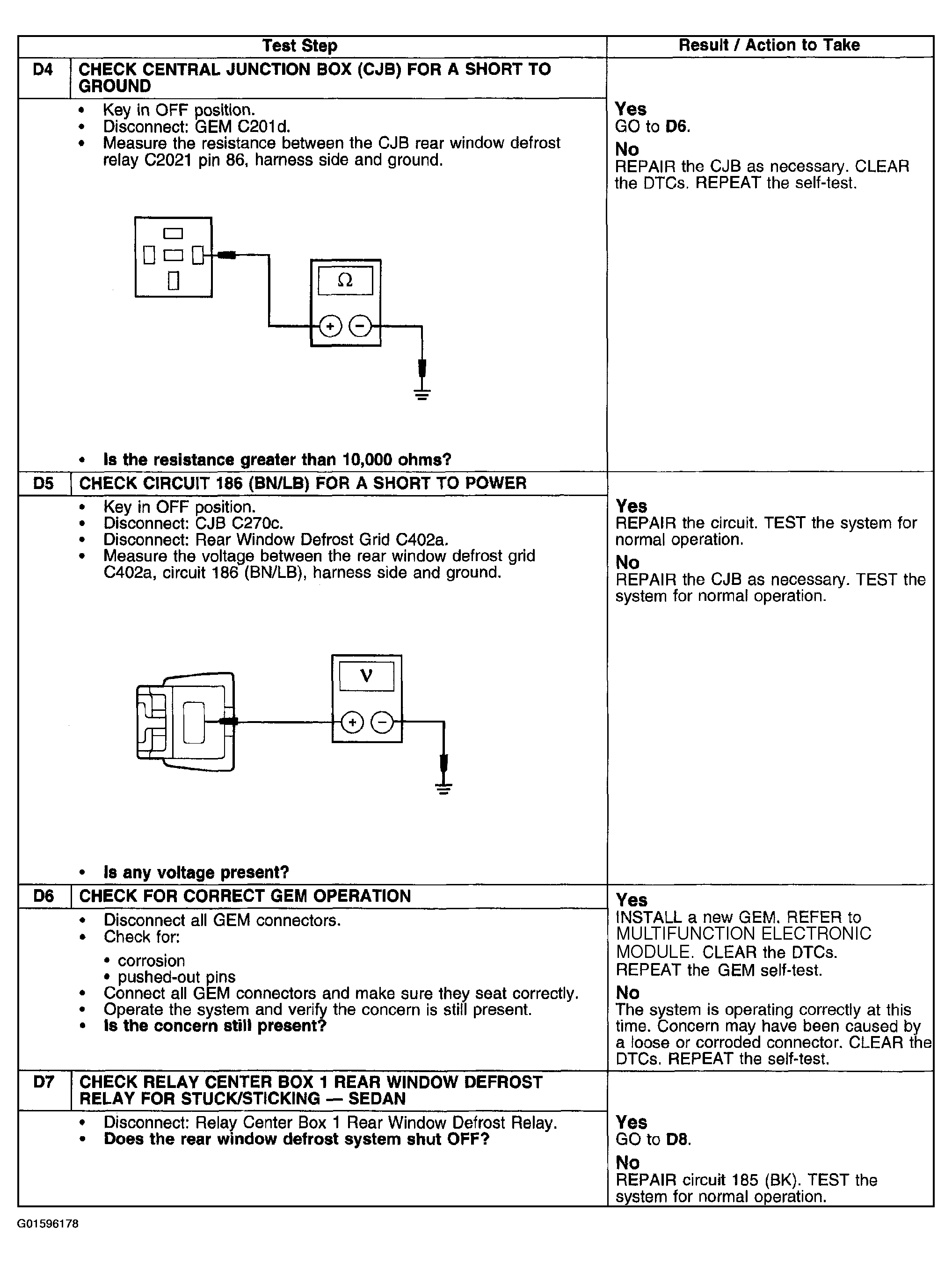

Fig 2: Pinpoint Test D: The Defrost System Will Not Shut Off Automatically (Steps D4-D7)
Courtesy of FORD MOTOR CO.

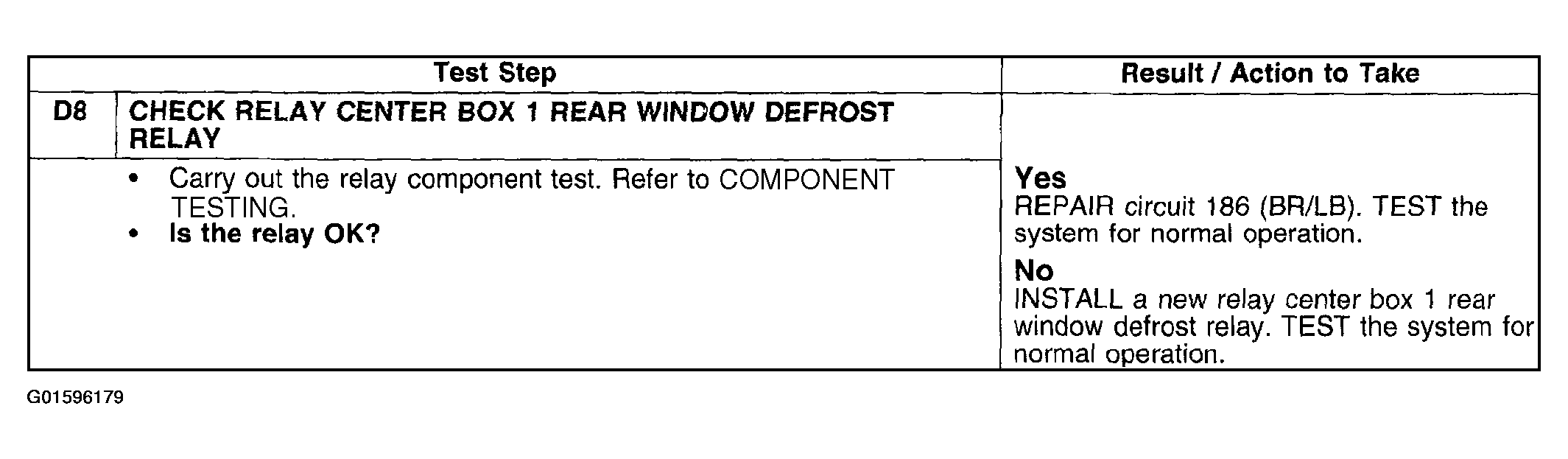

Fig 3: Pinpoint Test D: The Defrost System Will Not Shut Off Automatically (Steps D8)
