Pinpoint Test C: The Defrost System Is Inoperative
WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

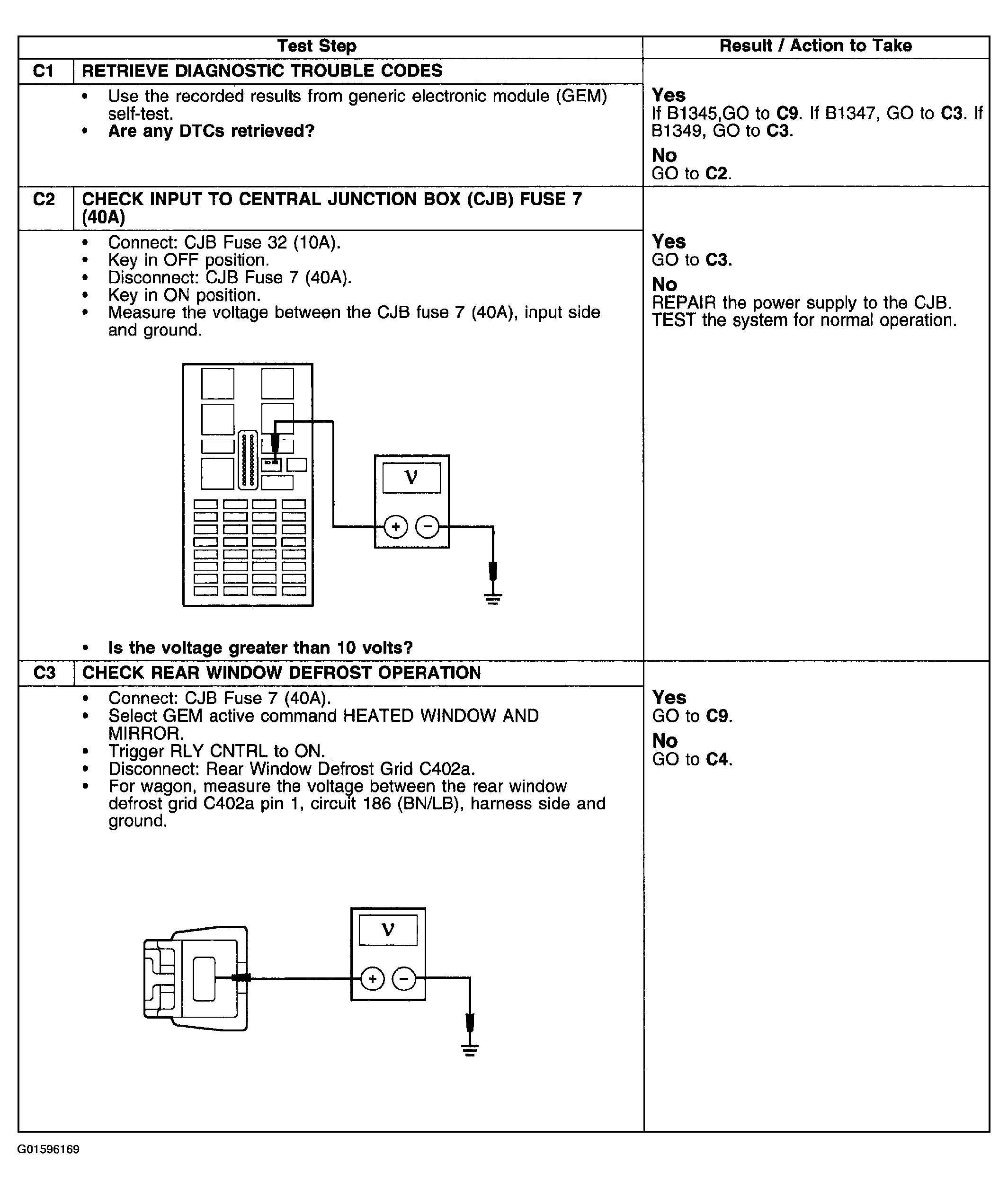

Fig 1: Pinpoint Test C: Defrost System Inoperative (Steps C1-C3)
Courtesy of FORD MOTOR CO.

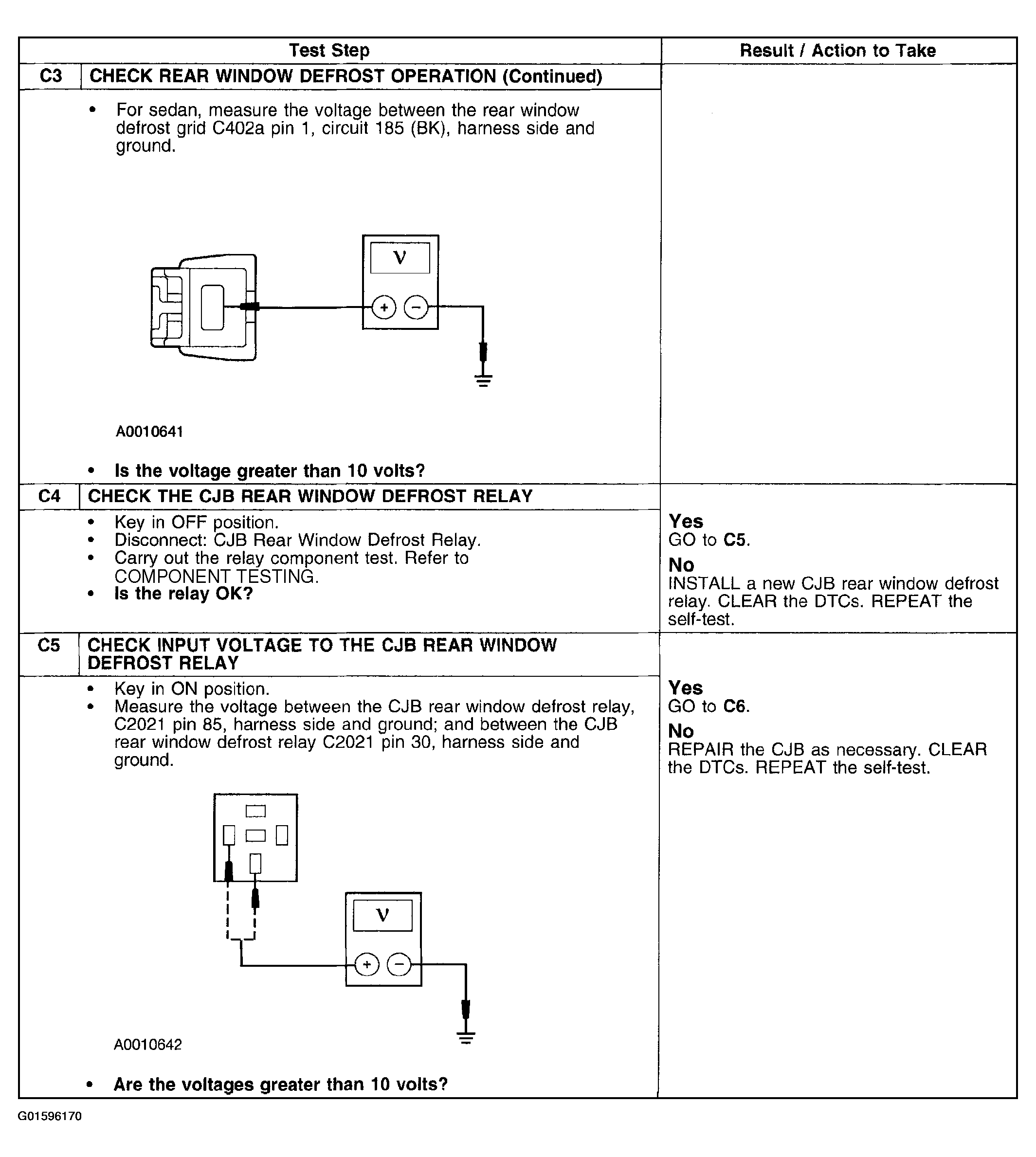

Fig 2: Pinpoint Test C: Defrost System Inoperative (Steps C3 Continued-C5)
Courtesy of FORD MOTOR CO.

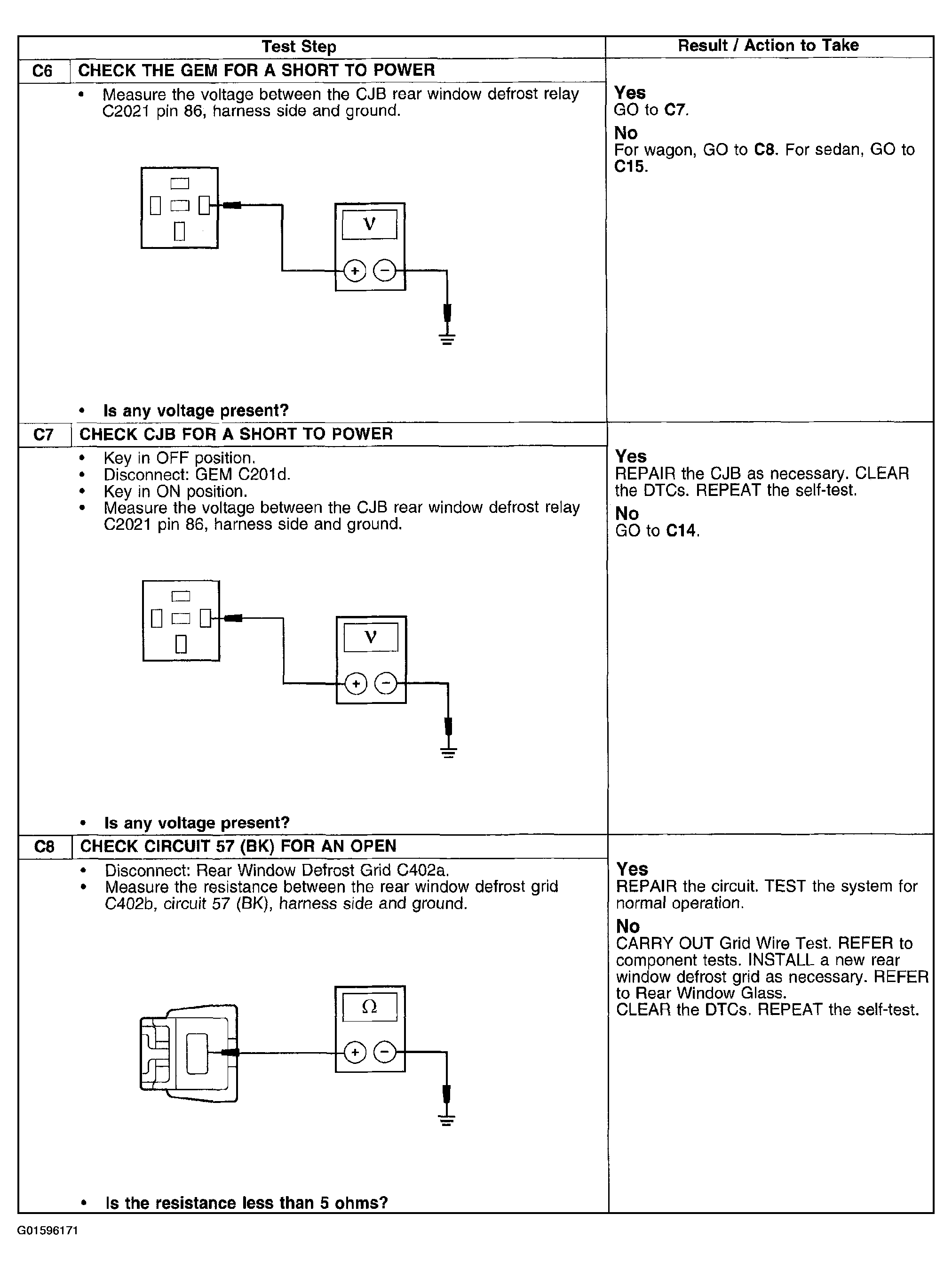

Fig 3: Pinpoint Test C: Defrost System Inoperative (Steps C6-C8)
Courtesy of FORD MOTOR CO.

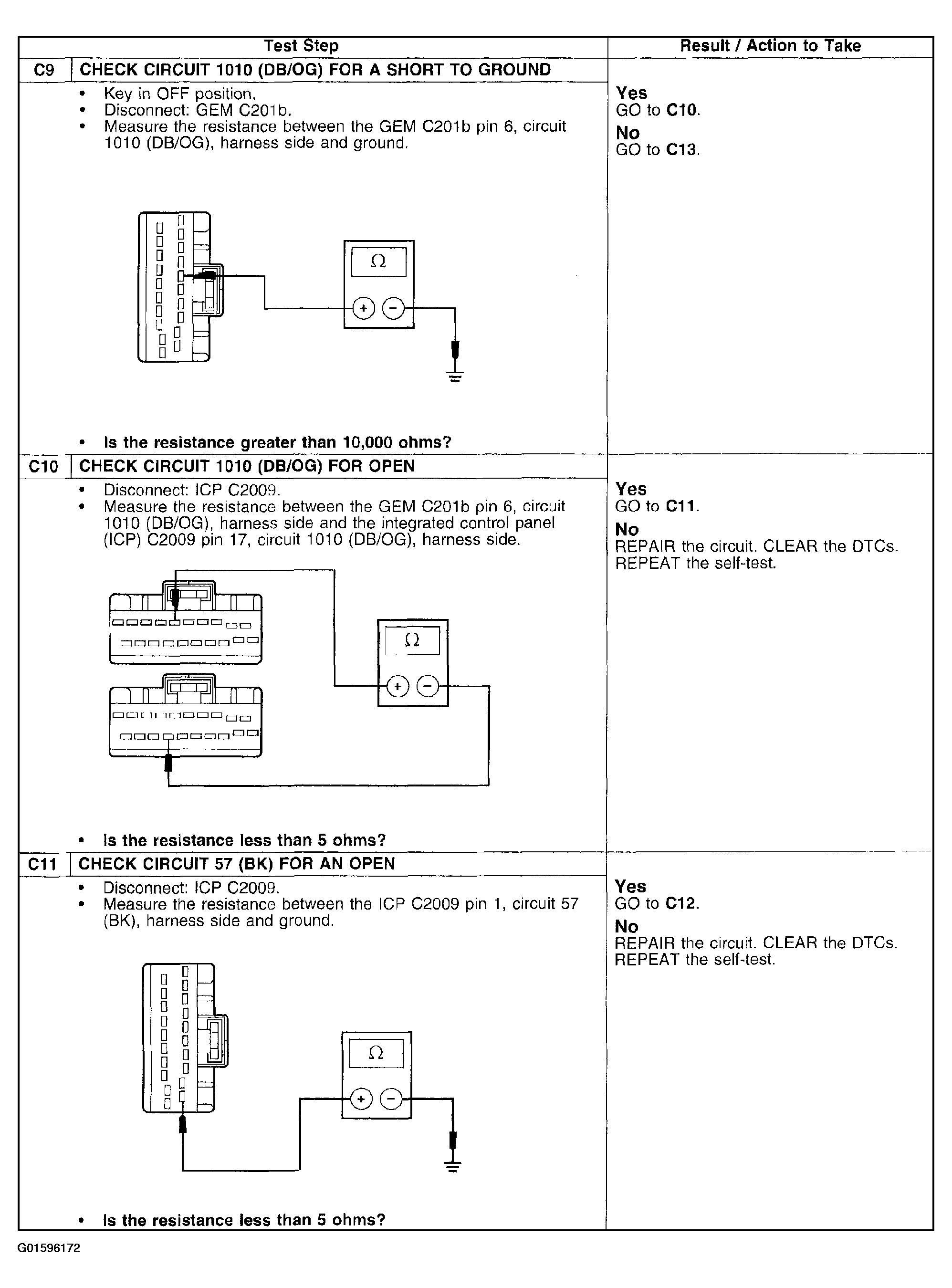

Fig 4: Pinpoint Test C: Defrost System Inoperative (Steps C9-C11)
Courtesy of FORD MOTOR CO.

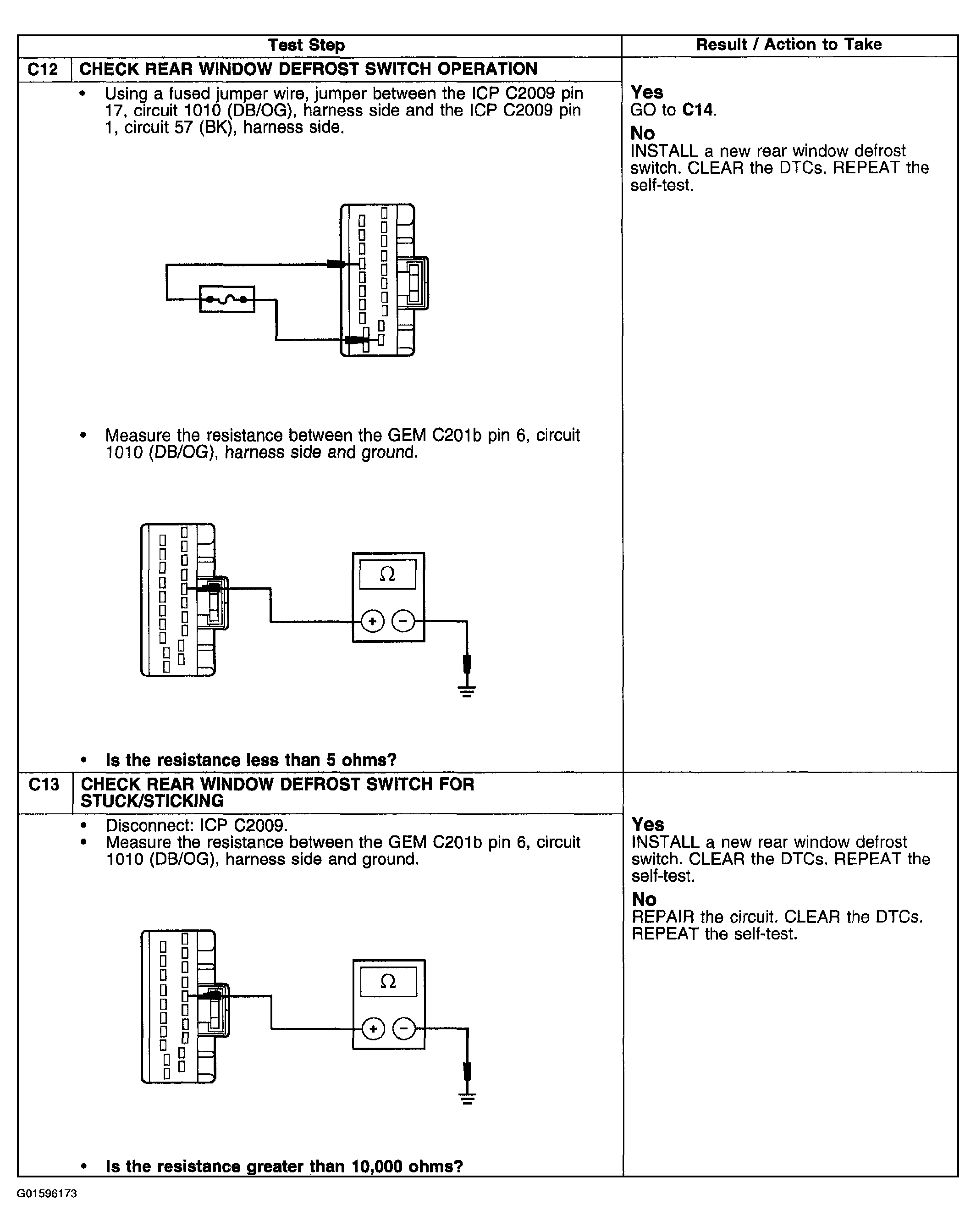

Fig 5: Pinpoint Test C: Defrost System Inoperative (Steps C12-C13)
Courtesy of FORD MOTOR CO.

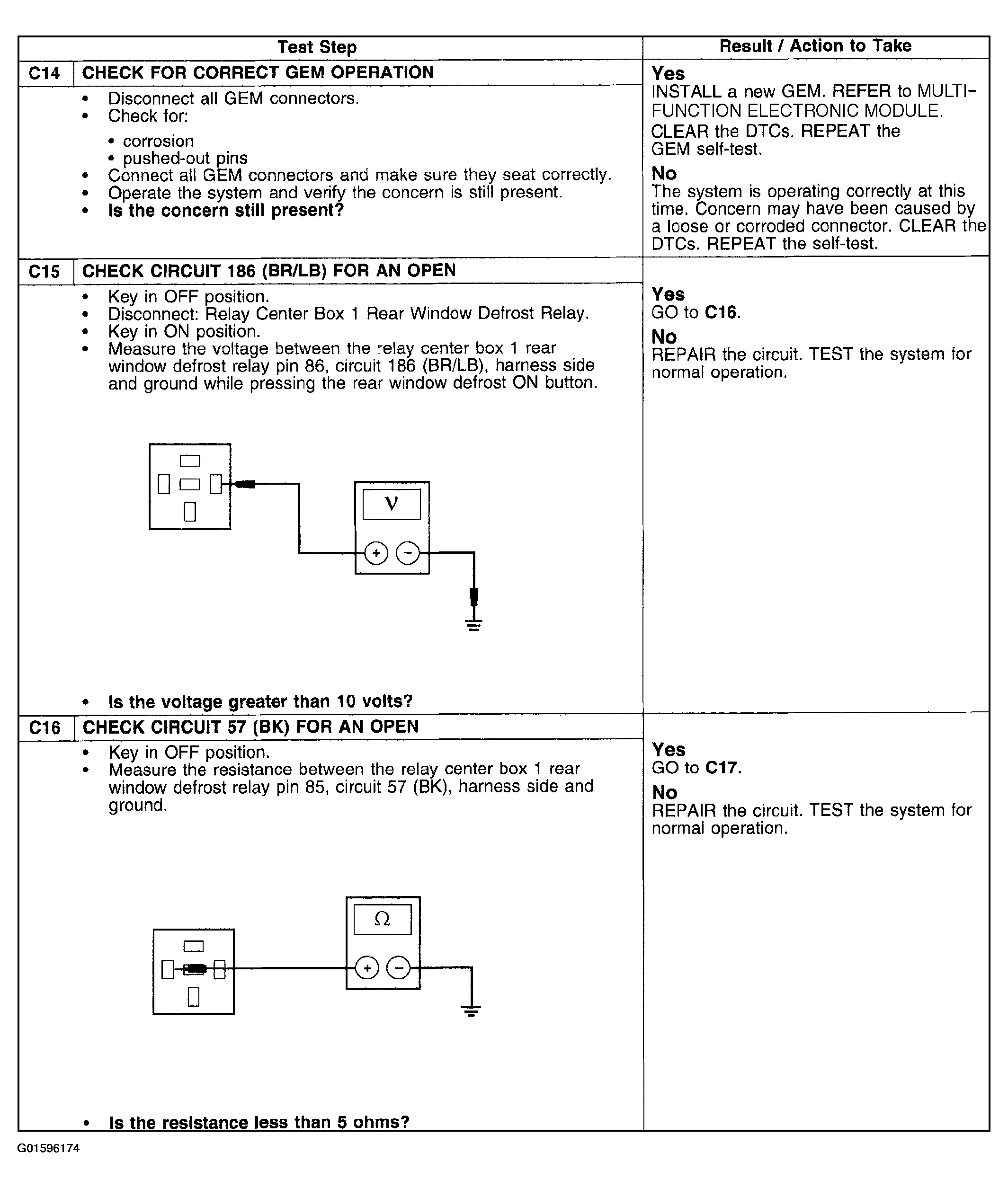

Fig 6: Pinpoint Test C: Defrost System Inoperative (Steps C14-C16)
Courtesy of FORD MOTOR CO.

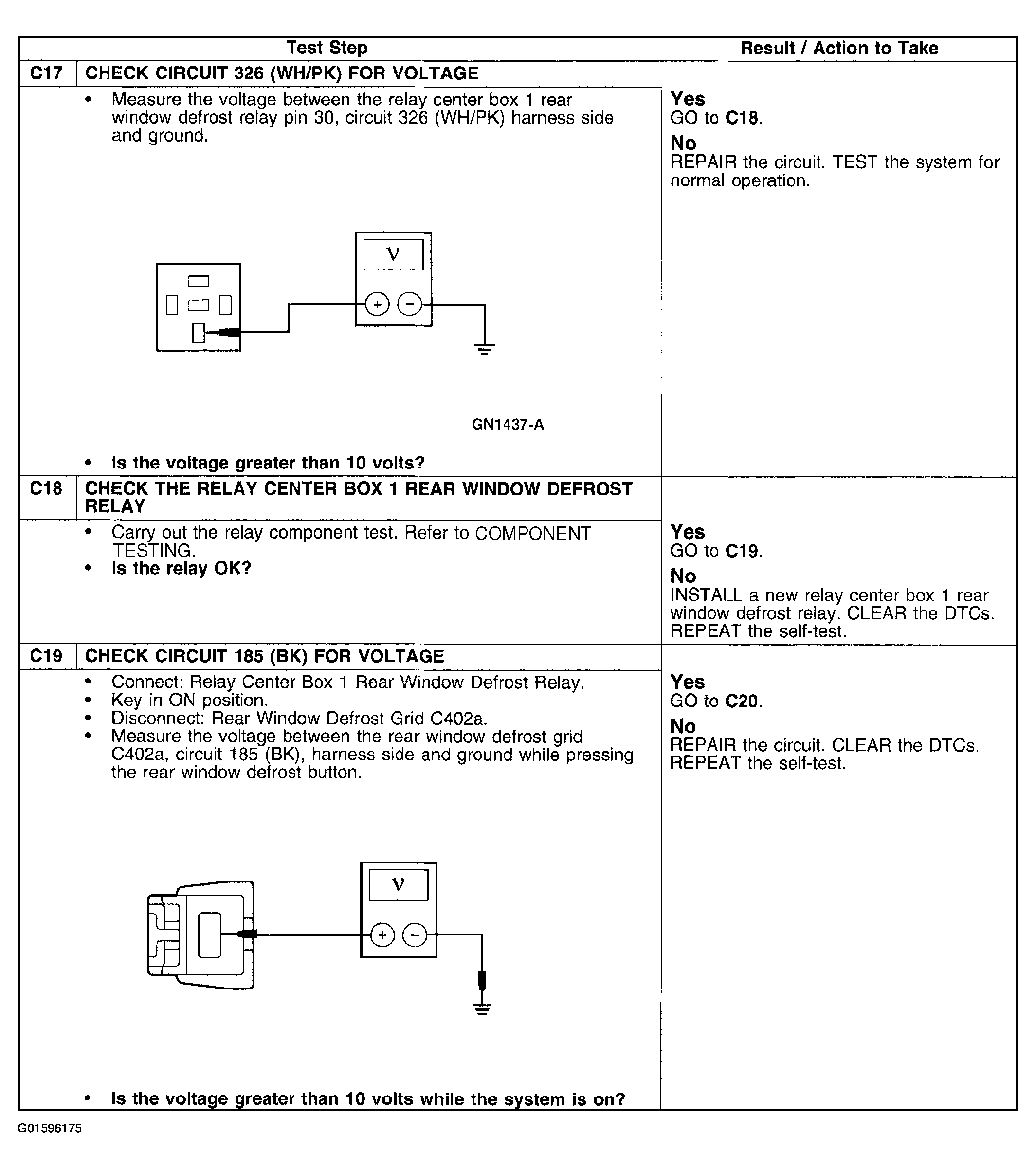

Fig 7: Pinpoint Test C: Defrost System Inoperative (Steps C17-C19)
Courtesy of FORD MOTOR CO.

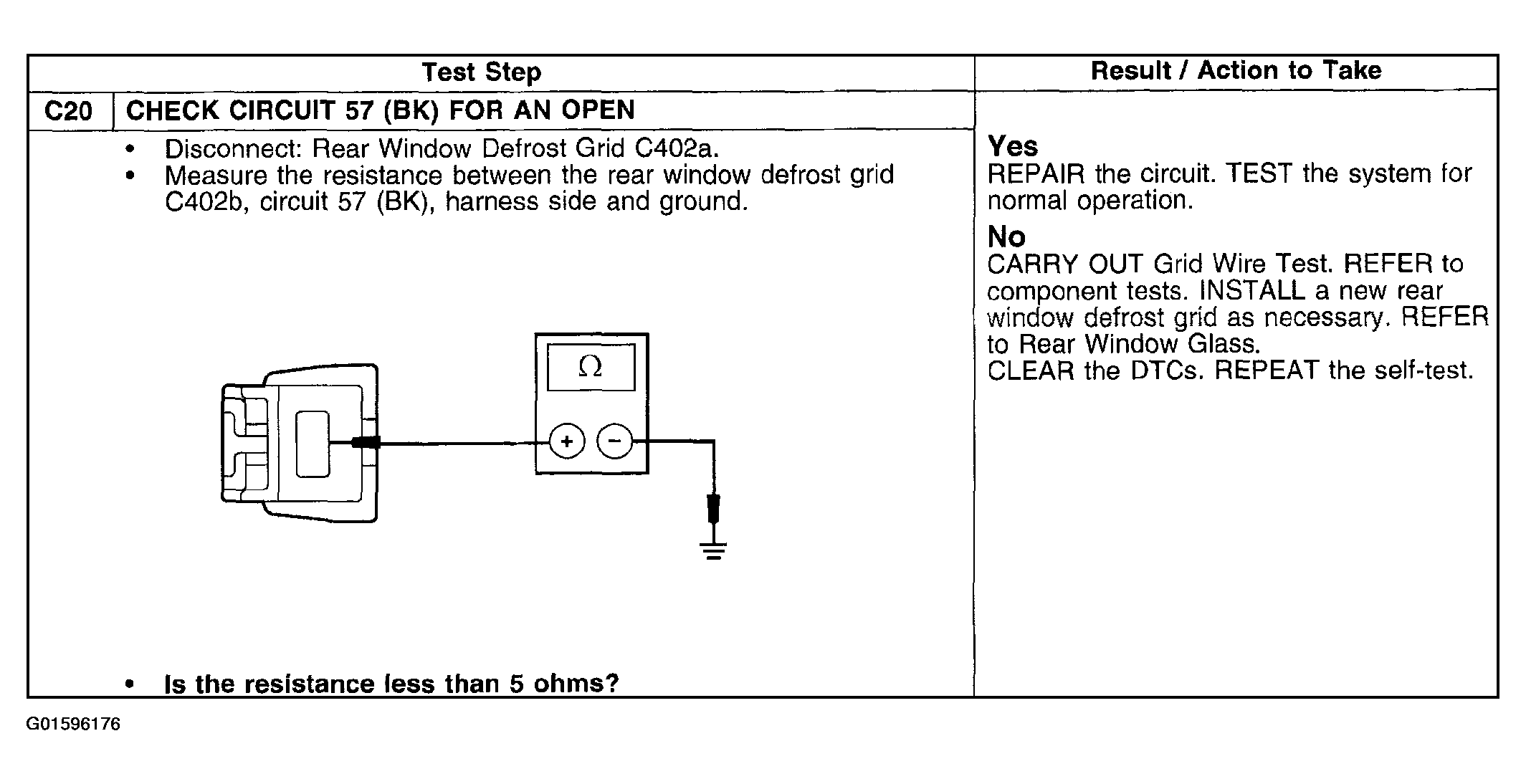

Fig 8: Pinpoint Test C: Defrost System Inoperative (Steps C20)
