Pinpoint Test B: One-Touch Down Feature Is Inoperative

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If DTCs B1302, B1304 or B1359 are present, repair these codes first.

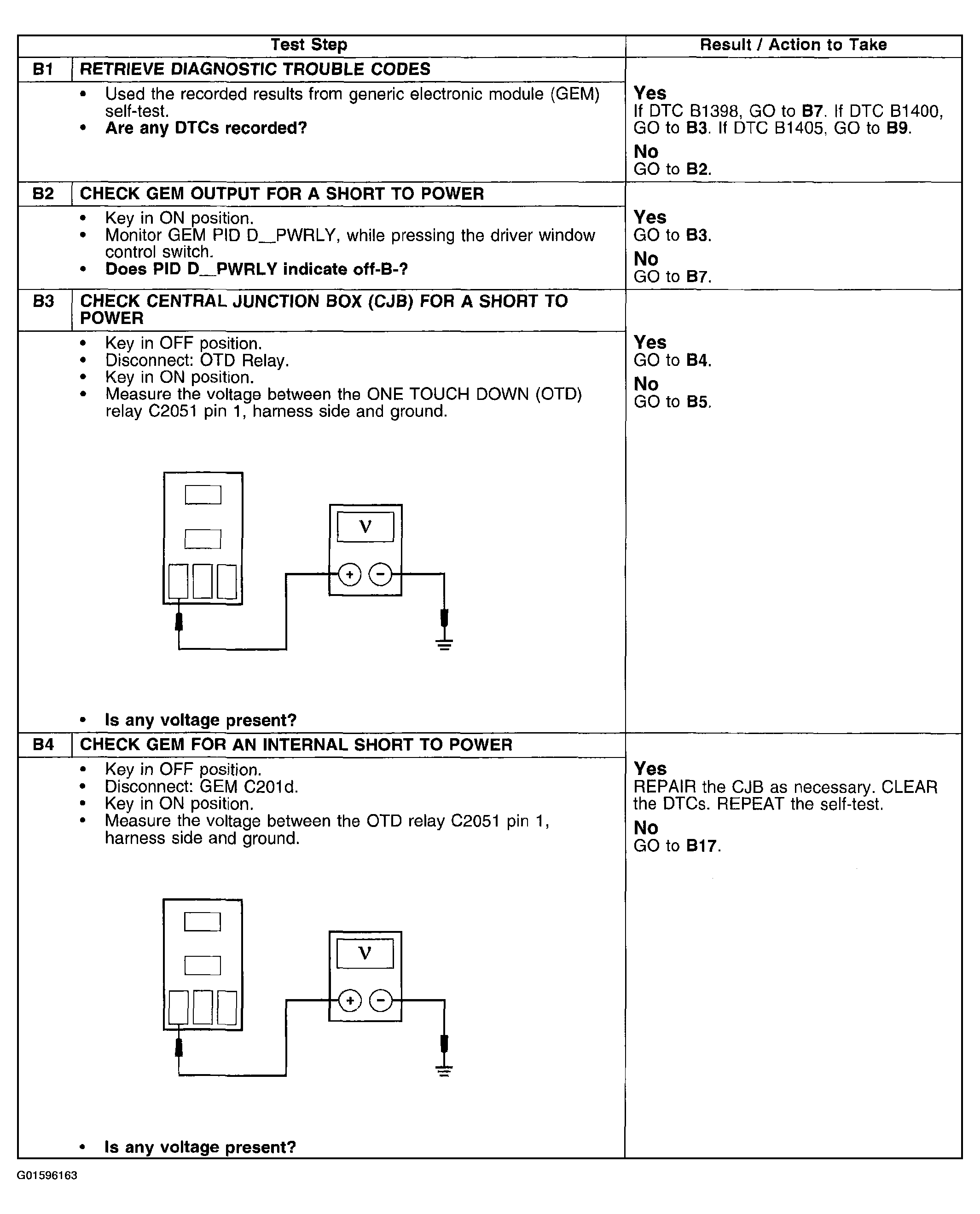

Fig 1: Pinpoint Test B: One-Touch Down Feature Inoperative (Steps B1-B4)

Courtesy of FORD MOTOR CO.

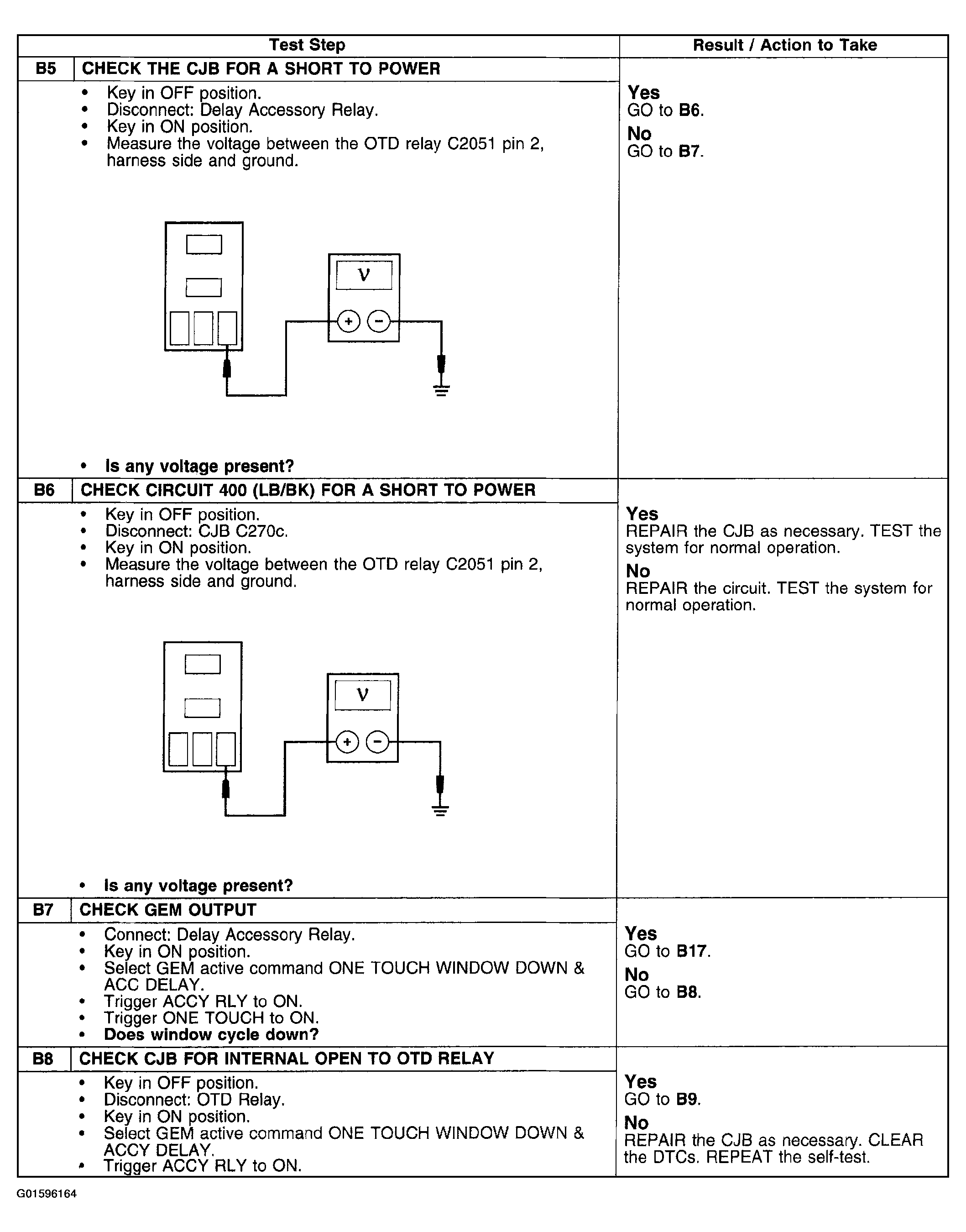

Fig 2: Pinpoint Test B: One-Touch Down Feature Inoperative (Steps B5-B8)

Courtesy of FORD MOTOR CO.

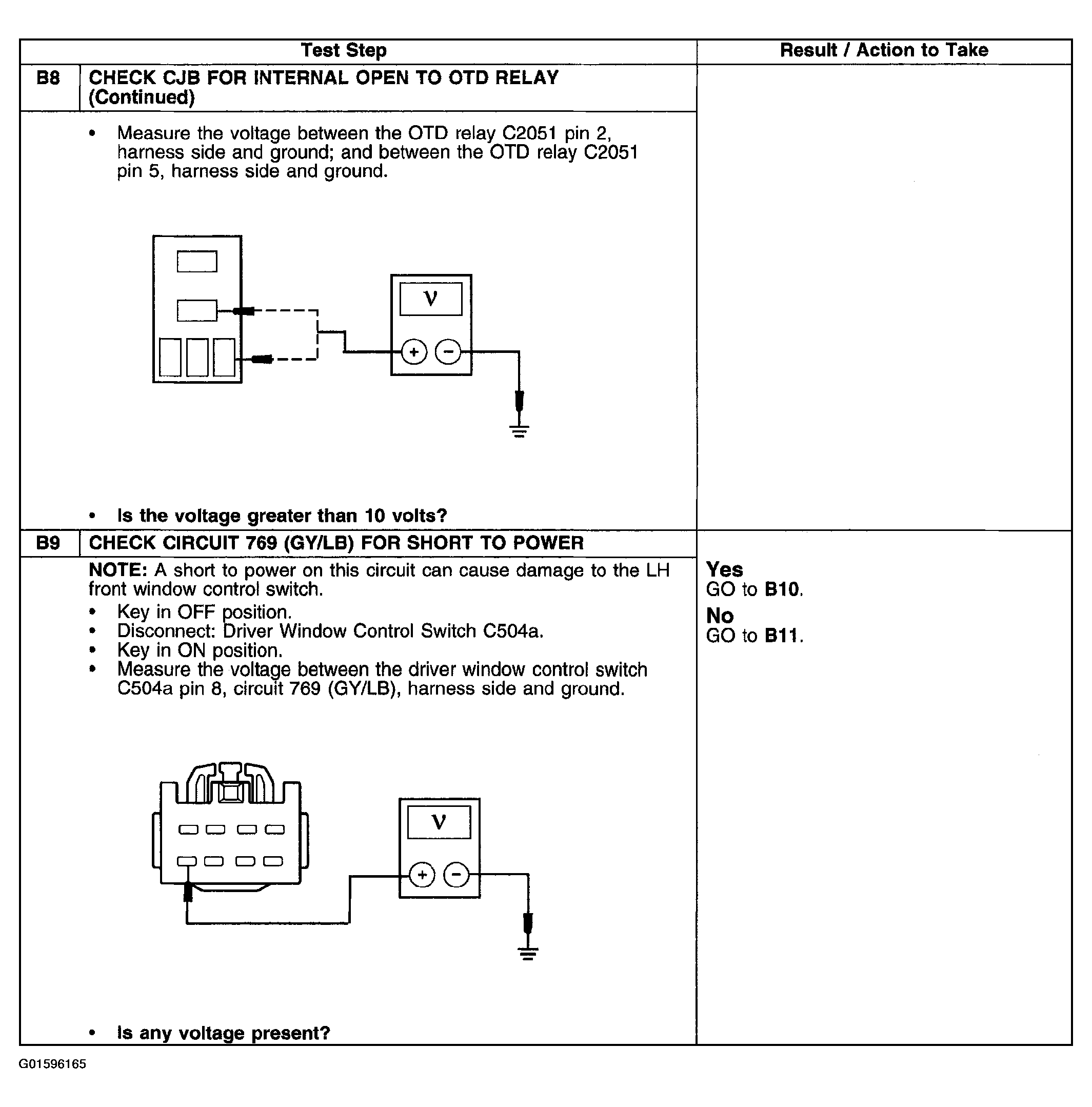

Fig 3: Pinpoint Test B: One-Touch Down Feature Inoperative (Steps B8 Continued-B9)

Courtesy of FORD MOTOR CO.

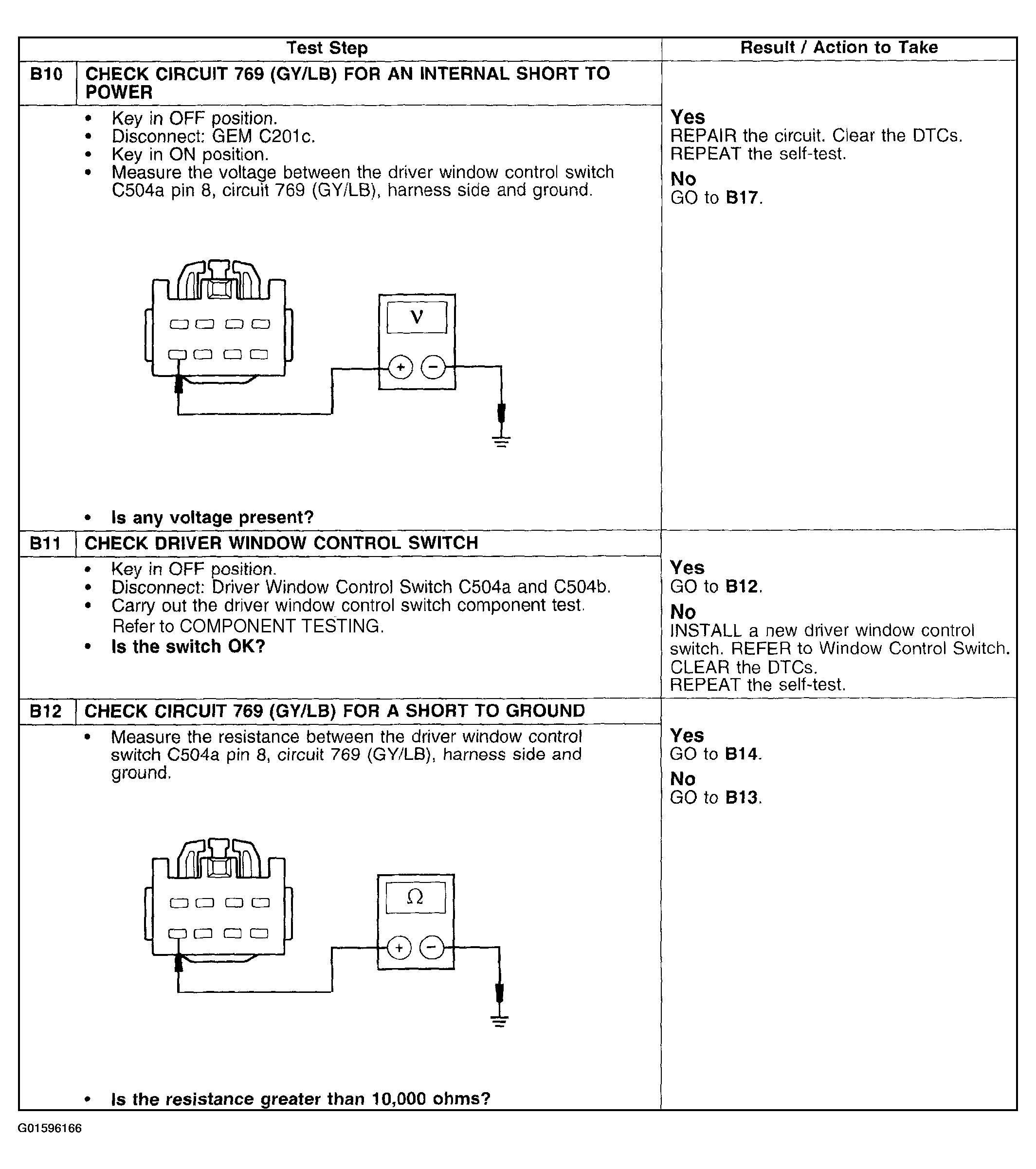

Fig 4: Pinpoint Test B: One-Touch Down Feature Inoperative (Steps B10-B12)

Courtesy of FORD MOTOR CO.

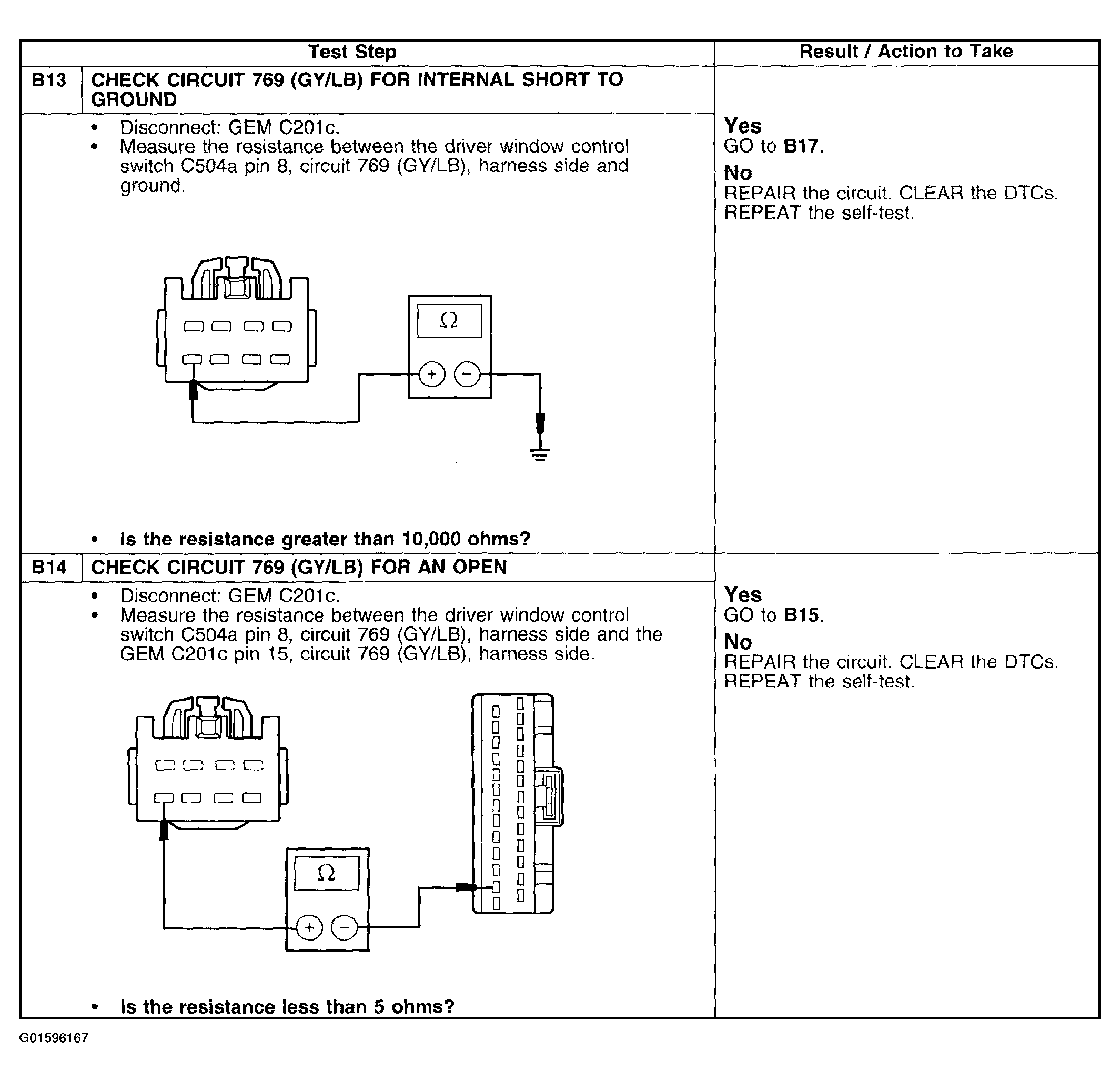

Fig 5: Pinpoint Test B: One-Touch Down Feature Inoperative (Steps B13-B14)

Courtesy of FORD MOTOR CO.

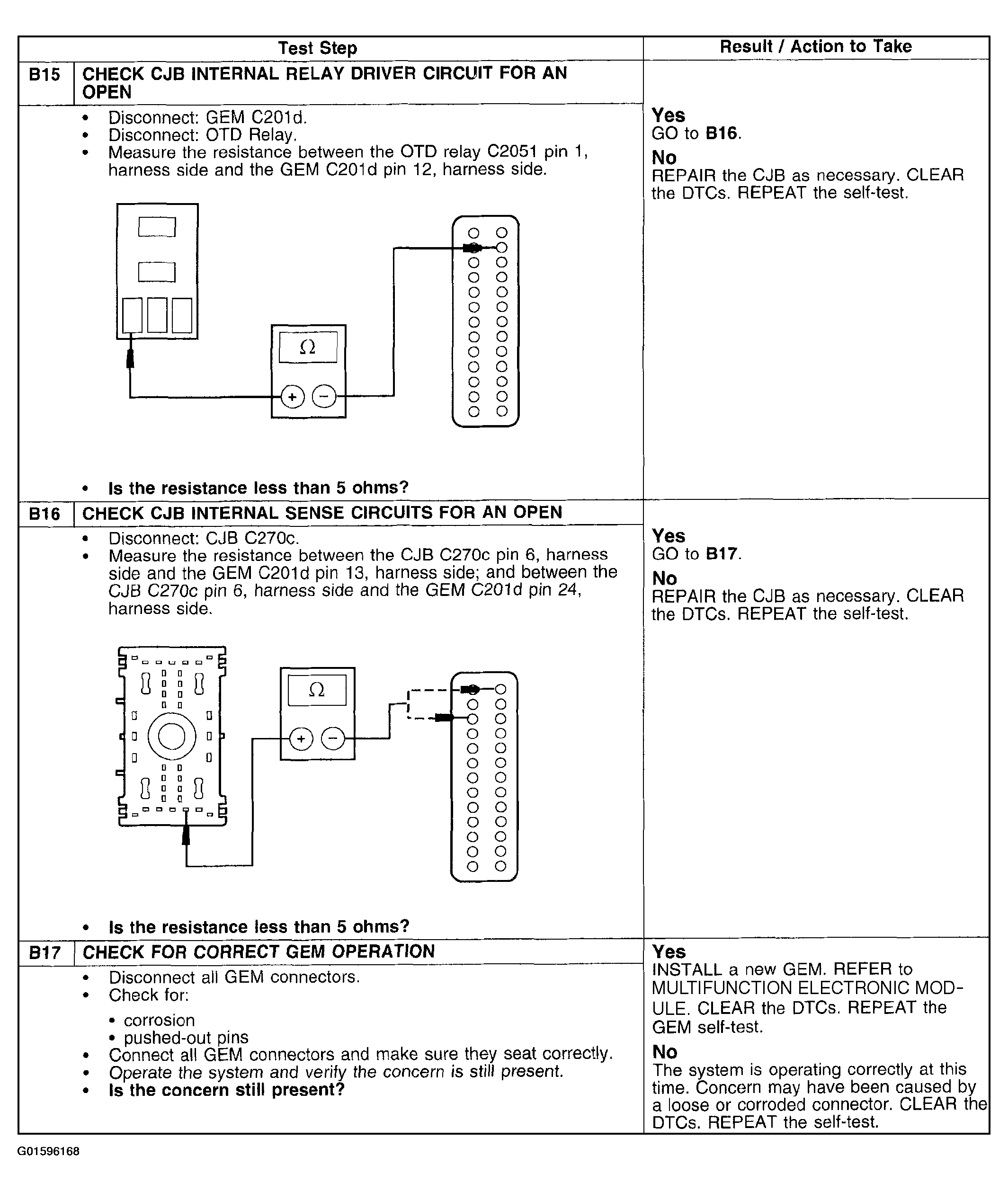

Fig 6: Pinpoint Test B: One-Touch Down Feature Inoperative (Steps B15-B17)

Courtesy of FORD MOTOR CO.
