Seat Track - Manual: Removal
WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an airbag module. This will reduce the risk of injury in the event of an accidental deployment.
WARNING:
After deployment, the air bag surface can contain deposits of sodium hydroxide, a product of the gas generant combustion that is irritating to the skin. Wash your hands with soap and water afterwards.
WARNING:
Never probe the connectors on the air bag module. Doing so can result in air bag deployment, which can result in personal injury.
- Disconnect the battery ground cable (14301) and wait at least one minute. For additional information, refer to BATTERY, MOUNTING AND CABLES .
- Deactivate the supplemental restraint system (SRS). For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEACTIVATION AND REACTIVATION .
- Remove the seat with the affected seat track. For additional information, refer to FRONT SEAT .
- Remove the seat backrest. For additional information, refer to FRONT SEAT BACKREST .

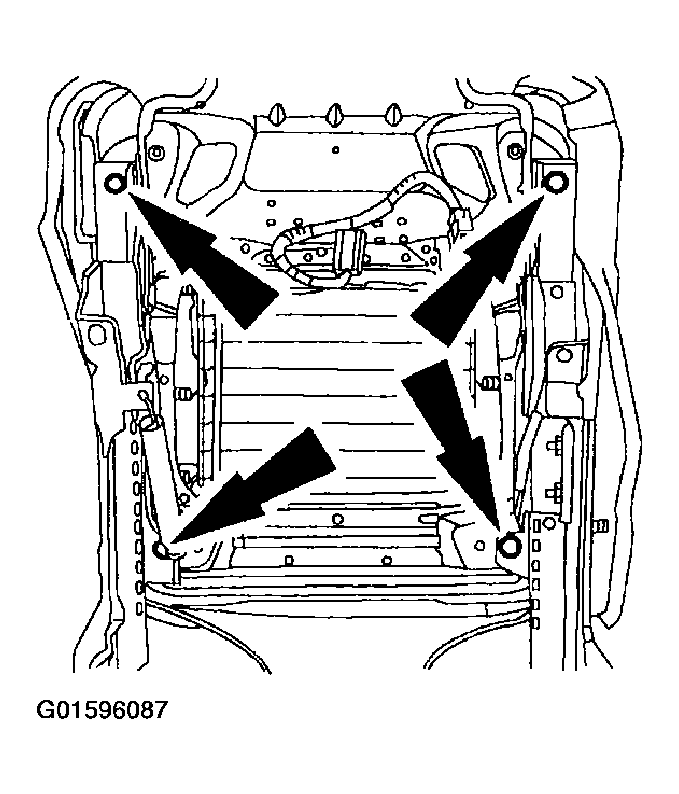

- Remove the bolts.
- Remove the seat track.
WARNING:
To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any front or side air bag supplemental restraint system (SRS) components and before servicing, replacing, adjusting or striking components near the front or side air bag sensors, such as doors, instrument panel, console, door latches, strikers, seats and hood latches.
The side impact sensors are located at or near the base of the B-pillar.
To deplete the backup power supply energy, disconnect the battery ground cable and wait at least one minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped).
The side impact sensors are located at or near the base of the B-pillar.
To deplete the backup power supply energy, disconnect the battery ground cable and wait at least one minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped).
WARNING:
To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes and instructions in the Supplemental Restraint System (SRS) Deactivation and Reactivation procedure.
WARNING:
To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes and instructions in the seat Removal and Installation procedure.
