Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply pressure to the lower front portion of the rear seat cushion pad and frame. Push the rear seat cushion pad and frame rearward to disengage the rear seat cushion front retainers. Lift upward on the rear seat cushion and remove.

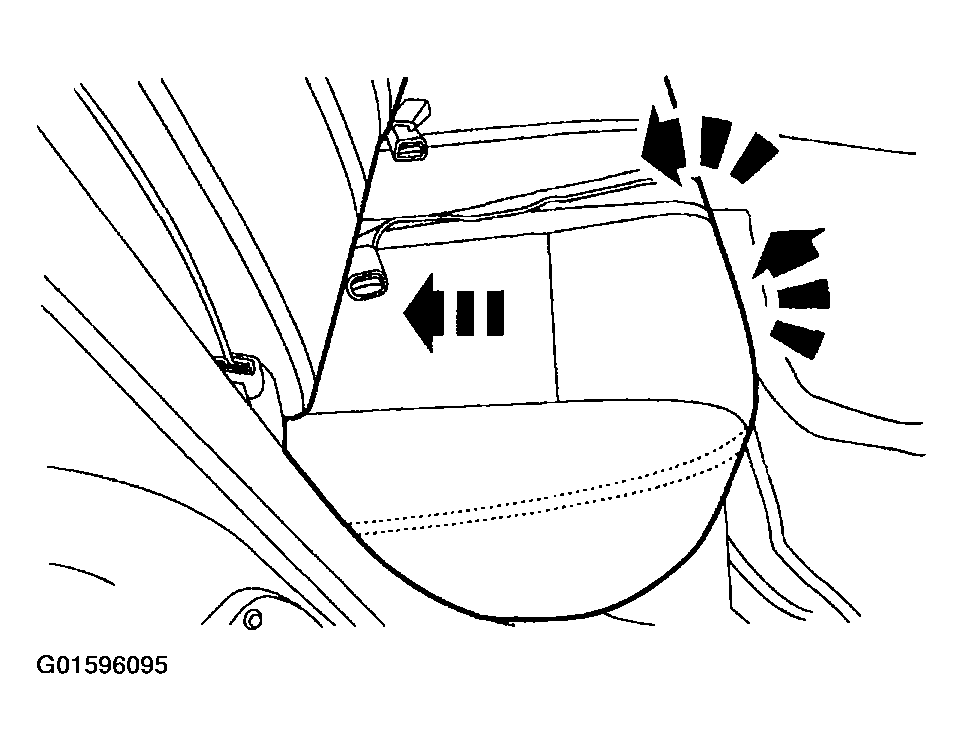

    Fig 1: Removing Rear Seat Cushion
    G01596095Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
  3. Make sure the safety belt webbing is not twisted prior to installation.
    Fig 2: Checking Safety Belt Webbing
    G01596096Courtesy of FORD MOTOR CO.
  4. Check the restraint system for correct operation.
