Removal and Installation
WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the seat cushion. For additional information, refer to REAR SEAT CUSHION .
- Remove the rear seat backrest. For additional information, refer to REAR SEAT BACKREST - FULL BACKREST, FOUR DOOR .
- Disassemble the rear seat backrest. For additional information, refer to REAR SEAT BACKREST - FULL BACKREST, FOUR DOOR .

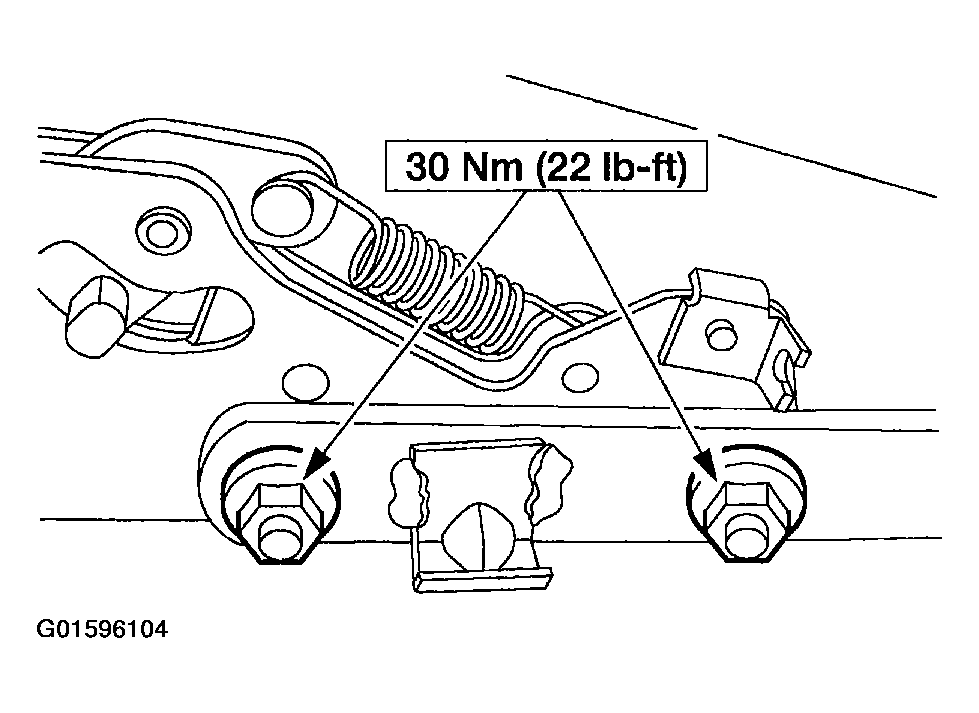

- Remove the bolts and the latch.
- To install, reverse the removal procedure.
- Check the restraint system for correct operation.
NOTE:
The 60 percent portion is shown, the 40 percent seat is similar.
NOTE:
Make sure the safety belt webbing is not twisted prior to installation.
