Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove and discard the pushpins.
    • During installation, install new pushpins.

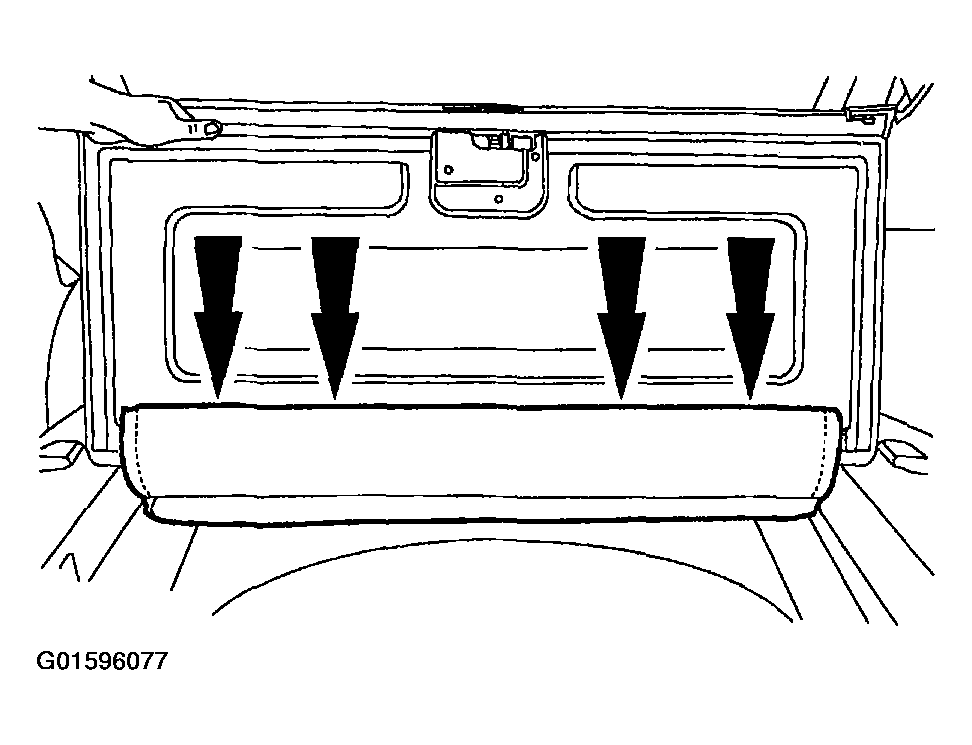

    Fig 1: Removing Pushpins
    G01596077Courtesy of FORD MOTOR CO.
  2. Release the retaining clips.
    Fig 2: Releasing Retaining Clips
    G01596078Courtesy of FORD MOTOR CO.
  3. Pull upward on the seat backrest and remove.

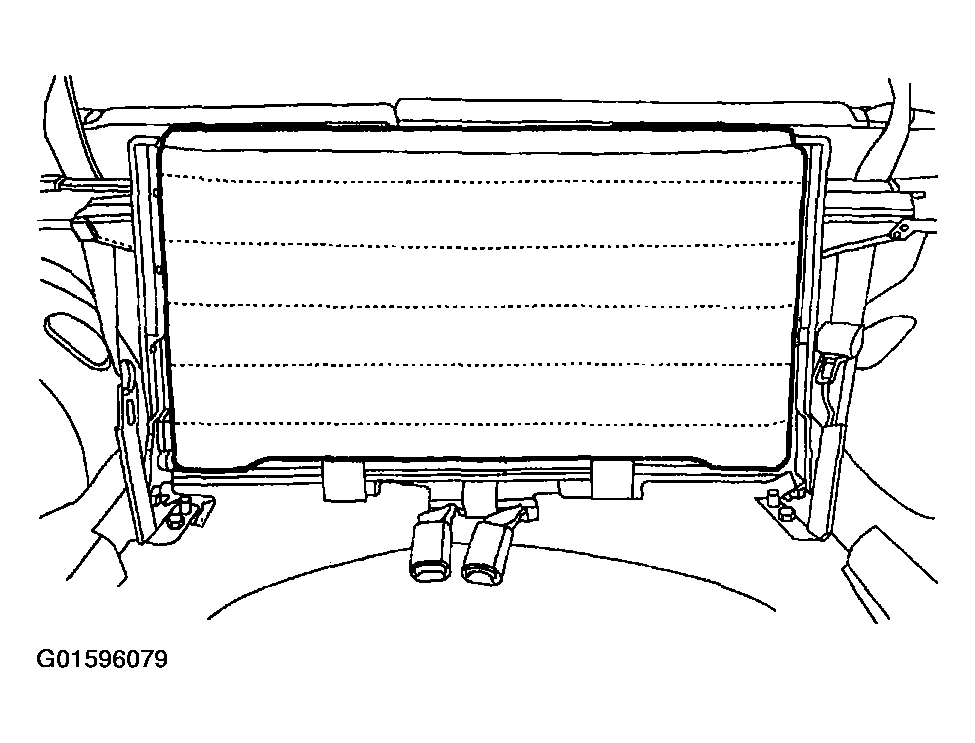

    Fig 3: Removing Seat Backrest
    G01596079Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
