Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Position the driver and passenger seat forward.
Remove the pushpins (one on each side).

Fig 1: Removing Pushpins
Courtesy of FORD MOTOR CO.
Remove the console tray.

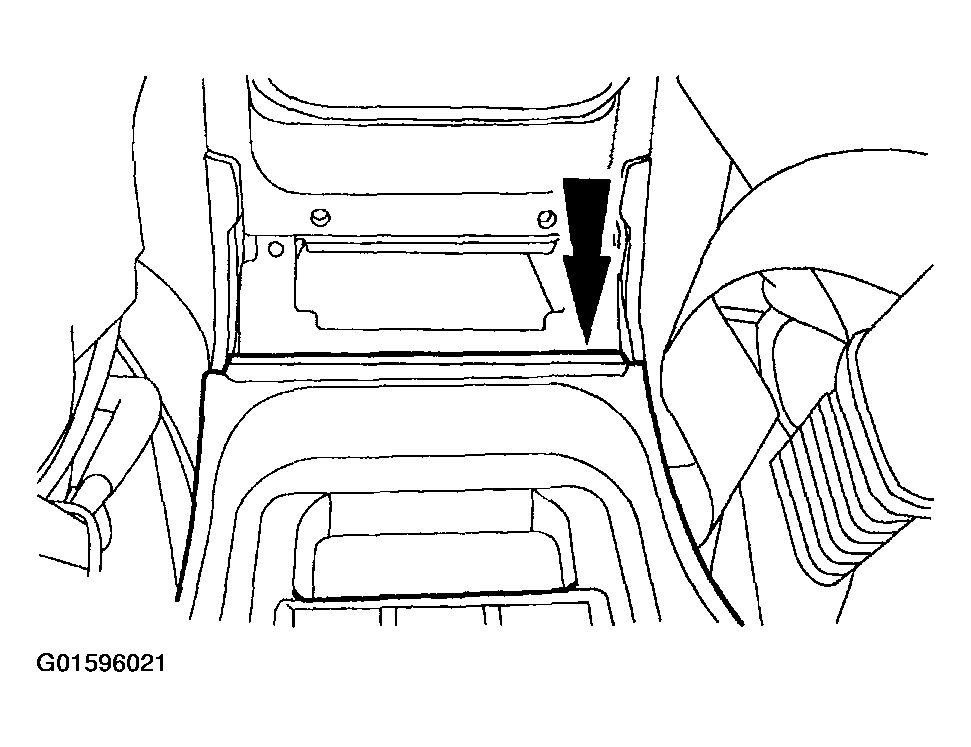

Fig 2: Removing Console Tray
Courtesy of FORD MOTOR CO.
Remove the bolts.

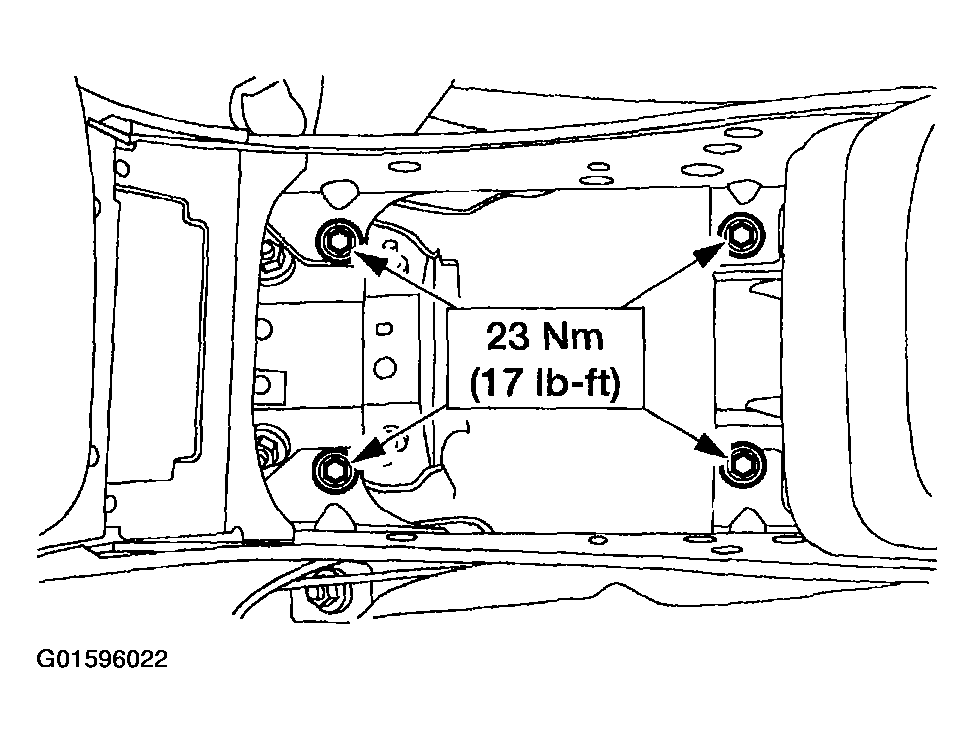

Fig 3: Removing Bolts
Courtesy of FORD MOTOR CO.
Remove the console.

NOTE: Make sure to position the safety belt and safety belt buckle correctly through the safety belt retaining strap.

To install, reverse the removal procedure.

Fig 4: Checking Position Of Safety Belt And Safety Belt Buckle

Courtesy of FORD MOTOR CO.
