Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Position the driver and passenger seat forward.
Remove the trim covers.

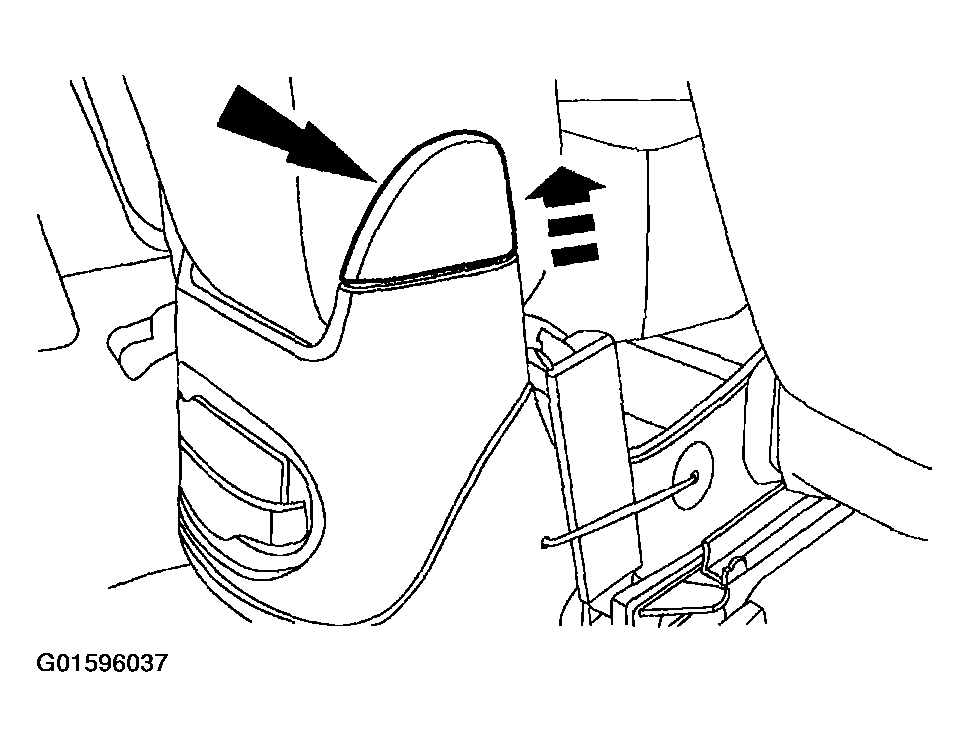

Fig 1: Removing Trim Covers
Courtesy of FORD MOTOR CO.
Remove the bolts and the backrest.

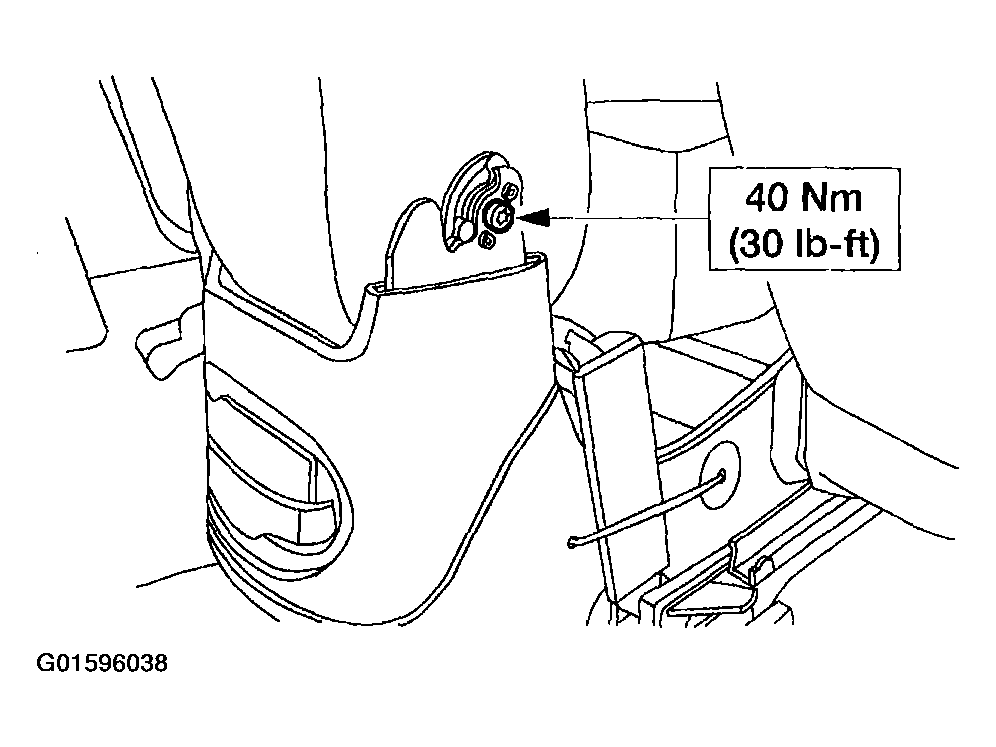

Fig 2: Removing Bolts And Backrest
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
