Disassembly and Assembly

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Remove the seat cushion. For additional information, refer to REAR SEAT CUSHION .
Remove the seat backrest. For additional information, refer to REAR SEAT BACKREST - 60/40 SPLIT BACKREST .
Unclip the J-clip.

Fig 1: Locating J-Clip
Courtesy of FORD MOTOR CO.

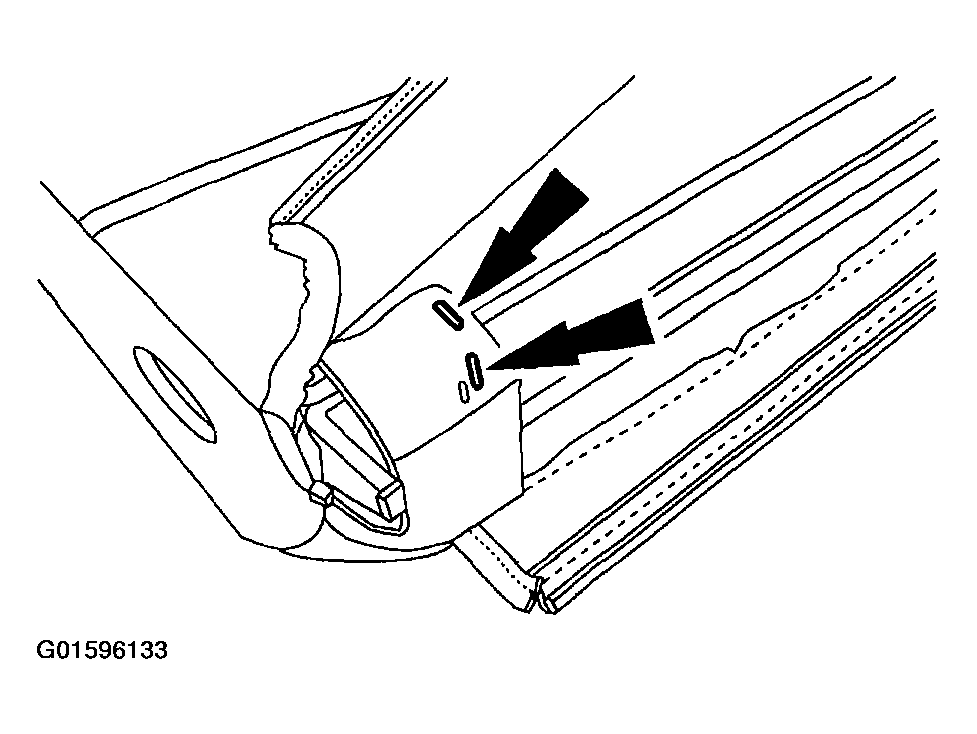

Remove the staples (RH side).

Fig 2: Removing Staples (RH Side)
Courtesy of FORD MOTOR CO.

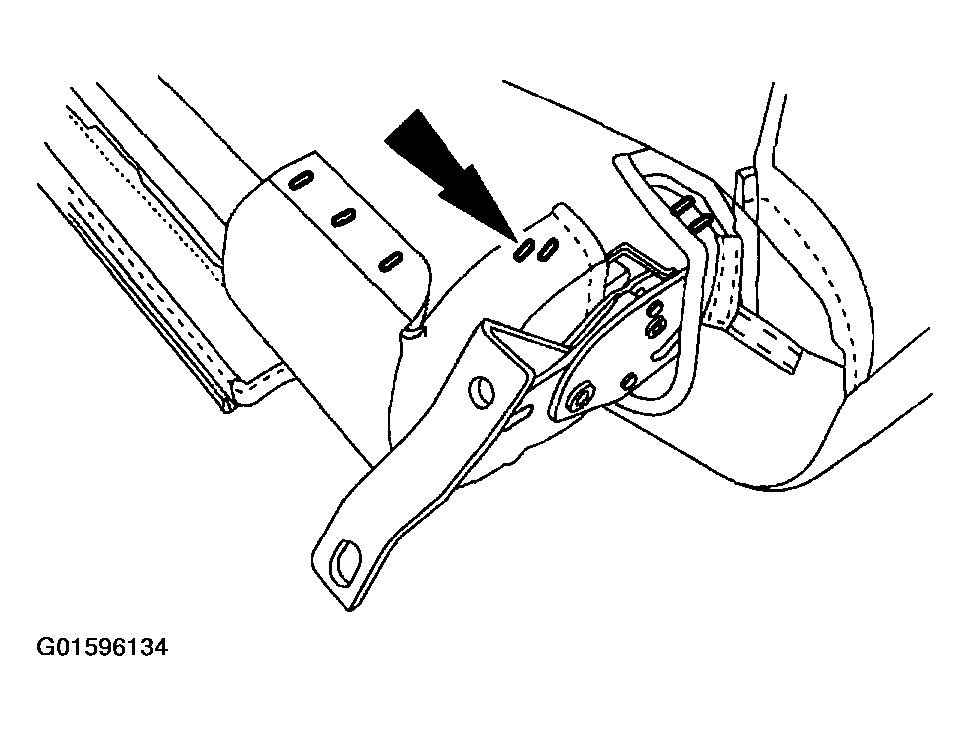

Remove the staples (LH side).

Fig 3: Removing Staples (LH Side)
Courtesy of FORD MOTOR CO.
Position the upholstery, and remove the hog rings.

Fig 4: Removing Hog Rings
Courtesy of FORD MOTOR CO.
Remove the pushpins.

Fig 5: Removing Pushpins
Courtesy of FORD MOTOR CO.

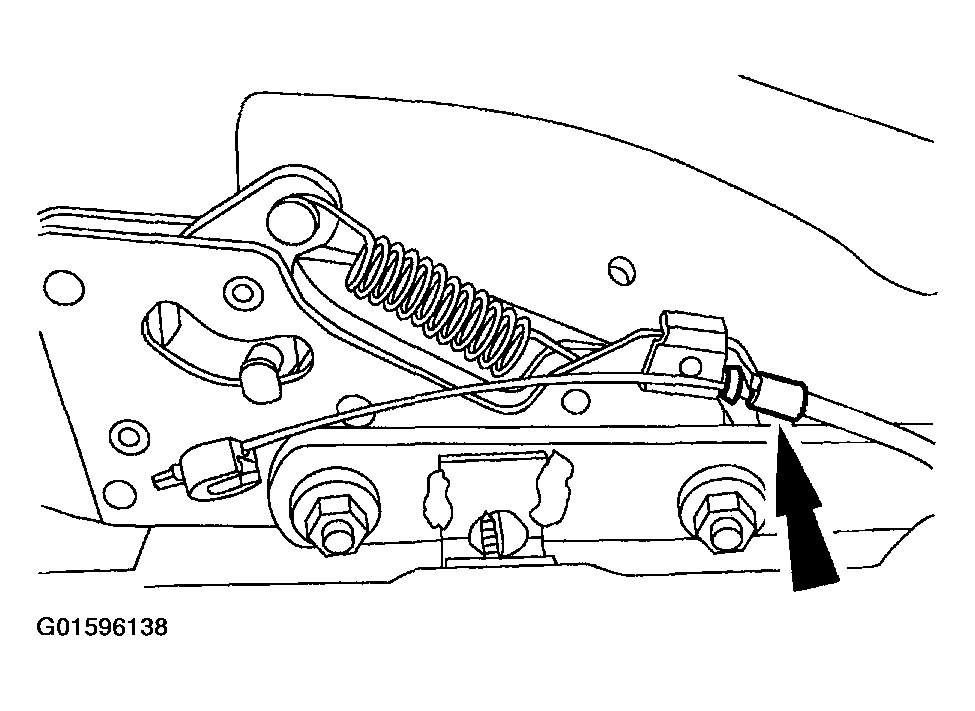

Unclip the cable from the retaining pin.

Fig 6: Removing Cable From Retaining Pin
Courtesy of FORD MOTOR CO.

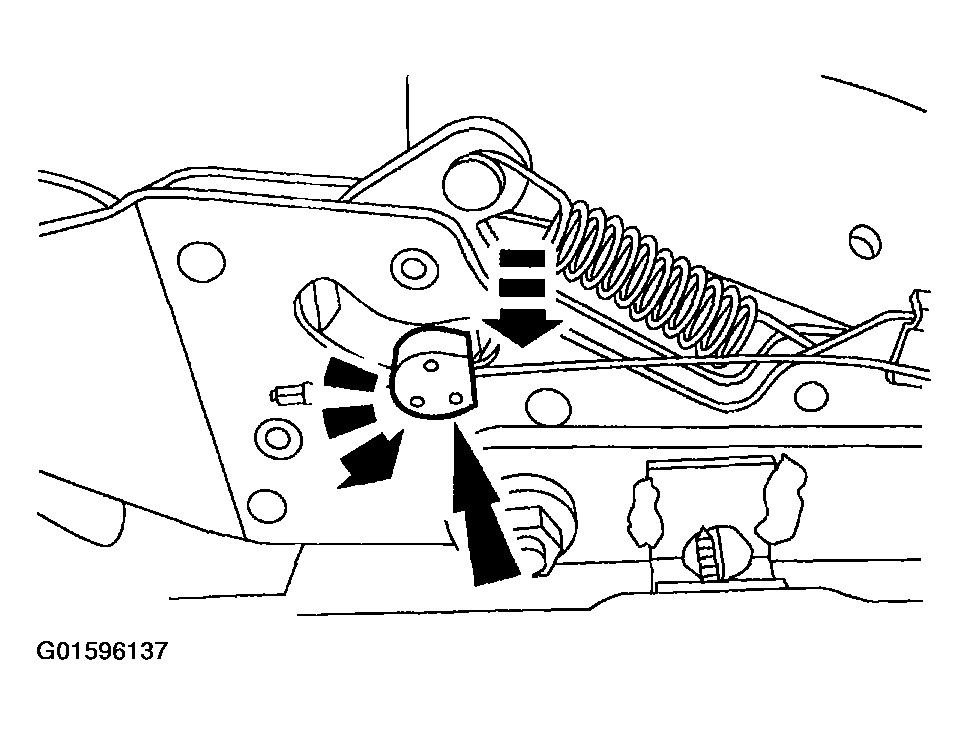

Unclip the cable.

Fig 7: Removing Cable
Courtesy of FORD MOTOR CO.

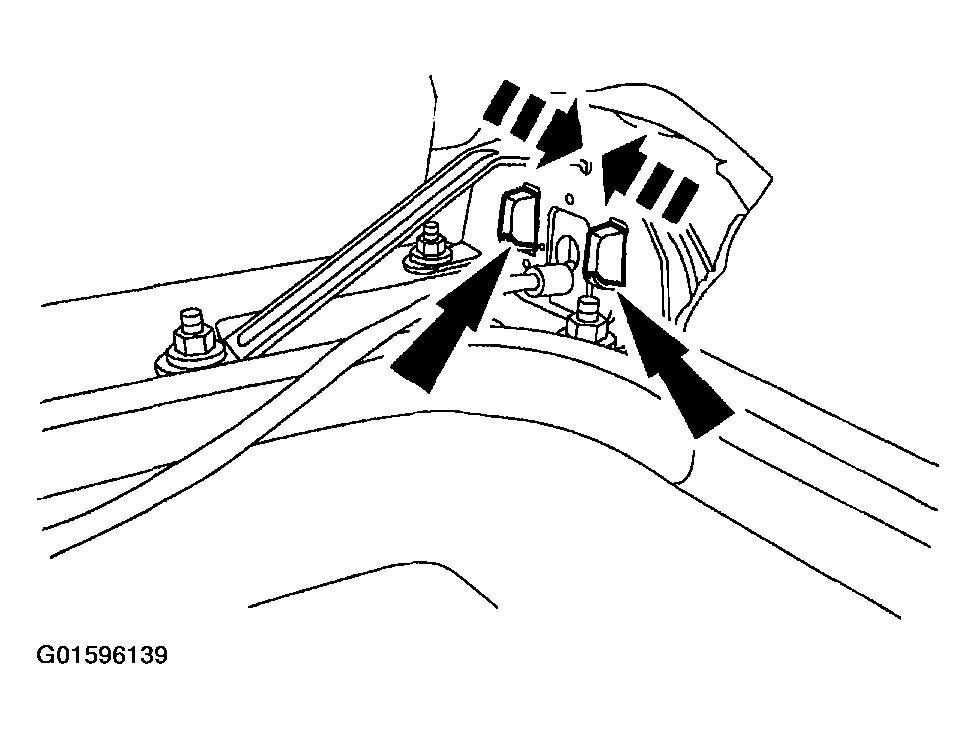

Depress the locking tabs.

Fig 8: Depressing Locking Tabs
Courtesy of FORD MOTOR CO.
Remove the cable and upholstery from the seat backrest.
Remove the staples, then the pad.

Fig 9: Removing Staples And Pad
Courtesy of FORD MOTOR CO.
Remove the nuts.

Fig 10: Removing Nuts
Courtesy of FORD MOTOR CO.
Remove the screws.

Fig 11: Removing Screws
Courtesy of FORD MOTOR CO.
To assemble, reverse the disassembly procedure.
