Front Seat Cushion: Assembly
WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
To reduce the risk of serious personal injury, read and follow all warnings, cautions and notes at the beginning of the disassembly procedure.
- Position the upholstery to the pad. Install the center hog rings.

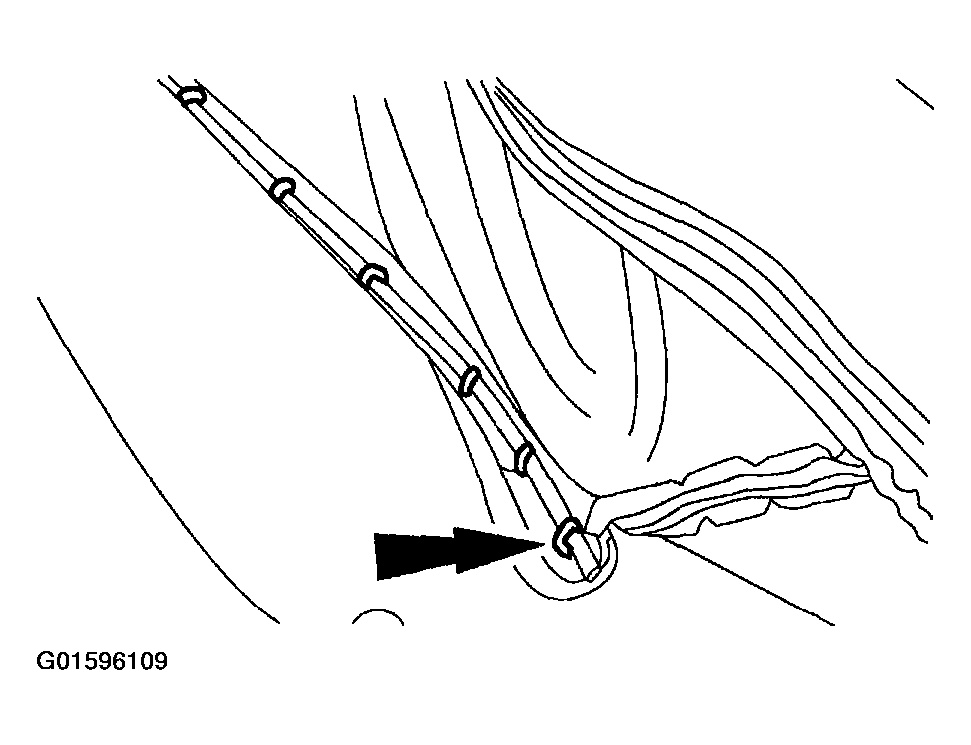

- Position the upholstery, then install the hog rings (seven per side).

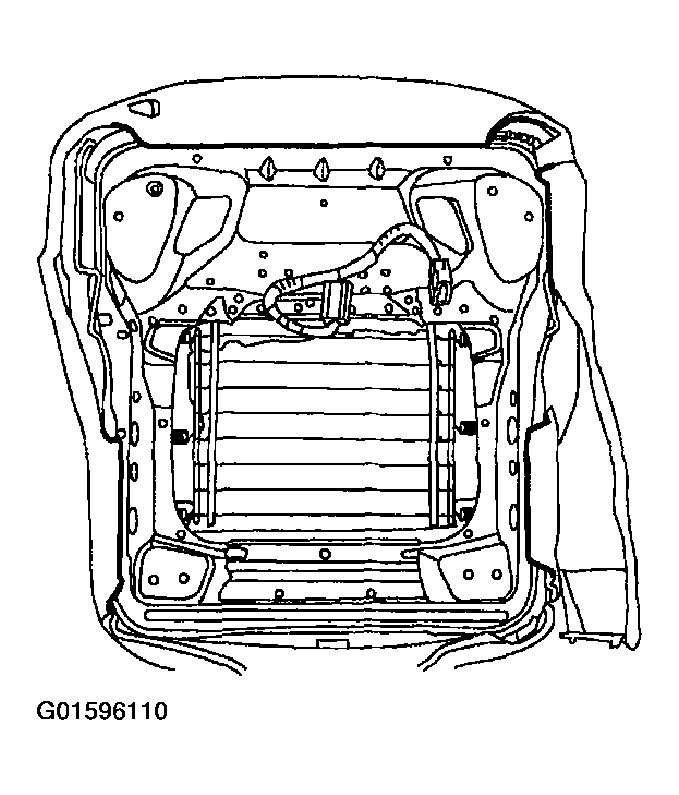

- Install the seat cushion frame.
- Fasten the J-clips and install the wire harness (if equipped).
- Install the seat track. For additional information, refer to SEAT TRACK - MANUAL or SEAT TRACK - POWER .
- Install the seat backrest. For additional information, refer to FRONT SEAT BACKREST .
- Install the driver seat. For additional information, refer to FRONT SEAT .
- Reactivate the supplemental restraint system (SRS). For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEACTIVATION AND REACTIVATION .
- With all the restraint system diagnostic tools removed, prove out the supplemental restraint system (SRS). For additional information, refer to AIR BAG RESTRAINT SYSTEMS .
- Check the active restraint system for correct operation. For additional information, refer to SAFETY BELT SYSTEM .
WARNING:
To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes and instructions in the Front Seat Removal and Installation procedure.
WARNING:
To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes and instructions in the Supplemental Restraint System (SRS) Deactivation and Reactivation procedure.
WARNING:
The restraint system diagnostic tool is for restraint system service only. Remove from the vehicle prior to road use. Failure to remove could result in injury and possible violation of the vehicle safety standards.
